Lenovo 11JN0096CA ThinkCentre M75q Gen 2 Tiny Desktop - AMD Ryzen 5 PRO 5650GE - 16 GB RAM - 256 GB NVMe SSD - Windows 11 Pro French
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkCentre M75q Gen 2 is the AMD Ryzen 5 PRO 5650GE processor, a hexa-core CPU with a base clock of 3.40 GHz and turbo speeds up to 4.40 GHz. This processor is paired with the AMD PRO 500 chipset, providing a stable platform for business computing. The system includes 16 GB of DDR4 SDRAM configured as two 8 GB modules, supporting smooth operation of multiple applications simultaneously.
Storage is handled by a 256 GB PCI Express NVMe SSD in the M.2 form factor, delivering fast boot times, quick application launches, and responsive file access. Graphics are powered by integrated AMD Radeon Graphics with shared DDR4 memory, capable of handling HD video playback, photo editing, and office applications.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkCentre M75q Gen 2 excels in environments where space efficiency and reliable performance are critical. Its tiny design allows flexible placement on desks, behind monitors, or in mounted configurations, while maintaining full desktop capabilities.
Compact Powerhouse
Despite its small size (1.46" H x 7.05" W x 7.20" D), this desktop delivers robust processing with the AMD Ryzen 5 PRO 5650GE and 16 GB of RAM, making it ideal for space-constrained offices.
- Saves desk space
- Full desktop performance
- Easy to position
Modern Connectivity

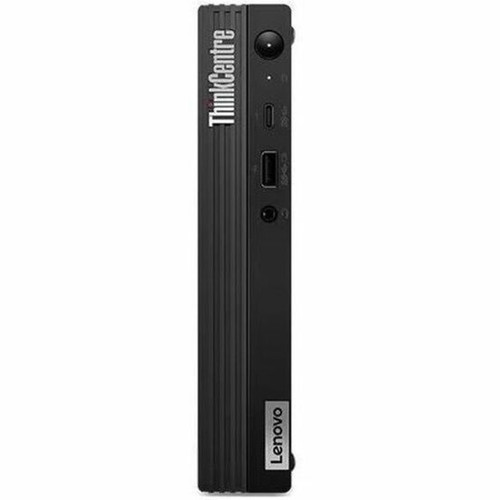

Stay connected with Gigabit Ethernet for wired networking, Wi-Fi 6 (802.11ax) for fast wireless, Bluetooth for peripherals, and six USB ports including a front USB-C port for convenient device charging and data transfer.
- Wi-Fi 6 support
- Front USB-C
- Multiple USB ports
Business-Ready Security
Includes a security slot for physical protection and comes with Windows 11 Pro, offering enhanced security features for business environments, along with energy-efficient certifications like ENERGY STAR 8.0.
- Security slot
- Windows 11 Pro
- Energy efficient
Deployment / Use Cases
This Tiny Desktop is designed for professional settings where reliable computing power must fit into limited spaces. Its combination of performance, connectivity, and compact design makes it suitable for various business applications.
Ideal for front-office workstations, point-of-sale systems, digital signage controllers, or as a compact server for small offices. The easy internal access facilitates hardware upgrades, allowing organizations to expand memory or storage as needs evolve.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Office Workstation
Perfect for general office tasks, running productivity software, web browsing, and communication applications with consistent performance.
- Productivity applications
- Multitasking
- Everyday computing
Space-Constrained Environments
Excellent for reception desks, medical offices, retail counters, or classrooms where desk space is limited but full computing capability is required.
- Small footprint
- Flexible placement
- Quiet operation
Localization and Operating System
This system comes pre-installed with Windows 11 Pro in French, providing a localized operating system experience right out of the box. The French keyboard localization ensures seamless integration into French-speaking work environments.
Windows 11 Pro offers business-focused features including BitLocker encryption, remote desktop capabilities, and enhanced security controls, making this desktop suitable for professional use where data protection and management are priorities.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.

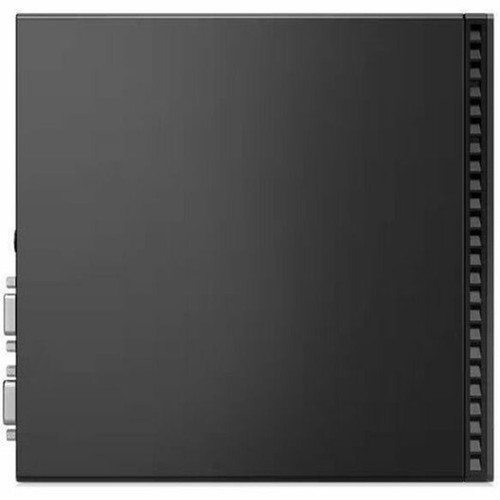

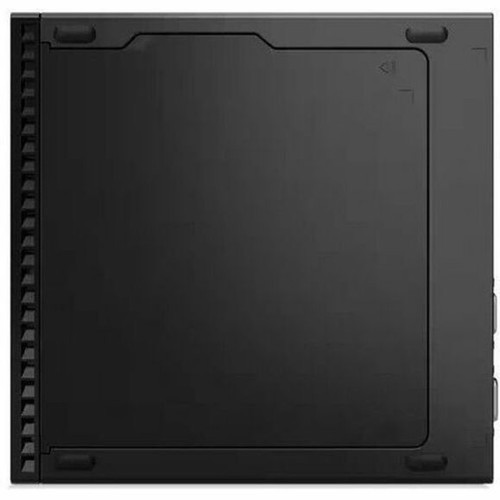

Physical Profile
The ThinkCentre M75q Gen 2 features a Tiny form factor measuring just 1.46 inches in height, 7.05 inches in width, and 7.20 inches in depth. Weighing approximately 2.76 pounds, it's lightweight yet durable with a black finish that blends into professional environments.
The compact design allows for vertical or horizontal placement and includes a vertical stand in the package. Its small footprint makes it easy to mount behind monitors or tuck away in tight spaces while maintaining accessibility to ports and expansion capabilities.
- Width
- 7.05" (179 mm)
- Depth
- 7.20" (183 mm)
- Height
- 1.46" (37 mm)
- Weight
- 2.76 lb (1250 g)
What's in the Box
The package includes everything needed for immediate setup and operation.
Highlights
- AMD Ryzen 5 PRO 5650GE hexa-core processor with turbo up to 4.40 GHz
- 16 GB DDR4 RAM (2 x 8 GB) for smooth multitasking
- 256 GB PCIe NVMe SSD for fast boot and application loading
- Windows 11 Pro pre-installed in French with business features
- Tiny form factor saves space while delivering full desktop performance
- Gigabit Ethernet, Wi-Fi 6 (802.11ax), and Bluetooth connectivity
- Six USB ports including front USB-C for convenient access
- AMD Radeon Graphics handles HD video and office applications
- 3-year onsite warranty for reliable business support
- ENERGY STAR 8.0, EPEAT Silver, and TCO Certified 9.0 compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 11JN0096CA |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | M75q Gen 2 |
| Product Model | 11JN0096CA |
| Product Name | ThinkCentre M75q Gen 2 11JN0096CA |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | AMD |
| Processor Type | Ryzen 5 PRO |
| Processor Model | 5650GE |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 3.40 GHz |
| Maximum Turbo Speed | 4.40 GHz |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | PRO 500 |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Configuration | 2 x 8GB |
| Storage | |
| Total Solid State Drive Capacity | 256 GB |
| Solid State Drive Interface | PCI Express NVMe |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon Graphics |
| Graphics Memory Technology | DDR4 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| LAN Model | RTL8111FP |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports (Rear) | 2 |
| Number of USB 3.2 Gen 1 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 1 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB-C® 3.2 Gen 1 (support data transfer) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | French |
| Power Description | |
| Maximum Power Supply Wattage | 65 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tiny |
| Height | 1.46" (37 mm) |
| Width | 7.05" (179 mm) |
| Depth | 7.20" (183 mm) |
| Weight (Approximate) | 2.76 lb (1250 g) |
| Miscellaneous | |
| Package Contents | ThinkCentre M75q Gen 2 11JN0096CA Vertical Stand Keyboard Mouse Power Adapter |
| Features | Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver),TCO Certified 9.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkCentre desktop use?
This desktop features the AMD Ryzen 5 PRO 5650GE processor, a hexa-core (6-core) CPU with a base clock speed of 3.40 GHz and maximum turbo speed of 4.40 GHz. This processor is designed for business environments, offering efficient performance for productivity applications and multitasking.
How much memory is installed and what type is it?
The system comes with 16 GB of DDR4 SDRAM installed as two 8 GB modules. This dual-channel configuration provides good memory bandwidth for running multiple applications simultaneously, supporting smooth operation during heavy multitasking sessions in business environments.
What type of storage does this desktop have?
Storage is provided by a 256 GB PCI Express NVMe SSD in the M.2 form factor. This solid-state drive offers fast read and write speeds compared to traditional hard drives, resulting in quicker system boot times, faster application launches, and responsive file access for improved productivity.
What operating system is pre-installed?
This desktop comes with Windows 11 Pro pre-installed in French. Windows 11 Pro includes business-oriented features such as BitLocker encryption, remote desktop capability, and enhanced security controls, making it suitable for professional use in French-speaking work environments.
What connectivity options are available?
The desktop offers comprehensive connectivity including Gigabit Ethernet (RTL8111FP controller) for wired networking, Wi-Fi 6 (802.11ax) for high-speed wireless connections, Bluetooth for peripheral devices, and six USB ports (2x USB 2.0 rear, 2x USB 3.2 Gen 1, 1x USB 3.2 Gen 2, and 1x front USB-C 3.2 Gen 1).
How compact is this desktop and what are its dimensions?
This is a Tiny form factor desktop measuring 1.46 inches in height, 7.05 inches in width, and 7.20 inches in depth (37 mm x 179 mm x 183 mm). It weighs approximately 2.76 pounds (1250 grams), making it exceptionally compact for a full-featured desktop computer that can fit in space-constrained environments.
