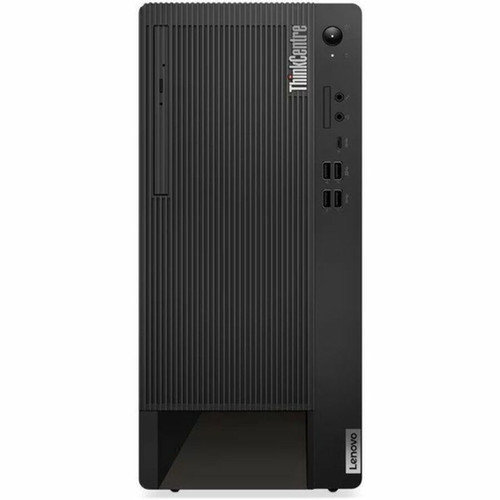

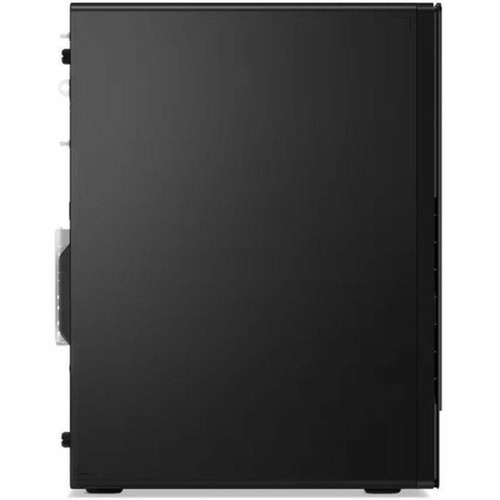

Lenovo 12V20003US ThinkCentre M90t Gen 5 Desktop - Intel Core i9-14900 14th Gen - 32GB DDR5 - 1TB NVMe SSD - Windows 11 Pro - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkCentre M90t Gen 5 is the Intel Core i9-14900 processor, a 14th Gen chip with a base clock of 2 GHz and turbo speeds up to 5.80 GHz. This 24-core, 32-thread CPU is paired with the Intel Q670 chipset, providing a stable platform for business computing with support for Intel vPro for enhanced manageability and security.
Memory performance is driven by 32 GB of DDR5 SDRAM running at 4400 MHz, configured in a dual-channel arrangement with two 16 GB modules. Storage is handled by a 1 TB PCI Express NVMe 4.0 x4 M.2 SSD, offering significantly faster data transfer rates compared to traditional SATA drives. Graphics are powered by Intel UHD Graphics 770 with shared DDR5 memory, suitable for everyday visual tasks and multi-monitor setups.
Key Product Advantages
The ThinkCentre M90t Gen 5 combines enterprise-grade performance with practical business features. Intel vPro technology enables remote management and security capabilities that IT departments value for maintaining fleet consistency and reducing on-site support requirements. The tower chassis offers straightforward access to internal components, allowing organizations to upgrade memory, storage, or expansion cards as needs evolve.
Expandable Tower Design
The standard tower form factor provides multiple expansion slots and drive bays, supporting future hardware upgrades without requiring a complete system replacement.
- Easy internal access for maintenance
- Multiple PCIe slots available
- Additional drive bays for storage expansion
Business Security Features
Beyond vPro management, the system includes a security slot for physical protection and Windows 11 Pro with enhanced security features for business environments.
- Hardware-level security with Intel vPro
- Windows 11 Pro security controls
- Physical security slot for theft deterrence
Deployment / Use Cases
This desktop is well-suited for professional environments where reliable performance and expandability are priorities. The combination of high-core-count processor, substantial memory, and fast NVMe storage makes it effective for financial analysis, engineering simulations, video editing workstations, and software development environments.
In office settings, the M90t Gen 5 can serve as a primary workstation for power users who regularly work with large datasets, multiple applications simultaneously, or virtual machines. The inclusion of a DVD-Writer provides backward compatibility with optical media for archival purposes, while modern connectivity options ensure compatibility with current peripherals and networks.
Professional Workstation
Ideal for engineers, architects, and data scientists who require substantial processing power for specialized applications and simulations.
- 24-core processor for parallel workloads
- 32 GB RAM for large datasets
- Fast NVMe storage for project files
Business Productivity Hub
Serves as a central workstation for office environments where users need to run multiple business applications, manage databases, and handle multimedia content.
- Windows 11 Pro for business features
- Multiple USB ports for peripherals
- Wi-Fi 6 for flexible connectivity
Localization and Operating System
The system comes pre-installed with Windows 11 Pro in English, providing a familiar interface for North American business users. Windows 11 Pro includes features specifically designed for professional environments, including BitLocker encryption, Remote Desktop, and enhanced security controls.
Keyboard localization is English, with a traditional layout that matches standard North American input devices. The operating system language cannot be changed without a clean installation, making this configuration ideal for English-speaking business environments where consistency across devices is important.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkCentre M90t Gen 5 utilizes a traditional tower form factor measuring 14.80" (376 mm) in height, 6.69" (170 mm) in width, and 11.73" (298 mm) in depth. The black chassis features a professional appearance suitable for office environments, with a weight of approximately 14.33 lb (6500 g).
The tower design provides excellent airflow for thermal management and easy access to internal components for maintenance or upgrades. The compact footprint relative to its performance capabilities makes it suitable for placement under desks or in standard office furniture while still offering the expansion potential of a full-sized desktop.
- Width
- 6.69" (170 mm)
- Depth
- 11.73" (298 mm)
- Height
- 14.80" (376 mm)
- Weight
- 14.33 lb (6500 g)
What's in the Box
The package includes the complete desktop system with all necessary components for immediate setup and use.
Highlights
- Intel Core i9-14900 14th Gen processor with 24 cores and 32 threads for demanding workloads
- 32 GB of DDR5 memory running at 4400 MHz for smooth multitasking and application performance
- 1 TB PCI Express NVMe 4.0 x4 SSD delivers fast boot times and rapid data access
- Windows 11 Pro operating system with business-focused security and management features
- Tower form factor provides easy internal access for future upgrades and maintenance
- Comprehensive connectivity with Gigabit Ethernet, Wi-Fi 6, Bluetooth, and 9 USB ports
- Intel vPro technology enables remote management and enhanced security capabilities
- Includes DVD-Writer for optical media compatibility and data backup options
- ENERGY STAR 8.0 certified and EPEAT Gold rated for energy efficiency
- 3-year onsite warranty with professional support coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 12V20003US |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | M90t Gen 5 |
| Product Model | 12V20003US |
| Product Name | ThinkCentre M90t Gen 5 12V20003US Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i9 |
| Processor Generation | 14th Gen |
| Processor Model | i9-14900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Maximum Turbo Speed | 5.80 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 4400 MHz |
| Memory Configuration | 2 x 16GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Optical Drive Type | DVD-Writer |
| Optical Media Supported | DVD±RW |
| Display & Graphics | |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | UHD Graphics 770 |
| Graphics Memory Technology | DDR5 SDRAM |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with 15W charging(front) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 300 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 14.80" (376 mm) |
| Width | 6.69" (170 mm) |
| Depth | 11.73" (298 mm) |
| Weight (Approximate) | 14.33 lb (6500 g) |
| Miscellaneous | |
| Package Contents | ThinkCentre M90t Gen 5 12V20003US Desktop Computer USB Traditional Keyboard USB Calliope Mouse |
| Features | Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite |
User Manual
FAQ
What processor does the Lenovo ThinkCentre M90t Gen 5 12V20003US use?
This desktop features the Intel Core i9-14900, a 14th Generation processor with 24 cores and 32 threads. It operates at a base clock of 2 GHz with turbo boost capabilities up to 5.80 GHz, providing substantial processing power for demanding applications. The processor includes Intel vPro technology for enhanced manageability and security in business environments.
How much memory is installed and what type is it?
The system comes with 32 GB of DDR5 SDRAM installed, operating at 4400 MHz. The memory is configured in a dual-channel arrangement using two 16 GB modules, which optimizes memory bandwidth for improved performance in memory-intensive tasks like data analysis, virtualization, and multimedia editing.
What type of storage does this desktop include?
Storage is provided by a 1 TB PCI Express NVMe 4.0 x4 solid-state drive in the M.2 form factor. This NVMe SSD offers significantly faster data transfer speeds compared to traditional SATA SSDs or hard drives, resulting in quicker boot times, faster application loading, and rapid file access for improved productivity.
Does this computer come with an operating system pre-installed?
Yes, the ThinkCentre M90t Gen 5 comes with Windows 11 Pro pre-installed in English. Windows 11 Pro includes business-oriented features such as BitLocker encryption, Remote Desktop capability, and enhanced security controls that are valuable in professional environments where data protection and manageability are priorities.
What expansion capabilities does the tower form factor provide?
The tower chassis offers multiple expansion options, including available PCIe slots for adding graphics cards, network adapters, or other expansion cards. The design also provides additional drive bays for storage expansion beyond the included 1 TB SSD. This expandability allows organizations to upgrade components as needs evolve without replacing the entire system.
What warranty coverage is included with this desktop?
Lenovo provides a 3-year onsite warranty for this model. This means that if service is required, a technician will come to your location to perform repairs, minimizing downtime for business-critical systems. The warranty covers defects in materials and workmanship, offering peace of mind for business deployments where reliability is essential.
