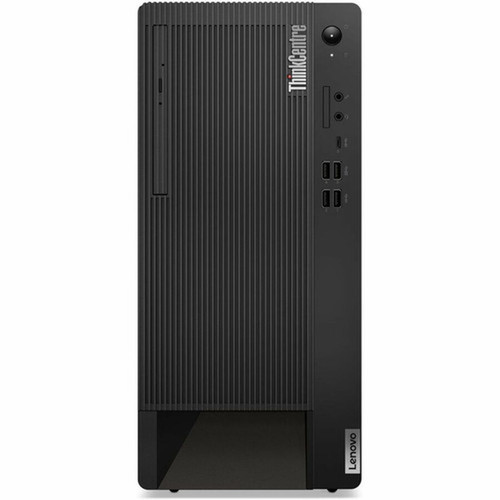

Lenovo 12V20012US ThinkCentre M90t Gen 5 Tower Desktop - Intel Core i7-14700 - 32GB DDR5 RAM - 512GB NVMe SSD - AMD Radeon RX 6600 LE - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This ThinkCentre M90t Gen 5 is engineered for stability and performance in professional environments. The Intel Core i7-14700 processor operates at a base frequency of 2.10 GHz with a maximum turbo speed of 5.40 GHz, leveraging Intel's hybrid architecture for efficient core utilization. It supports Intel vPro technology for enhanced manageability and security in enterprise deployments. The system memory utilizes DDR5 SDRAM running at 4400 MHz in a dual-channel 2 x 16 GB configuration, optimizing bandwidth for data-intensive applications.
Storage is handled by a 512 GB PCI Express NVMe 4.0 x4 M.2 solid-state drive, offering rapid boot times, fast file transfers, and low latency. The AMD Radeon RX 6600 LE discrete graphics card delivers dedicated 8 GB GDDR6 memory for accelerated rendering and display output, suitable for design work and multimedia tasks. Network capabilities include Gigabit Ethernet for wired connections and integrated Wi-Fi 6 (802.11ax) for high-speed wireless networking, complemented by Bluetooth for peripheral connectivity.
Key Product Advantages
The ThinkCentre M90t Gen 5 combines enterprise-grade reliability with workstation-level performance, making it a versatile choice for business and creative professionals. Its balanced configuration addresses both computational and graphical demands without compromise.
Professional-Grade Performance
The Intel Core i7-14700 processor with vPro and 32 GB DDR5 RAM handles complex simulations, large datasets, and multitasking with efficiency, while the AMD Radeon RX 6600 LE graphics accelerates visual workflows.
- 20-core CPU for parallel processing
- vPro for remote management and security
- DDR5 memory for improved bandwidth
Comprehensive Connectivity
With 9 USB ports including high-speed USB 3.2 Gen 2 and a front USB-C with charging, plus Wi-Fi 6 and Gigabit Ethernet, this desktop supports a wide array of peripherals and network configurations.
- Front USB-C for convenient device charging
- Wi-Fi 6 for faster wireless speeds
- Multiple USB ports for expandability
Business-Ready Features
Windows 11 Pro offers advanced security and management tools, while the tower form factor allows for easy internal upgrades. Environmental certifications like ENERGY STAR 8.0 and EPEAT Gold reflect sustainable design.
- Windows 11 Pro for enterprise features
- Tower design for serviceability
- Energy-efficient operation
Deployment / Use Cases
This desktop is well-suited for roles requiring consistent performance and reliability in office, studio, or hybrid work environments. Its configuration supports a range of professional applications and workflows.
For engineering and design teams, the combination of a high-core-count processor and dedicated graphics enables smooth operation of CAD software, 3D modeling tools, and simulation applications. In financial or data analysis contexts, the fast NVMe storage and ample RAM facilitate quick data processing and complex spreadsheet calculations. Creative professionals in video editing or graphic design benefit from the GPU acceleration and storage speed for handling media files and rendering projects.
Engineering Workstation
Run CAD, CAM, and finite element analysis software with the CPU and GPU power needed for accurate modeling and simulations.
Business Productivity Hub
Manage large databases, multitask across business applications, and support virtual meetings with the reliable performance and connectivity options.
Localization and Operating System
This system comes pre-installed with Windows 11 Pro in English, providing a localized operating system experience for English-speaking users. Windows 11 Pro includes features such as BitLocker encryption, Remote Desktop, and enhanced security controls, making it suitable for business environments that require data protection and manageability.
The keyboard is localized to English, ensuring standard key layouts for efficient typing and shortcut usage. This localization aligns with the operating system language, offering a cohesive user interface for productivity tasks and software compatibility in English-language markets.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a black tower chassis, the ThinkCentre M90t Gen 5 measures 14.80 inches in height, 6.69 inches in width, and 11.73 inches in depth (376 mm x 170 mm x 298 mm), with an approximate weight of 14.33 pounds (6500 grams). This form factor provides a compact footprint for desk placement while allowing adequate internal space for cooling and potential component upgrades. The tower design facilitates easy access to internal bays and slots for maintenance or expansion, supporting long-term usability in office settings.
- Width
- 6.69" (170 mm)
- Depth
- 11.73" (298 mm)
- Height
- 14.80" (376 mm)
- Weight
- 14.33 lb (6500 g)
What's in the Box
The package includes the ThinkCentre M90t Gen 5 desktop computer, a USB traditional keyboard, and a USB Calliope mouse, providing all essential components for immediate setup and use.
Highlights
- Intel Core i7-14700 processor with 20 cores, 28 threads, and vPro technology for powerful computing
- 32 GB of DDR5 RAM at 4400 MHz for smooth multitasking and application performance
- 512 GB PCIe NVMe 4.0 SSD offers fast boot times and rapid data access
- AMD Radeon RX 6600 LE graphics with 8 GB dedicated GDDR6 memory for visual tasks
- Windows 11 Pro operating system pre-installed with English localization
- Comprehensive connectivity: 9 USB ports, Wi-Fi 6, Bluetooth, Gigabit Ethernet
- Includes DVD-Writer optical drive for legacy media support
- Black tower form factor with compact dimensions for desk placement
- Energy Star 8.0 certified and EPEAT Gold for environmental efficiency
- 3-year onsite warranty for reliable support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 12V20012US |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | M90t Gen 5 |
| Product Model | 12V20012US |
| Product Name | ThinkCentre M90t Gen 5 12V20012US Desktop Computer |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 14th Gen |
| Processor Model | i7-14700 |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 28 |
| Processor Speed | 2.10 GHz |
| Maximum Turbo Speed | 5.40 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 4400 MHz |
| Memory Configuration | 2 x 16GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Optical Drive Type | DVD-Writer |
| Optical Media Supported | DVD±RW |
| Display & Graphics | |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon RX 6600 LE |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with 15W charging(front) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 14.80" (376 mm) |
| Width | 6.69" (170 mm) |
| Depth | 11.73" (298 mm) |
| Weight (Approximate) | 14.33 lb (6500 g) |
| Miscellaneous | |
| Package Contents | ThinkCentre M90t Gen 5 12V20012US Desktop Computer USB Traditional Keyboard USB Calliope Mouse |
| Features | Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0,GREENGUARD |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite |
User Manual
FAQ
What processor does this Lenovo desktop use, and what are its key features?
This desktop features an Intel Core i7-14700 processor from the 14th Gen family. It has 20 cores (Icosa-core) and 28 threads, with a base clock speed of 2.10 GHz and a maximum turbo speed of 5.40 GHz. It includes Intel vPro technology, which enhances security and manageability for business environments, making it suitable for demanding workloads like data analysis and multitasking.
How much memory is installed, and what type is it?
The system comes with 32 GB of DDR5 SDRAM installed. The memory operates at a speed of 4400 MHz and is configured as two 16 GB modules in a dual-channel setup. DDR5 technology provides higher bandwidth and improved efficiency compared to previous generations, supporting smoother performance in memory-intensive applications such as virtual machines or large datasets.
What storage options are included in this desktop?
Storage includes a 512 GB solid-state drive (SSD) using the PCI Express NVMe 4.0 x4 interface in an M.2 form factor. This NVMe SSD delivers fast read and write speeds for quick boot times, application launches, and file transfers. Additionally, the desktop has a DVD-Writer optical drive that supports DVD±RW media for reading and burning discs.
Does this desktop have dedicated graphics, and what are its capabilities?
Yes, it includes a dedicated AMD Radeon RX 6600 LE graphics card with 8 GB of GDDR6 memory. This GPU is designed for graphics-intensive tasks like video editing, 3D rendering, and moderate gaming, providing better visual performance than integrated graphics. It supports multiple displays and accelerates applications that leverage GPU processing for improved efficiency.
What connectivity and ports are available on this ThinkCentre?
Connectivity features include Gigabit Ethernet for wired networking, Wi-Fi 6 (802.11ax) for high-speed wireless, and Bluetooth for peripheral connections. There are 9 USB ports in total: 6 USB 3.2 Gen 1 ports, 2 USB 3.2 Gen 2 ports, and 1 front USB-C port that supports 10 Gbps speeds and 15W charging. This array supports various devices like external storage, monitors, and accessories.
What operating system is pre-installed, and what warranty is provided?
The desktop comes with Windows 11 Pro pre-installed in English, offering advanced security features and management tools for business use. It includes a 3-year onsite warranty, which covers repairs and support with onsite service, ensuring reliable assistance for maintenance issues during the warranty period.
