Lenovo 12V20013US ThinkCentre M90t Gen 5 Tower Desktop - Intel Core i7-14700 vPro - 32GB DDR5 - 1TB NVMe SSD - AMD Radeon RX 6600 LE - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this ThinkCentre is the Intel Core i7-14700 processor, featuring 20 cores and 28 threads. With a base clock of 2.10 GHz and a maximum turbo frequency of 5.40 GHz, it handles multitasking and compute-heavy workloads efficiently. The processor includes Intel vPro technology for enhanced manageability and security in enterprise deployments. The system utilizes an Intel Q670 chipset and is equipped with 32 GB of DDR5 RAM running at 4400 MHz, configured in a dual-channel setup for optimal bandwidth.
Storage is provided by a 1 TB PCI Express NVMe 4.0 x4 SSD in the M.2 form factor, offering significantly faster boot times, application loading, and file transfers compared to traditional hard drives. An integrated DVD-Writer optical drive supports DVD±RW media for legacy data backup or software installation needs.
Key Product Advantages
This ThinkCentre desktop is built to meet the rigorous demands of business and creative professionals. Its combination of a high-core-count Intel Core i7 processor, substantial DDR5 memory, and fast NVMe storage creates a responsive platform for productivity suites, development environments, and mid-range graphics work. The dedicated AMD Radeon graphics card provides the necessary horsepower for GPU-accelerated applications without relying on integrated graphics.
Enterprise-Grade Management
Intel vPro technology enables remote management, security features, and stability controls that IT departments require for streamlined deployment and maintenance across a fleet of devices.
- Enhanced out-of-band management
- Hardware-assisted security
- Improved system stability
Modern Connectivity Suite
A comprehensive set of ports and wireless options ensures easy peripheral attachment and network integration. The front-panel USB-C port with 15W charging adds convenience for modern devices.
- 9 total USB ports
- Front USB-C with charging
- Wi-Fi 6 and Bluetooth
Deployment / Use Cases
The ThinkCentre M90t Gen 5 is ideally suited for roles that require dependable performance and room for future growth. Its tower design provides internal expansion slots and drive bays, making it a flexible choice for IT departments that standardize on a single desktop model with varying configuration needs over time.
Primary use cases include corporate workstations for finance, engineering, and design teams; front-office and back-office operational systems; and dedicated stations for software development or video editing. The inclusion of a security slot, TCO certification, and ENERGY STAR 8.0 compliance also makes it a responsible choice for organizations focused on security, sustainability, and energy efficiency.
Departmental Workhorse
Deploy as a primary desktop for accounting, HR, or marketing departments where reliability, multitasking capability, and fast storage access are critical for daily operations.
Technical & Creative Station
Serve as an entry-level workstation for CAD operators, graphic designers, or video editors who benefit from the dedicated GPU, high RAM capacity, and fast NVMe storage.
Localization and Operating System
This system ships with a fully licensed copy of Microsoft Windows 11 Pro in English. Windows 11 Pro provides advanced features for business environments, including BitLocker device encryption, remote desktop access, and enhanced security controls. The operating system is configured for the English language, and the included USB keyboard is localized for English (US) layout, ensuring immediate productivity out of the box.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

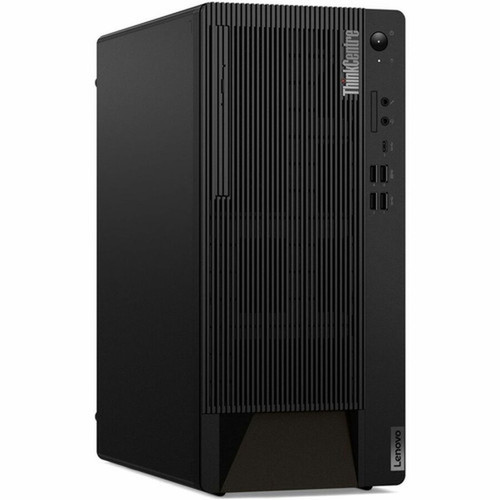

Housed in a professional black tower chassis, the desktop measures 14.80" (376 mm) in height, 6.69" (170 mm) in width, and 11.73" (298 mm) in depth, with an approximate weight of 14.33 lb (6500 g). The tower form factor offers a standard footprint for desk or floor placement and provides accessible internal bays for serviceability and upgrades. The design supports standard VESA mounting options for security enclosures if required.
- Width
- 6.69" (170 mm)
- Depth
- 11.73" (298 mm)
- Height
- 14.80" (376 mm)
- Weight
- 14.33 lb (6500 g)
What's in the Box
The package includes all essential components to begin operation immediately.
Highlights
- 14th Gen Intel Core i7-14700 processor with 20 cores, 28 threads, and Intel vPro technology
- 32 GB of DDR5 RAM (4400 MHz) for smooth multitasking and application performance
- 1 TB PCIe NVMe 4.0 SSD delivers fast boot times, rapid file access, and ample storage
- Dedicated AMD Radeon RX 6600 LE graphics with 8 GB GDDR6 memory for enhanced visual workloads
- Windows 11 Pro operating system pre-installed with English language and localization
- Comprehensive connectivity: 9 USB ports (including front USB-C), Gigabit Ethernet, Wi-Fi 6, Bluetooth
- Tower form factor in black finish, offering expansion potential and a standard desk footprint
- Includes 3-year onsite warranty and meets ENERGY STAR 8.0, EPEAT Gold, and TCO Certified 9.0 standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 12V20013US |
| Brand Name | Lenovo |
| Product Line | ThinkCentre |
| Product Series | M90t Gen 5 |
| Product Model | 12V20013US |
| Product Name | ThinkCentre M90t Gen 5 12V20013US Desktop Computer |
| Packaged Quantity | 1 |
| Product Type | Desktop Computer |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 14th Gen |
| Processor Model | i7-14700 |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 28 |
| Processor Speed | 2.10 GHz |
| Maximum Turbo Speed | 5.40 GHz |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Memory | |
| Standard Memory | 32 GB |
| Memory Technology | DDR5 SDRAM |
| Memory Speed | 4400 MHz |
| Memory Configuration | 2 x 16GB |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| SSD Form Factor | M.2 |
| Optical Drive Type | DVD-Writer |
| Optical Media Supported | DVD±RW |
| Display & Graphics | |
| Graphics Controller Manufacturer | AMD |
| Graphics Controller Model | Radeon RX 6600 LE |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 9 |
| Number of USB 3.2 Gen 1 Ports | 6 |
| Number of USB 3.2 Gen 2 Ports | 2 |
| USB Type-C (Front) | Yes |
| USB Type-C Detail | 1x USB-C® (USB 10Gbps / USB 3.2 Gen 2), with 15W charging(front) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 500 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 14.80" (376 mm) |
| Width | 6.69" (170 mm) |
| Depth | 11.73" (298 mm) |
| Weight (Approximate) | 14.33 lb (6500 g) |
| Miscellaneous | |
| Package Contents | ThinkCentre M90t Gen 5 12V20013US Desktop Computer USB Traditional Keyboard USB Calliope Mouse |
| Features | Security Slot |
| Energy Star | Yes |
| TCO Certified | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0,GREENGUARD |
| Energy Efficiency Compliance | Energy-related Products Directive Lot 3 (ErP Lot 3) |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite |
User Manual
FAQ
What processor is in this Lenovo ThinkCentre desktop, and what are its key features?
This desktop is equipped with an Intel Core i7-14700 processor from the 14th generation. It features 20 cores (Icosa-core) and 28 threads, with a base clock speed of 2.10 GHz and a maximum turbo frequency of 5.40 GHz. A key business feature is the inclusion of Intel vPro technology, which provides enhanced security, remote manageability, and system stability for enterprise IT environments.
How much memory and storage does this computer have, and what types are used?
The system comes standard with 32 GB of DDR5 SDRAM, operating at a speed of 4400 MHz. The memory is configured as two 16 GB modules for dual-channel performance. For storage, it includes a 1 TB solid-state drive (SSD) that uses the PCI Express NVMe 4.0 x4 interface in the M.2 form factor, offering significantly faster data transfer rates compared to SATA SSDs or hard drives.
Does this desktop include a dedicated graphics card?
Yes, it features a dedicated AMD Radeon RX 6600 LE graphics card with 8 GB of GDDR6 memory. This dedicated GPU provides better performance for graphics-intensive applications like video editing, 3D modeling, or CAD software compared to integrated graphics, and it supports multiple display outputs for expanded workspace setups.
What operating system is pre-installed, and what are the localization details?
The desktop comes with Microsoft Windows 11 Pro pre-installed. The operating system is in the English language. The included USB keyboard is also localized for English (US) layout, ensuring the key labels and functions match standard expectations for immediate use in English-speaking business environments.
What connectivity options are available on this ThinkCentre tower?
Connectivity is comprehensive. It includes Gigabit Ethernet for wired networking, IEEE 802.11ax (Wi-Fi 6) for wireless connectivity, and Bluetooth. For peripherals, there are 9 USB ports in total: 6 USB 3.2 Gen 1 ports, 2 USB 3.2 Gen 2 ports, and 1 front-panel USB-C port (USB 3.2 Gen 2) that also supports 15W charging for compatible devices.
What is the form factor and warranty for this desktop computer?
This is a tower desktop, measuring approximately 14.80" high, 6.69" wide, and 11.73" deep, with a weight of about 14.33 lb. It is finished in black. Lenovo provides a 3-year limited warranty with onsite service, meaning a technician can be dispatched to your location for repairs covered under the warranty terms, minimizing downtime for business users.
