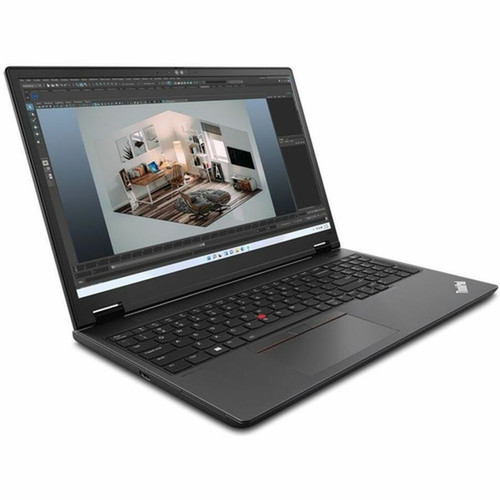

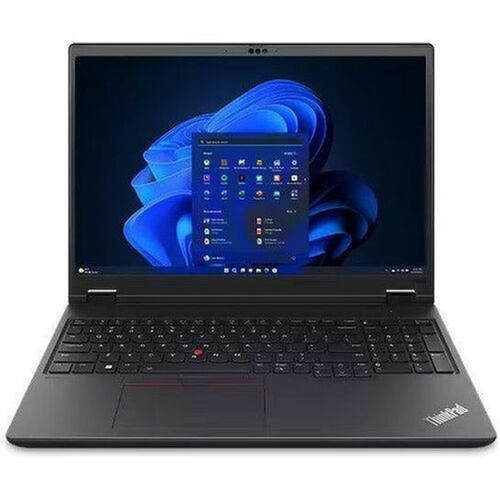

Lenovo 21KX002AUS ThinkPad P16v Gen 2 16" Mobile Workstation - Intel Core Ultra 9185H - 64GB RAM - 2TB SSD - WQUXGA - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At its core, the ThinkPad P16v Gen 2 leverages Intel's Core Ultra 9 185H processor, a hexadeca-core CPU capable of turbo speeds up to 5.10 GHz. This chip incorporates a dedicated Neural Processing Unit (NPU) branded as AI Boost, delivering 11 TOPS of performance for accelerating AI-driven tasks like generative AI tools, media processing, and automation workflows. The platform supports Intel vPro technology, providing hardware-enhanced security features and out-of-band management capabilities essential for IT administration.
System memory is configured as 64 GB of DDR5-5600 SODIMM modules operating in a dual-channel arrangement across two occupied slots, leaving no free slots but supporting a future upgrade to 96 GB maximum. Storage is handled by a 2 TB M.2 solid-state drive, offering fast boot times, application loading, and file transfers. The discrete NVIDIA RTX 3000 graphics card with 8 GB of dedicated GDDR6 memory accelerates rendering, simulation, and compute-intensive visual applications.
Key Product Advantages
Professional-Grade Display
The 16-inch WQUXGA (3840 x 2400) IPS panel combines high resolution with exceptional brightness and color coverage. With 800 cd/m² peak brightness and 100% DCI-P3 color gamut, it meets the demands of color-critical work in photography, video editing, and CAD visualization. The screen incorporates Eyesafe technology and an anti-glare coating to reduce eye strain during extended use.
AI-Enhanced Performance
Intel's Core Ultra 9 processor includes a dedicated NPU that offloads AI inference tasks from the CPU and GPU. This AI Boost engine accelerates workloads like real-time language translation, background blur in video calls, and content creation tools, improving responsiveness and efficiency for modern professional applications.
Deployment / Use Cases
This mobile workstation is tailored for professionals who require desktop-level performance in a portable form factor. Its combination of high-core-count CPU, substantial memory, professional graphics, and color-accurate display makes it ideal for engineering teams running CAD and finite element analysis software, video editors working with 4K or 8K footage, data scientists developing machine learning models, and architects visualizing complex 3D structures.
In corporate environments, the ThinkPad P16v Gen 2 supports IT manageability through Intel vPro and Windows 11 Pro, allowing centralized deployment, security policy enforcement, and remote troubleshooting. The inclusion of a fingerprint reader, infrared camera for Windows Hello facial recognition, and a physical camera shutter enhances security for handling sensitive data. The workstation's robust construction and 3-year premier support warranty ensure reliability for field engineers, remote workers, and power users who depend on their device for mission-critical tasks.
Localization and Operating System
This configuration ships with Windows 11 Pro pre-installed in the English language. Windows 11 Pro includes features essential for business use, such as BitLocker device encryption, remote desktop access, and enhanced group policy management. The operating system is optimized for the hardware's AI capabilities, leveraging the NPU for background tasks and security enhancements.
The keyboard is localized for English (US) layouts and includes a white LED backlight for visibility in low-light conditions. Input accommodations include a precision touchpad and the classic ThinkPad TrackPoint pointing stick. Biometric login is supported via the integrated fingerprint reader and infrared camera, both compatible with Windows Hello for password-free authentication.
Physical Profile

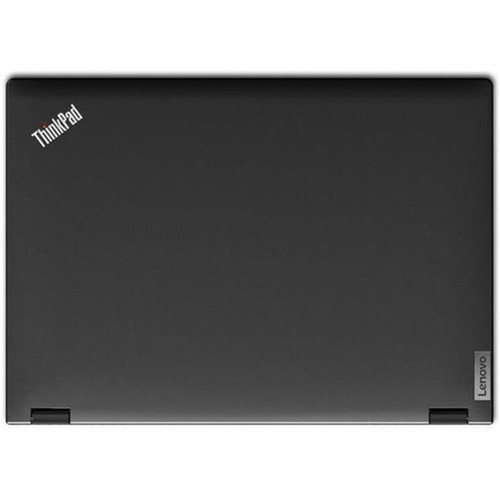

Encased in a black polycarbonate and ABS construction, the ThinkPad P16v Gen 2 measures 0.97 inches thick, 14.37 inches wide, and 10.31 inches deep, with a weight of approximately 4.89 pounds. This profile balances a large 16-inch display with relative portability for a mobile workstation. The design includes reinforced hinges, a spill-resistant keyboard, and MIL-STD-810H testing for durability against shocks, vibrations, and extreme temperatures.
- Width
- 14.37" (365 mm)
- Depth
- 10.31" (262 mm)
- Height
- 0.97" (24.66 mm)
- Weight
- 4.89 lb (2220 g)
What's in the Box
The package includes the ThinkPad P16v Gen 2 21KX002AUS mobile workstation and a 170-watt Slim Tip (3-pin) AC adapter. All necessary components for immediate setup and operation are provided.
Highlights
- Intel Core Ultra 9 185H processor with 16 cores, 22 threads, and AI Boost NPU for accelerated AI workloads
- 64 GB of DDR5-5600 memory in dual-channel configuration for handling large datasets and multitasking
- 2 TB NVMe SSD provides ample high-speed storage for applications, projects, and media files
- 16-inch WQUXGA (3840 x 2400) IPS display with 800 cd/m² brightness and 100% DCI-P3 color gamut
- NVIDIA RTX 3000 dedicated graphics with 8 GB GDDR6 memory for professional visualization and compute tasks
- Windows 11 Pro operating system with English localization and enterprise management features
- Comprehensive connectivity including 2x Thunderbolt 4, USB 3.2 Gen 1 Type-A, HDMI, and Gigabit Ethernet
- Enhanced security with fingerprint reader, infrared camera, camera shutter, and Intel vPro technology
- Robust construction with spill-resistant keyboard and MIL-STD-810H durability testing
- Includes 170W AC adapter and backed by a 3-year premier support warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 21KX002AUS |
| Brand Name | Lenovo |
| Product Line | ThinkPad |
| Product Series | P16v Gen 2 |
| Product Model | 21KX002AUS |
| Product Name | ThinkPad P16v Gen 2 21KX002AUS Mobile Workstation |
| Product Type | Mobile Workstation |
| Technical Information | |
| Release Month | April |
| Release Year | 2024 |
| AI-powered | Yes |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core Ultra 9 |
| Processor Model | 185H |
| Maximum Turbo Speed | 5.10 GHz |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 22 |
| vPro Technology | Yes |
| NPU Name | AI Boost |
| NPU Performance | 11 TOPS |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Supported System Memory | 96 GB |
| System Memory Technology | DDR5 SDRAM |
| System Memory Speed | 5600 MHz |
| System Memory Form Factor | SODIMM |
| Installed Slot Memory | 64 GB |
| Installed Slot Memory Configuration | 2 x 32GB |
| Total Number of Memory Slots | 2 |
| Number of Occupied Memory Slots | 2 |
| Number of Free Memory Slots | 0 |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| SSD Form Factor | M.2 |
| Display & Graphics | |
| Screen Size | 16" |
| Screen Mode | WQUXGA |
| Display Screen Technology | In-plane Switching (IPS) Technology,Eyesafe |
| Screen Resolution | 3840 x 2400 |
| Brightness | 800 cd/m² |
| Color Gamut | 100% DCI-P3 |
| Touchscreen | No |
| Graphics Controller Manufacturer | NVIDIA |
| Graphics Controller Model | RTX 3000 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Technology | GDDR6 |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Ethernet Technology | Gigabit Ethernet |
| Bluetooth | Yes |
| WWAN Supported | Yes |
| Near Field Communication | No |
| Built-in Devices | |
| Camera Privacy Shutter | Yes |
| Front Camera/Webcam | Yes |
| Front Camera/Webcam Resolution | 5 Megapixel |
| Infrared Camera | Yes |
| Finger Print Reader | Yes |
| Interfaces/Ports | |
| HDMI | Yes |
| Total Number of USB Ports | 1 |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| Network (RJ-45) | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Input Devices | |
| Keyboard Localization | English |
| Keyboard Backlight | Yes |
| Power Description | |
| Maximum Power Supply Wattage | 170 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Cover Material | Polycarbonate,Acrylonitrile Butadiene Styrene (ABS) |
| Height | 0.97" (24.66 mm) |
| Width | 14.37" (365 mm) |
| Depth | 10.31" (262 mm) |
| Weight (Approximate) | 4.89 lb (2220 g) |
| Miscellaneous | |
| Package Contents | ThinkPad P16v Gen 2 21KX002AUS Mobile Workstation 170W Slim Tip (3-pin) |
| Charger Included | Yes |
| Energy Star | Yes |
| Features | Low Blue Light,Anti-glare Screen |
| Windows Hello Compatible | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year Courier or Carry-in 3Y Premier Support Upgrade from 3Y Courier/CCI |
User Manual
FAQ
What processor does this ThinkPad P16v Gen 2 use, and what are its key features?
This mobile workstation is equipped with an Intel Core Ultra 9 185H processor. It features 16 cores and 22 threads, with a maximum turbo frequency of 5.10 GHz. A significant addition is the integrated AI Boost Neural Processing Unit (NPU), which delivers 11 TOPS of performance for accelerating AI inference tasks like generative AI tools and media processing. The processor also supports Intel vPro technology for enhanced security and remote manageability in business environments.
How much memory is installed, and can it be upgraded?
The system comes with 64 GB of DDR5-5600 SODIMM memory installed across two slots as 2 x 32 GB modules. This dual-channel configuration optimizes bandwidth for memory-intensive applications. While both slots are occupied in this configuration, the motherboard supports a maximum of 96 GB of system memory. Upgrading would require replacing the existing modules with higher-capacity DDR5 SODIMMs, such as 2 x 48 GB, to reach the 96 GB ceiling.
What are the specifications of the display?
The laptop features a 16-inch WQUXGA display with a resolution of 3840 x 2400 pixels. It uses an In-plane Switching (IPS) panel with Eyesafe technology, offering wide viewing angles and reduced blue light emission. The screen achieves a peak brightness of 800 cd/m² and covers 100% of the DCI-P3 color gamut, making it suitable for color-critical professional work. It includes an anti-glare coating to minimize reflections but does not support touch input.
What graphics card is included, and what are its capabilities?
Graphics are handled by a dedicated NVIDIA RTX 3000 GPU with 8 GB of GDDR6 memory. This professional-grade graphics card is designed for acceleration in applications like 3D rendering, video editing, CAD, and scientific visualization. It supports features such as real-time ray tracing, AI-accelerated denoising, and CUDA parallel computing, providing substantial performance benefits over integrated graphics for creative and engineering workloads.
What ports and connectivity options are available?
Connectivity includes two Thunderbolt 4 ports (supporting data transfer, video output, and power delivery), one USB 3.2 Gen 1 Type-A port, a full-size HDMI port, and a Gigabit Ethernet RJ-45 jack. Wireless features consist of Wi-Fi 6E (IEEE 802.11ax) and Bluetooth. The system also supports optional WWAN (cellular) connectivity for mobile broadband. Additional built-in devices include a 5 MP webcam with privacy shutter, infrared camera for facial recognition, and a fingerprint reader.
What operating system and warranty are included?
This workstation ships with Windows 11 Pro pre-installed in English. Windows 11 Pro includes business-oriented features like BitLocker encryption, remote desktop, and group policy management. The product is backed by a 3-year limited warranty, which includes 3-year courier or carry-in service and an upgrade to 3Y Premier Support. This warranty provides technical support, hardware repair, and optional on-site service, ensuring reliable long-term use in professional settings.
