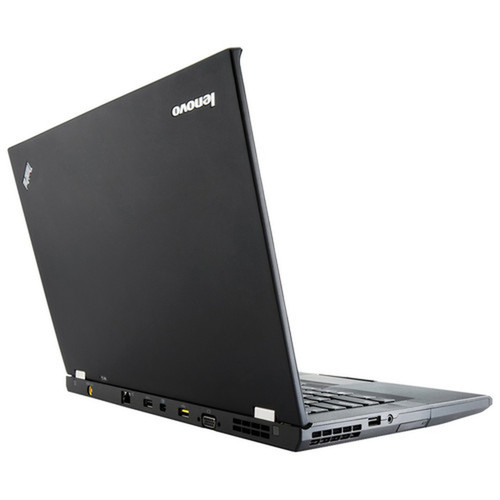

Lenovo 23539WF ThinkPad T430s 14" Mobile Workstation - Intel Core i7-3520M - 4GB RAM - 180GB SSD - French Keyboard - Windows 7 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This ThinkPad T430s is powered by a 3rd generation Intel Core i7-3520M dual-core processor running at 2.90 GHz, supported by the Intel QM77 Express chipset. The system memory is configured with 4 GB of DDR3 SDRAM across two slots, allowing expansion up to 16 GB for increased multitasking capacity.
Storage is handled by a 180 GB Serial ATA/600 solid-state drive, offering faster boot times, application launches, and file transfers compared to traditional hard drives. The 14-inch LCD screen features an HD+ resolution of 1600 x 900 with LED backlighting, providing sharp text and image clarity for productivity and content viewing.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkPad T430s balances professional-grade performance with the portability needed for mobile workstations. Its combination of a Core i7 processor, discrete Quadro graphics, and SSD storage makes it suitable for technical applications, while the robust build quality and thoughtful features support all-day productivity.
Professional Graphics Performance
The NVIDIA Quadro NVS 5200M with 1 GB of dedicated DDR3 memory delivers optimized performance for CAD, 3D modeling, and multimedia applications, ensuring smooth visuals and accurate rendering.
- Dedicated graphics memory
- Certified for professional applications
- Supports dual graphics with Intel HD 4000
Enhanced Productivity Features
Integrated tools like the fingerprint reader, backlit French keyboard, and 720p webcam streamline security, input, and communication tasks in various lighting conditions.
- Fingerprint reader for secure login
- Backlit keyboard for low-light typing
- Webcam for video conferencing
Reliable Connectivity
With two USB 3.0 ports, Gigabit Ethernet, DisplayPort, and Bluetooth, the T430s connects easily to peripherals, networks, and external displays for flexible workspace setups.
- High-speed USB 3.0 for fast data transfer
- Wired Gigabit Ethernet for stable networking
- DisplayPort for external monitor support
Deployment / Use Cases
The ThinkPad T430s 23539WF is well-suited for professionals who require a dependable mobile workstation for field work, client sites, or flexible office environments. Its balanced specifications and durable design make it a practical choice for various business and technical roles.
Engineers, architects, and designers can leverage the Quadro graphics and capable processor for running CAD software, simulation tools, and rendering applications while on the move. Business analysts, consultants, and field service technicians will appreciate the portability, battery life, and connectivity for data analysis, reporting, and remote support tasks.
Field Engineering & Design
Use this mobile workstation for on-site design reviews, 3D modeling, and technical drawings with applications like AutoCAD, SolidWorks, or Revit, supported by the dedicated Quadro graphics.
Business Mobility
Ideal for consultants and professionals who travel frequently, offering a full Windows 7 Professional environment with French localization, secure login options, and reliable performance for presentations and client meetings.
Localization and Operating System
This ThinkPad T430s comes pre-installed with Windows 7 Professional 64-bit, configured with French as the operating system language. The French localization extends to the keyboard layout, which includes accented characters and standard AZERTY key placement for seamless typing in French-speaking regions.
The backlit keyboard enhances usability in dimly lit environments, while the fingerprint reader provides an additional layer of security for system access. This combination of OS and input localization ensures the notebook is ready for immediate deployment in French-language business environments without requiring additional software adjustments.
Relevant factors for this section include Processor Manufacturer, Processor Type, Processor Generation, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Encased in a classic black ThinkPad chassis, the T430s measures 13.50 inches wide by 9.05 inches deep by 1.02 inches thick, with a weight of approximately 3.96 pounds. This compact and lightweight design facilitates easy transport in briefcases or backpacks, making it a practical companion for daily commuting or business travel.
The durable construction meets ThinkPad standards for reliability, with a robust hinge, spill-resistant keyboard, and reinforced casing to withstand the rigors of mobile use. The slim profile and manageable weight contribute to its suitability as a true mobile workstation without sacrificing essential ports and expansion capabilities.
- Width
- 13.50" (342.90 mm)
- Depth
- 9.05" (229.87 mm)
- Height
- 1.02" (25.91 mm)
- Weight
- 3.96 lb (1796.23 g)
What's in the Box
The package includes all necessary components to start using the notebook immediately.
Highlights
- 14-inch HD+ (1600 x 900) display with LED backlight for clear visuals
- Intel Core i7-3520M dual-core processor at 2.90 GHz for responsive performance
- 4 GB DDR3 RAM, expandable to 16 GB across two memory slots
- 180 GB solid-state drive (SSD) for fast boot times and application loading
- NVIDIA Quadro NVS 5200M discrete graphics with 1 GB dedicated memory
- Windows 7 Professional 64-bit with French language localization
- French backlit keyboard and fingerprint reader for enhanced input and security
- Up to 7.6 hours of battery life with the included 6-cell battery
- Connectivity includes USB 3.0, Gigabit Ethernet, DisplayPort, and Bluetooth
- Black chassis with compact dimensions (13.50" x 9.05" x 1.02") and 3.96 lb weight
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 23539WF |
| Brand Name | Lenovo |
| Product Line | ThinkPad |
| Product Series | T430s |
| Product Model | 23539WF |
| Product Name | ThinkPad T430s 23539WF Notebook |
| Product Type | Mobile Workstation |
| Processor | |
| Processor Manufacturer | Intel |
| Processor Type | Core i7 |
| Processor Generation | 3rd Gen |
| Processor Model | i7-3520M |
| Processor Speed | 2.90 GHz |
| Processor Core | Dual-core (2 Core) |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | QM77 Express |
| Memory | |
| Standard Memory | 4 GB |
| Maximum Supported System Memory | 16 GB |
| System Memory Technology | DDR3 SDRAM |
| Total Number of Memory Slots | 2 |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 180 GB |
| Solid State Drive Interface | Serial ATA/600 |
| Display & Graphics | |
| Screen Size | 14" |
| Screen Mode | HD+ |
| Display Screen Type | LCD |
| Aspect Ratio | 16:9 |
| Screen Resolution | 1600 x 900 |
| Backlight Technology | LED |
| Graphics Controller Manufacturer | NVIDIA,Intel |
| Graphics Controller Model | Quadro NVS 5200M,HD Graphics 4000 |
| Graphics Memory Capacity | 1 GB |
| Graphics Memory Technology | DDR3 SDRAM |
| Graphics Memory Accessibility | Dedicated,Shared |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Bluetooth | Yes |
| Built-in Devices | |
| Front Camera/Webcam | Yes |
| Finger Print Reader | Yes |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| DisplayPort | Yes |
| Operating System | |
| Operating System | Windows 7 Professional |
| Operating System Language | French |
| Operating System Architecture | 64-bit |
| Input Devices | |
| Keyboard Localization | French |
| Keyboard Backlight | Yes |
| Battery Information | |
| Number of Cells | 6-cell |
| Maximum Battery Run Time | 7.60 Hours |
| Power Description | |
| Maximum Power Supply Wattage | 90 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 1.02" (25.91 mm) |
| Width | 13.50" (342.90 mm) |
| Depth | 9.05" (229.87 mm) |
| Weight (Approximate) | 3.96 lb (1796.23 g) |
| Miscellaneous | |
| Package Contents | ThinkPad T430s 23539WF Notebook Lithium Ion Battery AC Adapter Windows 8 Pro 64 Recovery DVD |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver),GREENGUARD |
| Energy Efficiency Certification | ENERGY STAR 5.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor does the ThinkPad T430s 23539WF have?
This mobile workstation is equipped with an Intel Core i7-3520M processor from the 3rd generation. It operates at a base speed of 2.90 GHz and features two cores, providing strong performance for multitasking and demanding applications like CAD, data analysis, and virtualization.
Can the memory be upgraded on this ThinkPad T430s?
Yes, the system has two DDR3 memory slots and supports expansion up to 16 GB. It comes standard with 4 GB of RAM, allowing for straightforward upgrades to enhance multitasking capabilities and overall system responsiveness for more intensive workloads.
What type of storage is included, and is it upgradeable?
The notebook includes a 180 GB solid-state drive (SSD) with a Serial ATA/600 interface. SSDs offer faster data access and improved durability compared to traditional hard drives. While the drive is replaceable, any upgrade would require compatible SATA-based storage and may involve reinstalling the operating system.
Does this model have a dedicated graphics card?
Yes, it features an NVIDIA Quadro NVS 5200M discrete graphics card with 1 GB of dedicated DDR3 memory. This professional-grade GPU is optimized for applications like AutoCAD, SolidWorks, and Adobe Creative Suite, providing better rendering performance and stability than integrated graphics alone.
What operating system and keyboard layout are pre-installed?
The system comes with Windows 7 Professional 64-bit, configured with French as the default language. The keyboard is also localized to French (AZERTY layout) and includes a backlight for typing in low-light conditions, making it ready for use in French-speaking business environments.
What is the battery life and weight of this mobile workstation?
With its 6-cell lithium-ion battery, the T430s offers up to 7.6 hours of runtime under typical usage, supporting extended work sessions away from power outlets. The notebook weighs approximately 3.96 pounds (1.8 kg) and has a compact footprint, balancing portability with the robust features expected of a ThinkPad workstation.
