Lenovo 30E00066US ThinkStation P620 Workstation - Ryzen Threadripper PRO 3945WX 12-Core 4GHz - 32GB RAM - 1TB NVMe SSD - Quadro P1000 4GB - Windows 10
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This workstation features a single-socket configuration supporting AMD's Ryzen Threadripper PRO 3945WX processor, which combines 12 processing cores with enterprise security and manageability features. The 32GB of DDR4 SDRAM operates at efficient speeds, with support for expansion up to 512GB total system memory.
Storage is handled by a 1TB solid-state drive using the PCI Express NVMe interface for maximum throughput and low latency. The system includes an integrated DVD-Writer optical drive for legacy media compatibility. Graphics processing is managed by an NVIDIA Quadro P1000 discrete card with 4GB of dedicated GDDR5 memory, optimized for professional applications rather than gaming.
Memory Architecture
The DDR4 memory subsystem supports ECC error correction when using compatible modules, providing enhanced data integrity for critical computational tasks. The motherboard supports dual-channel memory configurations.
- 32GB installed (2x16GB modules)
- Maximum 512GB capacity
- DDR4-3200 speed support
Key Product Advantages
This workstation delivers certified performance for professional applications through its combination of AMD Ryzen Threadripper PRO processing, NVIDIA Quadro graphics, and Lenovo's rigorous validation process. The system is designed for 24/7 operation in demanding environments with robust cooling and power delivery systems.
Expansion Capabilities
The tower chassis provides multiple internal expansion slots and drive bays for adding additional storage, specialized I/O cards, or upgraded graphics solutions as workflow requirements change.
- Multiple PCIe slots available
- Tool-less chassis design
- Standard ATX power supply compatibility
Deployment / Use Cases
The ThinkStation P620 is engineered for professional environments where computational power, graphics accuracy, and system stability are paramount. Its balanced configuration of high-core-count CPU, substantial memory, fast storage, and professional graphics makes it suitable for a wide range of technical applications.
Primary deployment scenarios include engineering design offices running CAD and CAE software, architectural visualization studios creating detailed renderings, research laboratories processing scientific data, and media production houses working with high-resolution video content. The system's tower format and standard connectivity make it straightforward to integrate into existing office IT infrastructure.
Engineering & Design
With certified drivers for leading CAD applications, this workstation ensures model accuracy and viewport performance when working with complex assemblies and detailed drawings.
- SOLIDWORKS certification
- AutoCAD optimized
- Large assembly handling
Content Creation
The 12-core processor accelerates rendering times in 3D animation and visual effects software, while the Quadro graphics ensures proper color accuracy and viewport performance.
- 3D rendering acceleration
- Video editing capable
- Color-accurate output
Localization and Operating System
This workstation ships with Microsoft Windows 10 Professional 64-bit edition pre-installed in English language. Windows 10 Pro includes advanced security features, remote desktop capabilities, and business management tools suitable for professional environments.
The included keyboard features US English layout with standard key placement and standard US keyboard shortcuts. The operating system supports multiple language packs for additional localization if required by international teams or specific software requirements.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

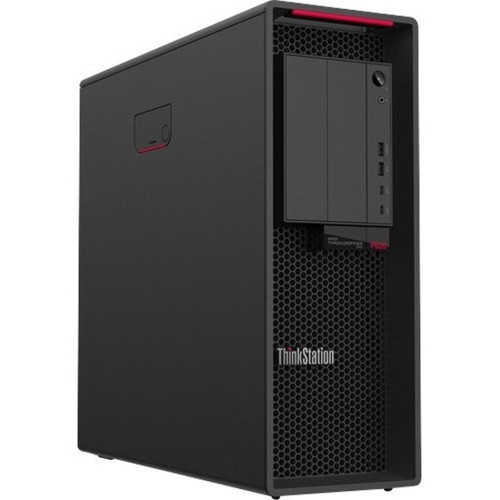

Housed in a professional tower chassis measuring 17.56" high × 6.50" wide × 17.91" deep (446 × 165 × 455 mm), the ThinkStation P620 features a Graphite Black exterior with tool-less side panel access for easy maintenance and upgrades. The system weighs approximately 52.91 pounds (24 kg) including standard components.

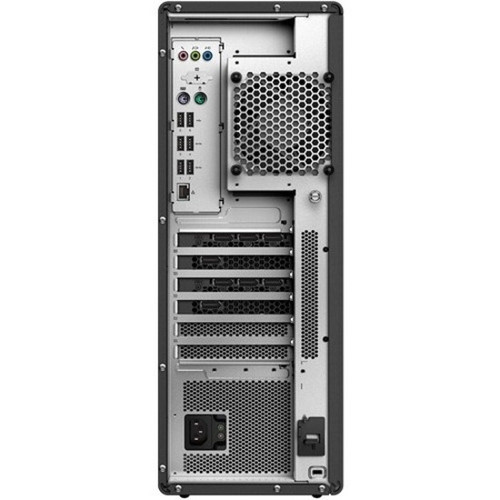

The chassis design incorporates optimized airflow paths with multiple fan positions and dust filters to maintain component temperatures during extended high-load operation. The front panel provides accessible USB ports and audio jacks, while the rear offers comprehensive connectivity including the dual USB Type-C ports.
- Width
- 6.50" (165 mm)
- Depth
- 17.91" (455 mm)
- Height
- 17.56" (446 mm)
- Weight
- 52.91 lb (24000 g)
What's in the Box
The workstation ships complete with all necessary components for immediate deployment in a professional setting.
Highlights
- AMD Ryzen Threadripper PRO 3945WX 12-core processor at 4GHz
- 32GB DDR4 memory with expansion support up to 512GB
- 1TB PCI Express NVMe solid-state drive for fast storage
- NVIDIA Quadro P1000 graphics with 4GB dedicated memory
- Windows 10 Professional 64-bit pre-installed (English)
- Professional tower form factor in Graphite Black finish
- Dual USB 3.2 Gen 2 Type-C ports plus USB 2.0 connectivity
- Integrated DVD-Writer optical drive
- 1000W power supply with 120/230V AC input
- 3-year limited warranty from Lenovo
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30E00066US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P620 |
| Product Model | 30E00066US |
| Product Name | ThinkStation P620 30E00066US Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 3945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 4 GHz |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Storage | |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe |
| Optical Drive Type | DVD-Writer |
| Display & Graphics | |
| Graphics Controller Model | Quadro P1000 |
| Graphics Memory Capacity | 4 GB |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Input Devices | |
| Keyboard Localization | English (US) |
| Interfaces/Ports | |
| Number of USB 2.0 Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 USB 3.2 Gen 2 (Type C) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 10 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Product Color | Graphite Black |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.91" (455 mm) |
| Weight (Approximate) | 52.91 lb (24000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P620 30E00066US Workstation Lenovo Slim New F5 USB Keyboard USB Optical Mouse |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What type of processor does this ThinkStation workstation use?
This Lenovo ThinkStation P620 is powered by an AMD Ryzen Threadripper PRO 3945WX processor. This is a 12-core (dodeca-core) CPU operating at 4.0GHz base frequency, designed specifically for professional workstation applications with enhanced security and manageability features compared to consumer processors.
How much memory is installed and what is the maximum supported?
The workstation comes standard with 32GB of DDR4 SDRAM installed. The system supports memory expansion up to a maximum of 512GB total system memory, allowing for significant upgrades as computational requirements increase for large datasets or virtualized environments.
What graphics card is included and is it suitable for professional applications?
This configuration includes an NVIDIA Quadro P1000 discrete graphics card with 4GB of dedicated GDDR5 memory. Quadro cards feature certified drivers for professional applications like CAD, engineering simulation, and 3D rendering software, ensuring stability, accuracy, and optimal performance in these workloads compared to gaming-oriented graphics cards.
What storage configuration does this workstation have?
The system includes a 1TB solid-state drive using the PCI Express NVMe interface. NVMe SSDs provide significantly faster data transfer speeds compared to traditional SATA SSDs or hard drives, reducing load times for large project files and improving overall system responsiveness during data-intensive tasks.
What operating system is pre-installed and what are the licensing terms?
Lenovo ships this workstation with Microsoft Windows 10 Professional 64-bit edition pre-installed in English language. Windows 10 Pro includes business-focused features like BitLocker encryption, Remote Desktop hosting, and enhanced group policy management. The license is typically an OEM license tied to this specific hardware system.
What warranty coverage does this ThinkStation include?
This Lenovo ThinkStation P620 comes with a 3-year limited warranty from the manufacturer. This warranty covers defects in materials and workmanship under normal use. Warranty service typically includes parts and labor, with options for on-site service depending on the specific warranty terms and geographic location.
