Lenovo 30E000N6US ThinkStation P620 Tower Workstation - Ryzen Threadripper PRO 5945WX 12-Core 4. 1GHz - 32GB DDR4 ECC RAM - 1TB NVMe SSD - Radeon Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P620 is the AMD WRX80 chipset, which provides robust platform support for the Ryzen Threadripper PRO processor and high-speed PCIe 4.0 connectivity. The system includes a 1 kW power supply to sustain peak performance under load, with dual Ethernet ports (Gigabit and 10 Gigabit) for fast network transfers. Storage flexibility is enhanced with Serial ATA/600 controller support for RAID configurations.
The tower chassis measures 17.56" x 6.50" x 18.11" (446 x 165 x 460 mm) and weighs approximately 52.91 lb (24 kg), offering a compact footprint for a workstation of this capability. Internal expansion includes multiple PCIe slots and drive bays, supporting additional GPUs, storage arrays, or specialized accelerator cards.
Relevant factors for this section include Number of Processors Installed, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines AMD's Threadripper PRO architecture with professional validation from Lenovo, resulting in a stable platform for mission-critical applications. The inclusion of ECC memory protects against data corruption, while the Radeon Pro VII GPU is certified for leading CAD, CAM, and visualization software.
Professional Graphics Performance
The AMD Radeon Pro VII delivers 16 GB of high-bandwidth memory and hardware-accelerated ray tracing for real-time rendering and simulation workloads.
- 16 GB GDDR6 memory
- PCIe 4.0 interface
- Pro driver certifications
Enterprise-Grade Reliability
Lenovo's ThinkStation platform undergoes extensive testing for thermal management, component compatibility, and long-term durability under continuous operation.
- 3-year warranty
- Premier Support option
- EPEAT Silver & ENERGY STAR 8.0
Deployment / Use Cases
The ThinkStation P620 is engineered for professional environments where computational power and reliability are paramount. Its balanced configuration of high-core-count CPU, substantial ECC memory, and professional GPU makes it suitable for a range of intensive workloads.
Common deployment scenarios include engineering firms running finite element analysis (FEA) and computational fluid dynamics (CFD), architectural studios performing 3D modeling and rendering, research laboratories processing large datasets, and financial institutions executing complex quantitative analysis.
Relevant factors for this section include Number of Processors Installed, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Engineering & Design
Handle multi-threaded simulations, CAD assemblies, and photorealistic rendering with the Threadripper PRO CPU and Radeon Pro VII GPU.
Scientific Computing
Process large-scale data sets, run molecular modeling, or perform statistical analysis with the 12-core processor and expandable memory architecture.
Localization and Operating System
The workstation ships with Windows 11 Pro 64-bit pre-installed in English. Windows 11 Pro provides advanced security features, remote management capabilities, and compatibility with business applications. The English keyboard localization ensures a standard QWERTY layout for North American users.
Relevant factors for this section include Number of Processors Installed, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The tower form factor provides ample internal space for cooling and expansion while maintaining a relatively compact desk-side footprint. The chassis features tool-less access for easy maintenance and upgrades. Its weight and dimensions make it suitable for placement under desks or in dedicated workstation enclosures.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17.56" (446 mm), 6.50" (165 mm), 18.11" (460 mm), 52.91 lb (24000 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.50" (165 mm)
- Depth
- 18.11" (460 mm)
- Height
- 17.56" (446 mm)
- Weight
- 52.91 lb (24000 g)
What's in the Box

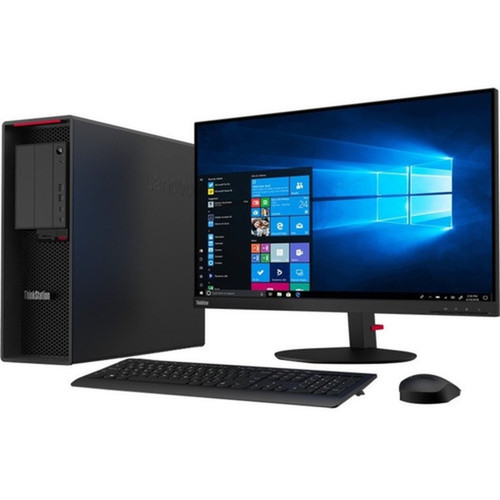

The package includes the ThinkStation P620 workstation, a USB traditional keyboard, and a USB Calliope mouse, providing a complete out-of-box setup for immediate productivity.
Highlights
- AMD Ryzen Threadripper PRO 5945WX 12-core processor at 4.10 GHz
- 32 GB DDR4 ECC Registered memory (expandable to 1 TB)
- 1 TB PCI Express NVMe 4.0 solid-state drive
- AMD Radeon Pro VII graphics with 16 GB dedicated memory
- Windows 11 Pro 64-bit operating system pre-installed
- Dual Ethernet: Gigabit and 10 Gigabit ports
- 10 USB ports including 2x USB-C 3.2 Gen 2
- 1 kW power supply for stable performance
- 3-year limited warranty with Premier Support upgrade option
- EPEAT Silver, ENERGY STAR 8.0, and RoHS compliant
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30E000N6US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P620 |
| Product Model | 30E000N6US |
| Product Name | ThinkStation P620 30E000N6US Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 5945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 4.10 GHz |
| Processor Socket | Socket SP3 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX80 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 3.20 GHz |
| Memory Configuration | 2 x 16GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | Radeon Pro VII |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | No |
| Bluetooth | No |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 18.11" (460 mm) |
| Weight (Approximate) | 52.91 lb (24000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P620 30E000N6US Workstation USB Traditional Keyboard USB Calliope Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver),GREENGUARD |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3Y Premier Support Upgrade from 3Y Onsite (5WS0U26649) |
User Manual
FAQ
What processor does this Lenovo ThinkStation P620 workstation use?
It features the AMD Ryzen Threadripper PRO 5945WX, a 12-core (24-thread) processor with a base clock speed of 4.10 GHz. This CPU is built on AMD's Zen 3 architecture and is designed for professional workloads requiring high multi-threaded performance, such as rendering, simulation, and data analysis.
How much RAM is installed, and can it be expanded?
The workstation comes with 32 GB of DDR4 ECC Registered memory installed as two 16 GB modules. The system has eight total memory slots, supporting a maximum capacity of 1 TB. This allows for significant expansion to handle larger datasets or more demanding applications in the future.
What type of storage does this workstation include?
It includes a 1 TB PCI Express NVMe 4.0 solid-state drive. This SSD offers high sequential read/write speeds, reducing load times for applications and large files. The system also supports additional storage drives via its Serial ATA/600 controller with RAID capabilities.
Which graphics card is installed, and what are its capabilities?
The workstation is equipped with an AMD Radeon Pro VII graphics card featuring 16 GB of dedicated GDDR6 memory. This professional GPU is optimized for CAD, 3D rendering, scientific visualization, and GPU compute tasks, with driver certifications for major professional software applications.
What operating system is pre-installed?
Windows 11 Pro 64-bit in English is pre-installed. Windows 11 Pro provides enhanced security features like BitLocker encryption, remote desktop functionality, and compatibility with business management tools, making it suitable for enterprise environments.
What warranty and support are included with this workstation?
Lenovo provides a 3-year limited warranty. The configuration includes an upgrade to 3-year Premier Support, which typically offers onsite service, priority technical assistance, and extended coverage for parts and labor to ensure minimal downtime in professional settings.
