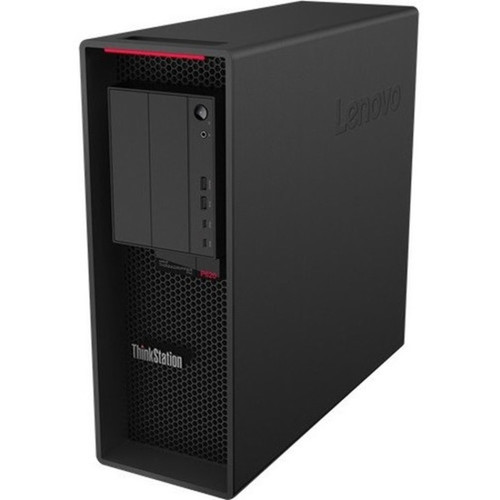

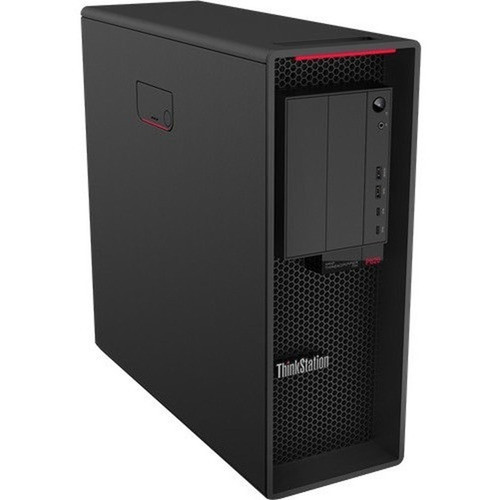

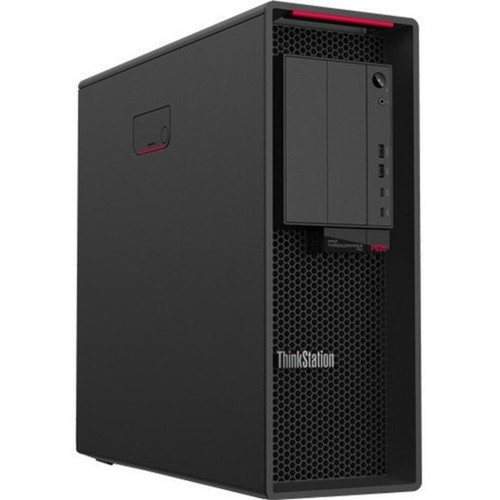

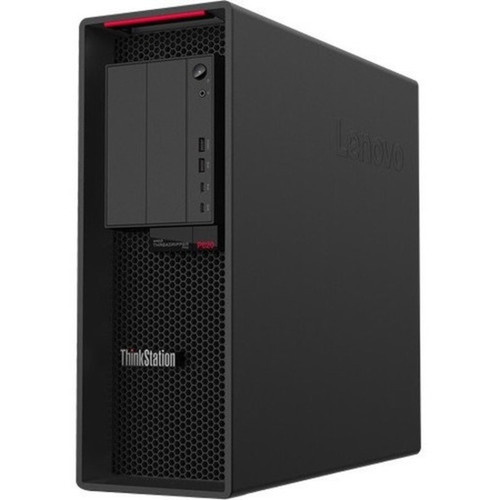

Lenovo 30E000N8US ThinkStation P620 Workstation - Ryzen Threadripper Pro 5965WX 24-Core 3. 8GHz - 32GB RAM - 1TB NVMe SSD - Radeon Pro VII 16GB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P620 is the AMD Ryzen Threadripper PRO 5965WX processor, featuring 24 cores and 48 threads on the Socket SP3 platform. This CPU architecture is designed for workstation reliability with support for ECC memory and advanced security features. The system memory operates at 3.20 GHz with error-correcting code (ECC) protection and registered signal processing for data integrity in critical applications.
Storage performance is maximized through the PCI Express 4.0 interface, delivering sequential read speeds up to 7,000 MB/s and write speeds up to 5,000 MB/s on the included NVMe SSD. The AMD Radeon Pro VII graphics card provides 16 GB of high-bandwidth memory with hardware-accelerated ray tracing support for visualization, simulation, and content creation workflows.
Relevant factors for this section include Number of Processors Installed, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P620 combines workstation-class components with Lenovo's engineering validation for stability under sustained heavy loads. The system is certified for major professional applications including AutoCAD, SOLIDWORKS, Revit, and Adobe Creative Suite.
Expansion Capability
Eight memory slots support up to 1 TB of DDR4 ECC Registered RAM, while multiple PCIe 4.0 slots accommodate additional graphics cards, storage controllers, or specialized accelerator cards.
- 8 DDR4 slots
- Multiple PCIe 4.0 slots
- Tool-less chassis design
Professional Graphics
The AMD Radeon Pro VII delivers workstation-optimized performance with certified drivers for CAD, DCC, and scientific visualization applications, plus hardware-accelerated ray tracing capabilities.
- 16 GB HBM2 memory
- Hardware ray tracing
- ISV-certified drivers
Reliability Features
ECC memory with registered buffers protects against single-bit errors, while the 1 kW power supply provides stable voltage regulation even under peak computational loads.
- ECC protection
- 1 kW PSU
- Enhanced cooling
Deployment / Use Cases
This workstation is engineered for professional environments where computational power, data integrity, and application certification are essential. The combination of high core count, ECC memory, and professional graphics makes it suitable for engineering simulation, architectural visualization, scientific computing, and media production.
In engineering and design workflows, the system accelerates finite element analysis, computational fluid dynamics, and 3D rendering tasks. For content creation professionals, the Radeon Pro VII graphics card accelerates video editing, color grading, and 3D animation in applications like DaVinci Resolve, Maya, and Cinema 4D.
Engineering & Simulation
Run complex simulations with ANSYS, Abaqus, or COMSOL Multiphysics while maintaining data accuracy through ECC memory protection.
Media & Entertainment
Accelerate 8K video editing, visual effects rendering, and real-time playback with hardware-accelerated encoding and decoding.
Localization and Operating System
The system comes pre-installed with Windows 11 Pro 64-bit in English language. Windows 11 Pro includes BitLocker device encryption, Hyper-V virtualization, Remote Desktop, and enhanced security features suitable for business environments.
Keyboard localization is English (US) layout. The operating system architecture is 64-bit, supporting applications that require large memory addressing beyond 4 GB. Windows 11 Pro provides compatibility with legacy business applications through Windows Subsystem for Linux and improved container support.
Relevant factors for this section include Number of Processors Installed, Processor Type, Processor Model, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The tower chassis measures 17.56 inches (446 mm) in height, 6.50 inches (165 mm) in width, and 18.11 inches (460 mm) in depth, with an approximate weight of 52.91 pounds (24,000 g). The compact tower design optimizes desk space while providing ample internal volume for cooling and expansion.
The tool-less chassis design facilitates easy access to internal components for maintenance and upgrades. The system meets multiple environmental certifications including EPEAT Silver, GREENGUARD, ENERGY STAR 8.0, and RoHS compliance for reduced environmental impact.
- Width
- 6.50" (165 mm)
- Depth
- 18.11" (460 mm)
- Height
- 17.56" (446 mm)
- Weight
- 52.91 lb (24000 g)
What's in the Box
The package includes the complete workstation system with all installed components, plus essential peripherals for immediate setup and use.
Highlights
- AMD Ryzen Threadripper PRO 5965WX 24-core processor at 3.80 GHz
- 32 GB DDR4 ECC Registered memory (expandable to 1 TB across 8 slots)
- 1 TB PCI Express NVMe 4.0 solid-state drive for fast storage
- AMD Radeon Pro VII graphics with 16 GB dedicated memory
- Windows 11 Pro 64-bit operating system pre-installed
- Dual Ethernet (Gigabit + 10 Gigabit) for high-speed networking
- 10 USB ports including 2 USB-C 3.2 Gen 2 for modern peripherals
- 1 kW power supply for stable operation under heavy loads
- 3-year limited warranty with Premier Support upgrade option
- EPEAT Silver, ENERGY STAR 8.0, and RoHS environmental certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30E000N8US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P620 |
| Product Model | 30E000N8US |
| Product Name | ThinkStation P620 30E000N8US Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 5965WX |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Speed | 3.80 GHz |
| Processor Socket | Socket SP3 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX80 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 3.20 GHz |
| Memory Configuration | 2 x 16GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| Optical Drive Type | No |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics | |
| Graphics Controller Model | Radeon Pro VII |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | No |
| Bluetooth | No |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 18.11" (460 mm) |
| Weight (Approximate) | 52.91 lb (24000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P620 30E000N8US Workstation USB Traditional Keyboard USB Calliope Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Silver (EPEAT Silver),GREENGUARD |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3Y Premier Support Upgrade from 3Y Onsite (5WS0U26649) |
User Manual
FAQ
What processor does this Lenovo ThinkStation P620 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 5965WX processor, which has 24 cores (tetracosa-core) and operates at a base clock speed of 3.80 GHz. It uses the Socket SP3 platform and supports advanced workstation features including ECC memory and enhanced security capabilities through AMD's PRO technologies.
How much memory is installed and what type is it?
The system comes with 32 GB of DDR4 SDRAM installed as two 16 GB modules. This is ECC (Error-Correcting Code) Registered memory, which provides data integrity protection by detecting and correcting single-bit errors. The memory operates at 3.20 GHz, and the workstation has eight total memory slots supporting expansion up to 1 TB maximum capacity.
What storage configuration does this workstation include?
Storage is provided by a 1 TB solid-state drive using the PCI Express NVMe 4.0 interface. This delivers significantly faster data transfer speeds compared to SATA SSDs or traditional hard drives, with sequential read speeds typically exceeding 5,000 MB/s. The system also includes a Serial ATA/600 controller with RAID support for additional storage expansion.
What graphics card is installed in this workstation?
The workstation includes an AMD Radeon Pro VII graphics card with 16 GB of dedicated GDDR6 memory. This is a professional-grade GPU with hardware-accelerated ray tracing capabilities and certified drivers for major CAD, DCC, and visualization applications. The dedicated memory architecture ensures consistent performance for GPU-accelerated workloads.
What networking capabilities does this workstation offer?
The system provides dual Ethernet connectivity with both Gigabit Ethernet and 10 Gigabit Ethernet ports. This allows for high-speed network access suitable for large file transfers, network-attached storage, or clustered computing environments. The workstation does not include built-in wireless LAN or Bluetooth connectivity, focusing instead on wired reliability.
What warranty and support options come with this workstation?
Lenovo provides a 3-year limited warranty on this ThinkStation P620 workstation. This includes a 3Y Premier Support upgrade from the standard 3-year onsite service, offering enhanced technical support with faster response times and priority service dispatch. The warranty covers parts and labor for manufacturing defects during the coverage period.
