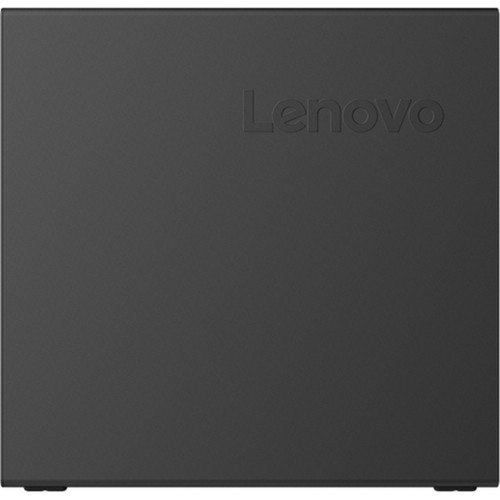

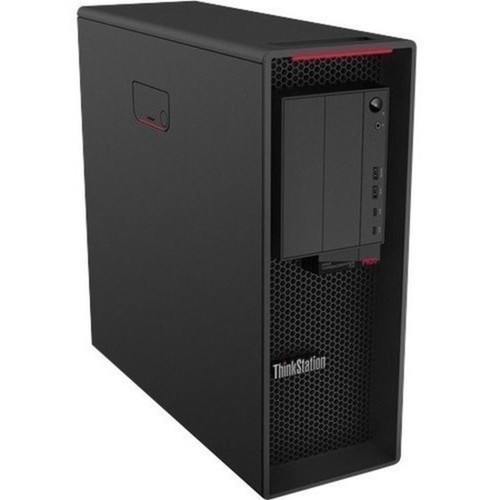

Lenovo 30E000U6CA ThinkStation P620 Workstation - Ryzen Threadripper Pro 5955WX 16-Core - 64 GB RAM - 2 TB SSD - Radeon Pro VII - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P620 is the AMD Ryzen Threadripper PRO 5955WX processor, featuring 16 cores and a 4 GHz base clock. This CPU is paired with the AMD WRX80 chipset, which provides extensive PCIe lanes and memory support for workstation-class expansion.
The system includes 64 GB of DDR4 ECC registered memory running at 3200 MHz across eight DIMM slots, with support for up to 1 TB total capacity. Storage is handled by a 2 TB PCI Express NVMe solid-state drive, delivering fast boot times and rapid data access for large project files.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines professional-grade components with Lenovo's engineering validation to ensure stability under sustained heavy loads. The AMD Radeon Pro VII graphics card with 16 GB of dedicated GDDR6 memory accelerates rendering, simulation, and visualization workflows.
Professional Graphics Performance
The AMD Radeon Pro VII delivers workstation-certified performance for applications like AutoCAD, SolidWorks, Revit, and Adobe Creative Suite, with optimized drivers for professional workflows.
- 16 GB GDDR6 memory
- DisplayPort outputs
- Professional application certification
Expansion and Upgrade Flexibility
The tower chassis provides multiple internal bays and expansion slots, while the 1000 W power supply ensures headroom for additional components.
- 8 memory slots
- Multiple storage bays
- RAID 0/1/5/10 support
Enterprise Connectivity
With 10 Gigabit Ethernet and multiple USB 3.2 Gen 2 ports including USB-C, this workstation connects efficiently to high-speed networks and peripherals.
- 10GbE for fast file transfers
- 6x USB 3.2 Gen 2 ports
- 2x USB-C 3.2 Gen 2 ports
Deployment / Use Cases
The ThinkStation P620 is designed for professional environments where computational power and reliability are critical. Its balanced configuration of high-core-count CPU, substantial memory, fast storage, and professional graphics makes it suitable for a range of demanding applications.
Common deployment scenarios include engineering design offices running CAD and simulation software, media production studios handling 4K/8K video editing and 3D animation, research laboratories processing large datasets, and architectural firms working with complex building information models.
Engineering and Design
Run applications like Autodesk AutoCAD, Dassault Systèmes SOLIDWORKS, Siemens NX, and ANSYS simulation software with responsive performance for complex assemblies and analyses.
Content Creation and Media
Handle Adobe Creative Cloud applications, DaVinci Resolve, Blender, and Unreal Engine for video editing, visual effects, 3D modeling, and real-time rendering projects.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit pre-installed, providing a familiar and secure operating environment for professional users. Windows 11 Pro includes enhanced security features, remote desktop capabilities, and compatibility with business management tools.
The system is configured for North American power standards and includes comprehensive documentation and driver support through Lenovo's enterprise resources.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkStation P620 utilizes a traditional tower form factor measuring 17.56 inches in height, 6.50 inches in width, and 18.11 inches in depth. This design provides excellent thermal management and ample internal space for component upgrades while maintaining a professional appearance suitable for office environments.
Weighing approximately 52.91 pounds, the workstation is built with durable materials and includes tool-less access panels for easy maintenance. The chassis features multiple cooling zones with optimized airflow to maintain component temperatures during extended operation.
- Width
- 6.50" (165 mm)
- Depth
- 18.11" (460 mm)
- Height
- 17.56" (446 mm)
- Weight
- 52.91 lb (24000 g)
Highlights
- AMD Ryzen Threadripper PRO 5955WX 16-core processor for intensive multi-threaded workloads
- 64 GB DDR4 ECC registered memory with eight DIMM slots supporting up to 1 TB total capacity
- 2 TB PCI Express NVMe solid-state drive for fast boot times and application loading
- AMD Radeon Pro VII graphics card with 16 GB dedicated GDDR6 memory for professional visualization
- 10 Gigabit Ethernet connectivity for high-speed network file transfers and collaboration
- Comprehensive USB connectivity including six USB 3.2 Gen 2 ports and two USB-C 3.2 Gen 2 ports
- Windows 11 Pro 64-bit operating system with enhanced security and management features
- Tower chassis with 1000 W power supply supporting expansion and future upgrades
- RAID 0, 1, 5, and 10 support via Serial ATA/600 controller for data protection and performance
- 3-year limited warranty with 3YR Premier Next Business Day service for business continuity
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30E000U6CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P620 |
| Product Model | 30E000U6CA |
| Product Name | ThinkStation P620 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 5955WX |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Speed | 4 GHz |
| Processor Socket | Socket SP3 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX80 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 3.20 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | Radeon Pro VII |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB-C 3.2 Gen 2 |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 18.11" (460 mm) |
| Weight (Approximate) | 52.91 lb (24000 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this Lenovo ThinkStation P620 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 5955WX processor, which has 16 cores and operates at a base clock speed of 4 GHz. This professional-grade CPU is designed for demanding multi-threaded applications like 3D rendering, simulation, and data analysis, offering excellent performance for workstation workloads.
How much memory is installed and what type does it use?
The system comes with 64 GB of DDR4 ECC registered memory installed. This error-correcting memory technology helps prevent data corruption and system crashes during critical computations. The workstation has eight memory slots total, supporting expansion up to 1 TB of RAM for future memory upgrades as workload requirements grow.
What graphics card is included and how much memory does it have?
This configuration includes an AMD Radeon Pro VII graphics card with 16 GB of dedicated GDDR6 memory. This professional GPU is certified for applications like AutoCAD, SolidWorks, Revit, and Adobe Creative Suite, providing optimized performance and stability for design, engineering, and content creation workflows.
What storage configuration does this workstation have?
The primary storage is a 2 TB PCI Express NVMe solid-state drive, which delivers significantly faster data transfer speeds compared to traditional SATA SSDs or hard drives. The system also supports RAID configurations (0, 1, 5, 10) through its Serial ATA/600 controller for additional storage expansion and data protection options.
What networking capabilities does this workstation offer?
This ThinkStation P620 includes 10 Gigabit Ethernet connectivity, providing network transfer speeds up to ten times faster than standard Gigabit Ethernet. This is particularly valuable for professionals working with large files who need to transfer data quickly across networks or access shared storage resources efficiently.
What operating system comes pre-installed and what warranty is included?
The workstation ships with Windows 11 Pro 64-bit pre-installed, offering enhanced security features, remote management capabilities, and compatibility with business applications. Lenovo provides a 3-year limited warranty with 3YR Premier Next Business Day service, ensuring prompt technical support and parts replacement to minimize downtime in professional environments.
