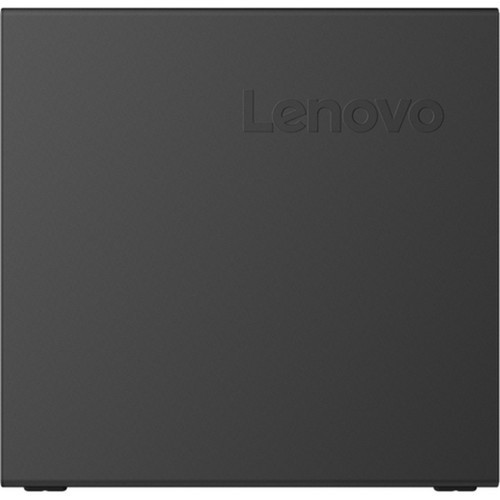

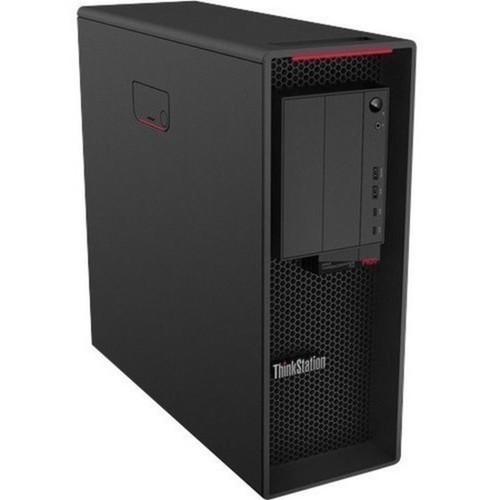

Lenovo 30E000U9CA ThinkStation P620 Workstation - Ryzen Threadripper Pro 5945WX 12-Core 4. 1GHz - 64GB RAM - 2TB NVMe SSD - Windows 11 Pro - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P620 is the AMD Ryzen Threadripper PRO 5945WX processor, featuring 12 cores running at 4.10 GHz with Socket SP3 compatibility. This CPU is paired with the AMD WRX80 chipset, which supports professional workstation features including extensive PCIe connectivity and memory bandwidth optimization.
The memory subsystem includes 64 GB of DDR4 SDRAM operating at 3.20 GHz with ECC error checking and registered signal processing for data integrity. Eight memory slots allow expansion up to 1 TB total capacity. Storage is handled by a 2 TB PCI Express NVMe solid-state drive that delivers fast data access for applications and project files.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P620 combines workstation-class components with Lenovo's reliability engineering to create a system that maintains performance under sustained heavy loads. ECC memory and registered DIMMs ensure data accuracy for scientific and financial calculations, while the 10 Gigabit Ethernet connection accelerates network transfers for collaborative workflows.
Professional-Grade Processing
The Ryzen Threadripper PRO 5945WX delivers 12 high-performance cores with workstation-specific features including 128 PCIe lanes and support for multi-GPU configurations.
- 12 cores at 4.10 GHz
- Socket SP3 platform
- AMD WRX80 chipset
Enterprise Storage Architecture
With PCI Express NVMe storage and hardware RAID support, the P620 offers both speed and data protection for critical workloads.
- 2 TB NVMe SSD
- RAID 0, 1, 5, 10 support
- Serial ATA/600 controller
Deployment / Use Cases
The ThinkStation P620 is engineered for professional environments where computational power and data integrity are paramount. Its tower form factor provides ample internal space for additional storage drives, expansion cards, or specialized accelerators.
This workstation excels in computer-aided design (CAD), finite element analysis (FEA), computational fluid dynamics (CFD), 3D rendering, scientific simulation, and financial modeling applications. The combination of high-core-count processing, ECC memory, and fast NVMe storage makes it suitable for research institutions, engineering firms, media production studios, and financial analysis departments.
Engineering & Design
Handle complex assemblies and simulations with the Threadripper PRO processor and professional memory architecture.
- CAD modeling
- Structural analysis
- Product simulation
Scientific Computing
Process large datasets with confidence using ECC memory and enterprise storage features.
- Data analysis
- Computational research
- Statistical modeling
Localization and Operating System
The ThinkStation P620 comes pre-installed with Windows 11 Pro 64-bit, providing a familiar professional environment with enhanced security features and productivity tools. Windows 11 Pro includes BitLocker device encryption, Remote Desktop functionality, and support for domain joining and group policy management.
This operating system configuration is optimized for workstation applications, offering compatibility with professional software suites for engineering, scientific, and creative workflows while maintaining enterprise manageability.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The tower chassis measures 17.56" (446 mm) in height, 6.50" (165 mm) in width, and 18.11" (460 mm) in depth, providing substantial internal volume for cooling and expansion while maintaining a professional appearance. Weighing approximately 52.91 lb (24 kg), the workstation is designed for stationary deployment in office or lab environments.
The tower form factor offers excellent thermal management for sustained high-performance operation and accommodates standard rack-mount accessories for data center deployment when required. The system meets GREENGUARD environmental certification and RoHS compliance standards.
- Width
- 6.50" (165 mm)
- Depth
- 18.11" (460 mm)
- Height
- 17.56" (446 mm)
- Weight
- 52.91 lb (24000 g)
Highlights
- AMD Ryzen Threadripper PRO 5945WX 12-core processor at 4.10 GHz
- 64 GB DDR4 SDRAM with ECC error checking and registered signal processing
- 2 TB PCI Express NVMe solid-state drive for fast storage access
- Windows 11 Pro 64-bit operating system pre-installed
- 10 Gigabit Ethernet for high-speed network connectivity
- 10 USB ports including 2x USB-C 3.2 Gen 2 for modern peripherals
- Tower form factor with 1 kW power supply for expansion headroom
- Hardware RAID support (0, 1, 5, 10) for data protection
- 3-year warranty with Premier Next Business Day service
- GREENGUARD certified and RoHS compliant for environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30E000U9CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P620 |
| Product Model | 30E000U9CA |
| Product Name | ThinkStation P620 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 5945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 4.10 GHz |
| Processor Socket | Socket SP3 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX80 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 3.20 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB-C 3.2 Gen 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 18.11" (460 mm) |
| Weight (Approximate) | 52.91 lb (24000 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does the ThinkStation P620 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 5945WX processor, which has 12 cores running at a base speed of 4.10 GHz. This professional-grade CPU uses Socket SP3 and is paired with the AMD WRX80 chipset to deliver workstation-specific features including extensive PCIe connectivity and support for ECC memory.
How much memory is installed and what type is it?
The system comes with 64 GB of DDR4 SDRAM operating at 3.20 GHz. This is ECC (Error-Correcting Code) registered memory, which detects and corrects single-bit memory errors to maintain data integrity. There are 8 memory slots total, supporting expansion up to 1 TB of RAM for memory-intensive applications.
What storage configuration does this workstation include?
Storage is provided by a 2 TB PCI Express NVMe solid-state drive. This uses the NVMe protocol over PCIe for significantly faster data transfer compared to SATA-based storage. The system also includes a Serial ATA/600 controller with hardware RAID support for levels 0, 1, 5, and 10 when additional drives are installed.
What operating system comes pre-installed?
The ThinkStation P620 comes with Windows 11 Pro 64-bit pre-installed. This professional edition includes features like BitLocker encryption, Remote Desktop, domain joining capability, and group policy management. It provides a stable platform for workstation applications while maintaining enterprise security and manageability standards.
What networking capabilities does this workstation offer?
The system includes 10 Gigabit Ethernet connectivity, providing ten times the bandwidth of standard Gigabit Ethernet. This high-speed networking is essential for transferring large files across networks, accessing network storage, and collaborative workflows where multiple users need to work with the same large datasets simultaneously.
What is the warranty coverage for this workstation?
Lenovo provides a 3-year limited warranty with Premier Next Business Day service. This means that if a hardware issue arises, Lenovo will dispatch a technician with the necessary parts by the next business day. The system also meets GREENGUARD environmental certification and RoHS compliance standards for reduced chemical emissions and hazardous substances.
