Lenovo 30E000V3CA ThinkStation P620 Tower Workstation - Ryzen Threadripper Pro 5945WX 12-Core 4. 1GHz - 32GB RAM - 1TB NVMe SSD - NVIDIA T1000 8GB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this workstation is the AMD Ryzen Threadripper PRO 5945WX, a dodeca-core processor operating at 4.10 GHz on the Socket SP3 platform. It is paired with the AMD WRX80 chipset, which provides the foundation for professional features and expansion. The system is equipped with 32 GB of DDR4 SDRAM that supports Error-Correcting Code (ECC) and registered signal processing, ensuring data integrity and stability for critical applications. Memory expansion is supported up to 1 TB across eight available slots.
Storage is handled by a 1 TB solid-state drive using the PCI Express NVMe 4.0 interface for exceptional read and write speeds. The storage controller supports Serial ATA/600 and hardware RAID levels 0, 1, 5, and 10 for data redundancy or performance configurations. Visual processing is managed by a dedicated NVIDIA T1000 graphics card with 8 GB of GDDR6 memory, suitable for CAD, 3D modeling, and multi-display setups.
Key Product Advantages
This ThinkStation P620 configuration balances immediate performance with long-term value. The inclusion of a 1 TB NVMe SSD accelerates application load times and data access, while the NVIDIA T1000 GPU provides dedicated graphics memory for smoother visual workloads. The system's support for hardware RAID allows for flexible storage strategies, from striped performance to mirrored redundancy.
Professional-Grade Compute
The Ryzen Threadripper PRO platform combines high core counts with pro features like ECC memory support and the WRX80 chipset, delivering reliable performance for engineering, scientific, and creative software.
- 12-core/24-thread CPU
- ECC Registered DDR4 memory
- AMD WRX80 chipset
Expansion and Connectivity
With eight memory slots, multiple storage bays, 10 Gigabit Ethernet, and a full complement of USB ports including USB-C, this workstation is built to grow with your project needs and connect to high-speed networks and peripherals.
- Up to 1 TB memory capacity
- 10 GbE for fast file transfers
- 6x USB 3.2 Gen 2 ports
Deployment / Use Cases

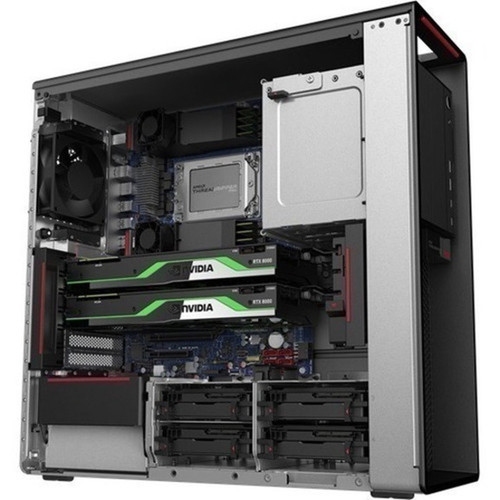

The ThinkStation P620 is designed for professional environments where reliability and performance under sustained load are non-negotiable. Its tower chassis facilitates easy upgrades and maintenance, making it a practical choice for IT departments managing a fleet of workstations.
Common deployment scenarios include architectural firms, manufacturing design teams, research laboratories, and post-production studios. The pre-installed Windows 11 Pro operating system provides a familiar environment with advanced management and security features for business IT integration.
Engineering and Design
Ideal for CAD, CAM, finite element analysis (FEA), and computational fluid dynamics (CFD) where multi-threaded CPU performance and graphics acceleration are crucial. The ECC memory ensures accuracy in simulations and renders.
Content Creation and Media
Well-suited for video editing, 3D animation, and visual effects work. The fast NVMe storage handles large media files, while the dedicated GPU accelerates previews and certain rendering tasks.
Localization and Operating System
This Lenovo ThinkStation P620 workstation ships with Microsoft Windows 11 Pro 64-bit pre-installed. Windows 11 Pro is the professional edition of the operating system, offering advanced features for business environments such as BitLocker device encryption, remote desktop hosting, enhanced group policy management, and Hyper-V virtualization. This makes the system ready for immediate deployment into corporate IT networks, with built-in tools for security, management, and productivity that support professional workflows in engineering, design, and scientific computing.
The operating system is configured for a single-processor setup, with one AMD Ryzen Threadripper PRO 5945WX processor installed. This 12-core CPU, paired with the AMD WRX80 chipset, provides a stable and high-performance foundation for multi-threaded applications. The system's architecture supports 64-bit computing, allowing it to address large amounts of memory and run demanding professional software efficiently. With Windows 11 Pro, users benefit from a familiar interface, regular security updates, and compatibility with a wide range of business and creative applications.
Physical Profile

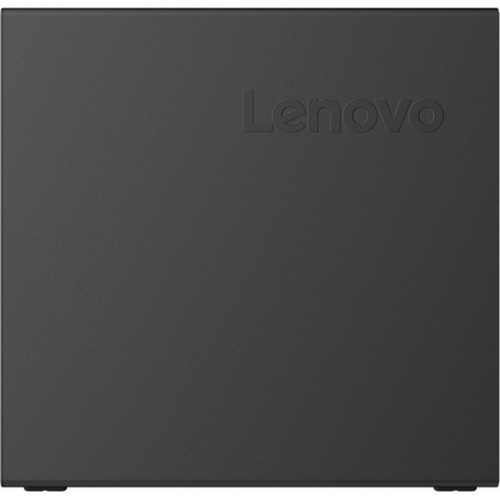

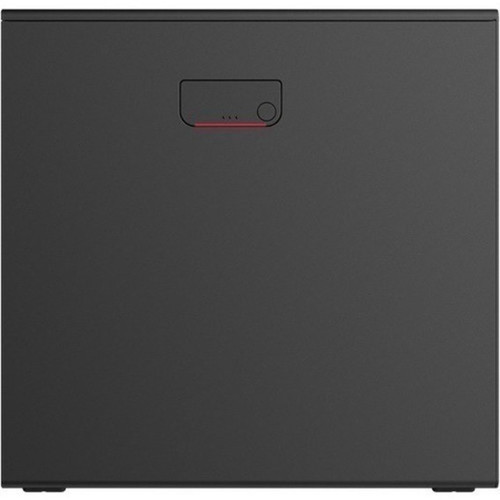

Housed in a standard tower form factor, this workstation measures 17.56 inches in height, 6.50 inches in width, and 18.11 inches in depth (446 mm x 165 mm x 460 mm), with an approximate weight of 52.91 pounds (24 kg). The design prioritizes internal airflow and component accessibility. The chassis is built to meet environmental standards including GREENGUARD certification and RoHS compliance. A 1-kilowatt power supply provides ample headroom for additional components and ensures stable operation under full load.
- Width
- 6.50" (165 mm)
- Depth
- 18.11" (460 mm)
- Height
- 17.56" (446 mm)
- Weight
- 52.91 lb (24000 g)
Highlights
- AMD Ryzen Threadripper PRO 5945WX 12-core 4.1GHz processor
- 32 GB of DDR4 ECC Registered memory (expandable to 1 TB)
- 1 TB PCIe NVMe 4.0 solid-state drive for fast storage
- NVIDIA T1000 dedicated graphics card with 8 GB GDDR6
- Windows 11 Pro 64-bit operating system pre-installed
- 10 Gigabit Ethernet for high-speed network connectivity
- Tower chassis with 1 kW power supply and strong expansion
- Hardware RAID support (0, 1, 5, 10) for storage flexibility
- Multiple USB ports including USB-C 3.2 Gen 2
- 3-year warranty with Premier Next Business Day service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30E000V3CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P620 |
| Product Model | 30E000V3CA |
| Product Name | ThinkStation P620 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 5945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 4.10 GHz |
| Processor Socket | Socket SP3 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX80 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 3.20 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | T1000 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB-C 3.2 Gen 2 |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 4 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 18.11" (460 mm) |
| Weight (Approximate) | 52.91 lb (24000 g) |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this product use?
This product uses the 1 processor for everyday performance and multitasking.
How much memory is installed?
It includes 32 GB of memory to support responsive multitasking and daily workloads.
What storage is included?
The system includes 1 TB of storage for applications, files, and everyday business data.
What graphics or display support is listed?
It features a display specification of T1000, giving you clear visuals for work and media use.
What connectivity options are available?
Connectivity options include 10 Gigabit Ethernet, helping the product integrate into common office or home setups.
What operating system or platform is included?
The included operating environment is Windows, which helps position the product for software compatibility, deployment planning, and day-to-day business use.
