Lenovo 30E00117CA ThinkStation P620 Tower Workstation - Ryzen Threadripper PRO 5945WX 12-Core 4. 10 GHz - 32 GB RAM - 1 TB NVMe SSD - Radeon Pro W6400
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ThinkStation P620 is engineered for stability and performance in professional environments. The AMD Ryzen Threadripper PRO 5945WX processor features 12 cores and 24 threads, with a base clock of 4.10 GHz, delivering robust multi-threaded performance for compute-intensive applications.
Memory configuration includes 32 GB of DDR4 SDRAM running at 3200 MHz across eight available slots, supporting future expansion to 512 GB. Storage is handled by a 1 TB PCI Express NVMe 4.0 solid-state drive, offering high sequential read/write speeds for large project files and datasets.
Graphics are powered by the AMD Radeon Pro W6400, a professional GPU with 4 GB of dedicated GDDR6 memory. This card supports multiple displays and provides hardware acceleration for CAD, DCC, and visualization software. Connectivity includes ten USB ports with modern USB 3.2 Gen 2 and USB-C interfaces, plus Gigabit Ethernet for network access.
Key Product Advantages
Professional-Grade Processor
The AMD Ryzen Threadripper PRO 5945WX combines high core counts with enterprise features like 128 PCIe 4.0 lanes and AMD PRO technologies for security and manageability.
- 12 cores/24 threads
- 4.10 GHz clock speed
- Enterprise security features
Expandable Memory Architecture
Eight DDR4 memory slots support up to 512 GB of RAM, allowing significant memory upgrades as workload demands increase over time.
- 32 GB installed
- 8 available slots
- 3200 MHz speed
Fast NVMe Storage
The 1 TB PCI Express NVMe 4.0 SSD delivers exceptional storage performance with sequential read speeds exceeding 7000 MB/s for rapid file access and application loading.
- PCIe 4.0 interface
- 1 TB capacity
- High sequential performance
Deployment / Use Cases
The ThinkStation P620 is designed for professional environments where computational power and system stability are critical. Its balanced configuration of high-core-count processor, substantial memory, fast storage, and professional graphics makes it suitable for a range of technical and creative applications.
Engineering and design teams will appreciate the workstation's ability to handle complex CAD models, finite element analysis, and computational fluid dynamics simulations. The Radeon Pro W6400 graphics card provides certified driver support for major CAD applications, ensuring compatibility and performance.
Content creation professionals can leverage the 12-core processor for video editing, 3D animation rendering, and visual effects work. The fast NVMe storage accelerates media file access and project loading times. Research and data science applications benefit from the multi-threaded processing power for statistical analysis, machine learning model training, and scientific computing tasks.
Localization and Operating System
This workstation ships with Microsoft Windows 11 Pro 64-bit pre-installed in French language. The operating system includes professional features such as BitLocker encryption, Remote Desktop, and Hyper-V virtualization support.
Keyboard localization is French, with appropriate key legends and layout for French-speaking users. The Windows 11 Pro French installation includes all system menus, dialog boxes, and help content in French, providing a localized user experience out of the box.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Standard Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkStation P620 utilizes a traditional tower form factor with dimensions of 17.56" (446 mm) height, 6.50" (165 mm) width, and 17.91" (455 mm) depth. The Graphite Black finish presents a professional appearance suitable for office and studio environments.

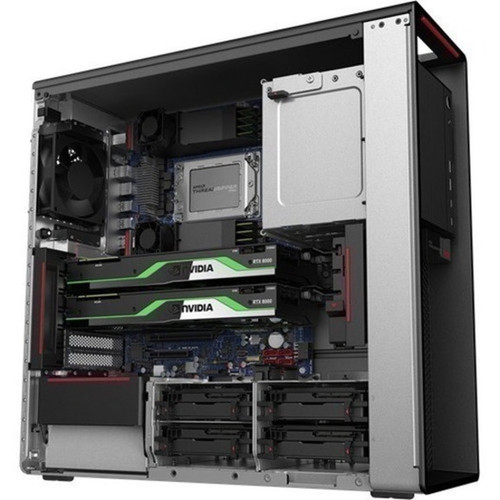

Weighing approximately 52.91 lb (24 kg), the workstation is designed for stationary deployment on desks or under work surfaces. The tower chassis provides ample internal space for additional storage drives, expansion cards, and cooling solutions. The design emphasizes serviceability with tool-less access to internal components for maintenance and upgrades.
- Width
- 6.50" (165 mm)
- Depth
- 17.91" (455 mm)
- Height
- 17.56" (446 mm)
- Weight
- 52.91 lb (24000 g)
What's in the Box
The workstation ships complete with all necessary components for immediate setup and use.
Highlights
- AMD Ryzen Threadripper PRO 5945WX 12-core processor at 4.10 GHz
- 32 GB DDR4 SDRAM with eight slots expandable to 512 GB
- 1 TB PCI Express NVMe 4.0 solid-state drive for fast storage
- AMD Radeon Pro W6400 graphics with 4 GB dedicated memory
- Windows 11 Pro 64-bit operating system in French language
- Ten USB ports including USB 3.2 Gen 2 and USB-C interfaces
- Tower form factor with Graphite Black finish
- 1000W power supply with 120-230V AC input
- French keyboard localization for regional compatibility
- Three-year limited warranty with Premier NBD service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30E00117CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P620 |
| Product Model | 30E00117CA |
| Product Name | ThinkStation P620 30E00117CA Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 5945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 4.10 GHz |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 3.20 GHz |
| Storage | |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 |
| Display & Graphics | |
| Graphics Controller Model | Radeon Pro W6400 |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Ethernet |
| Input Devices | |
| Keyboard Localization | French |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 6 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 USB 3.2 Gen 2 (Type C) |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | French |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Graphite Black |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.91" (455 mm) |
| Weight (Approximate) | 52.91 lb (24000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P620 30E00117CA Workstation Keyboard USB Optical Mouse |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this ThinkStation P620 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 5945WX processor, which has 12 cores and 24 threads with a base clock speed of 4.10 GHz. The Threadripper PRO platform supports 128 PCIe 4.0 lanes and includes AMD PRO technologies for enterprise security and manageability features.
How much memory is installed and what expansion options are available?
The system comes with 32 GB of DDR4 SDRAM installed. It has eight total memory slots, supporting expansion up to 512 GB of RAM. The memory operates at 3200 MHz speed, providing good bandwidth for memory-intensive applications and multitasking workloads.
What type of storage does this workstation include?
Storage is provided by a 1 TB PCI Express NVMe 4.0 solid-state drive. This interface offers significantly higher performance than SATA SSDs, with sequential read speeds that can exceed 7000 MB/s. The NVMe 4.0 standard provides low latency access for large files and applications.
What graphics card is installed and what professional applications does it support?
The workstation includes an AMD Radeon Pro W6400 graphics card with 4 GB of dedicated GDDR6 memory. This professional GPU supports multiple displays and provides certified drivers for major CAD, DCC, and visualization applications including AutoCAD, SolidWorks, Revit, and Maya.
What operating system and language is pre-installed?
The system ships with Microsoft Windows 11 Pro 64-bit pre-installed in French language. This includes the complete French localization of the operating system interface, menus, and help content. The French keyboard has appropriate key legends and layout for French-speaking users.
What connectivity options does this workstation offer?
Connectivity includes ten USB ports total: six USB 3.2 Gen 2 ports, two USB 2.0 ports, and two USB-C 3.2 Gen 2 ports. The system also includes Gigabit Ethernet for network connectivity. The tower chassis provides internal expansion slots for additional cards and interfaces as needed.
