Lenovo 30F3003QUS ThinkStation P7 Workstation - Xeon w5-3435 x 3. 10 GHz - 64 GB DDR5 - 2 TB NVMe SSD - Windows 11 Pro for Workstations
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This workstation leverages Intel's Xeon w5-3435X processor operating at 3.10 GHz with 16 physical cores and 32 threads. The processor utilizes Socket LGA-4677 and includes Intel vPro technology for enhanced security and remote management capabilities.
Memory architecture employs DDR5 SDRAM technology with error-correcting code (ECC) and registered signal processing for improved data integrity in mission-critical environments. The 4.80 GHz memory clock speed ensures rapid data transfer between system components.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P7 combines workstation-class components with professional software certification. Windows 11 Pro for Workstations includes features specifically optimized for high-performance hardware, while environmental certifications like EPEAT Gold and ENERGY STAR 8.0 demonstrate the system's efficiency and reduced environmental impact.
Enterprise-Grade Reliability
Built with ECC memory, registered DIMMs, and Intel vPro technology for stable operation and remote management in professional environments.
- ECC memory corrects single-bit errors
- vPro enables out-of-band management
- 3-year onsite warranty with premier support
High-Performance Storage
The 2 TB NVMe SSD utilizes PCI Express 4.0 x4 interface for exceptional read/write speeds, significantly reducing application load times and data transfer delays.
- PCIe 4.0 provides up to 64 Gbps bandwidth
- NVMe protocol reduces latency
- SSD technology eliminates mechanical delays
Deployment / Use Cases
The ThinkStation P7 30F3003QUS workstation addresses professional computing requirements across multiple industries. Its balanced configuration of processor performance, substantial memory, and fast storage makes it appropriate for engineering firms, research institutions, media production studios, and financial analysis departments.
Dual Ethernet capabilities (Gigabit and 10 Gigabit) support high-bandwidth network environments, while comprehensive USB connectivity includes multiple USB 3.2 Gen 2 ports and USB-C interfaces for modern peripherals. The system's 1.40 kW power supply ensures stable operation even under sustained heavy loads.
Engineering & Design
Ideal for CAD/CAM applications, finite element analysis, and 3D rendering where processor cores, memory bandwidth, and storage speed directly impact productivity.
Scientific Computing
Suitable for data analysis, simulation, and research applications that benefit from ECC memory protection and high core counts for parallel processing tasks.
Localization and Operating System
This workstation ships with Windows 11 Pro for Workstations pre-installed in English language. The Pro for Workstations edition includes advanced features like support for ReFS file system, persistent memory, and expanded hardware support specifically designed for workstation-class systems.
Keyboard localization is configured for English (US) layout. The operating system is fully licensed and activated, ready for immediate deployment in English-speaking environments or multilingual organizations where English serves as the primary computing language.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.

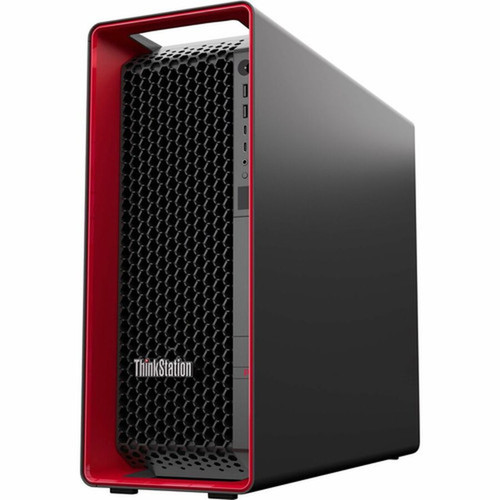

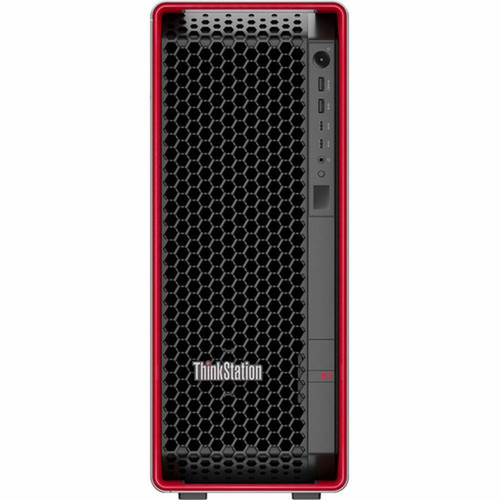

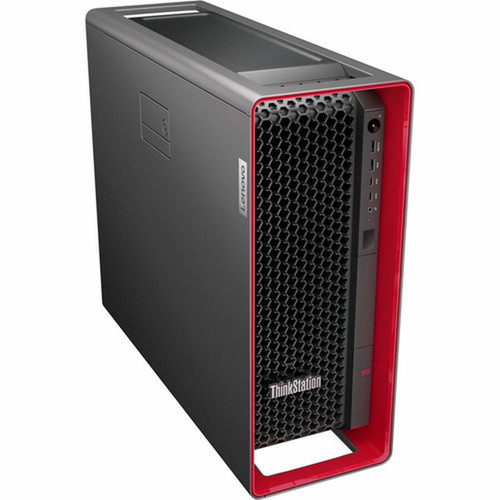

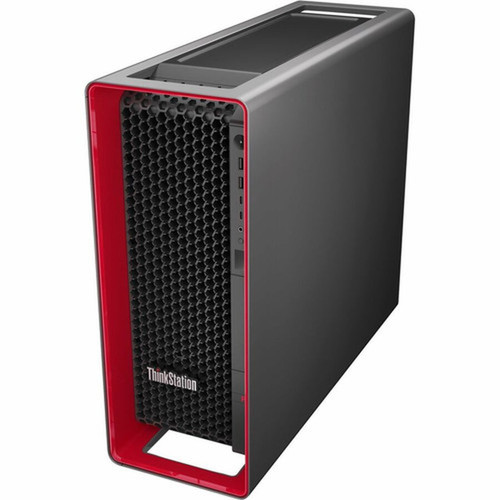

Physical Profile
The ThinkStation P7 utilizes a tower form factor measuring 17.10" (434.40 mm) in height, 6.89" (175 mm) in width, and 20" (508 mm) in depth. With an approximate weight of 54.01 lb (24.5 kg), this workstation provides substantial internal expansion space while maintaining a professional appearance suitable for office environments.
The chassis design accommodates the high-performance cooling required for sustained processor and memory operation under load. The physical dimensions allow for standard rack mounting with appropriate accessories, though the system is primarily designed for desktop or under-desk placement.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 54.01 lb (24500 g)
What's in the Box
The workstation ships complete with all essential components for immediate setup and operation.
Package contents include ThinkStation P7 30F3003QUS Keyboard Mouse, ThinkStation P7 30F3003QUS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w5-3435X processor with 16 cores and 32 threads at 3.10 GHz
- 64 GB of DDR5 SDRAM running at 4.80 GHz with ECC and registered technology
- 2 TB PCI Express NVMe 4.0 x4 solid state drive for exceptional storage performance
- Windows 11 Pro for Workstations operating system pre-installed in English
- Dual Ethernet with both Gigabit and 10 Gigabit connectivity options
- Comprehensive USB portfolio including 10 total ports with multiple USB-C interfaces
- Intel vPro technology for enhanced security and remote management capabilities
- 1.40 kW power supply ensures stable operation under heavy computational loads
- Professional 3-year warranty with onsite premier support upgrade option
- Environmental certifications including EPEAT Gold, ENERGY STAR 8.0, and TCO Certified 9.0
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30F3003QUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P7 |
| Product Model | 30F3003QUS |
| Product Name | ThinkStation P7 30F3003QUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-3435X |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 32 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | No |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 54.01 lb (24500 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P7 30F3003QUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P7 workstation use?
This workstation features an Intel Xeon w5-3435X processor with 16 physical cores and 32 threads operating at a base frequency of 3.10 GHz. The processor utilizes Socket LGA-4677 and includes Intel vPro technology for enterprise security and management features.
How much memory is installed and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed across four 16 GB modules. The memory operates at 4.80 GHz and includes error-correcting code (ECC) with registered signal processing for enhanced data integrity in professional computing environments.
What storage configuration does this workstation include?
Primary storage consists of a 2 TB solid state drive utilizing the PCI Express NVMe 4.0 x4 interface. This provides significantly faster data transfer speeds compared to SATA-based storage, with the NVMe protocol reducing latency for improved application responsiveness.
What operating system is pre-installed on this ThinkStation?
The workstation ships with Windows 11 Pro for Workstations pre-installed in English language. This edition includes features specifically optimized for high-performance hardware, such as support for ReFS file system and expanded hardware capabilities beyond standard Windows 11 Pro.
What networking and connectivity options are available?
The system includes both Gigabit Ethernet and 10 Gigabit Ethernet ports for wired networking, plus Wireless LAN and Bluetooth for wireless connectivity. USB connectivity comprises 10 total ports: 2 USB 2.0, 5 USB 3.2 Gen 2, and 3 USB-C ports (including one USB 3.2 Gen 2x2 port).
What warranty and support does this Lenovo workstation include?
Lenovo provides a 3-year limited warranty with onsite service. The configuration includes an upgrade to 3Y Onsite Premier Support, which offers prioritized technical assistance and hardware replacement services to minimize downtime in professional environments.
