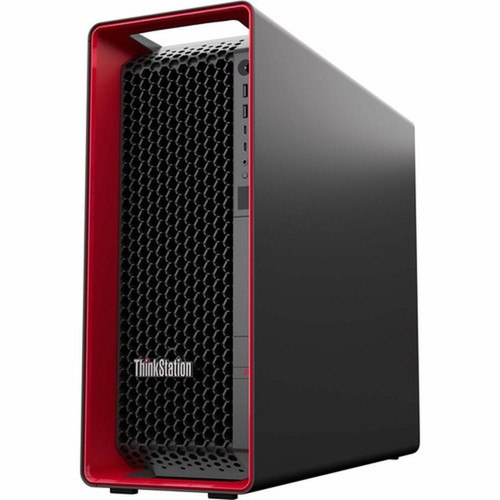

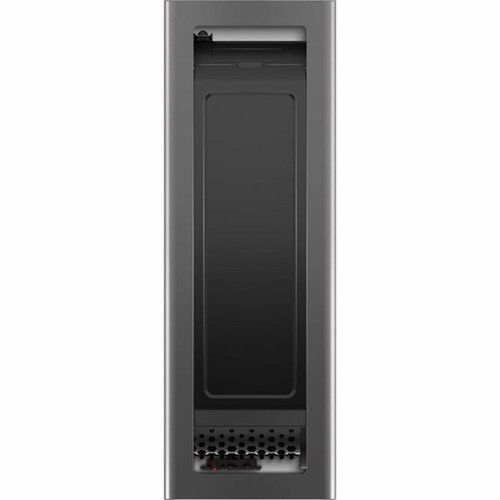

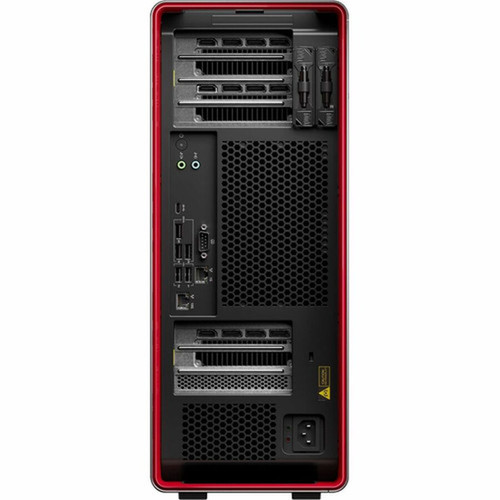

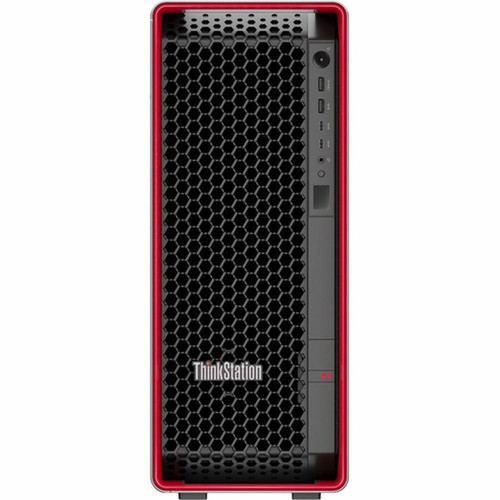

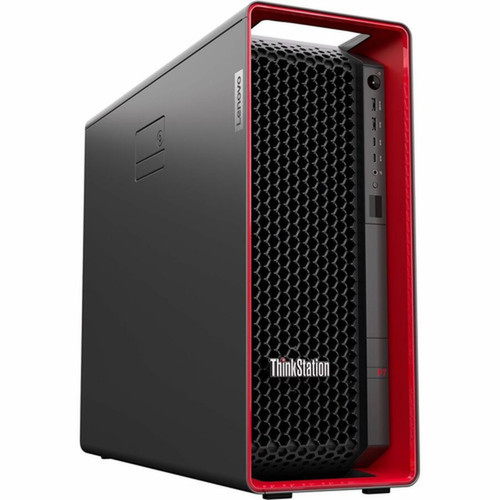

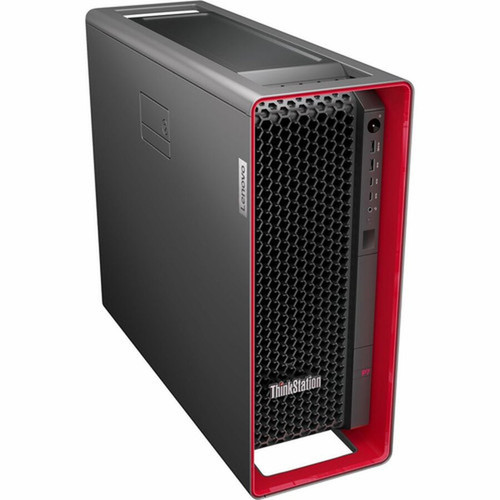

Lenovo 30F3003WUS ThinkStation P7 Workstation - Xeon w5-3425 3. 20 GHz - 64 GB DDR5 - 2 TB NVMe SSD - Windows 11 Pro for Workstations
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P7 is the Intel Xeon w5-3425 processor, a 12-core, 24-thread CPU operating at 3.20 GHz with Intel vPro technology for built-in security and remote management. The system supports up to 1 TB of memory across eight DDR5 slots, with the installed 64 GB configuration running at 4.80 GHz for optimal bandwidth.
Storage is handled by a 2 TB PCI Express NVMe 4.0 x4 solid-state drive, delivering rapid boot times and fast application loading. The workstation includes both Serial ATA and NVMe controller support, though hardware RAID is not included in this configuration.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines enterprise-grade components with professional software to create a stable platform for intensive computing tasks. The Xeon processor with vPro provides hardware-level security and remote management capabilities, while ECC memory ensures data integrity during extended operations.
Professional-Grade Memory
64 GB of DDR5 ECC Registered memory offers both high bandwidth and error correction, critical for scientific simulations, financial modeling, and large dataset processing.
- 4.80 GHz clock speed
- Eight available slots
- Expandable to 1 TB
High-Speed Storage
The 2 TB NVMe SSD utilizes PCI Express 4.0 technology for sequential read/write speeds that significantly reduce load times for large files and applications.
- PCI Express NVMe 4.0 x4 interface
- 2 TB capacity
- Fast boot and application loading
Comprehensive Connectivity
With ten USB ports including multiple USB-C connections, plus dual Ethernet and wireless options, the workstation supports diverse peripheral and network configurations.
- 2x USB-C 3.2 Gen 2
- 1x USB-C 20Gbps
- Gigabit and 10 Gigabit Ethernet
Deployment / Use Cases
The ThinkStation P7 is designed for professional environments where computational power, data integrity, and system reliability are paramount. Its balanced configuration of CPU, memory, and storage makes it suitable for a range of demanding applications.
Engineering teams will appreciate the system's ability to handle complex CAD/CAM designs and finite element analysis. Scientific researchers can leverage the ECC memory for accurate computational modeling and simulation work. Creative professionals working with high-resolution video, 3D animation, or large photographic datasets will benefit from the fast storage and substantial memory capacity.
Engineering and Design
Run professional CAD, CAM, and CAE applications with the computational headroom needed for complex assemblies and simulations.
Scientific Computing
Process large datasets and run computational models with confidence in data integrity thanks to ECC memory protection.
Localization and Operating System
This workstation ships with Windows 11 Pro for Workstations pre-installed in English. The professional workstation edition of Windows 11 includes features specifically designed for high-performance computing, including support for up to four CPUs and 6 TB of memory, ReFS file system for data integrity, and persistent memory support.
The keyboard is localized for English-language users, with standard QWERTY layout and standard key placements for efficient data entry in professional applications.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkStation P7 workstation measures 17.10 inches in height, 6.89 inches in width, and 20 inches in depth (434.40 x 175 x 508 mm), with an approximate weight of 54.01 pounds (24.5 kg). This tower form factor provides ample internal space for expansion while maintaining a professional appearance suitable for office environments.
The substantial power supply unit delivers 1.40 kW of maximum power to support high-performance components and future upgrades. The system's dimensions and weight reflect its robust construction and cooling capacity for sustained heavy workloads.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 54.01 lb (24500 g)
What's in the Box
The workstation ships complete with all necessary components for immediate deployment in a professional setting.
Highlights
- Intel Xeon w5-3425 12-core processor with vPro technology for enterprise security and management
- 64 GB DDR5 ECC Registered memory running at 4.80 GHz for high-bandwidth computing
- 2 TB PCI Express NVMe 4.0 x4 solid-state drive for rapid data access
- Windows 11 Pro for Workstations with advanced features for professional environments
- Dual Ethernet support including 10 Gigabit for high-speed networking
- Ten USB ports including multiple USB-C connections for peripheral flexibility
- 1.40 kW power supply unit for reliable operation and expansion headroom
- 3-year warranty with onsite service included for business continuity
- Eight memory slots supporting expansion up to 1 TB total capacity
- Environmental certifications including EPEAT Gold and ENERGY STAR 8.0 compliance
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30F3003WUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P7 |
| Product Model | 30F3003WUS |
| Product Name | ThinkStation P7 30F3003WUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-3425 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA,NVMe |
| RAID Supported | No |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C® 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 54.01 lb (24500 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P7 30F3003WUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P7 workstation use?
This workstation features an Intel Xeon w5-3425 processor with 12 cores and 24 threads operating at 3.20 GHz. The processor includes Intel vPro technology for enhanced security features and remote management capabilities, making it suitable for enterprise environments where system management and protection are priorities.
How much memory is installed and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed as four 16 GB modules. This is ECC (Error-Correcting Code) Registered memory running at 4.80 GHz, which provides both high bandwidth and data integrity protection. The workstation has eight total memory slots, supporting expansion up to 1 TB of total memory capacity.
What storage configuration does this workstation include?
A 2 TB PCI Express NVMe 4.0 x4 solid-state drive is installed as the primary storage. This NVMe SSD delivers significantly faster data transfer speeds compared to traditional SATA drives, with the PCI Express 4.0 interface providing ample bandwidth for demanding applications. The system supports both Serial ATA and NVMe storage controllers.
What operating system is pre-installed on this workstation?
Windows 11 Pro for Workstations comes pre-installed in English. This professional edition includes features specifically designed for high-performance computing environments, such as support for larger memory configurations, the ReFS file system for data integrity, and enhanced reliability features not available in standard Windows 11 Pro.
What connectivity options are available on this ThinkStation P7?
The workstation provides comprehensive connectivity with ten USB ports total, including two USB 2.0 ports, five USB 3.2 Gen 2 ports, two USB-C 3.2 Gen 2 ports, and one USB-C port supporting 20Gbps transfer speeds. For networking, it includes both Gigabit Ethernet and 10 Gigabit Ethernet ports, plus Wireless LAN and Bluetooth capabilities.
What warranty coverage does this Lenovo workstation include?
Lenovo provides a 3-year base warranty with onsite service included. This means a technician will come to your location for repairs if needed, minimizing downtime for business-critical systems. The warranty covers parts and labor for three years from the date of purchase, with options available to upgrade to Premier Support for enhanced service levels.
