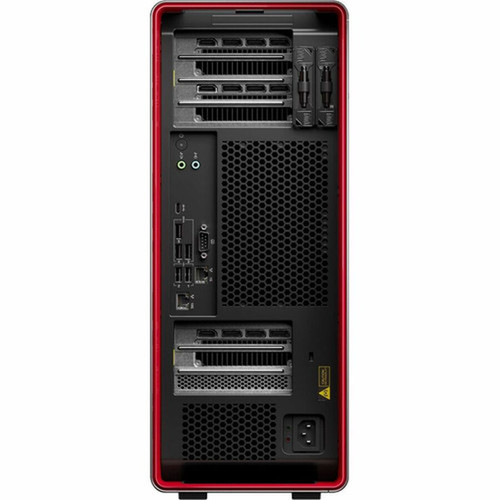

Lenovo 30F3004UCA ThinkStation P7 Workstation - Xeon w7-3445 20-Core 2. 6GHz - 16GB DDR5 - 512GB NVMe SSD - Windows 11 Pro for Workstations - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P7 is the Intel Xeon w7-3445 processor, operating at 2.60 GHz with a Socket LGA-4677 interface. This 20-core CPU supports 40 threads, enabling parallel processing for highly threaded applications. The platform is driven by the Intel W790 chipset, which provides the foundation for high-speed memory and storage connectivity.
Memory performance is enhanced by DDR5 SDRAM technology running at 4.80 GHz, with ECC and Registered signal processing for data integrity in mission-critical environments. The 512 GB NVMe SSD utilizes the PCI Express 4.0 x4 interface for exceptional storage bandwidth, while the integrated controller supports both NVMe and SATA drives with hardware RAID 0, 1, and 5 capabilities.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P7 combines workstation-grade components with enterprise-level reliability features. ECC memory with Registered signal processing ensures data accuracy during extended computational sessions, while the tower form factor provides exceptional expansion potential for additional storage, memory, or specialized accelerator cards.
Professional-Grade Connectivity
Dual Ethernet ports include 10 Gigabit Ethernet for high-bandwidth network transfers, complemented by Wi-Fi and Bluetooth for wireless peripherals. The USB complement includes three USB 3.2 Gen 2 ports and one USB-C 3.2 Gen 2x2 port for fast data transfers.
Enterprise Management & Security
Intel Xeon processors include built-in security and remote management capabilities, while Windows 11 Pro for Workstations offers enhanced security features and productivity tools designed for professional environments.
Environmental Compliance
This workstation meets TCO Certified 9.0 standards and RoHS compliance, reflecting Lenovo's commitment to sustainable manufacturing practices.
Deployment / Use Cases
The ThinkStation P7 30F3004UCA is ideally suited for technical professionals who require reliable computing power for resource-intensive applications. Its balanced configuration of high-core-count processor, ECC memory, and fast NVMe storage makes it effective for a range of professional workloads.
Primary use cases include computer-aided design (CAD), finite element analysis (FEA), computational fluid dynamics (CFD), 3D animation and rendering, scientific computing, financial modeling, and software development. The tower chassis accommodates additional GPUs for visualization workloads or specialized compute cards for accelerated processing.
Engineering & Design
Handle complex assemblies and simulations in applications like AutoCAD, SolidWorks, ANSYS, and CATIA with the Xeon processor's computational throughput and memory bandwidth.
Content Creation & Media
Accelerate rendering pipelines in Blender, Maya, or Adobe Creative Suite with the 20-core processor and fast NVMe storage for large asset files.
Localization and Operating System
This workstation ships with Windows 11 Pro for Workstations pre-installed, providing a 64-bit operating environment optimized for professional applications. The Pro for Workstations edition includes features like ReFS file system support, persistent memory support, and expanded hardware support for high-end configurations.
The included keyboard features French (Canada) localization, making this system ready for deployment in Canadian French-speaking environments without additional peripheral purchases.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkStation P7 utilizes a traditional tower form factor measuring 17.10" (434.40 mm) in height, 6.89" (175 mm) in width, and 20" (508 mm) in depth. This chassis design provides substantial internal volume for component upgrades and cooling, with a weight of approximately 54.01 lb (24.5 kg). The tower orientation offers straightforward access to internal components for maintenance and expansion.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 54.01 lb (24500 g)
What's in the Box
The workstation ships with the ThinkStation P7 system unit and a matching ThinkStation P7 keyboard with French (Canada) localization.
Package contents include ThinkStation P7 Keyboard, ThinkStation P7. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w7-3445 processor with 20 cores and 40 threads for parallel workloads
- 16 GB DDR5 ECC Registered memory with eight slots supporting up to 1 TB total
- 512 GB PCI Express NVMe 4.0 x4 SSD for fast storage performance
- Windows 11 Pro for Workstations 64-bit operating system
- 10 Gigabit Ethernet and Gigabit Ethernet for high-speed networking
- Wi-Fi and Bluetooth for wireless connectivity
- Tower form factor with ample expansion capabilities
- French (Canada) keyboard localization
- Hardware RAID 0, 1, 5 support
- 3-year warranty with Premier support options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30F3004UCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P7 |
| Product Model | 30F3004UCA |
| Product Name | ThinkStation P7 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w7-3445 |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 40 |
| Processor Speed | 2.60 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C 3.2 Gen 2x2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 54.01 lb (24500 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P7 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What type of processor does this ThinkStation P7 workstation use?
This workstation features an Intel Xeon w7-3445 processor with 20 physical cores and 40 threads. Operating at a base frequency of 2.60 GHz with Socket LGA-4677, this CPU provides the computational throughput needed for demanding professional applications like engineering simulations, 3D rendering, and data analysis.
How much memory is installed and what type is it?
The system comes with 16 GB of DDR5 SDRAM installed. This is ECC (Error-Correcting Code) Registered memory, which provides enhanced data integrity for mission-critical workloads. The workstation has eight memory slots total, supporting expansion up to 1 TB of total system memory.
What storage configuration does this workstation include?
Storage is provided by a 512 GB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This offers significantly faster data transfer speeds compared to SATA SSDs. The system supports hardware RAID configurations (0, 1, 5) and includes both NVMe and SATA/600 controllers for additional storage expansion.
What networking capabilities does the ThinkStation P7 offer?
This workstation includes dual Ethernet ports with both 10 Gigabit Ethernet and Gigabit Ethernet connectivity. This allows for high-bandwidth network transfers essential for collaborative work environments. Additionally, the system features integrated Wi-Fi and Bluetooth for wireless networking and peripheral connectivity.
What operating system is pre-installed on this workstation?
The system comes with Windows 11 Pro for Workstations 64-bit pre-installed. This edition includes features specifically designed for professional workloads, such as support for ReFS file system, persistent memory, and expanded hardware capabilities beyond the standard Windows 11 Pro version.
What is the form factor and expansion capability of this workstation?
The ThinkStation P7 uses a tower form factor measuring 17.10" high × 6.89" wide × 20" deep. This traditional chassis design provides substantial internal space for component upgrades, including additional memory modules, storage drives, or specialized accelerator cards. The tower orientation facilitates easy access for maintenance and future expansions.
