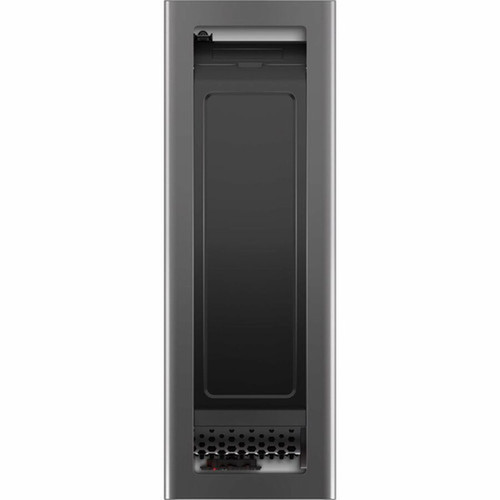

Lenovo 30F30066CA ThinkStation P7 Workstation - Xeon w5-3423 12-Core - 64 GB DDR5 - 2 TB NVMe SSD - Windows 11 Pro for Workstations
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P7 sits the Intel W790 chipset supporting Socket LGA-4677 processors. The installed Xeon w5-3423 operates at 2.10 GHz base frequency with Intel vPro technology for enhanced security and remote management capabilities. The memory subsystem features eight DDR5 slots supporting ECC registered modules, with a maximum capacity of 1 terabyte for future expansion.
Storage connectivity includes NVMe and Serial ATA/600 controller support with hardware RAID 0, 1, and 5 capabilities. Networking combines dual Ethernet with 10 Gigabit and Gigabit interfaces alongside integrated wireless LAN and Bluetooth 5.0. The system includes six USB ports with a mix of USB 2.0, USB 3.2 Gen 2, and a USB-C 3.2 Gen 2x2 port for high-speed peripheral connectivity.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines professional-grade components with Lenovo's reliability engineering for demanding business environments. The Xeon processor with vPro technology delivers both computational power and enterprise management features. DDR5 ECC registered memory ensures data accuracy during intensive operations, while the PCIe 4.0 NVMe storage provides near-instantaneous access to large project files.
Enterprise Management
Intel vPro technology enables remote management, security features, and out-of-band administration for IT departments managing distributed workstation fleets.
- Remote troubleshooting
- Hardware-based security
- Out-of-band management
Professional Graphics
The dedicated 20 GB graphics solution accelerates visualization workloads, CAD operations, and content creation tasks that benefit from GPU acceleration.
- 20 GB dedicated memory
- Professional driver support
- Multi-display capable
Future Expansion
With eight memory slots supporting up to 1 TB of DDR5 and multiple storage bays, this workstation can scale with growing computational demands.
- 1 TB memory maximum
- Multiple drive bays
- Hardware RAID support
Deployment / Use Cases
The ThinkStation P7 excels in professional environments where computational reliability and data integrity are paramount. Engineering firms utilize these workstations for finite element analysis, computational fluid dynamics, and 3D modeling where processor cores and memory bandwidth directly impact project timelines. Architectural visualization studios benefit from the dedicated graphics memory when rendering complex scenes with high-resolution textures.
Scientific research applications leverage the ECC memory protection during extended computational simulations where data corruption could invalidate results. Media production houses employ these systems for video editing, color grading, and visual effects work that demands both CPU and GPU resources. Financial modeling and data analysis workloads benefit from the combination of multi-core processing and high-speed NVMe storage for rapid data set manipulation.
Localization and Operating System
This configuration ships with Windows 11 Pro for Workstations 64-bit pre-installed, providing the advanced features required for professional workstation environments including support for larger memory configurations, persistent memory, and enhanced reliability features. The operating system is optimized for the hardware platform to ensure stability during extended computational sessions.
Keyboard localization is configured for French (Canada) with appropriate key legends and layout. The system supports multiple language installations and regional settings adjustments through standard Windows configuration tools. Professional software suites certified for Windows 11 Pro for Workstations will operate with full compatibility on this platform.
Physical Profile
The tower chassis measures 17.34 inches in height, 6.89 inches in width, and 20 inches in depth, providing ample internal space for component upgrades and cooling. Weighing approximately 54 pounds, the robust construction supports enterprise deployment in office environments, labs, or dedicated workstation areas. The form factor accommodates standard rack mounting options with appropriate brackets for data center or lab installations where space optimization is required.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.34" (440.40 mm)
- Weight
- 54.01 lb (24500 g)
What's in the Box
The workstation ships with the ThinkStation P7 system unit and a matching ThinkStation P7 keyboard. All necessary power cables and documentation are included for immediate deployment. Additional accessories such as displays, mice, or specialized input devices can be added based on specific workflow requirements.
Highlights
- Intel Xeon w5-3423 processor with 12 cores and 24 threads for multi-threaded workloads
- 64 GB DDR5 ECC registered memory running at 4800 MHz with eight expansion slots
- 2 TB PCI Express NVMe 4.0 solid-state drive for rapid data access and transfer
- 20 GB dedicated graphics memory for professional visualization and rendering tasks
- Windows 11 Pro for Workstations 64-bit with advanced workstation features
- Dual Ethernet with 10 Gigabit and Gigabit interfaces plus wireless connectivity
- Intel vPro technology for remote management and enhanced security features
- Hardware RAID 0, 1, 5 support for storage redundancy and performance
- Tower form factor with robust construction and expansion capabilities
- 3-year premier support warranty with next business day onsite service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30F30066CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P7 |
| Product Model | 30F30066CA |
| Product Name | ThinkStation P7 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-3423 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 2.10 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Display & Graphics | |
| Graphics Memory Capacity | 20 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet,Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C 3.2 Gen 2x2 |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.34" (440.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 54.01 lb (24500 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P7 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor is installed in this ThinkStation P7 workstation?
This workstation features the Intel Xeon w5-3423 processor, a 12-core, 24-thread CPU operating at 2.10 GHz base frequency. It utilizes Socket LGA-4677 and includes Intel vPro technology for enterprise management and security features. The processor is designed for professional workstation workloads requiring both computational power and reliability.
How much memory comes installed and what is the maximum supported?
The system comes with 64 GB of DDR5 ECC registered memory installed across the available slots. The workstation supports a maximum memory capacity of 1 terabyte (1024 GB) across eight DDR5 slots. The memory operates at 4800 MHz and includes error-correcting code (ECC) functionality for data integrity during critical computations.
What type of storage does this workstation include?
Storage is provided by a 2 terabyte PCI Express NVMe 4.0 solid-state drive. This storage interface delivers high-speed data transfer rates suitable for large project files and datasets. The system supports additional storage drives and includes hardware RAID 0, 1, and 5 capabilities for performance or redundancy configurations.
What operating system is pre-installed on this workstation?
Windows 11 Pro for Workstations 64-bit comes pre-installed on this system. This specialized edition includes features for professional workstation environments such as support for larger memory configurations, persistent memory support, and enhanced reliability features. The operating system is fully licensed and ready for professional software deployment.
What networking capabilities does this ThinkStation offer?
Networking includes dual Ethernet interfaces with both 10 Gigabit and Gigabit Ethernet ports for high-speed wired connectivity. The system also features integrated wireless LAN (Wi-Fi) and Bluetooth 5.0 for wireless peripheral connections. This combination supports flexible network deployment in both wired and wireless office environments.
What warranty and support comes with this workstation?
Lenovo provides a 3-year limited warranty with premier support that includes next business day onsite service. The warranty covers parts and labor with priority technical support. Additional warranty information specifies 3YR Premier NBD 3Y Premier Support Upgrade from 3Y Onsite, ensuring rapid response for business-critical workstation deployments.
