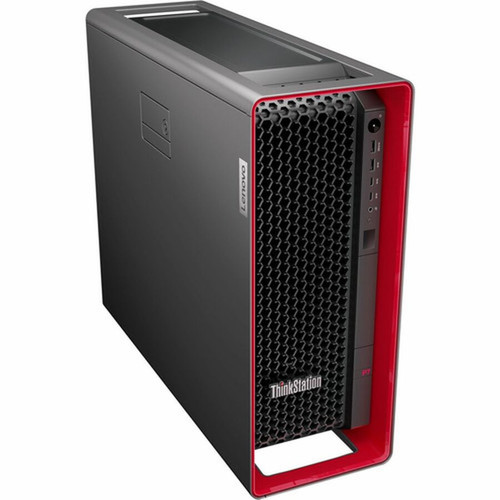

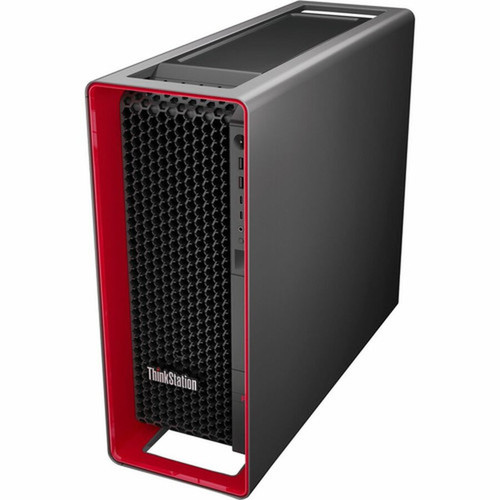

Lenovo 30F3006AUS ThinkStation P7 Workstation - Xeon w7-3445 20-Core - 32GB DDR5 - 1TB NVMe SSD - 24GB Graphics - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P7 lies the Intel Xeon w7-3445 processor featuring 20 physical cores, 40 threads, and a base clock speed of 2.60 GHz. This CPU incorporates Intel vPro technology for enhanced security, remote management, and hardware-based threat detection, making it suitable for managed enterprise environments. The processor interfaces with the Intel W790 chipset, which provides the foundation for high-speed memory and storage subsystems.
The memory architecture utilizes DDR5 SDRAM technology with error-correcting code (ECC) and registered signal processing, ensuring reliable operation under continuous heavy loads. The workstation supports dual-channel memory configuration with eight available slots, allowing substantial future expansion. Storage performance is driven by a PCI Express NVMe 4.0 x4 interface delivering sequential read/write speeds that significantly outperform traditional SATA SSDs.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines enterprise-grade reliability with workstation-class performance, featuring components validated for 24/7 operation in professional environments. The inclusion of ECC memory prevents data corruption from single-bit errors, while the registered memory design improves signal integrity and capacity scaling. The dedicated graphics controller with substantial memory enables smooth handling of complex models, large datasets, and multiple high-resolution displays.
Professional-Grade Components
Every component from processor to memory meets workstation certification standards for stability under sustained heavy loads.
- Xeon processor with 20 cores/40 threads
- DDR5 ECC registered memory
- PCI Express NVMe 4.0 storage
- Dedicated graphics with 24GB memory
Enterprise Management & Security
Intel vPro technology enables remote management, hardware-based security features, and out-of-band administration capabilities.
- Hardware-enhanced threat detection
- Remote configuration and troubleshooting
- Secure boot and firmware protection
- Compatibility with enterprise management consoles
Expansion & Future-Proofing
With eight memory slots supporting up to 1TB and multiple high-speed connectivity options, this workstation accommodates growing computational demands.
- Memory expandable to 1TB
- 10 Gigabit Ethernet for high-bandwidth networking
- Multiple USB-C ports with 20Gbps throughput
- Standard tower form factor for internal upgrades
Deployment / Use Cases
The ThinkStation P7 30F3006AUS is optimized for professional environments where computational accuracy, data integrity, and sustained performance are critical. Engineering firms utilize these workstations for finite element analysis, computational fluid dynamics, and electronic design automation where parallel processing capabilities reduce simulation times from days to hours.
Media production studios deploy these systems for 4K/8K video editing, color grading, and 3D animation rendering, leveraging the dedicated graphics memory and fast storage for real-time playback and accelerated exports. Research institutions employ them for genomic sequencing, climate modeling, and financial analysis where large datasets require both memory capacity and processing throughput.
Engineering & Design
Run CAD/CAM applications, perform structural simulations, and visualize complex assemblies with real-time rendering.
- Autodesk AutoCAD & Revit
- Dassault Systèmes SOLIDWORKS
- Siemens NX
- Ansys simulation software
Scientific Computing
Process large datasets for bioinformatics, computational chemistry, and physics research with parallelized algorithms.
- MATLAB with parallel computing toolbox
- Python scientific computing stacks
- Statistical analysis packages
- Custom research applications
Localization and Operating System
This workstation ships with Windows 11 Pro for Workstations pre-installed in English language configuration. Windows 11 Pro for Workstations extends beyond standard professional editions with support for ReFS file system, persistent memory, and expanded hardware resilience features specifically designed for high-end workstations.
The keyboard localization is configured for English (US) layout, with all documentation and operating system interfaces presented in English. The combination of English OS and keyboard makes this configuration suitable for North American markets and international English-speaking professional environments.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a standard tower chassis measuring 17.10 inches in height, 6.89 inches in width, and 20 inches in depth, the ThinkStation P7 provides ample internal space for component upgrades and cooling. The 54.01-pound weight reflects the robust construction and substantial cooling solutions required for workstation-class components operating at full load.
The tower form factor offers accessibility for maintenance and expansion, with tool-less design elements where possible. The physical dimensions accommodate standard 19-inch rack mounting with optional brackets, though the system is primarily designed for desktop or under-desk placement in professional environments.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 54.01 lb (24500 g)
What's in the Box
The workstation ships complete with all necessary components for immediate deployment in professional environments.
Package contents include ThinkStation P7 30F3006AUS Keyboard Mouse, ThinkStation P7 30F3006AUS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w7-3445 processor with 20 cores and 40 threads for parallel workloads
- 32GB DDR5 ECC registered memory ensures data integrity under heavy loads
- 1TB PCI Express NVMe 4.0 SSD delivers exceptional storage performance
- Dedicated graphics controller with 24GB memory for visualization and GPU computing
- Windows 11 Pro for Workstations with enhanced workstation features
- Intel vPro technology for remote management and hardware security
- 10 Gigabit Ethernet and Wireless LAN for high-speed connectivity
- Eight memory slots supporting expansion to 1TB total capacity
- 3-year warranty with onsite service included
- ENERGY STAR 8.0 and EPEAT Gold certified for energy efficiency
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30F3006AUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P7 |
| Product Model | 30F3006AUS |
| Product Name | ThinkStation P7 30F3006AUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w7-3445 |
| Processor Core | Icosa-core (20 Core) |
| Processor Threads | 40 |
| Processor Speed | 2.60 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA,NVMe |
| RAID Supported | No |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C® 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 54.01 lb (24500 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P7 30F3006AUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What type of workloads is this workstation optimized for?
The ThinkStation P7 30F3006AUS is engineered for professional computational workloads including engineering simulations, scientific research, media production, and enterprise applications. With 20 processor cores, 32GB of ECC memory, dedicated graphics, and NVMe storage, it handles parallel processing tasks like 3D rendering, data analysis, computational fluid dynamics, and virtualization environments where data accuracy and sustained performance are critical.
Can the memory be expanded beyond the installed 32GB?
Yes, this workstation features eight DDR5 memory slots with two currently populated by 16GB modules (2x16GB). The system supports up to 1TB of total memory capacity using compatible registered ECC DDR5 modules. The memory architecture operates at 4.80 GHz with error-correcting code functionality, making it suitable for expansion as computational demands increase in professional environments.
What are the benefits of Windows 11 Pro for Workstations?
Windows 11 Pro for Workstations includes features specifically designed for high-performance computing environments. These include support for the Resilient File System (ReFS) for data integrity, persistent memory (PMEM) utilization, expanded hardware support for up to 4 CPUs and 6TB of memory, and enhanced reliability features. This edition provides better management of workstation-class hardware compared to standard Windows 11 Pro.
Does this workstation include graphics capabilities for 3D applications?
Yes, the system includes a dedicated graphics controller with 24GB of dedicated memory. This configuration provides substantial graphics memory for handling complex 3D models, large textures, multiple high-resolution displays, and GPU-accelerated computing tasks. It supports professional visualization applications in engineering, architecture, media production, and scientific fields where graphics performance impacts workflow efficiency.
What connectivity options are available on this workstation?
The workstation provides comprehensive connectivity including 10 Gigabit Ethernet and standard Gigabit Ethernet for high-speed networking, Wireless LAN for wireless connectivity, and Bluetooth for peripheral devices. It features 10 USB ports total with a mix of USB 2.0, USB 3.2 Gen 2, and USB-C interfaces, including one USB-C port supporting 20Gbps data transfer. This connectivity suite supports both legacy and modern peripherals in professional environments.
What warranty and support are included with this workstation?
Lenovo provides a 3-year limited warranty with onsite service included. The warranty covers parts and labor with technician dispatch to your location for repairs. Additionally, the system includes an upgrade to 3-year Premier Support, which offers enhanced technical support services. This warranty package ensures minimal downtime for professional users who depend on workstation reliability for critical business operations.
