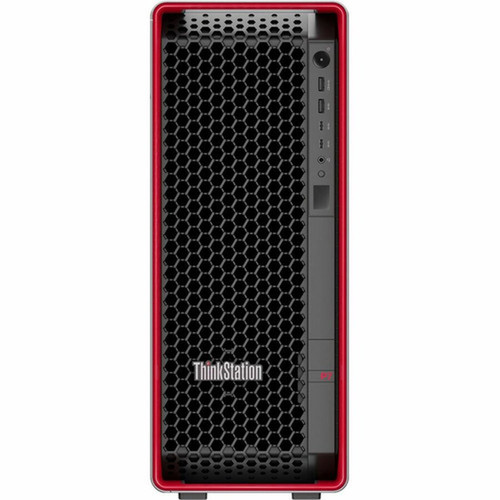

Lenovo 30F3006UCA ThinkStation P7 Workstation - Intel Xeon w5-3423 12-Core 2. 1GHz - 64GB DDR5 RAM - 2TB NVMe SSD - Tower - Windows 11 Pro for
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P7 is the Intel Xeon w5-3423, a 12-core processor with 24 threads and a base clock of 2.10 GHz. This CPU is paired with the Intel W790 chipset, which supports PCIe 4.0 lanes and robust memory management. The system ships with 64 GB of DDR5 SDRAM running at 4.80 GHz, featuring ECC error checking and registered signal processing for data integrity in mission-critical applications.
Storage is handled by a 2 TB PCI Express NVMe 4.0 x4 solid-state drive, offering rapid boot times, fast application loading, and quick file transfers. The platform supports RAID 0, 1, and 5 configurations via the integrated Serial ATA/600 and NVMe controller, allowing for performance or redundancy setups as needed.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P7 combines workstation-class reliability with expandable tower architecture. Its Xeon processor and ECC memory ensure accurate computations for scientific, financial, and creative workloads, while the dedicated graphics memory accelerates visualization tasks.
Professional-Grade Stability
ECC memory corrects single-bit errors automatically, preventing crashes and data corruption during extended rendering or simulation sessions.
- Registered DDR5 for signal integrity
- Xeon platform with remote management capabilities
High-Speed Storage & I/O
The NVMe 4.0 SSD delivers sequential read/write speeds ideal for working with large project files, 4K video assets, or complex databases.
- PCIe 4.0 x4 interface
- USB-C 3.2 Gen 2x2 for fast peripheral connectivity
Deployment / Use Cases
This workstation is tailored for environments where computational accuracy, large memory capacity, and storage performance are non-negotiable. Its tower design and internal expansion slots allow organizations to customize the system over time, adding more storage, memory, or specialized accelerators.
Typical deployments include engineering firms running finite element analysis, media studios handling 4K video editing and VFX, research labs processing large datasets, and architectural practices utilizing BIM software. The inclusion of Windows 11 Pro for Workstations provides enhanced support for high-core-count CPUs and large memory configurations, along with productivity features like DirectAccess and BitLocker.
Engineering & Simulation
Run CAD, CAE, and computational fluid dynamics software with the memory headroom and processor threads needed for complex models.
Content Creation & Visualization
Accelerate 3D rendering, video compositing, and graphic design workflows with dedicated graphics memory and fast NVMe storage.
Localization and Operating System
The workstation comes preloaded with Windows 11 Pro for Workstations, a 64-bit operating system optimized for high-end hardware and professional workloads. This edition supports ReFS file system, persistent memory, and expanded hardware error resilience.
For Canadian users, the system includes a keyboard with French (Canada) localization, ensuring proper key legends and layout compliance for bilingual work environments. This localization is particularly valuable for government, education, and corporate settings operating in both official languages.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a substantial tower chassis measuring 17.34" high, 6.89" wide, and 20" deep, the ThinkStation P7 offers a robust footprint for component cooling and internal expansion. The design supports standard ATX power supplies and multiple drive bays, while the weight of approximately 54 lb reflects its solid construction and full complement of internal hardware.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17.34" (440.40 mm), 6.89" (175 mm), 20" (508 mm), 54.01 lb (24500 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.34" (440.40 mm)
- Weight
- 54.01 lb (24500 g)
What's in the Box
The workstation ships with the ThinkStation P7 tower unit and a matching ThinkStation P7 keyboard with French Canadian layout.
Package contents include ThinkStation P7 Keyboard, ThinkStation P7. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w5-3423 12-core processor with 24 threads for parallel workloads
- 64 GB of DDR5 ECC registered memory ensures data accuracy in critical computations
- 2 TB NVMe PCIe 4.0 SSD delivers fast boot, load, and transfer speeds
- Dedicated 24 GB graphics memory accelerates visualization and rendering tasks
- Windows 11 Pro for Workstations OS optimized for high-core-count CPUs and large memory
- Gigabit and 10 Gigabit Ethernet ports for high-bandwidth network connectivity
- Tower form factor with eight memory slots supports up to 1 TB RAM expansion
- French Canadian keyboard localization meets bilingual workplace requirements
- RAID 0, 1, 5 support for storage performance or redundancy configurations
- Three-year warranty with Premier Next Business Day service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30F3006UCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P7 |
| Product Model | 30F3006UCA |
| Product Name | ThinkStation P7 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-3423 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 2.10 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Display & Graphics | |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 2x2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.34" (440.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 54.01 lb (24500 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P7 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this Lenovo ThinkStation P7 workstation use?
This workstation is powered by the Intel Xeon w5-3423, a 12-core processor with 24 threads and a base clock speed of 2.10 GHz. It uses the Socket LGA-4677 and is designed for workstation workloads requiring high parallel processing capability and reliability.
How much memory is installed, and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed, operating at 4.80 GHz. This is ECC (Error-Correcting Code) registered memory, which automatically detects and corrects single-bit errors to maintain data integrity during intensive computational tasks.
What storage configuration does this workstation have?
Storage is provided by a 2 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This offers significantly faster data transfer rates compared to SATA SSDs, reducing load times for large files and applications. The platform also supports RAID 0, 1, and 5 configurations.
What operating system is preinstalled?
It comes with Windows 11 Pro for Workstations, a 64-bit edition specifically optimized for high-performance hardware. This version includes features like support for ReFS, persistent memory, and enhanced reliability for professional environments.
What are the networking capabilities of this ThinkStation P7?
The workstation includes both Gigabit Ethernet and 10 Gigabit Ethernet ports for high-speed wired networking, along with integrated wireless LAN and Bluetooth. This allows flexible connectivity options for office networks, NAS devices, or high-bandwidth data transfers.
Can the memory be expanded in this workstation?
Yes, the system has eight DDR5 memory slots and supports up to 1 TB of total memory. The installed 64 GB can be supplemented with additional modules, allowing significant expansion for memory-intensive applications like virtualization, simulation, or large dataset analysis.
