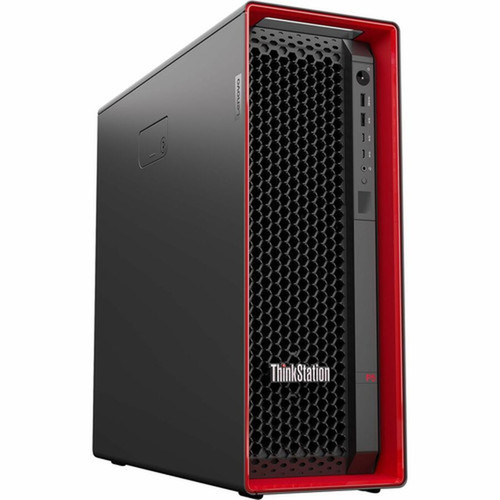

Lenovo 30GA0054US ThinkStation P5 Workstation - Intel Xeon w5-2455 x 3. 2GHz - 32GB DDR5 - 1TB NVMe SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P5 is the Intel Xeon w5-2455X processor, a dodeca-core (12-core) CPU with 24 threads and a base clock speed of 3.20 GHz. It features Intel vPro technology for enhanced security and remote management capabilities, operating on the Socket LGA-4677 platform with the Intel W790 chipset.
Memory performance is driven by DDR5 SDRAM technology, with an installed configuration of 2x16GB modules running at 4800 MHz. The memory subsystem supports Error-Correcting Code (ECC) and registered signal processing for data integrity in critical applications. Eight total DIMM slots allow for expansion up to a maximum of 512GB. Storage is handled by a 1TB solid-state drive utilizing the PCI Express NVMe 4.0 x4 interface for exceptional read/write speeds, managed by NVMe and Serial ATA controllers.
Key Product Advantages
The ThinkStation P5 combines enterprise-grade hardware with thoughtful design to meet the rigorous demands of professional users. Its advantages include robust performance for specialized software, extensive expansion potential, and built-in management features for IT administrators.
Professional-Grade Performance
The Xeon w5-2455X processor and dedicated graphics deliver the horsepower needed for 3D modeling, simulation, data analysis, and high-resolution content creation without compromise.
- 12-core Xeon CPU with 24 threads
- Dedicated 8GB graphics memory
- High-bandwidth DDR5 memory architecture
Enterprise Reliability & Management
Features like ECC memory, Intel vPro technology, and a robust power supply ensure system stability and simplify remote management and security enforcement in business environments.
- ECC memory for data integrity
- vPro for remote management & security
- 1 kW power supply for component headroom
Expansion & Connectivity Ready
With eight memory slots, multiple high-speed storage options, and a comprehensive set of USB ports including USB-C, the tower chassis is built to accommodate future upgrades and peripheral connectivity.
- 8 DIMM slots (max 512GB RAM)
- 10 USB ports including 3x USB-C
- Gigabit Ethernet & Wireless LAN
Deployment / Use Cases
The ThinkStation P5 30GA0054US is purpose-built for professional environments where computational accuracy, data integrity, and sustained performance are non-negotiable. Its balanced configuration of CPU, memory, and fast storage makes it versatile across several demanding disciplines.
In engineering and architecture, it handles CAD, CAM, and finite element analysis (FEA) software with ease. For media and entertainment professionals, it accelerates rendering, video editing, and animation workflows. In finance and data science, it manages large datasets, complex models, and statistical computations efficiently. Research institutions and laboratories benefit from its stability for scientific computing and simulation tasks.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Localization and Operating System
This workstation ships with a fully licensed copy of Microsoft Windows 11 Pro for Workstations pre-installed in English. This specialized edition of Windows 11 includes features beneficial for professional workloads, such as support for very large memory configurations, resilient file system options, and expanded hardware support.
The included keyboard is localized for English (US) layout, ensuring immediate usability. The operating system language is also set to English, providing a consistent and familiar interface for users in English-speaking markets or international business environments standardized on English software.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a substantial tower chassis, the ThinkStation P5 measures 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth (446 x 165 x 453.9 mm), with an approximate weight of 41.89 lbs (19 kg). This form factor provides ample internal space for additional storage drives, expansion cards, and cooling, supporting the workstation's upgrade potential. The design prioritizes serviceability and robust cooling to maintain performance under sustained loads. Its footprint is designed for placement under or beside a desk in a professional office or studio setting.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation arrives with all essential components to begin operation immediately.
Package contents include ThinkStation P5 30GA0054US Keyboard Mouse, ThinkStation P5 30GA0054US. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w5-2455X 12-core processor with vPro for performance and manageability
- 32GB of high-speed DDR5 ECC Registered memory for data-intensive tasks
- 1TB PCIe NVMe 4.0 SSD delivers fast boot times and application loading
- Dedicated 8GB graphics controller for professional visualization workloads
- Windows 11 Pro for Workstations OS with advanced features for professionals
- Comprehensive connectivity: Gigabit Ethernet, Wi-Fi, Bluetooth, and 10 USB ports
- 1 kW power supply ensures stable operation with high-end components
- Tower chassis with 8 memory slots supports expansion up to 512GB RAM
- Includes 3-year base warranty with onsite service
- Meets ENERGY STAR 8.0, EPEAT Gold, and TCO Certified 9.0 environmental standards
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA0054US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA0054US |
| Product Name | ThinkStation P5 30GA0054US |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-2455X |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | No |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 8 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 30GA0054US Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P5 workstation use?
This workstation is powered by an Intel Xeon w5-2455X processor. It is a 12-core (dodeca-core) CPU with 24 threads, a base clock speed of 3.20 GHz, and includes Intel vPro technology. This makes it suitable for demanding multi-threaded professional applications like 3D rendering, simulation, and complex data analysis.
How much memory is installed, and can it be upgraded?
The system comes with 32GB of DDR5 SDRAM installed as two 16GB modules. It features eight total memory slots, supporting a maximum capacity of 512GB. The memory is ECC (Error-Correcting Code) and Registered type, which is essential for data integrity and stability in workstation environments, allowing for significant future expansion.
What type of storage is included?
Storage is provided by a 1TB solid-state drive (SSD). It uses the PCI Express NVMe 4.0 x4 interface, which offers significantly higher data transfer speeds compared to traditional SATA SSDs or hard drives. This results in faster system boot times, quicker application launches, and rapid access to large project files.
What operating system is pre-installed?
It comes with Microsoft Windows 11 Pro for Workstations pre-installed in English. This is a specialized edition of Windows 11 that includes features like support for very large memory configurations (beyond the standard Pro edition limits) and resilient file system options, making it ideal for high-end professional and computational workloads.
What are the graphics capabilities of this workstation?
The workstation includes a dedicated graphics controller with 8GB of dedicated video memory. This provides the necessary graphical horsepower for professional applications such as CAD, 3D modeling, video editing, and scientific visualization, ensuring smooth performance when working with complex models and high-resolution content.
What warranty and support are included with this ThinkStation?
Lenovo provides a 3-year limited warranty as the base coverage. This warranty includes onsite service, meaning a technician will come to your location for repairs. There is also an option mentioned for an upgrade to 3Y Premier Support from the base 3Y Onsite coverage, which may offer enhanced service levels.
