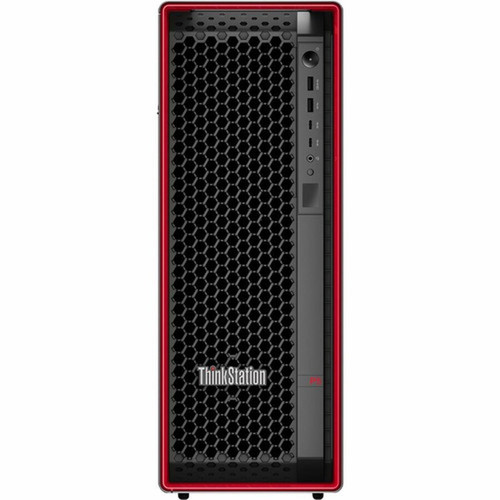

Lenovo 30GA005BCA ThinkStation P5 Workstation - Intel Xeon w3-2423 Hexa-core - 16 GB DDR5 - 512 GB NVMe SSD - Tower - Windows 11 Pro for Workstations
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The workstation's compute architecture is centered on a single Intel Xeon w3-2423 processor. This hexa-core CPU operates at a base frequency of 2.10 GHz and supports Intel vPro technology for enhanced security and remote management capabilities in business environments.
Memory performance is driven by DDR5 SDRAM technology operating at 4800 MHz. The inclusion of Error-Correcting Code (ECC) and registered signal processing ensures data integrity and reliability for mission-critical applications. Eight memory slots allow significant future upgrades.
Storage is handled by a 512 GB solid-state drive using the PCI Express NVMe 4.0 x4 interface for exceptional read/write speeds. The storage controller supports NVMe and SATA drives concurrently and offers hardware RAID 0, 1, and 5 functionality for data redundancy or performance striping.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This ThinkStation P5 is pre-configured with Windows 11 Pro for Workstations, an operating system variant optimized for high-end hardware, supporting larger memory configurations and offering advanced reliability features compared to standard Windows 11 Pro.
Enterprise-Grade Reliability
With ECC memory, a Xeon processor, and registered DIMMs, this workstation minimizes the risk of data corruption and system crashes during extended computational sessions.
- ECC error correction for memory
- Xeon processor stability
- Registered memory modules
Professional Expansion Platform
The tower form factor and W790 chipset provide a robust foundation for adding professional graphics cards, additional storage arrays, or specialized I/O cards as project requirements evolve.
- Eight DDR5 memory slots
- Support for multiple storage drives
- Standard PCIe expansion slots
Deployment / Use Cases
The workstation is equally suited for media production environments, where it can handle video editing, 3D animation, and audio post-production. The included wireless LAN and Bluetooth connectivity support peripheral flexibility, while Gigabit Ethernet ensures fast network file transfers.
Its tower design makes it a practical choice for office settings, server rooms, or lab benches where internal accessibility and cooling are priorities. The system's manageability features, including vPro, simplify IT administration in larger deployments.
Engineering & Design
Run CAD, CAE, and simulation software with the computational headroom provided by the Xeon processor and fast NVMe storage. The system's stability is critical for long rendering or analysis jobs.
Scientific Computing & Data Analysis
Process large datasets with the combination of multi-threaded CPU performance, high-bandwidth DDR5 memory, and rapid storage access. ECC memory ensures accuracy in numerical computations.
Localization and Operating System
This workstation ships with a French (Canada) localized keyboard, making it immediately usable in Canadian French-speaking business and academic environments without requiring additional peripheral purchases.
The pre-installed operating system is Windows 11 Pro for Workstations 64-bit. This edition is specifically designed for high-performance PCs and workstations, supporting features like ReFS file system, persistent memory, and expanded hardware support that benefit professional applications.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a substantial tower chassis measuring 17.56" high, 6.50" wide, and 17.87" deep (446 x 165 x 453.9 mm), the ThinkStation P5 offers a robust footprint for component cooling and internal organization. The chassis weight is approximately 41.89 lb (19 kg), reflecting its build quality and internal component density.
The tower form factor provides excellent serviceability and expansion potential, with tool-less access panels commonly found in the ThinkStation series. The dimensions allow it to fit under standard-height desks or on dedicated workstation trolleys.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation package includes the ThinkStation P5 tower system and a matching ThinkStation P5 keyboard with French (Canada) localization.
Package contents include ThinkStation P5 Keyboard, ThinkStation P5. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w3-2423 hexa-core processor with vPro technology for business security and manageability
- 16 GB of DDR5 SDRAM running at 4800 MHz with ECC and registered signal processing
- 512 GB PCI Express NVMe 4.0 x4 solid-state drive for fast application and data access
- Windows 11 Pro for Workstations 64-bit pre-installed, optimized for high-end hardware
- Tower form factor with substantial internal expansion capacity and eight memory slots
- Comprehensive connectivity: Gigabit Ethernet, Wi-Fi, Bluetooth, and six USB ports including USB-C
- Hardware RAID 0, 1, 5 support via the storage controller for data protection or performance
- French (Canada) localized keyboard included for immediate deployment
- 3-year limited warranty with 3YR Premier Next Business Day service
- TCO Certified 9.0 and RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA005BCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA005BCA |
| Product Name | ThinkStation P5 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w3-2423 |
| Processor Core | Hexa-core (6 Core) |
| Processor Threads | 12 |
| Processor Speed | 2.10 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What type of processor does this Lenovo ThinkStation P5 workstation use?
This workstation is equipped with an Intel Xeon w3-2423 processor. It is a hexa-core (6-core) CPU with 12 threads, a base clock speed of 2.10 GHz, and uses the Socket LGA-4677. As a Xeon processor, it includes features like support for ECC memory and Intel vPro technology, which provides enhanced security and remote management capabilities for business IT environments.
How much memory is installed, and can it be expanded?
The system comes standard with 16 GB of DDR5 SDRAM. The memory technology is Error-Correcting Code (ECC) and uses registered modules for increased reliability. There are eight total memory slots on the motherboard, supporting a maximum memory capacity of 512 GB. This allows for significant future upgrades by adding more DDR5 DIMMs as your workload requirements grow.
What are the storage specifications and expansion options?
Primary storage is a 512 GB solid-state drive using the PCI Express NVMe 4.0 x4 interface, offering very high data transfer speeds. The storage controller supports both NVMe and Serial ATA/600 drives and includes hardware support for RAID levels 0, 1, and 5. This allows you to configure multiple drives for performance striping, mirroring for redundancy, or parity-based protection, depending on your needs for speed or data safety.
Which operating system is pre-installed on this workstation?
It comes with Windows 11 Pro for Workstations 64-bit pre-installed. This is a specialized edition of Windows 11 Pro designed for high-performance PCs and workstations. It supports features beneficial for professional use, such as support for very large memory configurations (beyond the limits of standard Pro), the Resilient File System (ReFS), and faster file handling for demanding applications in engineering, scientific, and creative fields.
What connectivity and ports are available?
The workstation offers Gigabit Ethernet for wired networking, integrated Wireless LAN for Wi-Fi connectivity, and Bluetooth for wireless peripherals. For physical ports, there are a total of six USB ports: two USB 2.0 ports, three USB 3.2 Gen 2 ports (10 Gbps), and one USB Type-C port operating at USB 3.2 Gen 2x2 speeds (20 Gbps) for data transfer. This provides flexible options for connecting monitors, storage devices, and other accessories.
What is the form factor and what are the physical dimensions?
This ThinkStation P5 uses a tower form factor, designed for maximum internal expandability and cooling. The chassis dimensions are 17.56 inches in height (446 mm), 6.50 inches in width (165 mm), and 17.87 inches in depth (453.9 mm). It weighs approximately 41.89 pounds (19 kg). The tower design is ideal for environments where you need easy access to internal components for upgrades or maintenance, and it can be placed on the floor, under a desk, or on a sturdy workstation cart.
