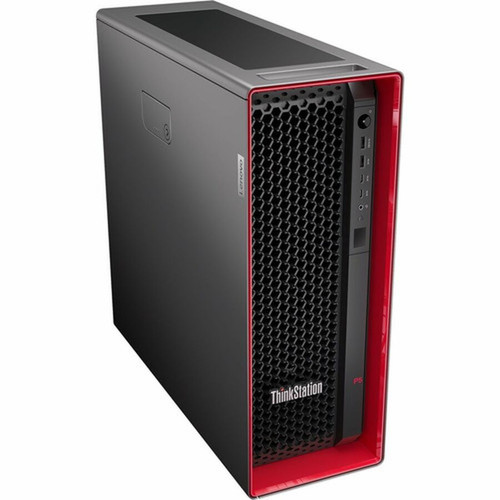

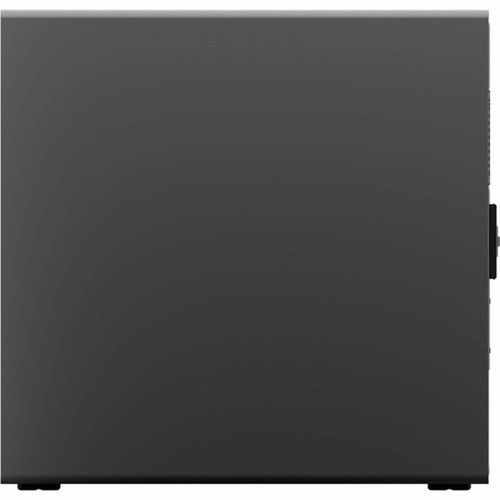

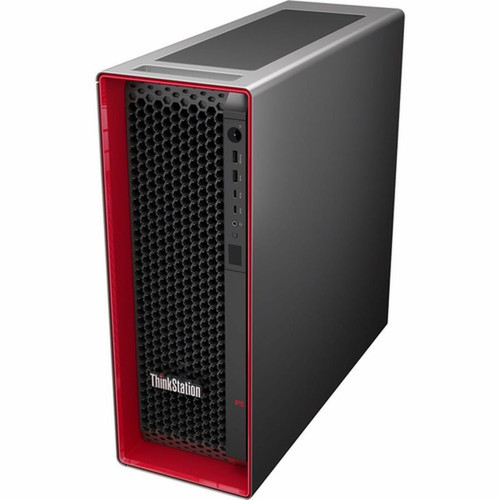

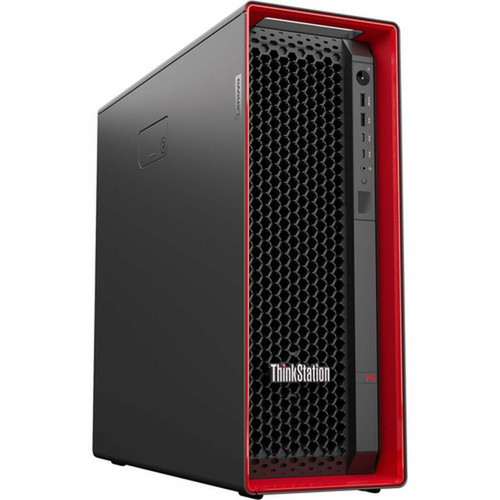

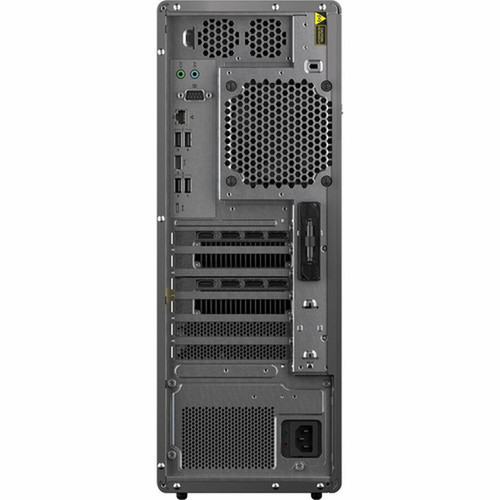

Lenovo 30GA005MCA ThinkStation P5 Workstation - Intel Xeon w3-2435 3. 10GHz - 64GB DDR5 - 2TB NVMe SSD - Tower - Windows 11 Pro for Workstations
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P5 is the Intel Xeon w3-2435, an octa-core processor operating at 3.10 GHz with 16 threads. This CPU, paired with the Intel W790 chipset, provides a robust platform for multi-threaded applications, advanced security features, and stable performance under sustained loads.
The memory architecture utilizes eight DDR5 slots populated with 64 GB of ECC Registered RAM, running at 4.80 GHz. This configuration ensures data integrity for critical computations and offers a clear upgrade path to 512 GB. Storage is handled by a 2 TB NVMe SSD using the PCI Express 4.0 x4 interface, delivering exceptional read/write speeds for project files and operating system responsiveness.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P5 combines workstation-grade components with Lenovo's engineering rigor to offer distinct advantages for professional users. Its architecture is designed for both immediate performance and long-term reliability in data-intensive environments.
Enterprise-Grade Reliability
ECC memory with Registered DIMMs prevents data corruption, while the Xeon processor includes built-in remote management and enhanced security features essential for business continuity.
- Error-correcting code memory
- Intel vPro technology capabilities
- Stable platform for 24/7 operation
High-Speed Data Pipeline
DDR5 memory and PCIe 4.0 NVMe storage work in tandem to minimize bottlenecks, allowing rapid access to large models, simulations, and multimedia assets.
- DDR5 at 4800 MT/s
- NVMe SSD with high IOPS
- Reduced latency for complex tasks
Professional Expansion & Support
The tower chassis provides ample internal space for additional drives, expansion cards, and cooling, backed by a 3-year Premier Next Business Day warranty for peace of mind.
- Tool-less access for upgrades
- Multiple free drive bays
- 3YR Premier NBD service
Deployment / Use Cases
This workstation is purpose-built for scenarios where computational accuracy, large memory footprints, and graphics acceleration are non-negotiable. Its balanced configuration suits a range of professional disciplines that depend on deterministic performance.
In engineering and product design, the P5 can run finite element analysis (FEA), computational fluid dynamics (CFD), and CAD applications with complex assemblies. For media and entertainment, it handles 3D rendering, video editing, and compositing workflows efficiently. Scientific researchers benefit from its ability to process large datasets for simulations, bioinformatics, and financial modeling.
Engineering & Simulation
Run Autodesk AutoCAD, Siemens NX, or ANSYS simulations with the Xeon processor's stability and the high memory bandwidth of DDR5.
Content Creation & Visualization
Accelerate Adobe Creative Suite, Blender, or SOLIDWORKS Visualize tasks with dedicated graphics and fast NVMe storage for asset loading.
Localization and Operating System
This workstation ships with Windows 11 Pro for Workstations pre-installed, a 64-bit operating system optimized for high-end hardware with support for ReFS file systems, persistent memory, and expanded hardware support. The French (Canada) keyboard localization ensures immediate usability in bilingual professional environments across Canada.
Windows 11 Pro for Workstations includes productivity and creative tools tailored for professional workflows, along with enhanced security features like BitLocker and Windows Defender. The OS architecture fully leverages the Xeon processor's capabilities and the 64 GB memory configuration for demanding applications.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a substantial tower form factor measuring 17.56" high, 6.50" wide, and 17.87" deep (446 x 165 x 453.9 mm), the ThinkStation P5 offers a rugged chassis designed for optimal thermal performance and easy serviceability. Weighing approximately 41.89 lb (19 kg), it provides a stable platform for expansion while fitting standard desk or under-desk placements.
The tower design supports straightforward customization with tool-less access panels, allowing IT staff or users to upgrade memory, storage, or add-in cards without specialized tools. This physical format balances internal expansion potential with a professional aesthetic suitable for office or lab environments.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation arrives ready for setup with all essential components included for immediate operation.
Highlights
- Intel Xeon w3-2435 processor with 8 cores and 16 threads at 3.10 GHz
- 64 GB of DDR5 ECC Registered memory running at 4800 MHz
- 2 TB PCIe NVMe 4.0 SSD for high-speed storage and rapid data access
- Dedicated 24 GB graphics memory for accelerated visualization and rendering
- Windows 11 Pro for Workstations 64-bit pre-installed
- French (Canada) keyboard localization for immediate use in Canadian offices
- Tower form factor with tool-less design for easy upgrades and maintenance
- Comprehensive connectivity: Gigabit Ethernet, Wi-Fi, Bluetooth, and 6 USB ports
- RAID 0, 1, 5 support for data redundancy or performance configurations
- 3-year Premier Next Business Day warranty for reliable support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA005MCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA005MCA |
| Product Name | ThinkStation P5 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w3-2435 |
| Processor Core | Octa-core (8 Core) |
| Processor Threads | 16 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Display & Graphics | |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C 3.2 Gen 2x2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this Lenovo ThinkStation P5 workstation use?
This workstation is powered by the Intel Xeon w3-2435 processor. It features 8 physical cores, 16 threads, and a base clock speed of 3.10 GHz. The Xeon platform provides enhanced reliability, security features like Intel vPro, and support for ECC memory, making it suitable for data-sensitive professional applications.
How much RAM is installed, and can it be upgraded?
The system comes with 64 GB of DDR5 SDRAM installed. It utilizes ECC (Error-Correcting Code) Registered memory modules running at 4800 MHz. There are 8 total memory slots, allowing for expansion up to a maximum of 512 GB, providing significant headroom for memory-intensive tasks like simulation, virtualization, or large dataset processing.
What type of storage is included, and is RAID supported?
Storage is provided by a 2 TB Solid State Drive using the PCI Express NVMe 4.0 x4 interface. This offers exceptionally fast read and write speeds compared to SATA SSDs. The workstation supports hardware RAID configurations (levels 0, 1, and 5), allowing you to set up striping for performance, mirroring for redundancy, or parity for a balance of both using additional drives.
Which operating system is pre-installed on this workstation?
It comes with Windows 11 Pro for Workstations 64-bit pre-installed. This edition is optimized for high-performance hardware, supporting features like ReFS file systems, persistent memory, and expanded CPU and memory limits. It includes all the productivity, management, and security tools of Windows 11 Pro, tailored for demanding professional workloads.
What are the physical dimensions and form factor?
The ThinkStation P5 uses a tower form factor, measuring 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth (446 mm x 165 mm x 453.9 mm). It weighs approximately 41.89 lbs (19 kg). This design provides ample internal space for cooling and expansion, with tool-less access for easy upgrades of components like drives and add-in cards.
What warranty coverage does this Lenovo workstation include?
Lenovo provides a 3-year limited warranty for this ThinkStation P5. The warranty includes Premier Next Business Day (NBD) service, meaning Lenovo will dispatch a technician with the necessary parts by the next business day following a service request. This comprehensive support plan helps minimize downtime in professional or business-critical environments.
