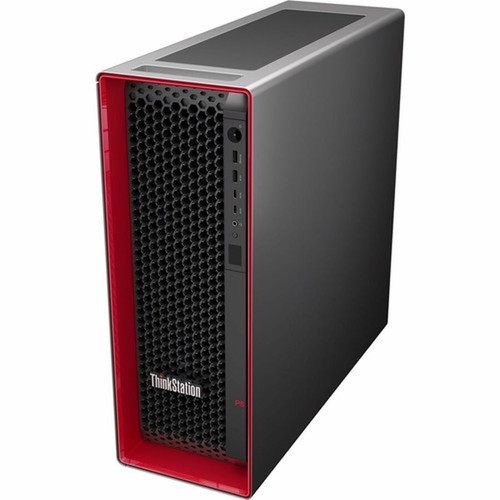

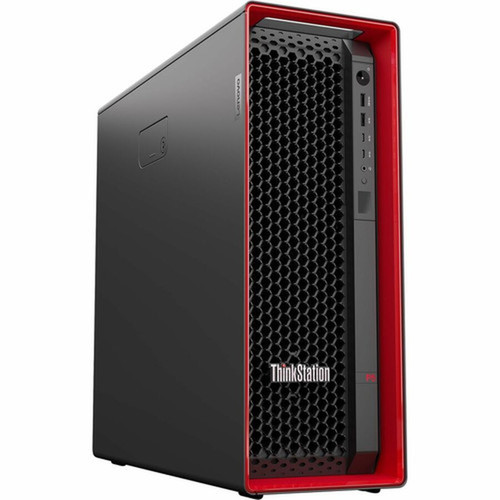

Lenovo 30GA0060US ThinkStation P5 Workstation - Intel Xeon w3-2423 Hexa-core - 32 GB DDR5 - 1 TB NVMe SSD - Windows 11 Pro for Workstations
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ThinkStation P5 30GA0060US features Intel's W790 chipset supporting the Xeon w3-2423 processor with six cores and twelve threads at 2.10 GHz base frequency. Memory architecture utilizes DDR5 technology running at 4.80 GHz with ECC and registered signal processing for data integrity in critical applications.
Storage performance is delivered through a PCI Express NVMe 4.0 x4 interface, providing rapid data access for large project files and applications. The system includes a dedicated graphics controller with 32 GB of dedicated memory for accelerated rendering and visualization tasks. Network connectivity combines Gigabit Ethernet with integrated wireless LAN and Bluetooth for flexible deployment options.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines professional-grade components with thoughtful engineering to deliver consistent performance under sustained heavy loads. The thermal design and power delivery system support the 1 kW power supply's capacity for demanding configurations and future upgrades.
Enterprise-Grade Reliability
Built with Xeon processors featuring vPro technology for hardware-level security and remote management capabilities, plus ECC memory for error correction in mission-critical workloads.
- Intel vPro technology for enhanced security
- ECC Registered DDR5 memory
- 3-year onsite warranty included
Professional Performance Architecture
The W790 chipset platform supports professional workstation requirements with PCI Express NVMe 4.0 storage, dedicated graphics, and extensive expansion capabilities through eight memory slots.
- Intel W790 workstation chipset
- PCI Express NVMe 4.0 storage interface
- 8 memory slots for expansion to 512 GB
Deployment / Use Cases
The ThinkStation P5 30GA0060US serves professional environments requiring reliable workstation performance. Its balanced configuration of compute resources, memory capacity, and storage speed makes it appropriate for engineering departments, research facilities, and creative studios where project timelines depend on system responsiveness.
With Windows 11 Pro for Workstations, the system includes productivity tools and management features tailored for professional use. The comprehensive USB connectivity with multiple USB-C ports facilitates connections to modern peripherals and high-speed storage devices.
Engineering & Design Workloads
Ideal for CAD/CAM applications, finite element analysis, and computational fluid dynamics where processor cores, memory bandwidth, and graphics acceleration significantly impact productivity.
- CAD/CAM software optimization
- Simulation and analysis workloads
- 3D modeling and rendering
Scientific & Research Computing
Suited for data analysis, computational research, and scientific visualization where data integrity through ECC memory and sustained processing power are essential requirements.
- Data-intensive research applications
- Scientific visualization
- Statistical analysis and modeling
Localization and Operating System
This workstation ships with Windows 11 Pro for Workstations pre-installed in English language version. The operating system includes features specifically designed for professional workstation environments, including support for very large memory configurations, enhanced file system performance, and improved reliability for demanding applications.
Keyboard localization is configured for English (US) layout. The Windows 11 Pro for Workstations edition provides advanced networking, security, and management capabilities appropriate for business and institutional deployments where centralized administration and data protection are priorities.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.

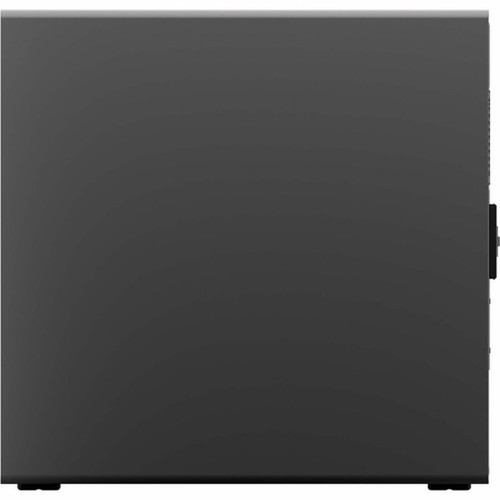

Physical Profile
The ThinkStation P5 chassis measures 17.56" (446 mm) in height, 6.50" (165 mm) in width, and 17.87" (453.90 mm) in depth, with an approximate weight of 41.89 lb (19000 g). This tower form factor provides ample internal space for component upgrades and cooling, while maintaining a professional appearance suitable for office environments.
The design incorporates tool-less access for serviceability and upgradeability. The physical dimensions accommodate standard rack mounting options when deployed in data center or lab environments requiring consolidated equipment arrangements.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The package includes the ThinkStation P5 30GA0060US workstation unit along with a keyboard and mouse for immediate setup and use.
Package contents include ThinkStation P5 30GA0060US Keyboard Mouse, ThinkStation P5 30GA0060US. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Xeon w3-2423 hexa-core processor with vPro technology for performance and security
- 32 GB DDR5 SDRAM with ECC and registered signal processing for data integrity
- 1 TB PCI Express NVMe 4.0 x4 SSD for fast storage access
- Dedicated 32 GB graphics controller for accelerated visualization
- Windows 11 Pro for Workstations operating system with English localization
- Comprehensive connectivity: Gigabit Ethernet, Wireless LAN, Bluetooth, 10 USB ports
- 8 memory slots supporting expansion up to 512 GB
- 1 kW power supply for system stability and upgrade headroom
- 3-year warranty with onsite service included
- EPEAT Gold and ENERGY STAR 8.0 certifications for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA0060US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA0060US |
| Product Name | ThinkStation P5 30GA0060US |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w3-2423 |
| Processor Core | Hexa-core (6 Core) |
| Processor Threads | 12 |
| Processor Speed | 2.10 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | No |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 32 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 30GA0060US Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this ThinkStation P5 workstation use?
This workstation features an Intel Xeon w3-2423 processor with six cores and twelve threads running at 2.10 GHz base frequency. The processor includes vPro technology for enhanced security and remote management capabilities, and utilizes the Socket LGA-4677 interface on the Intel W790 chipset platform.
How much memory is installed and what type is it?
The system comes with 32 GB of DDR5 SDRAM installed as two 16 GB modules running at 4.80 GHz. This is ECC (Error Correcting Code) registered memory, which provides data integrity protection for mission-critical applications. The workstation has eight total memory slots, supporting expansion up to 512 GB.
What storage configuration does this workstation include?
Storage is provided by a 1 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This delivers high-speed data access for applications and project files. The storage controller supports both NVMe and Serial ATA interfaces, though RAID functionality is not included in this configuration.
What graphics capabilities does this workstation offer?
The ThinkStation P5 30GA0060US includes a dedicated graphics controller with 32 GB of dedicated graphics memory. This provides hardware acceleration for visualization, rendering, and compute tasks that benefit from GPU processing, making it suitable for engineering, scientific, and creative applications.
What operating system is pre-installed on this workstation?
The workstation ships with Windows 11 Pro for Workstations pre-installed in English language version. This edition includes features specifically designed for professional workstation environments, such as support for very large memory configurations, enhanced file system performance, and improved reliability for demanding applications.
What warranty and support are included with this workstation?
Lenovo provides a 3-year base warranty that includes onsite service. This means a technician will come to your location for repairs covered under warranty. The system also carries environmental certifications including EPEAT Gold and ENERGY STAR 8.0, reflecting its energy efficiency and reduced environmental impact.
