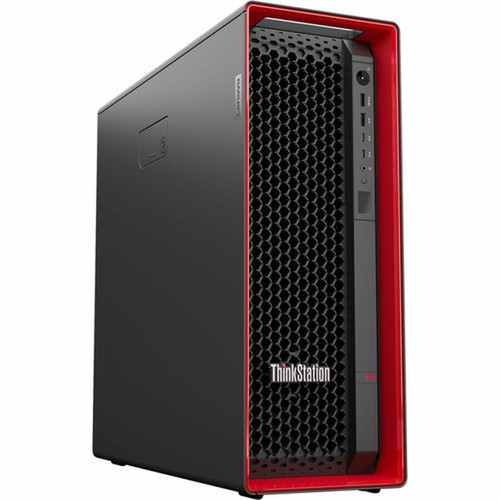

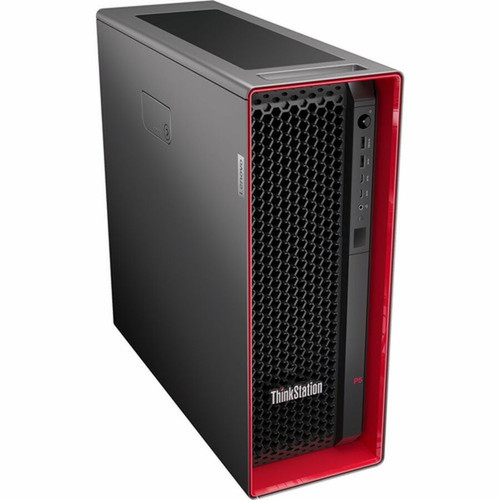

Lenovo 30GA007TCA ThinkStation P5 Workstation - Intel Xeon w5-2445 3. 10 GHz - 64 GB DDR5 - 2 TB NVMe SSD - 24 GB Graphics - Windows 11 Pro for
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of this ThinkStation P5 is the Intel Xeon w5-2445, a deca-core processor operating at 3.10 GHz with 20 threads. It leverages the Socket LGA-4677 interface and is paired with the Intel W790 chipset, forming a platform designed for reliability and high-throughput data handling in professional environments.
Memory architecture utilizes DDR5 SDRAM technology with ECC and registered signal processing for data integrity. The eight DIMM slots support up to 512 GB of total system memory, running at an effective 4.80 GHz clock speed. Storage is handled by a 2 TB PCI Express NVMe 4.0 x4 solid-state drive, managed by a Serial ATA/600 and NVMe controller with hardware RAID 0, 1, and 5 support.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P5 combines workstation-grade components with Lenovo's engineering for a system that balances raw performance with professional reliability. Its architecture is optimized for sustained heavy loads, making it suitable for 3D rendering, complex simulations, large dataset analysis, and multi-application workflows.
Professional-Grade Memory
64 GB of DDR5 memory with ECC and registered design ensures accurate data processing and system stability during long compute sessions, critical for financial modeling, scientific research, and content creation.
- Error-correcting code (ECC) memory
- Registered DIMMs for signal integrity
- 4.80 GHz data rate for reduced latency
High-Speed Storage System
The 2 TB NVMe SSD connects via a PCI Express 4.0 x4 interface, delivering exceptional bandwidth for loading large project files, applications, and datasets quickly. Hardware RAID support provides options for performance or redundancy.
- PCIe NVMe 4.0 interface
- 2 TB capacity for active projects
- RAID 0, 1, 5 support
Deployment / Use Cases
This workstation is tailored for professional environments where computational power, data accuracy, and system uptime are non-negotiable. Its balanced configuration of CPU, memory, storage, and graphics makes it a versatile platform for a range of intensive tasks.
In engineering and architecture firms, it can handle CAD, CAM, and finite element analysis software. Media production studios will appreciate its capability for video editing, 3D animation, and visual effects rendering. Research institutions and data science teams can leverage its processing power for simulations, machine learning workloads, and large-scale data analysis.
Engineering & Design
Run applications like AutoCAD, SolidWorks, or ANSYS with complex assemblies and simulations. The Xeon processor and ECC memory ensure calculations remain precise, while the dedicated graphics accelerate viewport performance.
Content Creation & Media
Edit high-resolution video, composite visual effects, or render 3D scenes. The NVMe storage reduces load times for media assets, and the substantial memory allows for working with multiple high-resolution layers or timelines.
Localization and Operating System
This system ships with Windows 11 Pro for Workstations pre-installed, a 64-bit operating system edition that includes advanced features for professional computing, such as support for larger memory configurations, enhanced file system performance, and expanded hardware error resilience.
The included keyboard is localized for French (Canada), providing the appropriate key legends and layout for users in Canadian French-speaking regions. This localization extends to the operating system's language and regional settings out of the box, streamlining deployment in bilingual or Francophone work environments.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
Housed in a standard tower form factor, the ThinkStation P5 measures 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth, with an approximate weight of 41.89 pounds. This chassis design prioritizes internal airflow and component accessibility, facilitating easy maintenance and upgrades. The footprint is designed to fit under or beside a standard desk, making it a practical choice for office, lab, or studio settings where space is considered.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation arrives with the essential components to begin operation immediately.
Highlights
- Intel Xeon w5-2445 deca-core processor (3.10 GHz, 20 threads) for demanding professional workloads
- 64 GB of DDR5 SDRAM with ECC and registered technology for data integrity and stability
- 2 TB PCI Express NVMe 4.0 x4 solid-state drive for fast boot times and application loading
- 24 GB of dedicated graphics memory to accelerate visualization and rendering tasks
- Windows 11 Pro for Workstations 64-bit operating system pre-installed
- French (Canada) localized keyboard included for immediate use in Canadian Francophone environments
- Tower chassis with ample room for storage and expansion card upgrades
- Gigabit Ethernet, Wi-Fi, and Bluetooth for versatile wired and wireless connectivity
- Hardware RAID support (0, 1, 5) for storage performance or redundancy configurations
- Backed by a 3-year limited warranty with 3-year Premier Next Business Day service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA007TCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA007TCA |
| Product Name | ThinkStation P5 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-2445 |
| Processor Core | Deca-core (10 Core) |
| Processor Threads | 20 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5 |
| Display & Graphics | |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C 3.2 Gen 2x2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Year Premier NBD |
User Manual
FAQ
What processor is in this Lenovo ThinkStation P5 workstation?
This workstation is powered by an Intel Xeon w5-2445 processor. It is a deca-core (10-core) CPU with 20 threads, a base clock speed of 3.10 GHz, and uses the Socket LGA-4677. The Xeon platform is designed for professional applications requiring high computational throughput, advanced security features, and reliable performance in 24/7 operational environments.
How much memory does this system have, and is it expandable?
The system comes standard with 64 GB of DDR5 SDRAM. The memory features Error-Correcting Code (ECC) and registered signal processing for enhanced data reliability. There are eight total memory slots on the motherboard, supporting a maximum memory capacity of 512 GB. This allows for significant future expansion to accommodate more demanding software or larger datasets.
What type of storage is included, and what are its specifications?
Storage is provided by a 2 TB solid-state drive (SSD). It uses the PCI Express NVMe 4.0 x4 interface, which offers significantly higher bandwidth than traditional SATA drives for faster data transfer rates. The storage subsystem is managed by a controller that supports both Serial ATA/600 and NVMe protocols, and it includes hardware support for RAID levels 0, 1, and 5.
Which operating system is pre-installed on this workstation?
This Lenovo ThinkStation P5 comes with Windows 11 Pro for Workstations pre-installed. This is a 64-bit edition of Windows 11 specifically optimized for high-end hardware and professional use cases. It includes features like support for very large memory configurations (beyond the standard Windows Pro limit), resilient file system options, and expanded hardware error reporting, making it ideal for mission-critical computing tasks.
What connectivity options are available on this ThinkStation?
The workstation offers comprehensive connectivity. For networking, it includes Gigabit Ethernet, integrated Wireless LAN (Wi-Fi), and Bluetooth. For peripherals, it provides a total of six USB ports: two USB 2.0 ports, three USB 3.2 Gen 2 ports, and one USB Type-C port (specifically USB-C 3.2 Gen 2x2). This mix supports a wide range of devices from legacy accessories to high-speed modern storage.
What is the warranty coverage for this Lenovo ThinkStation P5?
Lenovo provides a 3-year limited warranty for this workstation. The warranty coverage includes 3-year Premier Next Business Day (NBD) service, which typically offers on-site repair or component replacement by a technician on the next business day following a service call. This service level helps minimize downtime in business and professional environments where system availability is critical.
