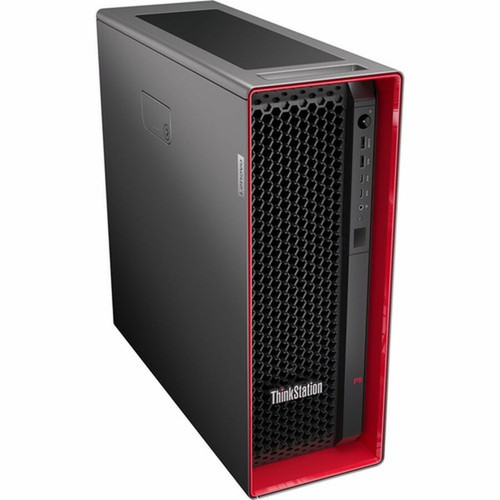

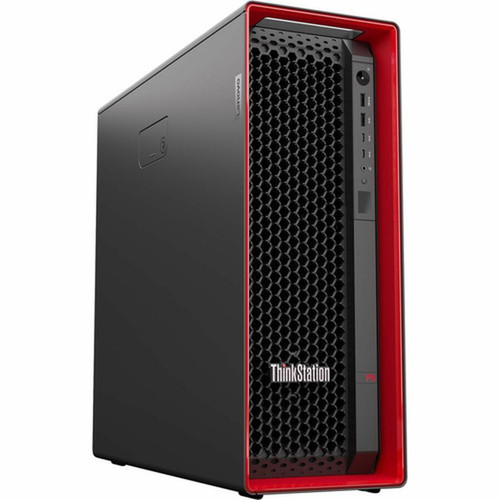

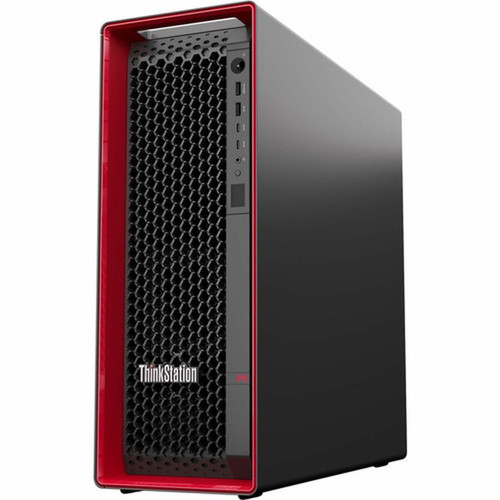

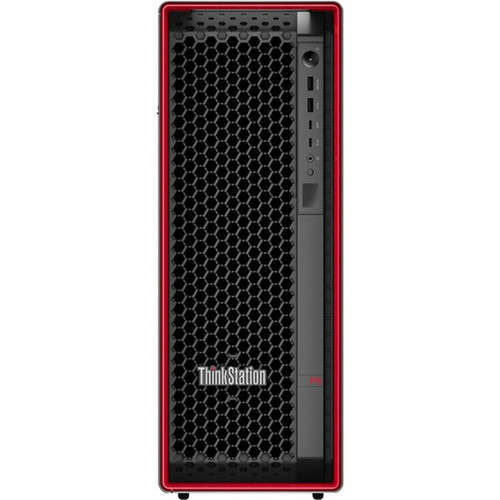

Lenovo 30GA007TUS ThinkStation P5 Workstation - Xeon w5-2445 10-Core 3. 1GHz - 64GB DDR5 - 2TB NVMe SSD - 24GB Graphics - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ThinkStation P5 platform leverages Intel's W790 chipset to support the Xeon w5-2445 processor with vPro technology for enhanced security and remote management capabilities. The processor operates at 3.10 GHz base frequency with Socket LGA-4677 compatibility, providing enterprise-grade reliability for continuous operation.
Memory architecture includes eight DDR5 slots supporting up to 512 GB total capacity, with the current configuration utilizing four 16 GB modules of ECC registered memory. This ensures error correction for mission-critical applications while maintaining high bandwidth performance at 4.80 GHz clock speed.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines professional-grade components with enterprise management features to deliver reliable performance for technical computing environments. The dedicated 24 GB graphics memory supports GPU-accelerated applications in CAD, visualization, and machine learning workflows.
Professional Graphics Capability
With 24 GB of dedicated graphics memory, the system handles complex 3D models, high-resolution textures, and GPU computing tasks without compromising system memory resources.
- Dedicated graphics controller
- 24 GB VRAM capacity
- GPU-accelerated workflows
Enterprise Connectivity
Comprehensive I/O includes 10 USB ports with modern USB-C connectivity, Gigabit Ethernet for network transfers, and wireless options for flexible deployment.
- 3x USB-C ports
- Gigabit Ethernet
- Wi-Fi and Bluetooth
Reliability Features
ECC memory with registered signal processing ensures data integrity, while the 1 kW power supply provides stable operation under heavy computational loads.
- ECC error checking
- Registered memory
- High-capacity PSU
Deployment / Use Cases
The ThinkStation P5 30GA007TUS is engineered for professional environments requiring sustained computational performance. Its balanced configuration of CPU, memory, storage, and graphics makes it suitable for technical applications across multiple industries.
Engineering and design teams will benefit from the system's ability to handle complex CAD models, finite element analysis, and computational fluid dynamics simulations. The combination of Xeon processing power and substantial graphics memory accelerates rendering times and improves workflow efficiency.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Engineering & Design
Run Autodesk AutoCAD, SolidWorks, CATIA, and ANSYS simulations with responsive performance and stable operation during extended compute sessions.
Media & Entertainment
Process 4K/8K video editing, 3D animation rendering, and visual effects work with the NVMe storage speed and dedicated graphics memory.
Localization and Operating System
The workstation ships with Windows 11 Pro for Workstations pre-installed in English language. This specialized edition includes features for high-performance computing, support for larger memory configurations, and enhanced reliability for professional workloads.
Keyboard localization is English, matching the operating system language for consistent user experience. The Windows 11 Pro for Workstations platform provides creative and productivity tools optimized for technical applications and enterprise management.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The tower chassis measures 17.56" (446 mm) in height, 6.50" (165 mm) in width, and 17.87" (453.90 mm) in depth, with a weight of approximately 41.89 lb (19 kg). This form factor provides ample internal space for component upgrades and cooling while maintaining a professional appearance suitable for office environments.
The design supports standard workstation placement with accessible front ports and efficient thermal management for sustained performance during intensive computing tasks.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation package includes the complete system ready for deployment with essential peripherals for immediate use.
Highlights
- Intel Xeon w5-2445 10-core processor with 3.10 GHz base frequency
- 64 GB DDR5 ECC registered memory operating at 4.80 GHz
- 2 TB PCI Express NVMe 4.0 x4 solid state drive
- 24 GB dedicated graphics memory for professional applications
- Windows 11 Pro for Workstations with English language
- Intel vPro technology for security and remote management
- 10 USB ports including 3x USB-C connectivity options
- Gigabit Ethernet, Wireless LAN, and Bluetooth 5.0
- 1 kW power supply for stable operation under load
- 3-year onsite warranty with premier support upgrade option
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA007TUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA007TUS |
| Product Name | ThinkStation P5 30GA007TUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w5-2445 |
| Processor Core | Deca-core (10 Core) |
| Processor Threads | 20 |
| Processor Speed | 3.10 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | No |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 30GA007TUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does the ThinkStation P5 30GA007TUS workstation use?
This workstation features the Intel Xeon w5-2445 processor, which is a 10-core CPU with 20 threads operating at a base frequency of 3.10 GHz. It utilizes Socket LGA-4677 and includes Intel vPro technology for enhanced security features and remote management capabilities in enterprise environments.
How much memory is installed and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed across four 16 GB modules. This is ECC (Error-Correcting Code) registered memory operating at 4.80 GHz, which provides data integrity protection for mission-critical applications. The workstation has eight total memory slots supporting expansion up to 512 GB maximum capacity.
What storage configuration does this workstation include?
Storage is provided by a 2 TB PCI Express NVMe 4.0 x4 solid state drive. This NVMe interface delivers significantly faster data transfer speeds compared to traditional SATA SSDs, reducing application load times and improving overall system responsiveness for large project files and datasets.
What graphics capabilities does this workstation offer?
The workstation includes a dedicated graphics controller with 24 GB of dedicated graphics memory. This substantial VRAM capacity supports GPU-accelerated applications in engineering, design, and visualization workflows, allowing complex 3D models and high-resolution textures to be processed without consuming system RAM.
What operating system is pre-installed on this workstation?
The system ships with Windows 11 Pro for Workstations pre-installed in English language. This specialized edition includes features optimized for high-performance computing, support for larger memory configurations beyond standard Windows 11 Pro, and enhanced reliability features for professional technical applications.
What warranty and support options are included?
Lenovo provides a 3-year limited warranty with onsite service included. The warranty covers the base system with an upgrade option to 3-year premier support, which extends beyond standard onsite service to include additional technical support resources and priority response for enterprise deployment scenarios.
