Lenovo 30GA008DUS ThinkStation P5 Workstation - Intel Xeon w3-2423 2. 1GHz Hexa-core - 64GB DDR5 ECC RAM - 2TB NVMe SSD - 24GB Dedicated Graphics
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P5 is the Intel Xeon w3-2423 processor, a hexa-core CPU operating at 2.10 GHz with 12 threads. This processor is paired with the Intel W790 chipset, providing a stable platform for memory-intensive operations and peripheral connectivity. The system supports a single processor configuration with Socket LGA-4677, offering a balance of performance and thermal management.
Memory architecture utilizes DDR5 SDRAM technology running at 4.80 GHz with error-correcting code (ECC) and registered signal processing for enhanced data integrity. The 64 GB configuration uses four 16 GB modules, leaving four additional slots available for expansion up to the 512 GB maximum. Storage is handled by a PCI Express NVMe 4.0 x4 solid-state drive with 2 TB capacity, delivering high-throughput data access for large project files and datasets.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P5 combines enterprise-grade components with workstation-class reliability to deliver advantages for professional users. The Xeon processor with vPro technology provides hardware-level security features and remote management capabilities that simplify IT administration and protect against emerging threats. ECC registered memory ensures data accuracy during intensive computations, while the dedicated graphics controller accelerates visualization workloads.
Enterprise Security & Management
Intel vPro technology enables hardware-enhanced security features, remote management capabilities, and system stability monitoring. This allows IT departments to maintain system health, deploy updates, and troubleshoot issues without physical access to the workstation.
- Hardware-based threat detection
- Remote configuration and maintenance
- Out-of-band management capabilities
High-Performance Storage Architecture
The PCI Express NVMe 4.0 x4 interface delivers exceptional storage performance with sequential read/write speeds significantly faster than SATA-based SSDs. This accelerates application loading, file transfers, and data processing for large project files.
- 2 TB capacity for substantial project storage
- Direct PCIe connection minimizes latency
- NVMe protocol optimized for flash memory
Deployment / Use Cases
The ThinkStation P5 30GA008DUS is ideally suited for professional environments where computational power, data integrity, and visualization capabilities are paramount. Engineering firms can leverage the system for computer-aided design (CAD), finite element analysis (FEA), and computational fluid dynamics (CFD) simulations that benefit from both CPU performance and dedicated graphics acceleration.
Media production studios will appreciate the combination of substantial memory, fast storage, and dedicated graphics for video editing, 3D animation, and visual effects work. Scientific research applications involving large datasets, statistical analysis, and computational modeling benefit from the ECC memory protection and multi-threaded processing capabilities. Financial institutions can utilize the system for quantitative analysis, risk modeling, and data visualization where accuracy and performance are critical.
Localization and Operating System
The ThinkStation P5 ships with Windows 11 Pro for Workstations pre-installed in English language. This specialized edition of Windows includes features tailored for high-performance computing environments, such as support for up to four physical CPUs and 6 TB of memory, persistent memory support, and faster file sharing with SMB Direct.
Keyboard localization is configured for English (US) layout, with the system fully compatible with additional language packs and regional settings. The operating system is optimized for the workstation hardware configuration, with drivers and utilities specifically tuned for the Xeon processor, W790 chipset, and dedicated graphics controller.
Physical Profile

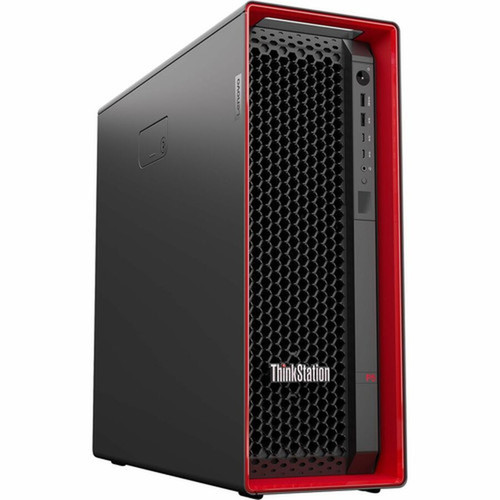

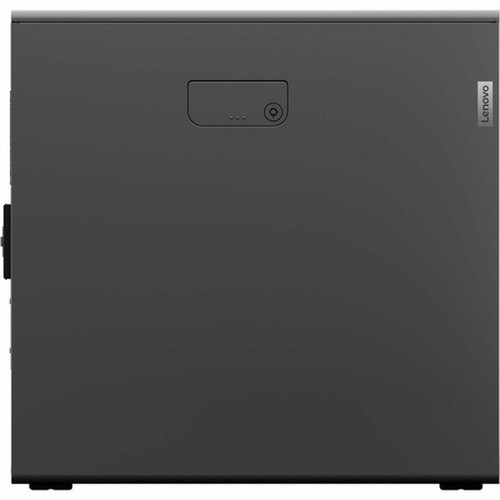

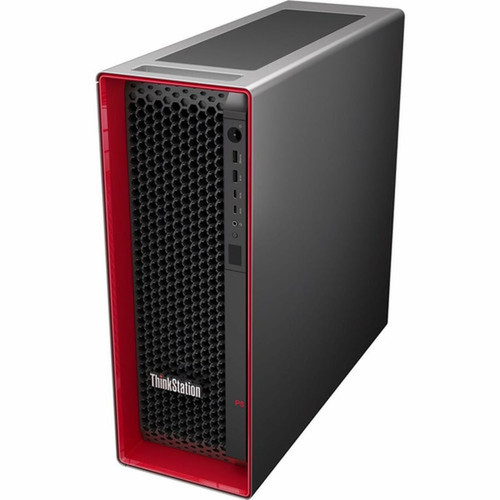

The ThinkStation P5 utilizes a tower form factor measuring 17.56 inches in height, 6.50 inches in width, and 17.87 inches in depth (446 mm × 165 mm × 453.90 mm). With an approximate weight of 41.89 pounds (19,000 grams), the chassis provides substantial internal volume for component cooling and future expansion while maintaining a professional appearance suitable for office environments.
The design incorporates efficient thermal management with strategically placed ventilation and fan configurations to maintain optimal operating temperatures during sustained heavy workloads. The chassis includes tool-less access panels for simplified maintenance and upgrades, supporting the addition of storage drives, expansion cards, and memory modules without specialized tools.
- Width
- 6.50" (165 mm)
- Depth
- 17.87" (453.90 mm)
- Height
- 17.56" (446 mm)
- Weight
- 41.89 lb (19000 g)
What's in the Box
The workstation ships complete with all necessary components for immediate deployment. Package contents include the ThinkStation P5 30GA008DUS system unit, keyboard, and mouse, providing a complete computing solution ready for connection to power, network, and display peripherals.
Highlights
- Intel Xeon w3-2423 hexa-core processor with vPro technology for enterprise security and management
- 64 GB DDR5 ECC registered memory running at 4.80 GHz for data-intensive applications
- 2 TB PCI Express NVMe 4.0 x4 SSD for high-performance storage and rapid data access
- 24 GB dedicated graphics memory for professional visualization and GPU-accelerated workloads
- Windows 11 Pro for Workstations with English language localization pre-installed
- Comprehensive connectivity with 10 USB ports including USB-C 20Gbps and USB 3.2 Gen 2
- Gigabit Ethernet, Wireless LAN, and Bluetooth for flexible networking options
- 1 kW power supply unit for stable power delivery to high-performance components
- 8 memory slots supporting expansion up to 512 GB total system memory
- Three-year limited warranty with onsite service and premier support upgrade options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30GA008DUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P5 |
| Product Model | 30GA008DUS |
| Product Name | ThinkStation P5 30GA008DUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | w3-2423 |
| Processor Core | Hexa-core (6 Core) |
| Processor Threads | 12 |
| Processor Speed | 2.10 GHz |
| Processor Socket | Socket LGA-4677 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W790 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | No |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 24 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro for Workstations |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1 kW |
| Physical Characteristics | |
| Height | 17.56" (446 mm) |
| Width | 6.50" (165 mm) |
| Depth | 17.87" (453.90 mm) |
| Weight (Approximate) | 41.89 lb (19000 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P5 30GA008DUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What type of processor does this workstation use and what are its key features?
This workstation features an Intel Xeon w3-2423 processor, a hexa-core (6-core) CPU operating at 2.10 GHz with 12 threads. The processor includes Intel vPro technology, which provides hardware-enhanced security features, remote management capabilities, and system stability monitoring. The Xeon architecture is designed for reliability and performance in professional computing environments, with support for ECC memory and optimized for sustained heavy workloads.
How much memory is installed and what are the expansion capabilities?
The system comes with 64 GB of DDR5 SDRAM installed as four 16 GB modules. The memory operates at 4.80 GHz and features error-correcting code (ECC) with registered signal processing for enhanced data integrity. There are eight total memory slots, with four currently occupied, allowing for expansion up to a maximum of 512 GB. The memory configuration supports professional applications that benefit from large working memory sets and data accuracy protection.
What type of storage does this workstation include and how fast is it?
This workstation includes a 2 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This storage technology provides significantly faster data transfer speeds compared to SATA-based SSDs or traditional hard drives, with sequential read/write performance optimized for large file operations. The NVMe protocol directly connects the storage to the PCIe bus, minimizing latency and maximizing throughput for applications that frequently access large datasets or project files.
Does this workstation include dedicated graphics and how much memory does it have?
Yes, the workstation includes a dedicated graphics controller with 24 GB of dedicated graphics memory. This substantial GPU memory supports professional visualization applications, CAD software, simulation tools, and content creation programs that benefit from GPU acceleration. The dedicated graphics architecture separates graphics processing from system memory, allowing both CPU and GPU to operate efficiently without competing for memory bandwidth.
What operating system is pre-installed and what are its workstation-specific features?
The system comes with Windows 11 Pro for Workstations pre-installed in English language. This edition includes features specifically designed for high-performance computing environments, such as support for up to four physical CPUs and 6 TB of memory, persistent memory (ReFS) support, and faster file sharing with SMB Direct. Windows 11 Pro for Workstations also includes all the business features of Windows 11 Pro, plus additional reliability and performance optimizations for professional workloads.
What connectivity options are available on this workstation?
The workstation provides comprehensive connectivity with 10 total USB ports, including 2 USB 2.0 ports, 5 USB 3.2 Gen 2 ports, 2 USB-C 3.2 Gen 2 ports, and 1 USB-C port supporting 20Gbps (USB 3.2 Gen 2x2) for data transfer. Networking includes Gigabit Ethernet for wired connections, plus Wireless LAN and Bluetooth for wireless connectivity. This combination of ports and networking options supports a wide range of peripherals, storage devices, and network configurations for professional work environments.
