Lenovo 30HA001TCA ThinkStation P3 Workstation - Intel Core i9-13900 13th Gen - 16GB DDR5512GB NVMe SSD - Ultra Small Form Factor - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Intel Platform Architecture
Built on the Intel W680 chipset with Socket LGA-1700, supporting the 13th Gen Core i9 processor. vPro technology enhances security and remote manageability for IT deployments.
- Intel vPro technology for enterprise security and management
- W680 chipset with PCI Express NVMe 4.0 support
- RAID 0/1 support for data redundancy or performance
Memory and Storage Configuration
The workstation includes 16 GB of DDR5 memory running at 4.80 GHz across four available slots, allowing expansion up to 128 GB. Storage is handled by a 512 GB PCI Express NVMe 4.0 x4 SSD for fast boot times and application loading.
- DDR5 SDRAM at 4.80 GHz for efficient data transfer
- Four memory slots for future upgrades
- NVMe SSD with PCIe 4.0 interface for high throughput
Key Product Advantages
The ThinkStation P3 combines high-end workstation components with a remarkably compact design, making it ideal for environments where desk space is limited but performance cannot be compromised.
Ultra Small Footprint
With dimensions of just 7.95" H x 3.43" W x 8.78" D and weighing under 8 pounds, this workstation fits easily on any desk, in lab settings, or mounted in space-constrained installations without sacrificing internal expansion.
- Compact design for flexible placement
- Lightweight for easy relocation
- Maintains full workstation capability

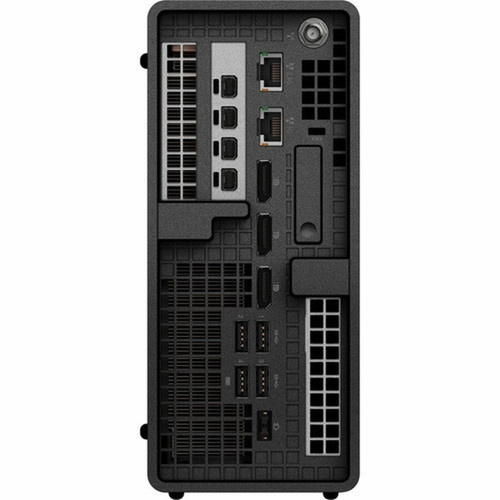

Professional Connectivity Suite
Dual Thunderbolt 4 ports provide high-speed data transfer and display connectivity, while five USB 3.2 Gen 2 ports and 2.5 Gigabit Ethernet ensure compatibility with modern peripherals and network demands.
- Thunderbolt 4 for 40 Gbps data and video
- 2.5GbE for high-bandwidth network tasks
- Multiple USB ports for peripherals
Deployment / Use Cases
This workstation is suited for professional environments that require reliable performance in a compact package. Its specifications support a range of business-critical and creative applications.
Common deployment scenarios include engineering offices running CAD software, financial analysts working with large datasets, video editors handling 4K content, and IT departments managing virtualized environments. The Ultra Small form factor makes it equally viable for crowded trading floors, medical imaging stations, or broadcast control rooms where space is premium.
Engineering and Design
The Core i9 processor and fast NVMe storage accelerate 3D modeling, simulation, and rendering tasks in applications like AutoCAD, SolidWorks, and Revit.
Business Analytics and Development
With 16 GB of DDR5 RAM and expandable memory, the system efficiently runs database applications, statistical analysis tools, and software development environments.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit pre-installed, providing a secure and productive operating system with features like BitLocker encryption and remote desktop support. The keyboard localization is French, catering to specific regional or organizational language requirements.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The Ultra Small form factor measures 7.95 inches in height, 3.43 inches in width, and 8.78 inches in depth, with a weight of approximately 7.94 pounds. This compact design allows for vertical or horizontal placement, offering flexibility in desk setups, under-desk mounting, or integration into equipment racks with appropriate brackets.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 7.95" (202 mm), 3.43" (87 mm), 8.78" (223 mm), 7.94 lb (3600 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.43" (87 mm)
- Depth
- 8.78" (223 mm)
- Height
- 7.95" (202 mm)
- Weight
- 7.94 lb (3600 g)
What's in the Box
The package includes the ThinkStation P3 30HA0023CA workstation and a power adapter, providing everything needed for immediate setup and operation.
Package contents include ThinkStation P3 30HA0023CA Workstation Power Adapter, ThinkStation P3 30HA0023CA Workstation. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- Intel Core i9-13900 13th Gen processor with 24 cores and vPro technology
- 16 GB of DDR5 SDRAM running at 4.80 GHz for high-speed data handling
- 512 GB PCI Express NVMe 4.0 x4 SSD for fast storage performance
- Ultra Small form factor (7.95" H x 3.43" W x 8.78" D) for space-efficient deployment
- Windows 11 Pro 64-bit operating system pre-installed
- Dual Thunderbolt 4 ports and five USB 3.2 Gen 2 ports for connectivity
- 2.5 Gigabit Ethernet and Wireless LAN for flexible networking
- French keyboard localization for regional compatibility
- RAID 0/1 support for storage redundancy or performance configurations
- 3-year limited warranty with 3Y Premier Support upgrade option
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HA001TCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P3 |
| Product Model | 30HA001TCA |
| Product Name | ThinkStation P3 30HA001TCA Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 13th Gen |
| Processor Model | i9-13900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Speed | 2 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Memory Clock Speed | 4.80 GHz |
| Storage | |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| DisplayPort | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Ultra Small |
| Height | 7.95" (202 mm) |
| Width | 3.43" (87 mm) |
| Depth | 8.78" (223 mm) |
| Weight (Approximate) | 7.94 lb (3600 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P3 30HA0023CA Workstation Power Adapter |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P3 workstation use?
This workstation is equipped with an Intel Core i9-13900 13th Gen processor. It features 24 cores (tetracosa-core), a base clock speed of 2 GHz, and supports Intel vPro technology for enhanced security and remote management capabilities in business environments.
How much memory is installed, and can it be upgraded?
The system comes with 16 GB of DDR5 SDRAM installed, operating at a clock speed of 4.80 GHz. It has four total memory slots, allowing for expansion up to a maximum of 128 GB, providing flexibility for memory-intensive applications or future upgrades.
What type of storage does this workstation include?
Storage is provided by a 512 GB solid-state drive (SSD) using the PCI Express NVMe 4.0 x4 interface. This NVMe SSD delivers high read/write speeds for fast boot times, quick application loading, and efficient data access, with support for RAID 0 and RAID 1 configurations.
What are the physical dimensions and form factor of this ThinkStation?
This workstation features an Ultra Small form factor, with dimensions of 7.95 inches in height, 3.43 inches in width, and 8.78 inches in depth. It weighs approximately 7.94 pounds, making it a compact solution suitable for desks with limited space or environments requiring a small footprint.
What connectivity ports are available on this model?
Connectivity includes five USB 3.2 Gen 2 ports, two Thunderbolt 4 ports, and a DisplayPort. For networking, it has 2.5 Gigabit Ethernet and Gigabit Ethernet ports, along with Wireless LAN and Bluetooth for wireless connections.
What operating system and warranty come with this workstation?
The workstation ships with Windows 11 Pro 64-bit pre-installed, offering professional features like enhanced security and management tools. It includes a 3-year limited warranty, with an option for 3Y Premier Support upgrade that provides onsite service and additional support benefits.
