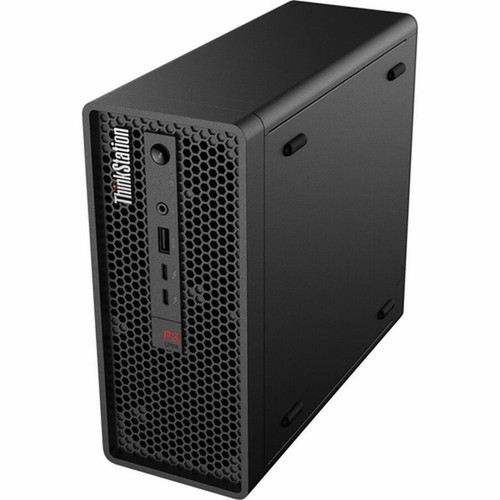

Lenovo 30HA0032US ThinkStation P3 Ultra Workstation - Intel Core i9-13900 13th Gen - 32GB DDR5 RAM - 1TB NVMe SSD - 16GB Dedicated Graphics - Windows
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P3 Ultra lies the Intel Core i9-13900 processor, operating at a base frequency of 2 GHz within the Socket LGA-1700 platform. This 13th Gen CPU features Intel vPro technology for enhanced security, remote management, and hardware-based stability in business deployments. The Intel W680 chipset provides a stable foundation for memory and storage subsystems.
Memory performance is driven by DDR5 SDRAM running at 4.80 GHz, with one 32 GB module installed in a four-slot architecture that supports up to 128 GB total capacity. Storage is handled by a 1 TB NVMe SSD using the PCI Express 4.0 x4 interface for sequential read/write speeds that significantly reduce load times for large project files. The system includes both NVMe and Serial ATA controller support with RAID capability for storage flexibility.
Key Product Advantages
This workstation combines professional-grade components with a compact footprint, making it ideal for space-constrained offices, labs, and creative studios. The ultra small form factor houses powerful hardware that traditionally required larger towers, offering a balance of performance and physical efficiency.
Professional Graphics Capability
The dedicated 16 GB graphics controller accelerates rendering, 3D modeling, video editing, and CAD applications, providing a tangible performance lift over integrated solutions.
- Dedicated graphics memory
- Enhanced visual workload handling
- Supports multiple display outputs
Advanced Connectivity Suite
Dual Thunderbolt 4 ports and five USB 3.2 Gen 2 ports enable high-speed data transfer and peripheral connectivity for external storage, displays, and professional devices.
- 2 Thunderbolt 4 ports
- 5 USB 3.2 Gen 2 ports
- 2.5 Gigabit Ethernet
Enterprise Management Features
Intel vPro technology provides hardware-level security, remote management capabilities, and system stability features that simplify IT administration in business environments.
- Hardware-enhanced security
- Remote management support
- Business-grade reliability
Deployment / Use Cases
The ThinkStation P3 Ultra 30HA0032US is engineered for professional environments where computational power, reliability, and space efficiency are paramount. Its balanced configuration supports demanding applications across multiple industries.
In engineering and architectural firms, the workstation handles CAD, BIM, and finite element analysis software with the processing power and graphics capability to manage complex models and simulations. For media production studios, the system accelerates video editing, color grading, and 3D animation workflows, with the NVMe storage ensuring fast access to large media files.
Scientific & Research Computing
Researchers and data scientists benefit from the 24-core processor and ample memory for statistical analysis, computational modeling, and machine learning tasks where parallel processing reduces computation time.
Financial Analysis & Development
Financial institutions and development teams utilize the workstation for quantitative analysis, algorithmic trading backtesting, and software development environments that require sustained computational performance.
Localization and Operating System
This workstation ships with Windows 11 Pro pre-installed in English, providing a professional operating system environment with enhanced security features, BitLocker encryption, and enterprise management tools. The English localization extends to the keyboard layout and operating system interface, ensuring consistency for English-speaking users across North American markets.
Windows 11 Pro offers productivity enhancements including the redesigned Start menu, Snap Layouts for multitasking, and native support for Android apps through the Microsoft Store. For business deployments, the Pro edition includes Group Policy management, Remote Desktop functionality, and Hyper-V for virtualization needs.
Physical Profile
The ultra small form factor measures 7.95 inches in height, 3.43 inches in width, and 8.78 inches in depth (202 mm × 87 mm × 223 mm), with an approximate weight of 7.94 pounds (3600 grams). This compact design allows placement in tight spaces, on desk mounts, or in rack configurations with appropriate accessories, making it suitable for environments where floor space is limited.
Despite its small footprint, the chassis maintains adequate thermal management for the Core i9 processor and dedicated graphics, ensuring consistent performance during extended workloads. The form factor supports vertical or horizontal orientation based on deployment requirements.
- Width
- 3.43" (87 mm)
- Depth
- 8.78" (223 mm)
- Height
- 7.95" (202 mm)
- Weight
- 7.94 lb (3600 g)
What's in the Box
The workstation ships with all necessary components for immediate setup and operation.
Highlights
- Intel Core i9-13900 13th Gen processor with 24 cores and 32 threads for demanding computational workloads
- 32 GB DDR5 SDRAM running at 4.80 GHz with support for up to 128 GB across four memory slots
- 1 TB PCI Express NVMe 4.0 x4 SSD for fast storage access and reduced application load times
- Dedicated 16 GB graphics controller accelerates visual applications like CAD, 3D rendering, and video editing
- Windows 11 Pro operating system with English localization and professional management features
- Ultra small form factor (7.95" × 3.43" × 8.78") maximizes desk space while housing professional components
- Dual Thunderbolt 4 ports and five USB 3.2 Gen 2 ports for high-speed peripheral connectivity
- Intel vPro technology enhances security, remote management, and system stability for business deployments
- 2.5 Gigabit Ethernet, Gigabit Ethernet, Wireless LAN, and Bluetooth provide comprehensive networking options
- 3-year limited warranty with onsite service and Premier Support upgrade options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HA0032US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P3 Ultra |
| Product Model | 30HA0032US |
| Product Name | ThinkStation P3 Ultra 30HA0032US |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 13th Gen |
| Processor Model | i9-13900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 1 x 32GB |
| Error Checking | Non-ECC |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| DisplayPort | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 300 W |
| Physical Characteristics | |
| Form Factor | Ultra Small |
| Height | 7.95" (202 mm) |
| Width | 3.43" (87 mm) |
| Depth | 8.78" (223 mm) |
| Weight (Approximate) | 7.94 lb (3600 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P3 Ultra 30HA0032US Power Adapter Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does the Lenovo ThinkStation P3 Ultra 30HA0032US workstation use?
This workstation features the Intel Core i9-13900 processor from the 13th Gen family. It operates at a base frequency of 2 GHz with 24 cores and 32 threads, utilizing the Socket LGA-1700 platform. The processor includes Intel vPro technology for enhanced security and remote management capabilities in business environments.
How much memory is installed and what type does it support?
The system comes with 32 GB of DDR5 SDRAM installed as a single 32 GB module running at 4.80 GHz. It features four memory slots total with support for up to 128 GB maximum capacity. The memory uses Non-ECC technology and can be expanded by adding additional modules to the available slots.
What storage configuration does this workstation include?
Storage is provided by a 1 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface for high sequential read and write speeds. The system includes both NVMe and Serial ATA controller support with RAID capability, allowing for storage expansion and redundancy configurations as needed.
Does this workstation have dedicated graphics capability?
Yes, the workstation includes one dedicated graphics controller with 16 GB of dedicated graphics memory. This configuration accelerates visual workloads such as 3D rendering, video editing, CAD applications, and scientific visualization compared to integrated graphics solutions.
What operating system is pre-installed on this workstation?
The workstation ships with Windows 11 Pro pre-installed in English. This professional edition includes enhanced security features like BitLocker encryption, enterprise management tools, Remote Desktop functionality, and Hyper-V for virtualization needs, making it suitable for business deployments.
What are the physical dimensions and form factor of this workstation?
The ThinkStation P3 Ultra features an ultra small form factor measuring 7.95 inches in height, 3.43 inches in width, and 8.78 inches in depth (202 mm × 87 mm × 223 mm), with an approximate weight of 7.94 pounds (3600 grams). This compact design allows placement in space-constrained environments while housing professional-grade components.
