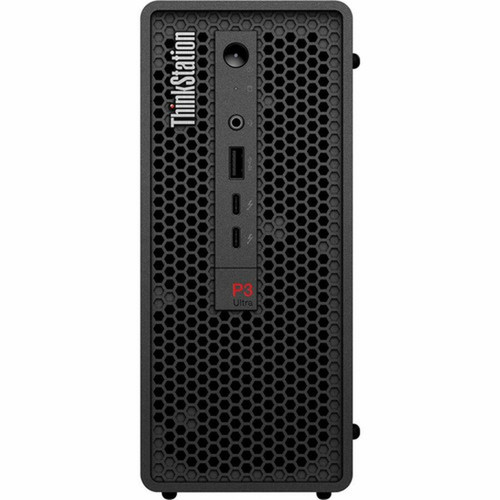

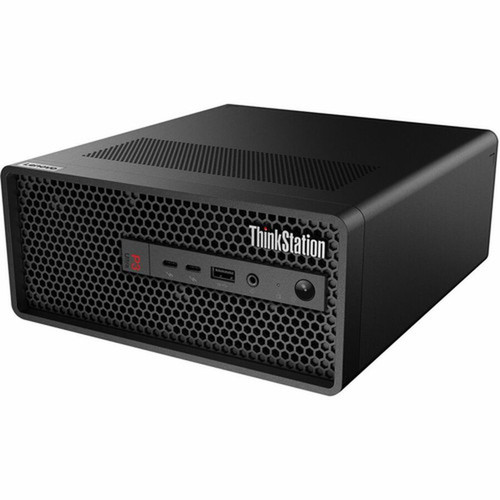

Lenovo 30HA003HCA ThinkStation P3 Ultra Workstation - Intel Core i9-13900 13th Gen - 64 GB DDR5 RAM - 2 TB NVMe SSD - Ultra Small Form Factor
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P3 Ultra lies the Intel Core i9-13900 processor, featuring a hybrid architecture with Performance and Efficient cores for optimized workload handling. The chipset is Intel's W680, providing robust platform stability and support for advanced features like RAID 0/1 configurations via the Serial ATA/600 and NVMe controller.
Memory performance is driven by DDR5 SDRAM operating at 4.80 GHz across four available slots, allowing expansion up to 128 GB for future scalability. Storage is handled by a PCI Express NVMe 4.0 x4 interface delivering exceptional sequential read/write speeds ideal for large dataset transfers and application loading.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines professional-grade performance with an exceptionally small footprint, making it suitable for space-constrained environments without compromising capability. The Ultra Small form factor measures just 7.95 inches tall, 3.43 inches wide, and 8.78 inches deep, allowing flexible placement in office setups, lab benches, or media production studios.
Enterprise-Grade Management
Intel vPro technology enables out-of-band management, hardware-enhanced security features, and remote troubleshooting capabilities that reduce IT overhead and improve system uptime.
- Hardware-based security
- Remote manageability
- Stability for business critical tasks
High-Speed Connectivity
Dual Thunderbolt 4 ports provide 40 Gbps bandwidth for connecting high-resolution displays, fast storage arrays, and professional peripherals, while 2.5 Gigabit Ethernet ensures low-latency network performance.
- 40 Gbps Thunderbolt 4
- 2.5GbE networking
- Five USB 3.2 Gen 2 ports
Professional Storage Configuration
The NVMe SSD delivers workstation-class storage performance, while RAID support allows for data redundancy or performance striping configurations to match specific workflow requirements.
- PCIe NVMe 4.0 interface
- RAID 0/1 support
- 2 TB capacity for large projects
Deployment / Use Cases
The ThinkStation P3 Ultra is engineered for professional environments where computational power must coexist with space efficiency. Its compact design and workstation-grade components make it ideal for engineering firms, architectural studios, research laboratories, and financial institutions that require reliable performance for specialized applications.
In media production workflows, the system can handle video editing, color grading, and 3D animation tasks while occupying minimal desk real estate. For software development teams, the multi-core processor and ample memory support compilation, virtualization, and containerized development environments. The shared graphics configuration makes it particularly suitable for compute-intensive workloads that leverage CPU performance rather than dedicated GPU acceleration.
Engineering & Simulation
Run finite element analysis, computational fluid dynamics, and electronic design automation software with the multi-core processor and high-speed memory architecture.
Data Science & Analytics
Process large datasets, run statistical models, and develop machine learning algorithms with the 24-core processor and fast NVMe storage for reduced computation times.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit pre-installed, providing a familiar and secure operating environment with enterprise management features, BitLocker encryption, and compatibility with professional software suites. The French (Canada) keyboard localization ensures proper key labeling and layout for Canadian French users, supporting efficient input in both English and French language workflows.
Windows 11 Pro enhances productivity with features like Snap Layouts for window management, Microsoft Teams integration, and improved security protections against modern threats. The 64-bit architecture fully utilizes the system's 64 GB of memory for memory-intensive applications.
Physical Profile
The Ultra Small form factor represents a significant space optimization compared to traditional workstation towers. With dimensions of 7.95" H × 3.43" W × 8.78" D (202 × 87 × 223 mm) and weighing approximately 7.94 pounds (3.6 kg), the system can be positioned vertically or horizontally to fit various workspace configurations. The compact design facilitates deployment in environments where floor or desk space is limited, such as broadcast trucks, control rooms, or shared lab spaces, without sacrificing the thermal performance needed for sustained processor workloads.
- Width
- 3.43" (87 mm)
- Depth
- 8.78" (223 mm)
- Height
- 7.95" (202 mm)
- Weight
- 7.94 lb (3600 g)
What's in the Box
The workstation arrives ready for setup with all essential components included for immediate deployment in professional environments.
Highlights
- Intel Core i9-13900 13th Gen processor with 24 cores and 32 threads for demanding computational workloads
- 64 GB of DDR5 SDRAM operating at 4.80 GHz for responsive multitasking and large dataset handling
- 2 TB PCIe NVMe 4.0 x4 SSD delivers workstation-class storage performance and capacity
- Ultra Small form factor measures just 7.95" H × 3.43" W × 8.78" D for space-constrained deployments
- Windows 11 Pro 64-bit with French (Canada) keyboard localization for Canadian professional users
- Intel vPro technology enables enhanced security, remote management, and system stability
- Dual Thunderbolt 4 ports and 2.5 Gigabit Ethernet provide high-speed connectivity options
- RAID 0/1 support allows storage configuration for performance or redundancy requirements
- 3-Year Limited Warranty with 3YR Premier NBD support for business continuity
- TCO Certified 9.0 and RoHS compliant for environmental responsibility
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HA003HCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P3 Ultra |
| Product Model | 30HA003HCA |
| Product Name | ThinkStation P3 Ultra |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Core i9 |
| Processor Generation | 13th Gen |
| Processor Model | i9-13900 |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 32 |
| Processor Speed | 2 GHz |
| Processor Socket | Socket LGA-1700 |
| vPro Technology | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | W680 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 4 |
| Memory Clock Speed | 4.80 GHz |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Display & Graphics | |
| Graphics Memory Accessibility | Shared |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet,Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| DisplayPort | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Physical Characteristics | |
| Form Factor | Ultra Small |
| Height | 7.95" (202 mm) |
| Width | 3.43" (87 mm) |
| Depth | 8.78" (223 mm) |
| Weight (Approximate) | 7.94 lb (3600 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P3 Ultra Keyboard Power Adapter |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified 9.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this Lenovo ThinkStation P3 Ultra workstation use?
This workstation features the Intel Core i9-13900, a 13th Generation processor with a hybrid architecture containing 24 cores (8 Performance cores and 16 Efficient cores) and 32 threads. It operates at a base frequency of 2 GHz and supports Intel vPro technology for enterprise-grade manageability and security features.
How much memory is installed and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed, operating at 4.80 GHz. DDR5 memory provides higher bandwidth and improved power efficiency compared to previous generations. There are four memory slots total, allowing expansion up to 128 GB if future workflow requirements demand additional capacity.
What storage configuration does this workstation include?
Storage is provided by a 2 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This delivers significantly faster sequential read/write speeds compared to SATA SSDs or hard drives, reducing load times for large files and applications. The storage controller supports both Serial ATA/600 and NVMe, with RAID 0 and RAID 1 configurations available for performance or redundancy needs.
What operating system and keyboard layout are included?
The workstation ships with Windows 11 Pro 64-bit pre-installed, providing a secure, modern operating system with enterprise management features. The keyboard has French (Canada) localization, meaning it includes appropriate key labeling and layout for Canadian French users while maintaining compatibility with English input.
How compact is the Ultra Small form factor?
The Ultra Small form factor measures 7.95 inches in height, 3.43 inches in width, and 8.78 inches in depth (202 × 87 × 223 mm), with an approximate weight of 7.94 pounds (3.6 kg). This compact design allows placement in space-constrained environments like crowded desks, lab benches, or media control rooms while still delivering workstation-level performance.
What connectivity options are available on this ThinkStation?
Connectivity includes five USB 3.2 Gen 2 ports, two Thunderbolt 4 ports (40 Gbps each), DisplayPort output, 2.5 Gigabit Ethernet, Gigabit Ethernet, Wi-Fi, and Bluetooth. The Thunderbolt 4 ports support high-resolution displays, fast external storage, and docking stations, while the dual Ethernet ports provide network flexibility and failover capability.
