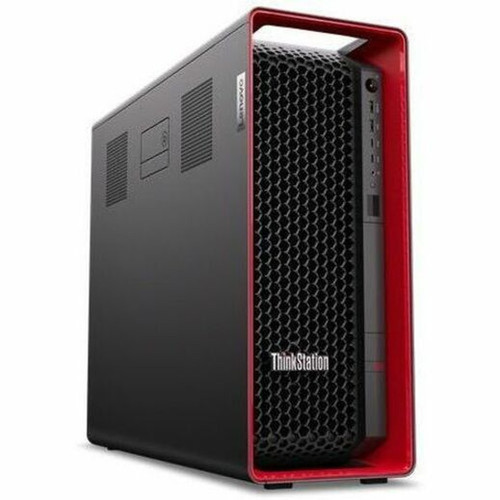

Lenovo 30HH002QUS ThinkStation P8 Workstation - Ryzen Threadripper PRO 7945WX 12-Core 4. 7GHz - 32GB DDR5 - 1TB NVMe SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ThinkStation P8 workstation features a balanced hardware configuration optimized for professional applications. The AMD Ryzen Threadripper PRO 7945WX processor utilizes the Socket sTR5 interface and delivers 12 physical cores with simultaneous multithreading for 24 total logical processors. This architecture excels at parallel processing tasks common in engineering, scientific computing, and content creation workflows.
Memory performance is enhanced through DDR5 SDRAM technology operating at 4.80 GHz with ECC (Error-Correcting Code) support and registered signal processing for improved reliability in mission-critical environments. The system includes eight memory slots supporting up to 1 TB total capacity, providing substantial headroom for memory-intensive applications.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P8 delivers workstation-class reliability and performance for professional users who require consistent operation under heavy computational loads. The combination of high-core-count Threadripper PRO processing, enterprise-grade memory with ECC protection, and fast NVMe storage creates a balanced platform for demanding technical applications.
Professional-Grade Components
Enterprise-level components including ECC memory, registered DIMMs, and robust power delivery ensure system stability during extended compute sessions.
- ECC memory for data integrity
- Registered DIMMs for signal stability
- 1.40 kW power supply for expansion headroom
High-Speed Storage Architecture
The PCI Express NVMe 4.0 x4 SSD interface delivers exceptional storage performance for large project files, reducing load times and improving workflow efficiency.
- 1 TB NVMe SSD capacity
- PCIe 4.0 x4 interface bandwidth
- RAID 0,1,5,10 support for data protection
Comprehensive Connectivity

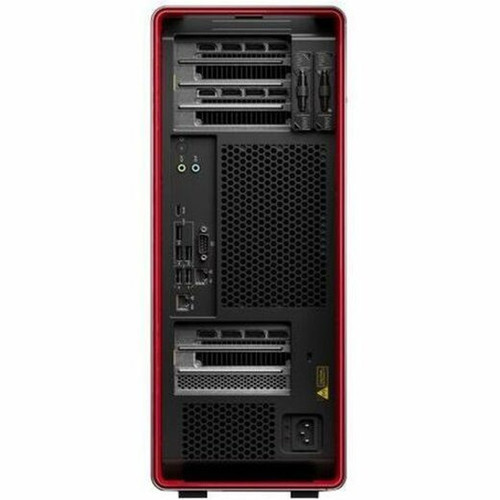

Dual Ethernet (Gigabit and 10 Gigabit), Wi-Fi, Bluetooth, and multiple USB 3.2 Gen 2 ports provide flexible connection options for peripherals and network storage.
- 10GbE for high-speed file transfers
- Multiple USB-C ports with 20Gbps support
- Wireless LAN and Bluetooth 5.0
Deployment / Use Cases
The ThinkStation P8 30HH002QUS workstation is engineered for professional environments where computational power, data integrity, and system reliability are paramount. Its hardware configuration targets workloads that benefit from high thread counts, fast storage access, and error-correcting memory.
In engineering and design studios, this system accelerates 3D modeling, finite element analysis, and computational fluid dynamics simulations. The 12-core Threadripper PRO processor efficiently handles parallel computation tasks while ECC memory protects against data corruption during extended calculations.
Content Creation & Media Production
Video editors, 3D animators, and visual effects artists benefit from the multi-core processing for rendering and the fast NVMe storage for working with high-resolution media files.
- 4K/8K video editing
- 3D rendering and animation
- Visual effects compositing
Scientific & Engineering Computing
Researchers and engineers utilize the high thread count for simulations, data analysis, and computational modeling where accuracy and reliability are critical.
- Computational fluid dynamics
- Finite element analysis
- Statistical modeling and analysis
Localization and Operating System
This workstation ships with Windows 11 Pro pre-installed in English language configuration. Windows 11 Pro provides enhanced security features, BitLocker encryption, Remote Desktop functionality, and enterprise management capabilities suitable for professional and business environments.
The keyboard localization is English, with standard US layout and key labeling. The operating system includes full language support for English interface, documentation, and system messages throughout the Windows 11 Pro environment.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

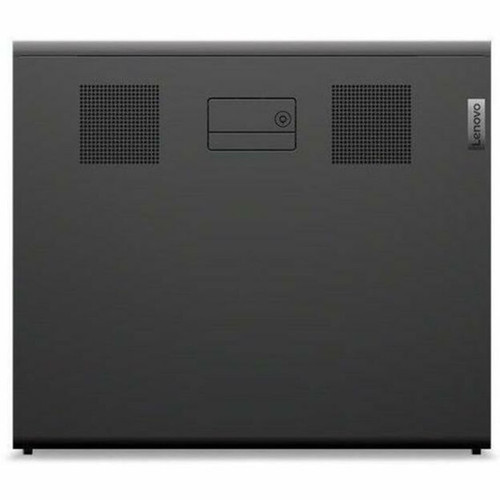

The ThinkStation P8 utilizes a tower form factor measuring 17.10" (434.40 mm) in height, 6.89" (175 mm) in width, and 20" (508 mm) in depth. This chassis design provides ample internal space for component upgrades, additional storage drives, and expansion cards while maintaining efficient airflow for thermal management.
With an approximate weight of 50.04 lb (22.7 kg), the workstation features a sturdy construction suitable for stationary deployment in office, studio, or laboratory environments. The chassis includes tool-less access panels for simplified maintenance and component upgrades.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation package includes all essential components for immediate setup and operation.
Highlights
- AMD Ryzen Threadripper PRO 7945WX 12-core processor with 4.70 GHz clock speed
- 32 GB DDR5 SDRAM with ECC (Error-Correcting Code) and registered signal processing
- 1 TB PCI Express NVMe 4.0 x4 solid-state drive for fast storage performance
- Dedicated 4 GB graphics controller for display output and GPU-accelerated tasks
- Windows 11 Pro operating system with English language localization
- Dual Ethernet ports (Gigabit and 10 Gigabit) plus Wi-Fi and Bluetooth connectivity
- 10 total USB ports including USB-C with 20Gbps data transfer capability
- Eight memory slots supporting up to 1 TB total RAM capacity
- 1.40 kW power supply for stable operation with expansion components
- Three-year limited warranty with onsite service included
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH002QUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH002QUS |
| Product Name | ThinkStation P8 30HH002QUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 4.70 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C® 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH002QUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7945WX processor, which includes 12 physical cores (dodeca-core) with 24 threads. The processor operates at a base speed of 4.70 GHz and utilizes the Socket sTR5 interface. This high-core-count CPU is designed for professional workloads that benefit from parallel processing, such as 3D rendering, scientific simulations, and video encoding.
How much memory is installed and what type is it?
The system comes with 32 GB of DDR5 SDRAM installed in a 2 x 16 GB configuration. This memory operates at 4.80 GHz and features ECC (Error-Correcting Code) technology with registered signal processing. ECC memory detects and corrects single-bit memory errors, providing enhanced data integrity for mission-critical applications. The workstation has eight total memory slots supporting expansion up to 1 TB maximum capacity.
What storage configuration does this workstation include?
This ThinkStation P8 includes a 1 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. NVMe 4.0 provides significantly higher bandwidth compared to SATA SSDs, reducing load times for large files and improving overall system responsiveness. The storage controller supports both NVMe and Serial ATA interfaces, with RAID 0, 1, 5, and 10 configurations available for data protection or performance enhancement.
What operating system is pre-installed on this workstation?
The workstation ships with Windows 11 Pro pre-installed in English language configuration. Windows 11 Pro includes advanced security features like BitLocker encryption, enhanced threat protection, and enterprise management capabilities. This professional edition supports domain join, Group Policy management, and Remote Desktop functionality, making it suitable for business and organizational deployment scenarios.
What connectivity options are available on this ThinkStation?
The workstation provides comprehensive connectivity including dual Ethernet ports (one Gigabit and one 10 Gigabit), wireless LAN, and Bluetooth. For peripheral connections, there are 10 total USB ports: 2 USB 2.0 ports, 5 USB 3.2 Gen 2 ports, and 3 USB-C ports (with one supporting 20Gbps USB 3.2 Gen 2x2). The 10 Gigabit Ethernet port enables high-speed network transfers for large files, while the multiple USB-C ports support modern peripherals and fast data transfer.
What is the warranty coverage for this ThinkStation P8 workstation?
This workstation includes a 3-year limited warranty with onsite service included. The base warranty covers parts and labor for three years, with onsite technician dispatch for repairs. Additionally, the warranty includes an upgrade to 3Y Premier Support, which provides enhanced technical support and service options beyond the standard onsite coverage. This comprehensive warranty ensures professional support throughout the workstation's service life.
