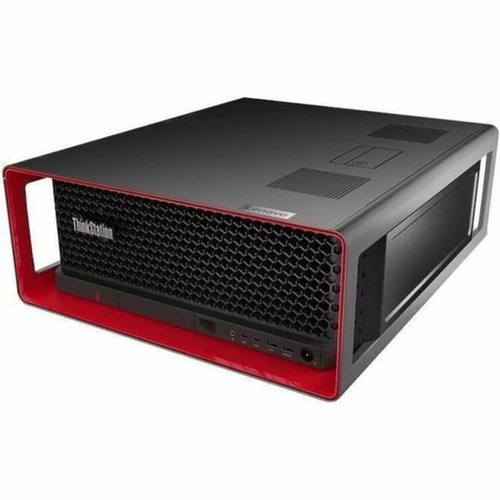

Lenovo 30HH002TCA ThinkStation P8 Workstation - AMD Threadripper™ PRO 7945WX 4. 70GHz - 64GB DDR5 - 2TB PCIe 4. 0 SSD - 16GB Graphics - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The workstation is built on the professional-grade AMD WRX90 chipset, providing a stable platform for the Threadripper PRO processor and supporting advanced memory and I/O configurations. The memory subsystem utilizes eight DDR5 slots running at 4800MHz with Error-Correcting Code (ECC) and Registered signal processing for maximum reliability in mission-critical environments.
Connectivity is comprehensive, featuring dual Ethernet (Gigabit and 10 Gigabit) for high-speed network access, along with modern wireless standards including Wi-Fi 6E and Bluetooth. The system includes six USB ports, with a mix of USB 2.0, USB 3.2 Gen 2, and a high-speed 20Gbps USB-C port for versatile peripheral support. The 1.40 kilowatt power supply supports worldwide voltage inputs (120/230V AC) and provides ample headroom for full system load and future expansion.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P8 combines raw compute power with professional workstation reliability and expandability. Its architecture is tailored for sustained performance under heavy loads, making it a dependable asset for technical professionals.
Professional-Grade Performance
The AMD Threadripper PRO 7945WX processor and WRX90 platform deliver exceptional multi-threaded performance for complex simulations, rendering, and data analysis tasks.
- 12-core, 24-thread CPU
- 4.70GHz base clock
- AMD WRX90 chipset stability
Reliable & Expandable Memory
With 64GB of DDR5 ECC Registered RAM and eight available slots supporting up to 1TB, the system ensures data integrity and offers significant room for memory upgrades as project demands grow.
- ECC for error correction
- Registered design for stability
- 8 DIMM slots for expansion
High-Speed Storage & Graphics
The 2TB PCIe 4.0 SSD provides fast boot times, rapid application loading, and quick file transfers, while the dedicated 16GB graphics controller accelerates visual workloads.
- PCIe 4.0 NVMe interface
- RAID 0/1/5/10 support
- Dedicated graphics memory
Deployment / Use Cases
This ThinkStation P8 is ideally suited for professional environments where computational power, data accuracy, and system stability are paramount. Its configuration supports a wide range of demanding applications common in technical and creative industries.
Primary use cases include engineering and architectural design, where software like AutoCAD, Revit, or SOLIDWORKS benefits from the high core count and dedicated graphics. It is equally capable in media production for video editing, 3D animation, and visual effects rendering in applications such as Adobe Creative Suite, DaVinci Resolve, or Blender. Data scientists and researchers can leverage the system for complex numerical analysis, machine learning model training, and scientific simulations that require substantial memory and processor resources.
Engineering & Design Workloads
Handle complex CAD models, finite element analysis (FEA), and computational fluid dynamics (CFD) simulations with the multi-threaded CPU and professional graphics support.
Content Creation & Media Production
Accelerate 4K/8K video editing, 3D rendering, and compositing workflows with fast storage, ample RAM, and dedicated graphics memory.
Localization and Operating System
This workstation comes pre-installed with Microsoft Windows 11 Pro, providing a professional operating system with enhanced security, management features, and compatibility for business applications. The OS is the 64-bit architecture version, fully utilizing the system's hardware capabilities.
The keyboard localization is configured for French (Canada), featuring the appropriate key legends and layout for Canadian French users. This localization ensures a seamless out-of-box experience for French-speaking professionals in Canada, aligning with regional input standards and preferences.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

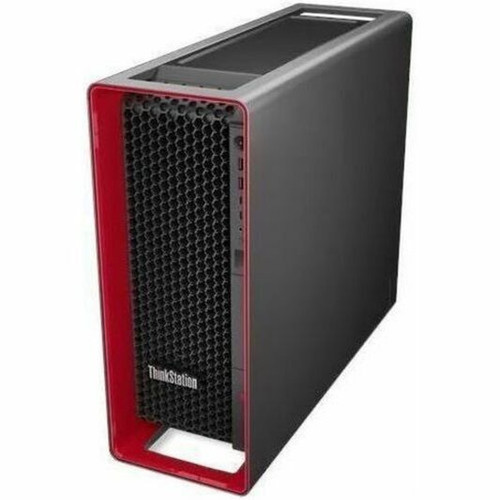

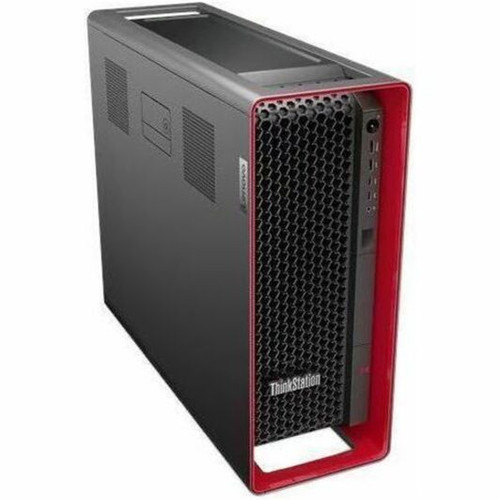

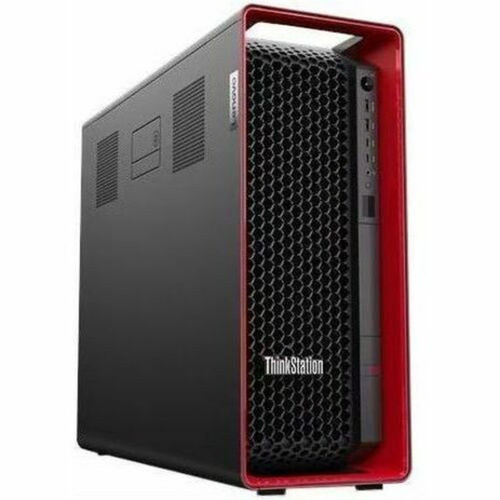

Housed in a classic black tower chassis, the ThinkStation P8 measures 17.10 inches in height, 6.89 inches in width, and 20 inches in depth (434.4mm x 175mm x 508mm). This form factor provides ample internal space for component upgrades, additional storage drives, or expansion cards. The tower design promotes efficient airflow and cooling for sustained performance. The system has an approximate weight of 50.04 pounds (22.7 kg), reflecting its robust construction and full component complement.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The package includes all necessary components to set up and begin using the workstation immediately.
Highlights
- AMD Ryzen Threadripper PRO 7945WX 12-core processor (4.70GHz) for extreme multi-threaded performance
- 64GB of DDR5 ECC Registered memory ensures data integrity and handles large, complex datasets
- 2TB PCI Express 4.0 NVMe SSD delivers fast boot times, application loads, and file transfers
- Dedicated 16GB graphics controller accelerates professional visualization and rendering workloads
- Windows 11 Pro 64-bit French OS pre-installed with Canadian French keyboard localization
- Dual Ethernet (Gigabit & 10Gb) and Wi-Fi 6E provide flexible, high-speed connectivity options
- Tower form factor in black offers expandability and efficient cooling for sustained operation
- 1.40 kW power supply supports worldwide voltage and provides headroom for full system load
- Eight DDR5 memory slots support expansion up to 1TB for future memory upgrades
- Includes 3-year Premier Next Business Day on-site warranty for reliable support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH002TCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH002TCA |
| Product Name | ThinkStation P8 30HH002TCA Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 4.70 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express 4.0 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | French |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH002TCA Workstation USB Traditional Keyboard USB Calliope Mouse |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3 Year On-site |
User Manual
FAQ
What processor does this Lenovo ThinkStation P8 workstation use?
This workstation is powered by the AMD Ryzen Threadripper PRO 7945WX processor. It is a 12-core (dodeca-core) CPU with 24 threads, operating at a base clock speed of 4.70GHz. It uses the Socket sTR5 and is paired with the AMD WRX90 chipset, delivering professional-grade multi-threaded performance for demanding computational tasks like simulation, rendering, and data analysis.
How much memory is installed, and can it be expanded?
The system comes with 64GB of DDR5 SDRAM installed. The memory is Error-Correcting Code (ECC) and Registered type, which enhances data reliability. There are eight total memory slots, and the platform supports a maximum memory capacity of 1TB (1024GB), providing significant room for future upgrades as your workload requirements increase.
What type of storage is included, and what are its specifications?
This configuration includes a 2TB solid-state drive (SSD). The drive uses the PCI Express 4.0 interface (NVMe) for high-speed data transfer. The storage controller supports both Serial ATA/600 and NVMe, and the system offers hardware RAID support for levels 0, 1, 5, and 10, allowing for performance or redundancy configurations if additional drives are added.
What operating system and keyboard layout are pre-installed?
The workstation comes with Microsoft Windows 11 Pro pre-installed. It is the 64-bit version with the operating system language set to French. The included USB keyboard is localized for French (Canada), featuring the appropriate key legends and layout for Canadian French users, ensuring a regionally optimized out-of-box experience.
What are the networking and connectivity options on this ThinkStation?
The system features dual Ethernet ports supporting both Gigabit and 10 Gigabit Ethernet for wired high-speed network access. For wireless connectivity, it includes Wi-Fi 6E (IEEE 802.11ax) and Bluetooth. For peripherals, it provides six USB ports total: two USB 2.0 ports, three USB 3.2 Gen 2 ports, and one USB-C port supporting USB 3.2 Gen 2x2 speeds (20Gbps) for data transfer.
What is the form factor and warranty for this workstation?
The ThinkStation P8 uses a traditional tower form factor in a black finish. Its dimensions are 17.10" H x 6.89" W x 20" D (434.4mm x 175mm x 508mm), and it weighs approximately 50.04 lbs (22.7 kg). Lenovo provides a 3-year limited warranty for this product, with additional coverage including 3-year Premier Next Business Day on-site service for reliable technical support.
