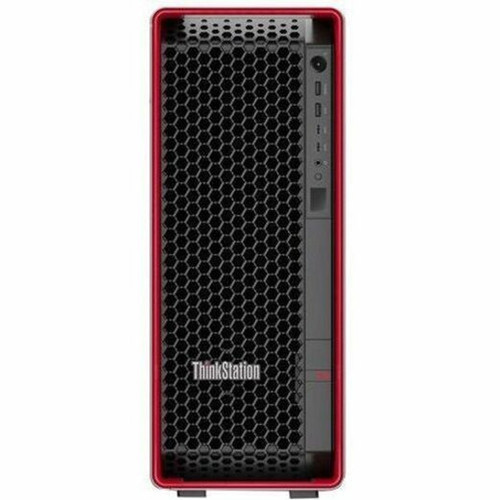

Lenovo 30HH002UUS ThinkStation P8 Workstation - AMD Ryzen Threadripper PRO 7955WX 16-Core - 64 GB DDR5 - 2 TB NVMe SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P8 is the AMD Ryzen Threadripper PRO 7955WX, a 16-core processor operating at 4.50 GHz on the Socket sTR5 platform. This CPU, combined with the AMD WRX90 chipset, supports advanced memory and I/O configurations essential for professional workloads.
The memory subsystem features eight DDR5 slots populated with 64 GB of ECC registered RAM running at 4.80 GHz, providing both high bandwidth and data integrity. Storage is handled by a 2 TB PCI Express NVMe 4.0 x4 SSD, which offers rapid data access and transfer speeds. The system supports hardware RAID 0, 1, 5, and 10 for data redundancy and performance optimization.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines professional-grade components with enterprise manageability to handle the most demanding computational tasks. The Threadripper PRO platform offers workstation-class reliability and performance scalability that desktop processors cannot match.
Professional Compute Architecture
The AMD Ryzen Threadripper PRO 7955WX with 16 cores and 32 threads delivers exceptional parallel processing power for simulations, rendering, and data analysis.
- Socket sTR5 platform
- AMD WRX90 chipset
- ECC memory support
High-Speed Storage & Memory
64 GB of DDR5 ECC registered memory at 4.80 GHz and a 2 TB NVMe 4.0 SSD provide the bandwidth and capacity needed for large professional datasets.
- PCI Express NVMe 4.0 x4 interface
- Hardware RAID 0/1/5/10 support
- Eight memory slots for expansion
Comprehensive Connectivity
Dual Ethernet (Gigabit and 10 Gigabit), wireless LAN, Bluetooth, and ten USB ports including high-speed USB-C ensure connectivity with modern peripherals and networks.
- 10 Gigabit Ethernet for high-bandwidth tasks
- Multiple USB 3.2 Gen 2 ports
- Wireless and Bluetooth for flexibility
Deployment / Use Cases
The ThinkStation P8 30HH002UUS is designed for professional environments where computational power, data integrity, and system reliability are critical. Its balanced configuration makes it suitable for a wide range of demanding applications.
Engineering and CAD professionals will appreciate the combination of high-core-count processing and dedicated graphics for complex 3D modeling and finite element analysis. Data scientists and researchers can leverage the substantial memory capacity and fast storage for machine learning workloads and large dataset manipulation. Content creators working with 4K/8K video, 3D animation, or high-resolution digital assets will benefit from the system's parallel processing capabilities and storage bandwidth.
Engineering & Design
Handle complex CAD models, simulations, and rendering with the Threadripper PRO processor and dedicated graphics memory.
Data Science & Analysis
Process large datasets and run complex algorithms with 64 GB of high-speed DDR5 memory and rapid NVMe storage.
Localization and Operating System
This workstation comes pre-installed with Windows 11 Pro in English, providing a familiar and secure operating environment for professional users. Windows 11 Pro includes advanced management features, enhanced security protocols, and compatibility with business applications.
The keyboard is localized for English, ensuring proper key layout and character input. The operating system language cannot be changed without a reinstallation, as it is factory-configured for English-speaking markets.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.

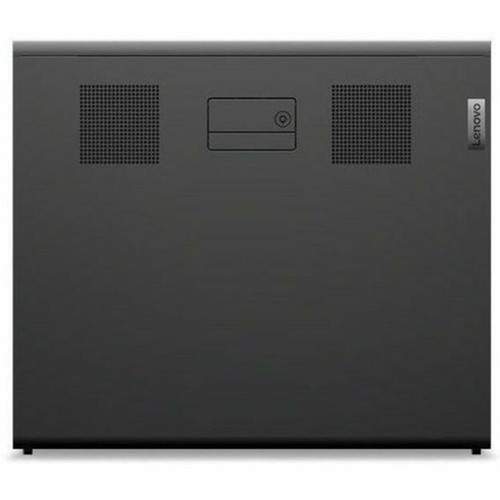

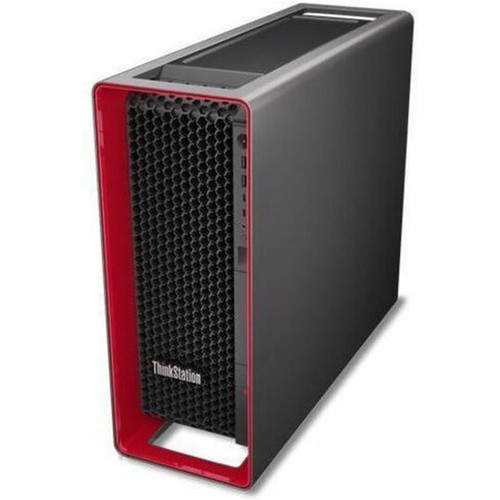

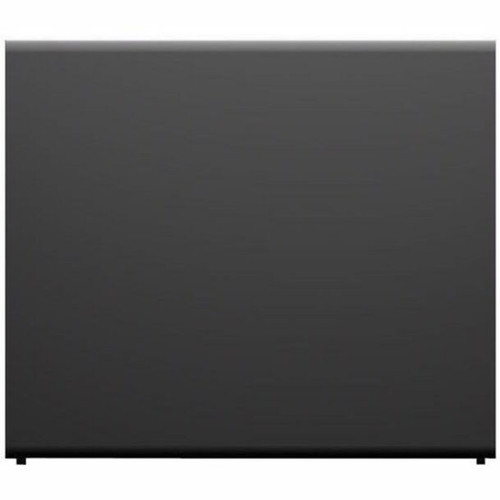

Physical Profile
The ThinkStation P8 utilizes a traditional tower form factor measuring 17.10" high, 6.89" wide, and 20" deep (434.4 x 175 x 508 mm). Weighing approximately 50.04 lb (22.7 kg), this workstation is designed for stationary deployment in office or lab environments.
The tower chassis provides ample internal space for component upgrades and additional storage drives. The substantial 1.40 kW power supply ensures stable power delivery even under maximum load conditions, supporting future expansion with additional GPUs or storage controllers.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation ships with all necessary components to begin operation immediately upon setup.
Highlights
- AMD Ryzen Threadripper PRO 7955WX 16-core processor (4.50 GHz) for extreme multi-threaded performance
- 64 GB DDR5 ECC registered memory (4.80 GHz) with eight slots supporting up to 1 TB expansion
- 2 TB PCI Express NVMe 4.0 x4 SSD for rapid data access and large file storage
- Dedicated 16 GB graphics controller for accelerated visualization and rendering tasks
- Windows 11 Pro operating system with English language and keyboard localization
- Dual Ethernet ports (Gigabit and 10 Gigabit) plus wireless LAN and Bluetooth connectivity
- Ten USB ports including multiple USB 3.2 Gen 2 and USB-C interfaces
- Hardware RAID support (0, 1, 5, 10) for data protection and performance optimization
- 1.40 kW power supply for stable operation and future expansion capability
- 3-year onsite premier support warranty with professional service coverage
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH002UUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH002UUS |
| Product Name | ThinkStation P8 30HH002UUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7955WX |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 32 |
| Processor Speed | 4.50 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH002UUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7955WX processor, which has 16 physical cores and 32 threads operating at a base frequency of 4.50 GHz. This professional-grade CPU is built on the Socket sTR5 platform and is designed for demanding multi-threaded applications in engineering, data analysis, and content creation workflows.
How much memory is installed and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed across four 16 GB modules. This is ECC (Error-Correcting Code) registered memory running at 4.80 GHz, which provides both high bandwidth and data integrity for critical professional applications. The workstation has eight total memory slots, supporting expansion up to 1 TB of RAM.
What storage configuration does this workstation have?
Storage is provided by a 2 TB PCI Express NVMe 4.0 x4 solid-state drive. This high-speed SSD interface delivers significantly faster data transfer rates compared to SATA-based storage, reducing load times for large files and applications. The system also supports hardware RAID configurations (0, 1, 5, 10) for additional performance or redundancy.
What graphics capabilities does this ThinkStation offer?
The workstation includes a dedicated graphics controller with 16 GB of dedicated video memory. This dedicated GPU accelerates visualization tasks, 3D rendering, and compute workloads that benefit from parallel processing. While the exact model isn't specified, dedicated graphics provide superior performance for professional applications compared to integrated solutions.
What connectivity options are available on this workstation?
Connectivity includes dual Ethernet ports (one Gigabit and one 10 Gigabit), wireless LAN, and Bluetooth. For peripherals, there are ten USB ports total: two USB 2.0, five USB 3.2 Gen 2, two USB-C 3.2 Gen 2, and one USB-C 20Gbps (USB 3.2 Gen 2x2) port for data transfer. This comprehensive connectivity supports both legacy and modern devices.
What warranty and support come with this Lenovo workstation?
Lenovo provides a 3-year onsite premier support warranty with this workstation. This includes onsite service where a technician comes to your location for repairs, minimizing downtime. The premier support upgrade offers enhanced service coverage compared to standard warranties, which is essential for business-critical workstations.
