Lenovo 30HH002VCA ThinkStation P8 Professional Tower Workstation - Ryzen Threadripper Pro 7945WX 12-Core - 16GB DDR5 RAM - 512GB NVMe SSD - T400 4GB
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P8 is the AMD Ryzen Threadripper PRO 7945WX, a 12-core, 24-thread processor with a base clock of 4.70 GHz. It leverages the Socket sTR5 platform and AMD's WRX90 chipset to support PCIe 4.0 connectivity, advanced memory configurations, and robust I/O capabilities.
The system is equipped with 16 GB of DDR5 SDRAM operating at 4.80 GHz, featuring ECC and Registered signal processing for enhanced data integrity in mission-critical applications. Eight memory slots allow expansion up to 1 TB, providing substantial headroom for memory-hungry workloads.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P8 combines workstation-grade reliability with cutting-edge performance features. Its balanced configuration ensures smooth operation across a wide range of professional applications, from engineering simulations to financial modeling.
Professional-Grade Compute
The Ryzen Threadripper PRO 7945WX processor and WRX90 chipset deliver exceptional multi-core performance, while ECC Registered DDR5 memory ensures data accuracy for critical computations.
- 12-core, 24-thread CPU
- 4.70 GHz clock speed
- ECC Registered DDR5 support
Expandable Architecture
With eight memory slots supporting up to 1 TB of RAM, multiple storage bays, and available PCIe slots, the P8 can be configured to meet evolving workload demands.
- 1 TB max memory
- RAID 0,1,5,10 support
- Tower form factor for easy upgrades
Professional Graphics
The dedicated NVIDIA T400 GPU with 4 GB of GDDR6 memory accelerates visualization tasks, CAD workflows, and multi-display setups without taxing the main processor.
- 4 GB dedicated memory
- Three Mini DisplayPort outputs
- Professional driver support
Deployment / Use Cases
The ThinkStation P8 is designed for professional environments where computational power, data integrity, and system stability are paramount. Its balanced configuration makes it suitable for both individual power users and departmental deployment.
Common applications include computer-aided design (CAD), 3D modeling and rendering, scientific and engineering simulations, financial analysis and modeling, software development and compilation, and media production and editing. The tower form factor allows for easy serviceability and customization to match specific workflow requirements.
Engineering & Design
Handle complex CAD assemblies, finite element analysis, and computational fluid dynamics with the multi-core Threadripper PRO processor and professional graphics.
- AutoCAD
- SolidWorks
- ANSYS
Content Creation
Accelerate 3D rendering, video editing, and visual effects workflows with the combination of high-core-count CPU and dedicated GPU resources.
- Blender
- Adobe Creative Suite
- DaVinci Resolve
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit pre-installed, providing a secure, productive environment with enterprise management features. The operating system takes full advantage of the hardware's capabilities, including support for the 12-core processor, DDR5 memory, and NVMe storage.
The included keyboard features French (Canada) localization, making it immediately usable in Canadian French-speaking business environments. This localization extends to key legends and layout, ensuring comfortable typing for users in Quebec and other French-speaking regions.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.

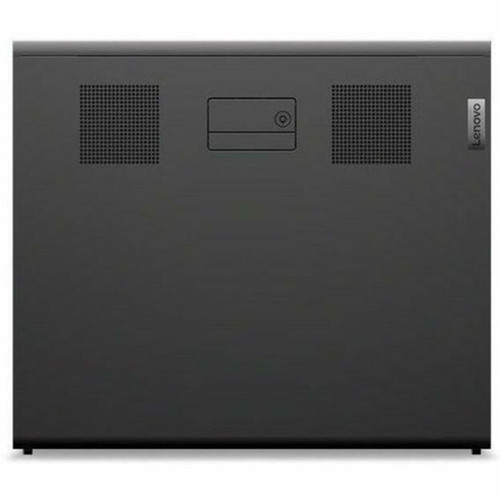

Physical Profile
The ThinkStation P8 utilizes a traditional tower form factor measuring 17.10" high × 6.89" wide × 20" deep (434.4 × 175 × 508 mm). This design provides excellent internal space for component upgrades and cooling while maintaining a professional appearance suitable for office environments.
Weighing approximately 50.04 lb (22.7 kg), the workstation offers solid construction with tool-less access panels for easy maintenance. The tower orientation allows for optimal airflow across critical components, supporting sustained performance during extended compute sessions.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation arrives ready for setup with all essential components included for immediate operation.
Highlights
- AMD Ryzen Threadripper PRO 7945WX 12-core processor (4.70 GHz)
- 16 GB DDR5 ECC Registered memory (expandable to 1 TB)
- 512 GB PCIe NVMe 4.0 SSD for fast storage
- NVIDIA T400 dedicated graphics with 4 GB GDDR6 memory
- Windows 11 Pro 64-bit operating system
- French (Canada) keyboard localization
- Dual Ethernet (Gigabit + 10 Gigabit) plus Wi-Fi and Bluetooth
- Tower form factor with tool-less maintenance
- Three-year on-site warranty
- GREENGUARD certified for low chemical emissions
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH002VCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH002VCA |
| Product Name | ThinkStation P8 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 4.70 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 16 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 512 GB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | T400 |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 3 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3 Year On-site |
User Manual
FAQ
What processor does this ThinkStation P8 workstation use?
This workstation is powered by the AMD Ryzen Threadripper PRO 7945WX processor. This is a 12-core, 24-thread CPU with a base clock speed of 4.70 GHz, built on the Socket sTR5 platform. It's designed for professional workloads that benefit from high multi-core performance, such as 3D rendering, engineering simulations, and data analysis.
How much memory is installed and what type is it?
The system comes with 16 GB of DDR5 SDRAM installed. This is ECC (Error-Correcting Code) Registered memory, which provides enhanced data integrity for mission-critical applications. The memory operates at 4.80 GHz and is installed in one of eight available slots, allowing expansion up to 1 TB total capacity as workload demands increase.
What storage configuration does this workstation have?
Primary storage is a 512 GB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This provides significantly faster data access compared to traditional hard drives or SATA SSDs. The system supports RAID configurations (0, 1, 5, 10) for additional storage performance or redundancy, and has multiple internal bays for adding more drives.
What graphics card is included and what are its capabilities?
The workstation includes an NVIDIA T400 professional graphics card with 4 GB of dedicated GDDR6 memory. This GPU is designed for CAD, 3D modeling, and multi-display business applications rather than gaming. It features three Mini DisplayPort outputs and is supported by NVIDIA's professional drivers for application certification and stability.
What networking and connectivity options are available?
The ThinkStation P8 offers comprehensive connectivity including both Gigabit Ethernet and 10 Gigabit Ethernet ports for high-speed network access. It also includes built-in Wi-Fi and Bluetooth for wireless connectivity. For peripherals, there are six USB ports total (two USB 2.0, three USB 3.2 Gen 2, and one USB-C 20Gbps port), plus three Mini DisplayPort outputs.
What warranty coverage does this workstation include?
Lenovo provides a three-year limited warranty with on-site service. This means a technician will come to your location for repairs during the warranty period, minimizing downtime. The workstation is also GREENGUARD certified for low chemical emissions and complies with RoHS environmental standards.
