Lenovo 30HH002WCA ThinkStation P8 Workstation - Ryzen Threadripper PRO 7945WX 12-Core - 64 GB DDR5 - 2 TB NVMe SSD - NVIDIA T400 4 GB - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P8 is the AMD Ryzen Threadripper PRO 7945WX, a 12-core/24-thread processor with a 4.70 GHz boost clock. This CPU leverages the Socket sTR5 platform and AMD's WRX90 chipset to deliver exceptional multi-threaded performance and platform stability. The memory subsystem features eight DDR5 slots supporting ECC Registered DIMMs, with a standard configuration of 64 GB running at 4.80 GHz and expandable to 1 TB for future growth.
Storage is handled by a 2 TB PCI Express NVMe 4.0 x4 solid-state drive, offering sequential read/write speeds that dramatically reduce load times for large datasets and applications. The system supports hardware RAID 0, 1, 5, and 10 via the integrated SATA/NVMe controller, providing data protection and performance options for critical workloads.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P8 combines workstation-class components with Lenovo's reliability engineering to create a system that handles professional applications with consistency. Its expandable architecture and robust thermal design ensure sustained performance under heavy loads.
Professional-Grade Reliability
ECC memory and registered DIMMs correct single-bit errors, preventing data corruption in mission-critical calculations and long-running simulations.
- Error-correcting code (ECC) support
- Registered memory signal integrity
- ISV-certified components
High-Speed Connectivity
Dual Ethernet (Gigabit and 10 Gigabit) provides flexible network bandwidth, while USB 3.2 Gen 2x2 (20 Gbps) and multiple Mini DisplayPort outputs enable fast peripheral and display connections.
- 10 Gigabit Ethernet for network storage
- USB-C 20 Gbps data transfer
- Three Mini DisplayPort outputs
Deployment / Use Cases
The ThinkStation P8 is engineered for professional environments where computational power, data integrity, and system stability are non-negotiable. Its balanced configuration of high-core-count CPU, substantial memory, and fast NVMe storage makes it suitable for a range of demanding workloads.
In engineering and design offices, this workstation accelerates finite element analysis (FEA), computational fluid dynamics (CFD), and 3D CAD rendering. Research and data science teams leverage its multi-threaded performance for statistical modeling, machine learning preprocessing, and large dataset analysis. Media production studios use it for video editing, color grading, and motion graphics rendering where GPU acceleration and fast storage improve creative workflows.
Engineering & Simulation
Run ANSYS, Siemens NX, or SOLIDWORKS simulations with reduced solve times thanks to 12 CPU cores and high-bandwidth memory.
Data Science & Analysis
Process large datasets in Python/R, build machine learning models, or visualize complex results with 64 GB of RAM and 2 TB of fast NVMe storage.
Localization and Operating System
This ThinkStation P8 comes pre-installed with Windows 11 Pro 64-bit, providing a full-featured, secure operating system with BitLocker encryption, remote management capabilities, and compatibility with business software. The French (Canada) keyboard localization ensures seamless integration for Canadian French-speaking users, with appropriate key legends and language support.
Windows 11 Pro includes Hyper-V for virtualization, DirectAccess for remote connectivity, and Group Policy management, making this workstation suitable for both standalone and domain-joined deployments in professional IT environments.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

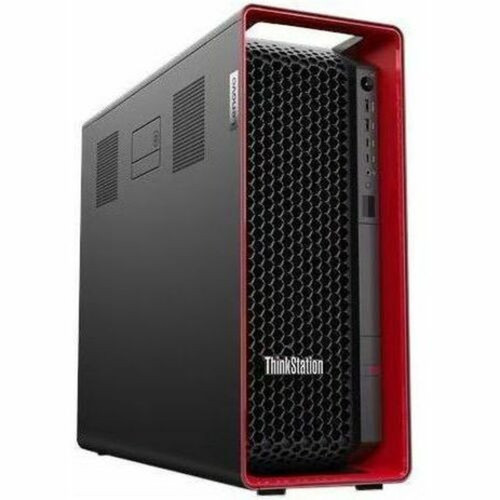

The tower chassis measures 17.1 inches in height, 6.89 inches in width, and 20 inches in depth, offering a substantial internal volume for component cooling and future expansion. Weighing 50.04 pounds, the system is designed for stationary placement in office, lab, or studio settings. The robust steel construction and thoughtful airflow design maintain optimal operating temperatures even during extended full-load operation.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation ships with all essential components for immediate setup and use.
Package contents include ThinkStation P8 Keyboard, ThinkStation P8. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- AMD Ryzen Threadripper PRO 7945WX 12-core processor (4.70 GHz)
- 64 GB DDR5 ECC Registered memory (expandable to 1 TB)
- 2 TB PCIe NVMe 4.0 x4 solid-state drive
- NVIDIA T400 dedicated graphics with 4 GB GDDR6
- Windows 11 Pro 64-bit operating system
- Gigabit + 10 Gigabit Ethernet, Wi-Fi, and Bluetooth
- Tower form factor with robust cooling
- French (Canada) keyboard localization
- Hardware RAID 0, 1, 5, 10 support
- 3-year Premier Next Business Day warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH002WCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH002WCA |
| Product Name | ThinkStation P8 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 4.70 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Controller Model | T400 |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Mini DisplayPort | Yes |
| Number of Mini DisplayPort | 3 |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7945WX, a 12-core, 24-thread processor with a maximum boost clock of 4.70 GHz. It uses the Socket sTR5 platform and is paired with the AMD WRX90 chipset, providing high multi-threaded performance for professional applications like simulation, rendering, and data analysis.
How much memory is installed, and can it be expanded?
The system comes with 64 GB of DDR5 ECC Registered memory installed. It has eight total memory slots, supporting a maximum capacity of 1 TB. The memory runs at 4.80 GHz and includes error-correcting code (ECC) functionality for data integrity in critical workloads.
What type of storage does this workstation include?
Storage is provided by a 2 TB PCI Express NVMe 4.0 x4 solid-state drive. This offers high sequential read/write speeds for fast application loading and data access. The system also supports hardware RAID 0, 1, 5, and 10 configurations via the integrated SATA/NVMe controller for data protection or performance needs.
What graphics card is installed, and how much video memory does it have?
The workstation includes an NVIDIA T400 professional graphics card with 4 GB of dedicated GDDR6 memory. This GPU provides reliable display output for multiple monitors and supports GPU-accelerated applications in CAD, visualization, and video playback scenarios.
What operating system is pre-installed?
Windows 11 Pro 64-bit comes pre-installed. This includes business features like BitLocker encryption, Hyper-V virtualization, remote management capabilities, and compatibility with professional software. The system is ready for immediate deployment in business environments.
What warranty coverage does this Lenovo workstation include?
Lenovo provides a 3-year Premier Next Business Day warranty. This includes onsite service with next-business-day response for hardware issues. The warranty covers parts and labor, ensuring minimal downtime for professional users who depend on this workstation for daily operations.
