Lenovo 30HH002WUS ThinkStation P8 Workstation - Ryzen Threadripper Pro 7945WX 12-Core - 64 GB DDR5 - 2 TB NVMe SSD - T400 4 GB - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P8 is the AMD Ryzen Threadripper PRO 7945WX processor, operating at 4.70 GHz on the sTR5 socket and paired with the AMD WRX90 chipset. This platform supports professional-grade features including ECC memory and extensive PCIe connectivity. The system is configured with 64 GB of DDR5 SDRAM running at 4800 MHz across four modules, with a maximum memory capacity of 1 TB across eight available slots.
Storage is handled by a 2 TB NVMe solid-state drive utilizing the PCI Express 4.0 x4 interface for maximum throughput. The storage controller supports both NVMe and SATA drives, with hardware RAID 0, 1, 5, and 10 capabilities for data redundancy and performance. Graphics are powered by a dedicated NVIDIA T400 card with 4 GB of GDDR6 memory, suitable for multi-display setups and GPU-accelerated tasks.
Key Product Advantages
The ThinkStation P8 combines professional-grade hardware with enterprise manageability, offering a balanced platform for technical computing. Its Threadripper PRO architecture provides workstation-class performance with the security and remote management features required in professional environments.
Professional-Grade Stability
ECC Registered DDR5 memory ensures data integrity for mission-critical applications, while the robust power delivery and cooling system maintain consistent performance under sustained loads.
- Error-correcting memory
- Registered DIMMs for stability
- High-efficiency cooling
Expansion & Connectivity
With eight memory slots, multiple storage bays, and a comprehensive I/O panel, the P8 offers significant expansion potential. Connectivity includes dual-speed Ethernet, Wi-Fi 6, Bluetooth, and ten USB ports including high-speed USB-C.
- 1 TB max memory support
- 10 total USB ports
- Gigabit & 10GbE Ethernet
Deployment / Use Cases
This workstation is purpose-built for professional environments where computational power, data integrity, and system reliability are paramount. Its balanced configuration of high-core-count CPU, substantial ECC memory, and fast NVMe storage makes it suitable for a range of demanding applications.
Primary use cases include engineering simulation and finite element analysis (FEA), where the 12-core processor accelerates complex calculations. Content creation professionals will benefit from the responsive storage and capable graphics for video editing, 3D animation, and visual effects work. Data scientists and financial analysts can leverage the large memory capacity and multi-threading for statistical modeling and large dataset manipulation. The system also serves as an excellent development platform for software engineers working with virtualization, compilation, and testing environments.
Engineering & Simulation
Run CAD, CAE, and computational fluid dynamics software with the Threadripper PRO's multi-core performance and ECC memory for accurate results.
Content Creation & Design
Handle high-resolution video timelines, 3D rendering projects, and graphic design work with the fast storage and dedicated GPU.
Localization and Operating System
This workstation ships with Microsoft Windows 11 Pro pre-installed in the English language. Windows 11 Pro provides enhanced security features, BitLocker encryption, and enterprise management capabilities through Group Policy and Azure AD integration.
The system includes an English-language keyboard, ensuring compatibility with standard North American input layouts. The operating system and all included software are configured for English language use, making this system ready for deployment in English-speaking professional environments.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

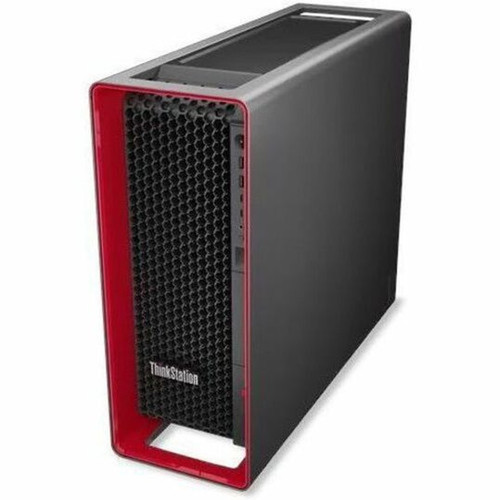

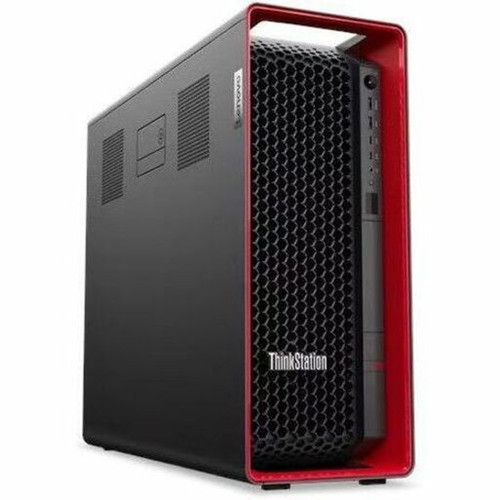

The ThinkStation P8 utilizes a traditional tower form factor measuring 17.1 inches in height, 6.89 inches in width, and 20 inches in depth (434.4 x 175 x 508 mm). This design provides ample internal space for component upgrades and optimal airflow for cooling high-performance hardware.
With an approximate weight of 50.04 pounds (22.7 kg), the workstation features a sturdy construction suitable for stationary office deployment. The chassis includes tool-less access panels for easy maintenance and upgradeability, supporting the long-term serviceability expected in professional computing environments.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation ships complete with all necessary components for immediate setup and operation.
Highlights
- AMD Ryzen Threadripper PRO 7945WX 12-core processor (4.70 GHz) for intensive multi-threaded workloads
- 64 GB of DDR5 ECC Registered memory (4800 MHz) ensures data integrity and high bandwidth
- 2 TB NVMe PCIe 4.0 SSD delivers rapid storage access for large files and applications
- NVIDIA T400 dedicated graphics with 4 GB GDDR6 memory supports multiple displays
- AMD WRX90 chipset platform with professional features and expansion capabilities
- Dual Ethernet (Gigabit & 10GbE) plus Wi-Fi and Bluetooth for comprehensive connectivity
- Windows 11 Pro operating system with enterprise security and management features
- 1.4 kW power supply ensures stable operation with high-performance components
- Eight memory slots support up to 1 TB total RAM for future expansion
- 3-year warranty with onsite service for reliable professional support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH002WUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH002WUS |
| Product Name | ThinkStation P8 30HH002WUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7945WX |
| Processor Core | Dodeca-core (12 Core) |
| Processor Threads | 24 |
| Processor Speed | 4.70 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Controller Model | T400 |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C® 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH002WUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7945WX processor. It's a 12-core (24-thread) CPU with a base clock speed of 4.70 GHz, built on AMD's professional platform. This processor supports ECC memory and offers workstation-grade performance for demanding applications like 3D rendering, simulation, and data analysis.
How much memory is installed, and what type is it?
The system comes configured with 64 GB of DDR5 SDRAM. This is ECC (Error-Correcting Code) Registered memory running at 4800 MHz, installed as four 16 GB modules. The memory technology ensures data integrity for mission-critical work, and the eight available slots allow expansion up to a maximum of 1 TB total system memory.
What storage configuration does this workstation include?
Storage is provided by a 2 TB NVMe solid-state drive using the PCI Express 4.0 x4 interface. This offers significantly faster data transfer speeds compared to SATA SSDs or hard drives. The storage controller supports hardware RAID 0, 1, 5, and 10 configurations if additional drives are added for performance or redundancy.
What graphics card is installed, and what are its capabilities?
The workstation includes a dedicated NVIDIA T400 graphics card with 4 GB of GDDR6 memory. This professional-grade GPU supports multiple displays and provides hardware acceleration for design applications, video playback, and basic 3D visualization. While not designed for high-end gaming, it's well-suited for CAD, content creation, and general workstation use.
What operating system comes pre-installed on this ThinkStation?
The system ships with Microsoft Windows 11 Pro (English version) pre-installed and configured. Windows 11 Pro includes enhanced security features like BitLocker encryption, remote desktop capabilities, and enterprise management tools. This makes the workstation ready for professional deployment without additional software installation.
What connectivity options are available on this workstation?
The ThinkStation P8 offers comprehensive connectivity including dual Ethernet ports (one Gigabit and one 10 Gigabit), Wi-Fi, and Bluetooth. For peripherals, there are ten USB ports total: two USB 2.0, five USB 3.2 Gen 2, and three USB-C ports (with one supporting 20 Gbps speeds). This extensive I/O supports multiple monitors, storage devices, and professional peripherals simultaneously.
