Lenovo 30HH0036US ThinkStation P8 Workstation - AMD Threadripper PRO 7955WX 4. 50GHz - 64GB DDR5 - 2TB NVMe SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P8 sits the AMD Ryzen Threadripper PRO 7955WX processor, featuring 16 physical cores and 32 threads with a base clock of 4.50GHz. This CPU leverages the Socket sTR5 platform and benefits from 64MB of cache, delivering exceptional parallel processing capabilities for multi-threaded applications. The system's memory architecture utilizes DDR5 SDRAM technology running at 4800MHz with ECC and Registered signal processing, ensuring data integrity and stability during extended computational sessions.
Storage performance is maximized through PCI Express 4.0 connectivity, with the 2TB NVMe SSD providing sequential read/write speeds that significantly reduce project load times and file transfer operations. The hardware RAID controller supports multiple RAID levels including 0, 1, 5, and 10 configurations, allowing users to balance performance, capacity, and redundancy according to their specific workflow requirements.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P8 distinguishes itself through its balanced combination of raw computational power, enterprise-grade reliability features, and professional expansion capabilities. Unlike consumer-grade systems, this workstation incorporates ECC memory with Registered DIMMs to prevent data corruption during critical calculations, while the hardware RAID controller provides enterprise-level storage management without taxing the main processor.
Professional-Grade Reliability
ECC Registered memory ensures data accuracy for scientific and engineering computations, while the 1400W power supply delivers stable power delivery even under maximum load conditions.
- 64GB DDR5 ECC Registered RAM
- 1400W 80 Plus Platinum PSU
- 3-year on-site warranty with next-business-day response
Comprehensive Connectivity
Dual network interfaces including 10GbE provide high-bandwidth connectivity for network-attached storage and cluster computing, while Wi-Fi 6E offers the latest wireless standards for flexible deployment.
- Dual Gigabit + 10GbE ports
- Wi-Fi 6E with Bluetooth 5.2
- 10 total USB ports including 3x USB-C
Deployment / Use Cases
The ThinkStation P8 is specifically engineered for professional environments where computational intensity, data integrity, and system stability are paramount. Its architecture makes it particularly suitable for computational fluid dynamics simulations, finite element analysis, 3D rendering pipelines, and genomic sequencing workloads that benefit from high core counts and large memory capacities.
Media production studios will appreciate the combination of fast NVMe storage for 8K video editing and the system's ability to handle multiple streams of high-resolution content simultaneously. Engineering firms can leverage the ECC memory protection for CAD/CAM applications and structural analysis, while research institutions benefit from the platform's ability to process large datasets in scientific computing and machine learning workflows.
Engineering & Simulation
Handle complex finite element analysis, computational fluid dynamics, and structural simulations with the 16-core Threadripper PRO processor and ECC memory protection.
Media Production & Visualization
Accelerate 3D rendering, video editing, and visual effects workflows with the high-speed NVMe storage and substantial memory capacity for large asset libraries.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit edition pre-installed in English, providing a familiar professional environment with enhanced security features, virtualization capabilities, and enterprise management tools. The US English keyboard localization ensures compatibility with standard North American input requirements, while the 64-bit architecture fully leverages the system's substantial memory capacity and processor capabilities.
Windows 11 Pro includes BitLocker device encryption for data protection, Hyper-V for virtualization workloads, and comprehensive group policy management for enterprise deployment. The operating system is optimized to take advantage of the Threadripper PRO processor's core count and the DDR5 memory architecture, ensuring efficient resource utilization across professional applications.

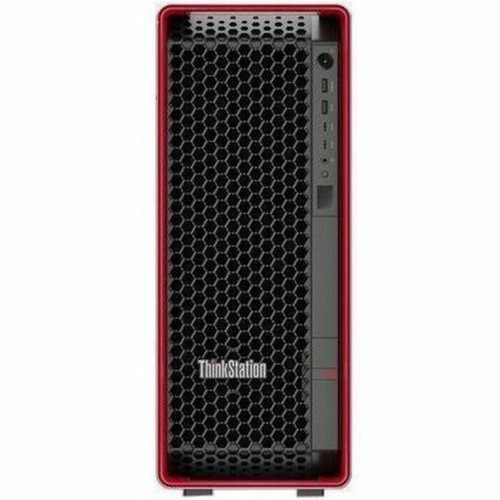

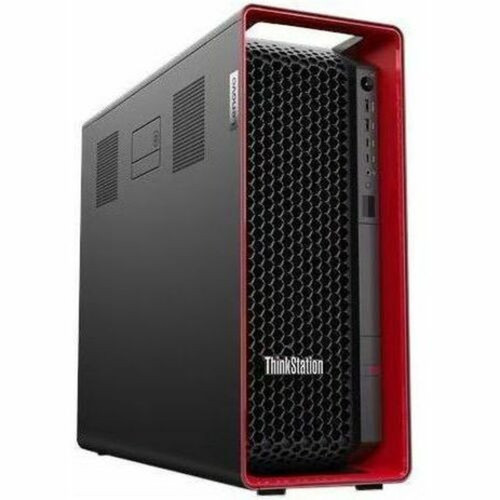

Physical Profile
Housed in a professional black chassis measuring 17.1" high × 6.89" wide × 20" deep (434 × 175 × 508mm), the ThinkStation P8 presents a substantial footprint designed for optimal thermal management and expansion capabilities. The 50.04lb (22.7kg) weight reflects the robust construction and high-quality components within, including the 1400W power supply and comprehensive cooling system required for sustained heavy workloads.
The tower design provides ample internal space for additional storage drives, expansion cards, and cooling solutions, while maintaining accessibility for service and upgrades. The black finish presents a professional appearance suitable for laboratory, studio, and office environments where the workstation will operate continuously under demanding conditions.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation arrives ready for deployment with all essential components included for immediate operation.
Highlights
- AMD Ryzen Threadripper PRO 7955WX 16-core processor at 4.50GHz
- 64GB DDR5-4800 ECC Registered memory (expandable to 1TB)
- 2TB NVMe PCIe 4.0 SSD for rapid data access
- Windows 11 Pro 64-bit English pre-installed
- Dual Gigabit Ethernet plus 10GbE for high-speed networking
- Wi-Fi 6E and Bluetooth 5.2 wireless connectivity
- Hardware RAID controller supporting 0,1,5,10 configurations
- 1400W 80 Plus Platinum power supply
- 3-year on-site warranty with next-business-day service
- EPEAT Gold, ENERGY STAR 8.0, and TCO Certified 9.0 environmental certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH0036US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH0036US |
| Product Name | ThinkStation P8 30HH0036US Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7955WX |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 32 |
| Processor Speed | 4.50 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express 4.0 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English (US) |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH0036US Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3 Year On-site |
User Manual
FAQ
What processor does the ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7955WX processor with 16 physical cores and 32 threads operating at a base clock speed of 4.50GHz. Built on the Socket sTR5 platform with the AMD WRX90 chipset, this CPU delivers exceptional multi-threaded performance for professional applications like engineering simulations, 3D rendering, and scientific computing that benefit from high core counts and parallel processing capabilities.
How much memory is installed and what type is it?
The system comes configured with 64GB of DDR5 SDRAM operating at 4800MHz, arranged in four 16GB modules. This is ECC (Error-Correcting Code) Registered memory, which provides data integrity protection critical for scientific, engineering, and financial applications. The workstation has eight total memory slots, supporting expansion up to 1TB total system memory for demanding computational workloads.
What storage configuration does this workstation include?
Primary storage consists of a 2TB NVMe solid-state drive connected via PCI Express 4.0 interface, delivering significantly faster data transfer speeds compared to SATA-based storage. The system includes a hardware RAID controller supporting RAID levels 0, 1, 5, and 10, allowing users to configure multiple drives for performance, redundancy, or a balance of both according to their specific workflow requirements.
What networking capabilities does the ThinkStation P8 offer?
This workstation provides comprehensive wired and wireless connectivity options. For wired networking, it includes both standard Gigabit Ethernet and 10 Gigabit Ethernet ports for high-bandwidth applications like network-attached storage access. Wireless connectivity features the latest Wi-Fi 6E standard for faster speeds and reduced interference, along with Bluetooth 5.2 for peripheral connections. This combination ensures flexible deployment in various professional environments.
What operating system is pre-installed on this workstation?
The system ships with Windows 11 Pro 64-bit edition in English pre-installed. This professional operating system includes advanced features like BitLocker device encryption, Hyper-V virtualization, remote desktop hosting, and comprehensive group policy management tools. The 64-bit architecture fully utilizes the workstation's substantial memory capacity and multi-core processor capabilities for demanding professional applications.
What warranty and certifications come with this workstation?
Lenovo provides a 3-year on-site warranty with next-business-day service response, ensuring minimal downtime for professional users. The workstation also carries multiple environmental certifications including EPEAT Gold, ENERGY STAR 8.0, TCO Certified 9.0, GREENGUARD, and RoHS compliance. These certifications demonstrate the product's energy efficiency, reduced environmental impact, and adherence to strict chemical restrictions in its construction.
