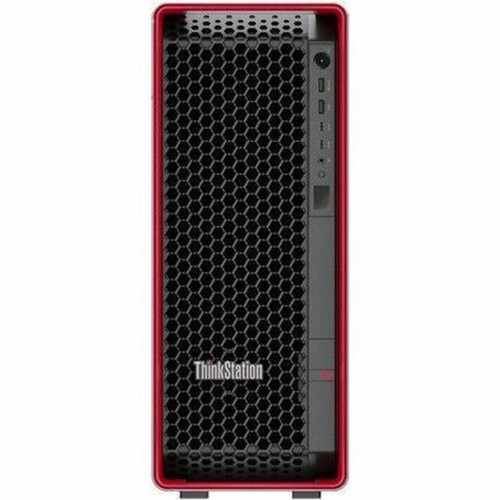

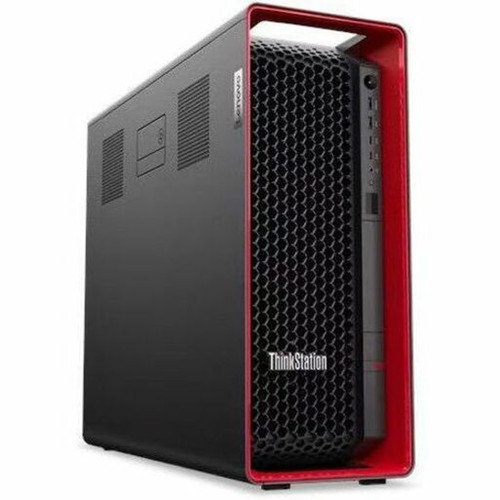

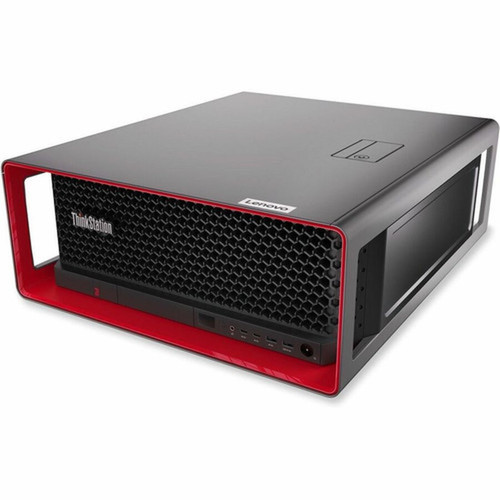

Lenovo 30HH0037US ThinkStation P8 Workstation - Ryzen Threadripper Pro 7955WX 16-Core - 32GB DDR5 ECC - 1TB NVMe SSD - NVIDIA T400 4GB - Windows 11
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ThinkStation P8 leverages AMD's Socket sTR5 platform, supporting a single Ryzen Threadripper PRO 7955WX processor with 16 physical cores and 32 threads. This Hexadeca-core design, combined with a 4.50 GHz base clock, handles parallelized workloads efficiently, from simulation and rendering to data analysis and virtualization.
Memory architecture uses DDR5 SDRAM with Error-Correcting Code (ECC) and Registered signal processing, ensuring stability in mission-critical applications. The eight memory slots support configurations up to 1TB total capacity, while the installed 2×16GB modules operate at 4.80 GHz for low-latency data access. Storage is managed via a PCI Express NVMe 4.0 x4 interface, delivering sequential read/write speeds that reduce load times for large project files.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines high core counts with enterprise reliability features, making it suitable for extended compute sessions where downtime is not an option. The ECC memory and registered DIMMs prevent data corruption, while the 1.40 kW power supply ensures stable operation under peak loads.
Professional-Grade Components
The Ryzen Threadripper PRO CPU includes advanced security and remote management capabilities, while the WRX90 chipset provides PCIe lane allocation for multiple GPUs or storage controllers.
- AMD PRO technologies for security
- Hardware-based RAID 0/1/5/10 support
- Dedicated NVIDIA T400 graphics
Expandable Architecture
With eight DDR5 slots and support for up to 1TB of RAM, plus multiple PCIe slots and storage bays, the P8 can grow with your project requirements.
- Scalable memory to 1TB
- Multiple USB-C and high-speed USB ports
- Dual Ethernet (Gigabit + 10GbE)
Deployment / Use Cases
The ThinkStation P8 is designed for environments where computational throughput and data integrity are paramount. Its balanced configuration of high core count, fast NVMe storage, and professional graphics makes it effective for engineering simulations, financial modeling, media production, and scientific research.
In a design studio, the NVIDIA T400 GPU accelerates viewport performance in CAD and BIM applications, while the 32GB of ECC RAM allows large assemblies to be manipulated without swapping. For software developers, the 16-core processor compiles code rapidly and handles multiple virtual machines concurrently. Data analysts benefit from the PCIe 4.0 SSD's low latency when querying large datasets, and the 10GbE connectivity enables fast network storage access.
Engineering & Design
Run CAD, CAE, and rendering software with stability provided by ECC memory and the Threadripper PRO platform.
Data Science & Analysis
Process large datasets in memory with 32GB of DDR5, backed by fast NVMe storage for model training and data I/O.
Localization and Operating System
This workstation ships with Windows 11 Pro pre-installed in English, providing a familiar interface with enhanced security features like BitLocker encryption and Windows Defender. The operating system is optimized for professional applications and includes Hyper-V for virtualization.
Keyboard localization is English, matching the OS language for a consistent user experience. Windows 11 Pro supports domain join, Group Policy management, and remote desktop, making it suitable for integration into corporate IT environments.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkStation P8 uses a tower form factor measuring 17.10" high, 6.89" wide, and 20" deep (434.4 × 175 × 508 mm), providing ample internal space for expansion cards and additional storage drives. Weighing approximately 50.04 lb (22.7 kg), it is built with a robust chassis that supports efficient cooling for sustained high-performance workloads.
The design accommodates standard ATX power supplies and includes tool-less access for easy maintenance. The chassis supports multiple drive bays and PCIe slots, allowing for future upgrades such as additional GPUs, network cards, or storage controllers.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The package includes the ThinkStation P8 workstation (model 30HH0037US), a wired keyboard with English layout, and a mouse. All necessary power cables and documentation are also included.
Highlights
- AMD Ryzen Threadripper PRO 7955WX 16-core processor (4.50 GHz, 32 threads)
- 32GB DDR5 ECC Registered RAM (4.80 GHz, expandable to 1TB across 8 slots)
- 1TB PCIe NVMe 4.0 SSD for fast storage and reduced load times
- NVIDIA T400 dedicated graphics with 4GB GDDR6 memory
- Windows 11 Pro operating system (English) with professional features
- Dual Ethernet (Gigabit + 10GbE), Wi-Fi, and Bluetooth connectivity
- 10 USB ports including USB-C 3.2 Gen 2 and 20Gbps variants
- 1.40 kW power supply for stable operation under heavy loads
- 3-year onsite warranty with Premier Support upgrade option
- EPEAT Gold, ENERGY STAR 8.0, TCO Certified 9.0 environmental certifications
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH0037US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH0037US |
| Product Name | ThinkStation P8 30HH0037US |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7955WX |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 32 |
| Processor Speed | 4.50 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Controller Model | T400 |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH0037US Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3-year, Onsite 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this ThinkStation P8 workstation use?
This workstation is equipped with an AMD Ryzen Threadripper PRO 7955WX processor, featuring 16 physical cores and 32 threads running at a base clock of 4.50 GHz. It uses the Socket sTR5 platform and is paired with the AMD WRX90 chipset for enhanced I/O and stability in professional workloads.
How much memory is installed, and can it be expanded?
The system comes with 32GB of DDR5 ECC Registered memory configured as two 16GB modules running at 4.80 GHz. It has eight total memory slots, supporting a maximum capacity of 1TB, allowing significant expansion for memory-intensive applications like virtualization, simulation, or large dataset processing.
What type of storage does this workstation include?
Storage is provided by a 1TB PCI Express NVMe 4.0 x4 solid-state drive, which offers high sequential read/write speeds for fast data access. The storage controller supports both NVMe and SATA interfaces, and hardware RAID 0, 1, 5, and 10 is available for data redundancy or performance configurations.
What graphics card is installed, and is it suitable for professional applications?
The workstation includes an NVIDIA T400 graphics card with 4GB of dedicated GDDR6 memory. This GPU is designed for professional visualization tasks, providing accelerated performance for CAD, BIM, and multi-display setups, though it is not intended for high-end 3D rendering or gaming.
What networking and connectivity options are available?
Connectivity includes dual Ethernet ports (Gigabit and 10 Gigabit), integrated Wi-Fi, and Bluetooth. There are 10 USB ports total: two USB 2.0, five USB 3.2 Gen 2, two USB-C 3.2 Gen 2, and one USB-C port supporting 20Gbps data transfer (USB 3.2 Gen 2x2).
What warranty and support are included with this workstation?
Lenovo provides a 3-year limited warranty with onsite service. This includes a Premier Support upgrade option, which offers enhanced technical support and faster response times. The system also carries environmental certifications like EPEAT Gold, ENERGY STAR 8.0, and TCO Certified 9.0.
