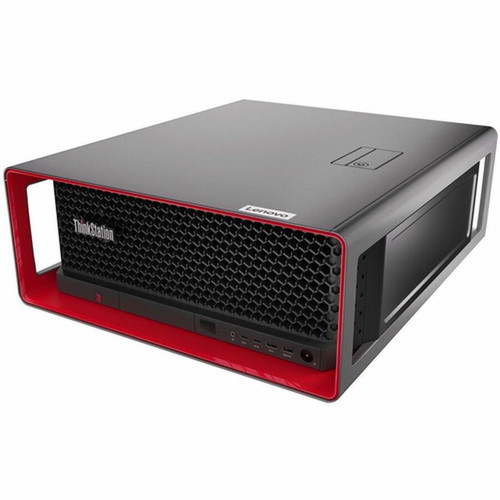

Lenovo 30HH003DUS ThinkStation P8 Workstation - Ryzen Threadripper PRO 7955WX 16-Core 4. 5GHz - 64GB DDR5 - 2TB NVMe SSD - 16GB Dedicated Graphics
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P8 is the AMD WRX90 chipset, which supports the Socket sTR5 processor interface and provides extensive I/O capabilities and memory bandwidth. The installed Ryzen Threadripper PRO 7955WX processor features a hexadeca-core (16-core) design with 32 threads, enabling parallel processing of complex datasets, simulations, and multimedia encoding. Memory architecture utilizes DDR5 SDRAM technology running at 4.80 GHz, with ECC and registered signal processing to maintain data integrity under heavy loads.
Storage performance is maximized through the PCI Express NVMe 4.0 x4 interface, which reduces latency and boosts throughput compared to traditional SATA drives. The system supports hardware RAID configurations (0, 1, 5, 10) via the integrated NVMe and Serial ATA controller, allowing for flexible storage redundancy and performance tuning. Networking includes dual Ethernet options—Gigabit and 10 Gigabit—for high-bandwidth data transfers, complemented by integrated wireless LAN and Bluetooth for peripheral connectivity.
Key Product Advantages
This workstation combines professional-grade components with Lenovo's reliability engineering to deliver a stable platform for intensive workloads. The Ryzen Threadripper PRO processor and WRX90 chipset provide a foundation for expandability and sustained performance, while the DDR5 ECC memory ensures data accuracy in financial, scientific, and engineering applications.
Professional Performance
The 16-core Threadripper PRO CPU handles multitasking and parallel processing efficiently, reducing render times and accelerating computational tasks.
- 64 GB DDR5 ECC RAM for large dataset handling
- 2 TB NVMe SSD for fast storage access
- Dedicated 16 GB graphics for visual workloads
Enterprise Connectivity
Dual Ethernet (Gigabit and 10 Gigabit) supports high-speed network storage and collaboration, while multiple USB 3.2 Gen 2 and USB-C ports offer modern peripheral compatibility.
- 10 total USB ports including high-speed Type-C
- Wireless LAN and Bluetooth for flexible setup
- Keyboard localization for English-speaking users
Deployment / Use Cases
The ThinkStation P8 30HH003DUS is ideally suited for professional environments where computational power, data integrity, and system reliability are paramount. Its hardware configuration supports demanding applications such as computer-aided design (CAD), finite element analysis (FEA), video editing, 3D animation, and scientific simulation.
In corporate IT settings, this workstation can serve as a powerful development station for software engineering, data science, and virtualization projects. The ECC memory and RAID capabilities make it a dependable choice for financial modeling, database management, and research computing where data accuracy and uptime are critical. The included Windows 11 Pro operating system provides built-in security features and management tools suitable for networked business environments.
Engineering & Design
Run CAD, CAM, and simulation software with smooth performance, leveraging the multi-core CPU and dedicated graphics for complex models and renders.
Data Science & Analysis
Process large datasets and run machine learning algorithms efficiently, supported by fast NVMe storage and high-capacity ECC memory.
Localization and Operating System
This workstation is configured with a US English keyboard localization, making it ready for immediate use in English-speaking markets. The pre-installed operating system is Windows 11 Pro, providing a full-featured professional environment with enhanced security, productivity tools, and compatibility with business software.
Windows 11 Pro includes capabilities such as BitLocker encryption, Remote Desktop, Hyper-V virtualization, and Group Policy management, which are essential for IT administrators and enterprise deployments. The operating system language is set to English, ensuring a consistent user interface and documentation experience.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkStation P8 features a tower form factor with dimensions of 17.10" (434.40 mm) in height, 6.89" (175 mm) in width, and 20" (508 mm) in depth. This design provides ample internal space for component upgrades and cooling, supporting the high-performance hardware within. The system weighs approximately 50.04 lb (22.7 kg), reflecting its robust construction and full component complement.
The chassis is engineered for efficient thermal management, ensuring stable operation under sustained loads. The form factor is compatible with standard desk or under-desk placement, and the build quality meets Lenovo's durability standards for professional workstation use.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The package includes the ThinkStation P8 30HH003DUS workstation tower, a keyboard, and a mouse, providing all essential components for immediate setup and operation.
Package contents include ThinkStation P8 30HH003DUS Keyboard Mouse, ThinkStation P8 30HH003DUS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- AMD Ryzen Threadripper PRO 7955WX 16-core processor at 4.50 GHz for high-performance computing
- 64 GB DDR5 ECC registered memory with 8 slots supporting up to 1 TB maximum capacity
- 2 TB PCI Express NVMe 4.0 x4 SSD for fast storage and quick data access
- Dedicated 16 GB graphics controller for professional visualization and rendering tasks
- Windows 11 Pro operating system with English language and US keyboard localization
- Dual Ethernet: Gigabit and 10 Gigabit for high-speed network connectivity
- 10 USB ports including USB 3.2 Gen 2 and USB-C with 20 Gbps support
- Integrated wireless LAN and Bluetooth for flexible connectivity options
- 3-year limited warranty with onsite service and premier support upgrades
- ENERGY STAR 8.0 certified and EPEAT Gold environmental ratings
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH003DUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH003DUS |
| Product Name | ThinkStation P8 30HH003DUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7955WX |
| Processor Core | Hexadeca-core (16 Core) |
| Processor Threads | 32 |
| Processor Speed | 4.50 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH003DUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P8 workstation use?
This workstation is equipped with an AMD Ryzen Threadripper PRO 7955WX processor. It features 16 cores (hexadeca-core) and 32 threads, operating at a base speed of 4.50 GHz. This high-core-count CPU is designed for demanding professional workloads such as 3D rendering, simulation, and data analysis, providing substantial parallel processing capability.
How much memory is installed, and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed, configured as 4 x 16 GB modules. The memory uses ECC (Error-Correcting Code) and registered signal processing, which enhances data integrity and reliability for critical applications. There are 8 total memory slots, supporting a maximum capacity of 1 TB for future expansion.
What storage configuration does this workstation have?
Storage is provided by a 2 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface. This offers high sequential read/write speeds, reducing load times for large files and applications. The storage controller supports both NVMe and Serial ATA, and the system includes hardware RAID support for levels 0, 1, 5, and 10.
Does this workstation include a dedicated graphics card?
Yes, the workstation includes a dedicated graphics controller with 16 GB of dedicated memory. This GPU is suitable for professional visualization tasks, CAD work, video editing, and other graphics-intensive applications, providing better performance than integrated graphics for such workloads.
What networking and connectivity options are available?
The workstation features dual Ethernet: Gigabit Ethernet and 10 Gigabit Ethernet for high-speed wired networking. It also includes integrated wireless LAN and Bluetooth for wireless connectivity. For peripherals, there are 10 USB ports total, including 2 USB 2.0, 5 USB 3.2 Gen 2, and 3 USB-C ports (with one supporting 20 Gbps speeds).
What operating system and warranty are included?
The system comes pre-installed with Windows 11 Pro in English, providing a professional-grade OS with advanced security and management features. It includes a 3-year limited warranty, which covers onsite service and offers upgrade options to 3-year premier support for enhanced technical assistance and faster response times.
