Lenovo 30HH003TUS ThinkStation P8 Workstation - AMD Threadripper PRO 7965WX 4. 20GHz - 64GB DDR5 - 2TB SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
The ThinkStation P8's technical architecture is built for expandability and sustained performance. The processor utilizes the Socket sTR5 interface and features 128MB of cache, while the memory subsystem supports up to 1TB across eight DDR5 slots with ECC and registered signal processing for maximum reliability. Storage flexibility is provided through NVMe and Serial ATA controller support with hardware RAID 0, 1, 5, and 10 capabilities.
Connectivity is comprehensive with dual Ethernet (Gigabit and 10Gb), Wi-Fi 6E (802.11ax), and Bluetooth. The system includes ten USB ports with modern USB-C interfaces, including one USB 3.2 Gen 2x2 port for high-speed data transfer. The 1.40 kilowatt power supply supports worldwide voltage ranges (120-230V AC) and provides ample headroom for additional components.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation delivers professional-grade performance through carefully selected components and thoughtful engineering. The combination of Threadripper PRO processing, ECC memory, and dedicated graphics creates a balanced platform for both computational and visual workloads.
Professional Processing Power
The 24-core Threadripper PRO 7965WX handles parallelized tasks efficiently, reducing render times and accelerating simulations.
- 24 cores / 48 threads
- 4.20GHz base clock
- 128MB cache
- Socket sTR5 platform
Enterprise-Grade Reliability
ECC memory with registered signal processing prevents data corruption, while the robust power supply ensures stable operation under load.
- DDR5 ECC Registered RAM
- 1.40 kW PSU
- Hardware RAID support
- Comprehensive cooling
Modern Connectivity Suite
Dual Ethernet with 10Gb capability, Wi-Fi 6E, and multiple USB-C ports provide flexible connection options for peripherals and networks.
- 10Gb Ethernet ready
- Wi-Fi 6E wireless
- Three USB-C ports
- Backward compatible USB
Deployment / Use Cases
The ThinkStation P8 is engineered for professional environments where computational power directly impacts productivity and outcomes. Its balanced configuration makes it suitable for both standalone powerhouse deployments and integrated workstation clusters.
In engineering and design workflows, this system accelerates CAD modeling, finite element analysis, and computational fluid dynamics simulations. For media professionals, it handles 8K video editing, color grading, and 3D animation rendering with efficiency. Research institutions benefit from its capacity for data analysis, machine learning preprocessing, and scientific visualization. The workstation also serves financial modeling, architectural visualization, and software development environments requiring consistent high performance.
Engineering & Simulation
Run complex simulations and CAD workloads with the Threadripper PRO's multi-core architecture and ECC memory protection.
Media Production
Edit high-resolution video and render 3D content using the dedicated graphics memory and fast PCIe 4.0 storage.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit in English, providing a familiar professional environment with enhanced security and management features. The operating system takes full advantage of the hardware capabilities, including DirectStorage support for faster game asset loading and improved multitasking through Snap Layouts.
Keyboard localization is configured for US English layout, ensuring proper key mapping for professional applications. The 64-bit architecture maximizes memory addressability beyond 4GB limits, essential for large dataset manipulation and memory-intensive applications common in workstation environments.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

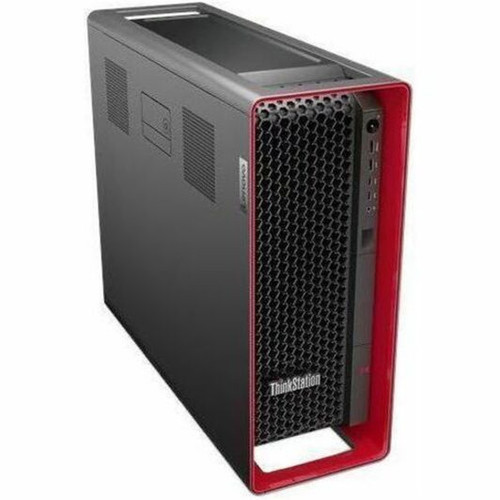

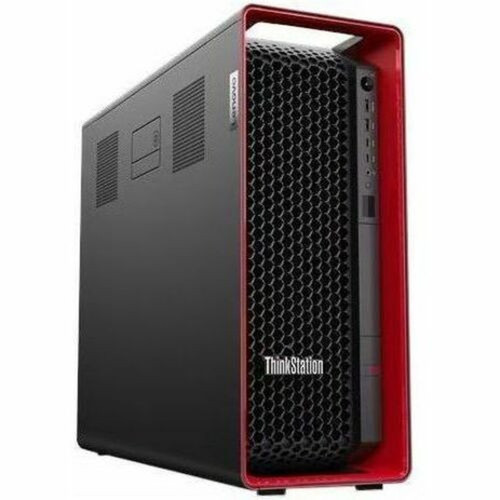

The ThinkStation P8 utilizes a traditional tower form factor measuring 17.10" (434.4mm) in height, 6.89" (175mm) in width, and 20" (508mm) in depth. The black chassis provides a professional appearance suitable for office environments, while the 50.04 lb (22.7kg) weight indicates robust construction and substantial internal components.
The tower design offers excellent internal accessibility for maintenance and upgrades, with ample space for additional storage drives, expansion cards, and cooling solutions. The form factor supports standard workstation placement on or under desks, with ventilation designed for sustained operation under computational loads.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation arrives ready for setup with all essential components included for immediate operation.
Highlights
- AMD Ryzen Threadripper PRO 7965WX processor with 24 cores and 4.20GHz clock speed
- 64GB of DDR5 ECC Registered memory running at 4800MHz for data integrity
- 2TB PCI Express 4.0 NVMe SSD for rapid storage performance
- 32GB dedicated graphics memory for visualization and GPU workloads
- Windows 11 Pro 64-bit operating system with English localization
- Dual Ethernet with 10Gb capability and Wi-Fi 6E wireless connectivity
- Ten USB ports including three USB-C interfaces for modern peripherals
- 1.40 kilowatt power supply supporting 120-230V AC input
- Hardware RAID support (0, 1, 5, 10) for storage redundancy
- Three-year on-site warranty with next-business-day service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH003TUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH003TUS |
| Product Name | ThinkStation P8 30HH003TUS Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7965WX |
| Processor Core | Tetracosa-core (24 Core) |
| Processor Threads | 48 |
| Processor Speed | 4.20 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express 4.0 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 32 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English (US) |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH003TUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3 Year On-site |
User Manual
FAQ
What processor does this Lenovo ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7965WX processor. It's a 24-core (tetracosa-core) CPU with 48 threads, running at a base clock speed of 4.20GHz. The processor includes 128MB of cache and utilizes the Socket sTR5 interface, providing exceptional multi-threaded performance for professional applications like rendering, simulation, and data analysis.
How much memory is installed and what type is it?
The system comes with 64GB of DDR5 SDRAM installed across four 16GB modules. This is ECC (Error-Correcting Code) Registered memory running at 4800MHz, which provides data integrity protection crucial for workstation applications. The platform supports up to 1TB of memory across eight total slots, allowing for significant future expansion.
What storage configuration does this workstation have?
Storage is provided by a 2TB PCI Express 4.0 NVMe solid-state drive. This offers significantly faster data transfer speeds compared to SATA SSDs or traditional hard drives. The system supports hardware RAID configurations (0, 1, 5, 10) through its NVMe and Serial ATA controllers, allowing for performance optimization or data redundancy setups.
What graphics capabilities does this ThinkStation offer?
This workstation includes a dedicated graphics controller with 32GB of dedicated graphics memory. While the specific GPU model isn't specified in product details, 32GB of dedicated VRAM indicates a professional-grade graphics solution capable of handling large textures, complex 3D models, GPU-accelerated computations, and multiple high-resolution displays.
What networking and connectivity options are available?
The system features both Gigabit Ethernet and 10 Gigabit Ethernet ports for wired networking, along with Wi-Fi 6E (802.11ax) and Bluetooth for wireless connectivity. For peripherals, there are ten USB ports total: two USB 2.0, five USB 3.2 Gen 2, and three USB-C ports (including one USB 3.2 Gen 2x2 port for 20Gbps data transfer).
What warranty coverage comes with this workstation?
Lenovo provides a 3-year limited warranty with 3-year premier next-business-day on-site service. This means a technician will come to your location for repairs within one business day of service request. The workstation also carries multiple environmental certifications including EPEAT Gold, GREENGUARD, TCO Certified 9.0, ENERGY STAR 8.0, and RoHS compliance.
