Lenovo 30HH003VUS ThinkStation P8 Workstation - AMD Threadripper™ PRO 7975WX 4. 00GHz - 32GB DDR5 - 1TB SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P8 is the AMD Ryzen Threadripper PRO 7975WX processor operating at 4.00GHz with 128MB of L3 cache. This Socket sTR5 processor supports 64 simultaneous threads, making it ideal for parallel processing tasks common in scientific computing, media production, and financial modeling.
The memory subsystem features eight DDR5 slots populated with two 16GB modules running at 4800MHz with ECC and registered signal processing for data integrity in mission-critical environments. Storage is handled by a 1TB NVMe SSD connected via PCI Express 4.0 interface, delivering sequential read/write speeds that significantly reduce load times for large project files.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P8 combines workstation-class components with professional validation to deliver reliable performance for technical computing. The AMD Threadripper PRO platform provides exceptional core density for parallel workloads while maintaining high clock speeds for single-threaded applications.
Professional Memory Architecture
Eight DDR5 slots with ECC and registered memory support ensure data integrity and stability for critical computations, with capacity expandable to 1TB for massive in-memory datasets.
- ECC error correction
- Registered signal processing
- 4800MHz clock speed
- 8-slot expansion
Comprehensive Connectivity
Ten USB ports include five USB 3.2 Gen 2 ports and three USB-C connections, with one supporting 20Gbps transfer speeds for high-performance peripherals and storage devices.
- 10 total USB ports
- USB-C 20Gbps support
- Dual Ethernet (Gigabit + 10GbE)
- Wi-Fi 6E wireless
Enterprise-Grade Power & Cooling
A 1400-watt power supply provides stable energy delivery for maximum component performance, while optimized thermal management maintains system reliability during extended compute sessions.
- 1400W PSU
- Dual voltage support (120V/230V)
- Optimized airflow design
- Quiet operation profiles
Deployment / Use Cases
The ThinkStation P8 is engineered for professional environments where computational power directly impacts productivity and results. Its balanced configuration of high core count, fast memory, and NVMe storage makes it suitable for a wide range of technical applications.
In engineering and design workflows, the 32-core processor accelerates finite element analysis, computational fluid dynamics, and 3D CAD rendering. For media production, the combination of PCIe 4.0 storage and high memory bandwidth enables real-time editing of 8K video and complex visual effects. Research institutions benefit from the system's ability to process large datasets in scientific computing, bioinformatics, and financial modeling applications.
Engineering & Simulation
Handle complex simulations and analysis with the 64-thread processing capability and ECC memory for accurate results in mechanical, electrical, and architectural design.
Media Production & Rendering
Accelerate rendering pipelines and real-time playback with the high core count and fast PCIe 4.0 storage for video editing, animation, and visual effects work.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit in English, providing a familiar professional environment with enhanced security features, virtualization capabilities, and enterprise management tools. The US English keyboard localization ensures proper key mapping for North American users.
Windows 11 Pro includes BitLocker device encryption, Windows Sandbox for safe application testing, and Hyper-V for virtualization needs. The 64-bit architecture fully utilizes the system's 32GB of memory and multi-core processor for optimal application performance.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.

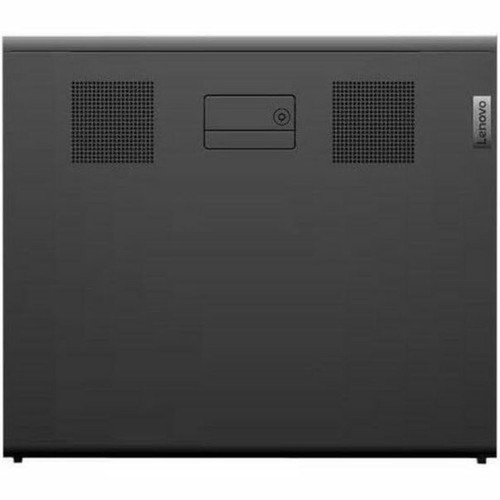

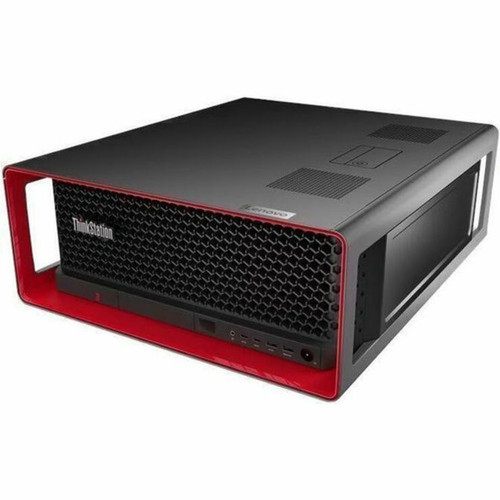

Physical Profile
The ThinkStation P8 features a professional black tower design measuring 17.1" high, 6.89" wide, and 20" deep (434.4 x 175 x 508mm). With a weight of approximately 50 pounds (22.7kg), the chassis provides robust construction for component protection while maintaining serviceability through tool-less access panels.
The compact tower footprint optimizes desk space while accommodating extensive internal expansion. The design includes multiple cooling zones with optimized airflow to maintain thermal performance during sustained computational workloads.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation arrives ready for setup with all essential components included for immediate deployment in professional environments.
Highlights
- AMD Ryzen Threadripper PRO 7975WX processor with 32 cores and 64 threads at 4.00GHz
- 32GB of DDR5 ECC registered memory running at 4800MHz for data-intensive applications
- 1TB PCI Express 4.0 NVMe SSD for fast storage and reduced project load times
- Windows 11 Pro 64-bit with English language and US keyboard localization
- AMD WRX90 chipset providing professional platform stability and expansion capabilities
- Dual Ethernet with Gigabit and 10 Gigabit connectivity for high-speed networking
- Wi-Fi 6E and Bluetooth for wireless connectivity options
- Ten USB ports including USB-C with 20Gbps support for high-speed peripherals
- 1400-watt power supply with dual voltage support for reliable energy delivery
- 3-year on-site warranty with next-business-day service for professional support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH003VUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH003VUS |
| Product Name | ThinkStation P8 30HH003VUS Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7975WX |
| Processor Core | Dotriaconta-core (32 Core) |
| Processor Threads | 64 |
| Processor Speed | 4 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express 4.0 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English (US) |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH003VUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3 Year On-site |
User Manual
FAQ
What type of workloads is the ThinkStation P8 optimized for?
The ThinkStation P8 is engineered for professional computational workloads including engineering simulations, 3D rendering, scientific computing, data analysis, and media production. The 32-core AMD Threadripper PRO processor with 64 threads excels at parallel processing tasks, while the ECC memory ensures data integrity for mission-critical applications.
Can the memory be expanded beyond the installed 32GB?
Yes, the workstation features eight DDR5 memory slots with two currently populated by 16GB modules. The system supports up to 1TB of total memory capacity using registered ECC DIMMs. The remaining six slots are available for expansion to accommodate larger datasets and more demanding applications.
What storage interface does the included SSD use?
The 1TB solid-state drive utilizes the PCI Express 4.0 interface with NVMe protocol, delivering significantly higher sequential read/write speeds compared to SATA SSDs. This interface reduces load times for large project files and improves overall system responsiveness during data-intensive operations.
What networking capabilities does this workstation include?
The ThinkStation P8 provides comprehensive networking with both Gigabit Ethernet and 10 Gigabit Ethernet ports for high-speed wired connections. Wireless connectivity includes Wi-Fi 6E (802.11ax) for fast wireless networking and Bluetooth for peripheral connections. This combination supports various deployment scenarios from office environments to research facilities.
What warranty and support comes with this workstation?
Lenovo provides a 3-year limited warranty with Premier support featuring next-business-day on-site service. This professional support package includes hardware repair or replacement by certified technicians at your location, ensuring minimal downtime for critical workstations in production environments.
What power requirements does the ThinkStation P8 have?
The workstation includes a 1400-watt power supply that supports both 120V and 230V input voltages. This high-capacity PSU ensures stable power delivery to all components during peak computational loads while providing headroom for additional expansion cards and storage devices in professional configurations.
