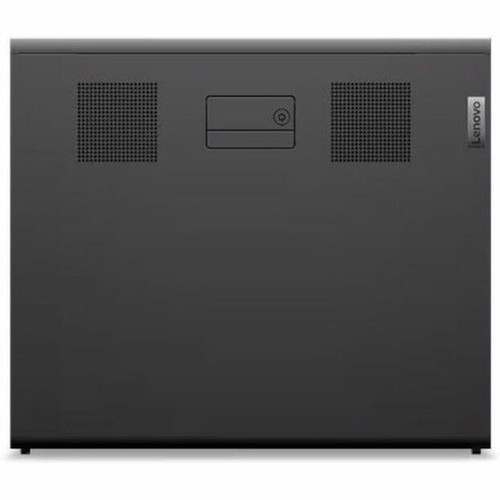

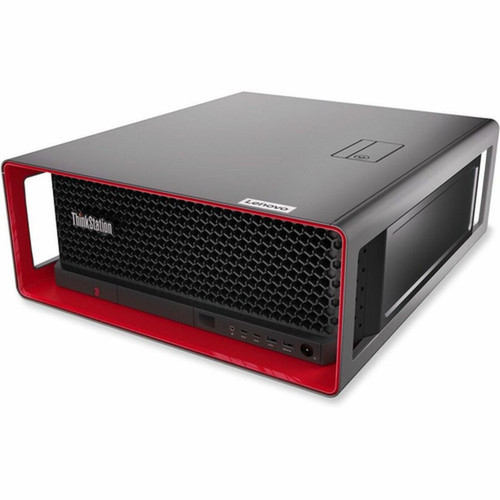

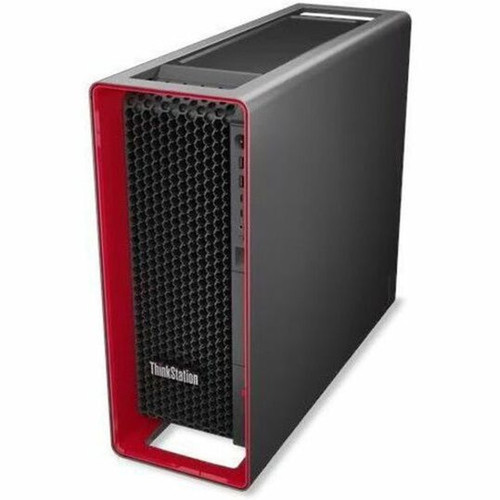

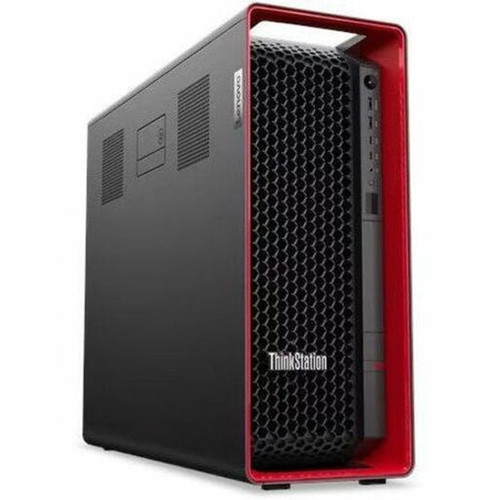

Lenovo 30HH0046CA ThinkStation P8 Workstation - Ryzen Threadripper PRO 7975WX 32-Core - 64 GB DDR5 - 2 TB NVMe SSD - Windows 11 Pro - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P8 is the AMD WRX90 chipset, supporting the Ryzen Threadripper PRO 7975WX processor running at 4 GHz. This 32-core CPU features 64 threads for maximum multi-threaded performance. The memory subsystem includes eight DDR5 slots supporting up to 1 TB of ECC registered memory, with the installed 64 GB configuration running at 4.80 GHz for optimal bandwidth.
Storage is handled by a 2 TB PCI Express NVMe 4.0 x4 SSD, delivering exceptional read/write speeds through the NVMe controller. The system supports RAID 0, 1, 5, and 10 configurations via the integrated SATA/600 controller for data protection and performance optimization. Network connectivity includes both Gigabit and 10 Gigabit Ethernet ports for high-speed data transfer, complemented by wireless LAN and Bluetooth for flexible connectivity options.
Key Product Advantages
The ThinkStation P8 workstation delivers professional-grade performance and reliability for intensive computing environments. Its combination of high-core-count processing, substantial memory capacity, and fast NVMe storage creates a balanced platform for demanding technical applications.
Professional Compute Power
The 32-core Ryzen Threadripper PRO processor with 64 threads provides exceptional parallel processing capability for rendering, simulation, and analysis workloads that benefit from high thread counts.
- 64 threads for maximum multi-threading
- 4 GHz base clock speed
- AMD PRO security and management features
Enterprise Memory Architecture
DDR5 ECC registered memory ensures data integrity and system stability during extended computational sessions, with eight slots supporting future expansion to 1 TB.
- ECC error correction
- Registered signal processing
- 4.80 GHz clock speed
High-Speed Storage System
The 2 TB NVMe SSD delivers exceptional storage performance through the PCI Express 4.0 interface, significantly reducing load times for large datasets and project files.
- PCI Express NVMe 4.0 x4 interface
- NVMe controller optimization
- RAID 0/1/5/10 support
Deployment / Use Cases
The ThinkStation P8 workstation is designed for professional environments where computational power and system reliability are critical. Its tower form factor provides ample internal space for expansion while maintaining a professional appearance suitable for office or lab settings.
Primary use cases include 3D animation and rendering studios, engineering simulation labs, scientific research facilities, and financial modeling departments. The system's combination of high-core-count processing, substantial memory, and dedicated graphics makes it ideal for applications like Autodesk Maya, SOLIDWORKS, ANSYS, MATLAB, and DaVinci Resolve. The dual Ethernet configuration supports both standard office networking and high-speed data transfer requirements for server backups or network-attached storage.
Creative & Design Workflows
Accelerates 3D modeling, animation rendering, and video editing with dedicated graphics memory and high-core-count processing for reduced render times.
Engineering & Scientific Computing
Handles complex simulations, finite element analysis, and computational fluid dynamics with the parallel processing power of 32 cores and 64 threads.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit pre-installed, providing a familiar professional computing environment with enhanced security features and hardware management capabilities. The French (Canada) keyboard localization ensures compatibility with Canadian French language requirements and regional input preferences.
Windows 11 Pro includes BitLocker encryption, Remote Desktop functionality, and enterprise management tools that integrate well with business IT infrastructure. The 64-bit architecture fully utilizes the system's 64 GB of memory and multi-core processor for optimal application performance.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The tower chassis measures 17.10" high × 6.89" wide × 20" deep (434.40 × 175 × 508 mm) with a weight of approximately 50.04 lb (22.7 kg). This form factor provides substantial internal space for component upgrades and cooling while maintaining a professional appearance suitable for office environments. The dimensions accommodate standard rack mounting options when deployed in data center or lab configurations.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation package includes the ThinkStation P8 system unit with all installed components, plus a ThinkStation P8 keyboard with French Canadian localization.
Package contents include ThinkStation P8 Keyboard, ThinkStation P8. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- AMD Ryzen Threadripper PRO 7975WX processor with 32 cores and 64 threads at 4 GHz
- 64 GB of DDR5 ECC registered memory running at 4.80 GHz with eight expansion slots
- 2 TB PCI Express NVMe 4.0 x4 SSD for high-speed storage performance
- Dedicated graphics controller with 32 GB of dedicated memory for visualization workloads
- Windows 11 Pro 64-bit operating system with French Canadian keyboard localization
- Dual Ethernet with Gigabit and 10 Gigabit ports plus wireless LAN and Bluetooth
- Tower form factor with dimensions of 17.10" × 6.89" × 20" (434.40 × 175 × 508 mm)
- AMD WRX90 chipset with RAID 0/1/5/10 support for storage configuration flexibility
- Six USB ports including three USB 3.2 Gen 2 and one USB-C 20Gbps port
- Three-year limited warranty with Premier Support upgrade options
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH0046CA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH0046CA |
| Product Name | ThinkStation P8 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7975WX |
| Processor Core | Dotriaconta-core (32 Core) |
| Processor Threads | 64 |
| Processor Speed | 4 GHz |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 2 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 32 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What processor does this Lenovo ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7975WX processor, which has 32 physical cores and 64 threads running at a base clock speed of 4 GHz. This high-core-count CPU is designed for professional workloads that benefit from parallel processing, such as 3D rendering, scientific simulations, and complex data analysis.
How much memory is installed and what type is it?
The system comes with 64 GB of DDR5 SDRAM installed, utilizing ECC (Error-Correcting Code) registered memory technology. The memory operates at 4.80 GHz and is installed across eight available slots, with support for expansion up to 1 TB total capacity. ECC memory helps prevent data corruption by detecting and correcting single-bit memory errors.
What storage configuration does this workstation have?
Storage is provided by a 2 TB PCI Express NVMe 4.0 x4 solid-state drive. This NVMe SSD connects through the high-speed PCI Express 4.0 interface for exceptional read and write performance. The system includes both NVMe and Serial ATA/600 controllers with support for RAID 0, 1, 5, and 10 configurations for data protection or performance optimization.
What graphics capabilities does this workstation offer?
The ThinkStation P8 includes a dedicated graphics controller with 32 GB of dedicated graphics memory. This dedicated GPU configuration provides substantial memory bandwidth for visualization workloads, 3D modeling, video editing, and GPU-accelerated computations without sharing system memory resources.
What networking and connectivity options are available?
Network connectivity includes both Gigabit Ethernet and 10 Gigabit Ethernet ports for high-speed wired networking, plus integrated wireless LAN and Bluetooth for wireless connectivity. The system features six USB ports total, including two USB 2.0 ports, three USB 3.2 Gen 2 ports, and one USB-C port supporting 20 Gbps data transfer. A DisplayPort connection is also provided for monitor connectivity.
What operating system and keyboard configuration does this workstation include?
This workstation ships with Windows 11 Pro 64-bit pre-installed, providing a professional operating system with enhanced security and management features. The included keyboard has French (Canada) localization, making it suitable for Canadian French language input and regional usage requirements in professional environments.
