Lenovo 30HH0049US ThinkStation P8 Workstation - AMD Threadripper PRO 7975WX 4. 0GHz - 128GB DDR5 - 4TB SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of this workstation lies the AMD Ryzen Threadripper PRO 7975WX processor, operating at 4.0GHz with 32 physical cores and 64 threads. This CPU leverages the Socket sTR5 interface and is paired with the AMD WRX90 chipset, providing extensive PCIe lanes and platform stability for professional applications.
The memory subsystem features 128GB of DDR5 SDRAM running at 4.80GHz with ECC error correction and registered signal processing for data integrity. Eight memory slots support expansion up to 1TB total capacity. Storage is handled by a 4TB PCI Express 4.0 NVMe SSD with both NVMe and SATA controller support, plus hardware RAID 0, 1, 5, and 10 capabilities for data protection and performance optimization.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P8 combines extreme processing power with professional-grade reliability features. The Threadripper PRO platform includes AMD's security and remote management technologies, while the ECC memory ensures data accuracy in critical calculations. The 1.4kW power supply provides stable power delivery even under maximum load conditions.
Professional-Grade Reliability
ECC memory with registered modules prevents data corruption, while the 3-year on-site warranty with next-business-day response ensures minimal downtime for business-critical operations.
- 128GB DDR5 ECC Registered RAM
- 3YR Premier NBD On-site Warranty
- 1.4kW 80 Plus Platinum PSU
Expansion Ready
With eight memory slots, multiple PCIe 4.0 lanes, and comprehensive connectivity options, this workstation grows with your computational needs.
- 8 DDR5 Memory Slots
- 10 Total USB Ports
- Dual Ethernet (Gigabit + 10Gb)
Deployment / Use Cases
This workstation excels in environments where computational throughput and data integrity are paramount. Engineering firms will appreciate the 32-core processor for finite element analysis and computational fluid dynamics simulations. Media production studios can leverage the parallel processing for 4K/8K video editing, color grading, and 3D animation rendering.
Scientific research institutions benefit from the ECC memory for accurate numerical computations in fields like computational chemistry, bioinformatics, and astrophysics simulations. Financial analysts working with large datasets and complex models will find the combination of high-core-count CPU and fast NVMe storage accelerates quantitative analysis and risk modeling.
Engineering & Simulation
Perfect for CAD/CAM applications, structural analysis, and computational engineering where parallel processing reduces simulation times from hours to minutes.
Media & Entertainment
Ideal for video post-production, 3D rendering, and visual effects workstations that demand both CPU horsepower and reliable data handling.
Localization and Operating System
This workstation ships with Windows 11 Pro 64-bit in English, providing professional features like BitLocker encryption, Remote Desktop, and Hyper-V virtualization. The US English keyboard localization ensures compatibility with standard North American keyboard layouts and software conventions.
Windows 11 Pro offers enhanced security with hardware-based isolation and Microsoft Defender, plus management capabilities through Group Policy and Azure AD integration for enterprise deployment.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile

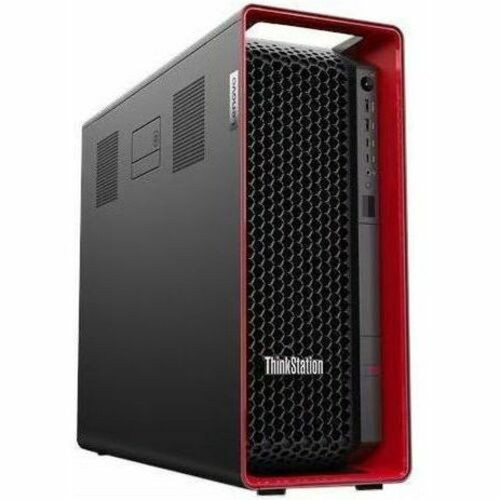

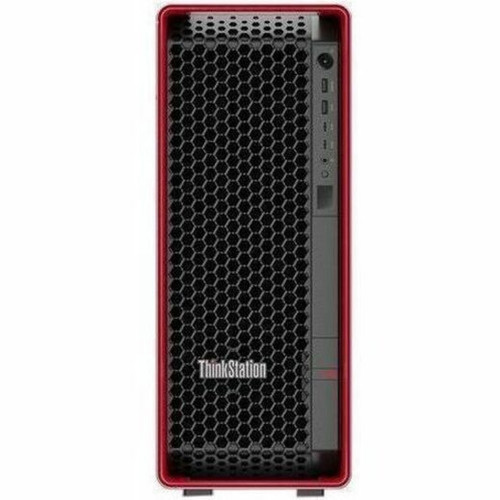

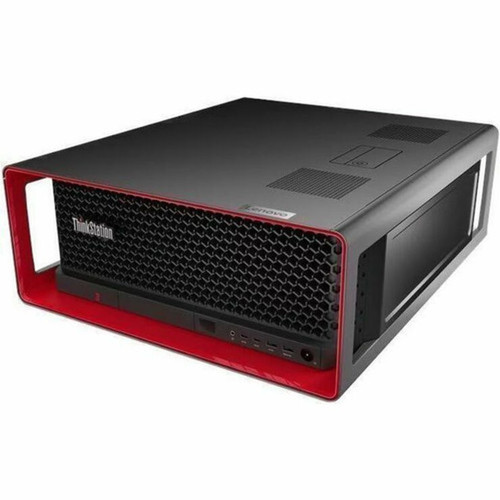

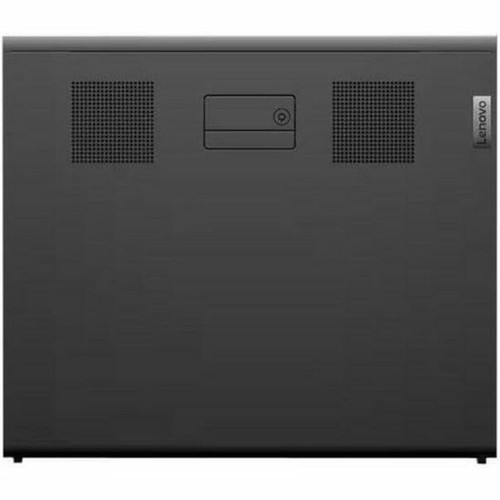

The ThinkStation P8 features a professional black tower design measuring 17.1" high × 6.89" wide × 20" deep (434.4 × 175 × 508 mm). Weighing approximately 50 pounds (22.7 kg), this substantial chassis provides excellent thermal management and acoustic performance while accommodating extensive internal expansion. The form factor supports standard rack mounting options for data center deployment when required.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17.10" (434.40 mm), 6.89" (175 mm), 20" (508 mm), 50.04 lb (22700 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation arrives ready for setup with all essential components included.
Highlights
- AMD Ryzen Threadripper PRO 7975WX processor with 32 cores and 64 threads at 4.0GHz
- 128GB DDR5 ECC Registered memory running at 4.80GHz for data-intensive applications
- 4TB PCIe 4.0 NVMe SSD provides massive fast storage for large project files
- Windows 11 Pro 64-bit with English localization and professional management features
- Dual Ethernet (Gigabit + 10Gb) plus Wi-Fi 6E and Bluetooth 5.0 connectivity
- Hardware RAID support (0, 1, 5, 10) for data protection and performance optimization
- 1.4kW 80 Plus Platinum power supply ensures stable operation under full load
- 3-year on-site warranty with next-business-day response for business continuity
- EPEAT Gold, ENERGY STAR 8.0, and TCO Certified 9.0 environmental certifications
- Professional black tower design with extensive expansion capabilities
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH0049US |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH0049US |
| Product Name | ThinkStation P8 30HH0049US Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7975WX |
| Processor Core | Dotriaconta-core (32 Core) |
| Processor Threads | 64 |
| Processor Speed | 4 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 128 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 32GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 4 TB |
| Solid State Drive Interface | PCI Express 4.0 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English (US) |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH0049US Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3 Year On-site |
User Manual
FAQ
What processor does this ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7975WX processor with 32 physical cores and 64 threads running at a base clock of 4.0GHz. This professional-grade CPU supports AMD's security and remote management features while delivering exceptional parallel processing performance for computational workloads.
How much memory is installed and what type is it?
The system comes with 128GB of DDR5 SDRAM installed as four 32GB modules. This is ECC (Error-Correcting Code) registered memory running at 4.80GHz, which provides both high bandwidth and data integrity protection critical for professional applications. Eight total memory slots support expansion up to 1TB maximum capacity.
What storage configuration does this workstation include?
Storage consists of a 4TB PCI Express 4.0 NVMe solid-state drive. This high-speed interface delivers significantly faster data transfer rates than SATA SSDs, reducing load times for large files and applications. The system supports hardware RAID 0, 1, 5, and 10 configurations for additional performance or data protection.
What operating system is pre-installed?
Windows 11 Pro 64-bit in English comes pre-installed. This professional edition includes BitLocker encryption, Remote Desktop, Hyper-V virtualization, and enhanced security features. The operating system is fully licensed and ready for enterprise deployment with Group Policy and Azure AD integration capabilities.
What connectivity options are available on this workstation?
Connectivity includes dual Ethernet ports (Gigabit and 10Gb), Wi-Fi 6E wireless networking, and Bluetooth 5.0. The system features ten USB ports total: two USB 2.0, five USB 3.2 Gen 2, and three USB-C ports (including one USB 3.2 Gen 2x2 port supporting 20Gbps data transfer).
What warranty coverage does this Lenovo workstation include?
Lenovo provides a 3-year limited warranty with Premier support featuring next-business-day on-site service. This means a technician will come to your location within one business day to resolve hardware issues, minimizing downtime for critical workstations. The warranty covers parts and labor for manufacturing defects.
