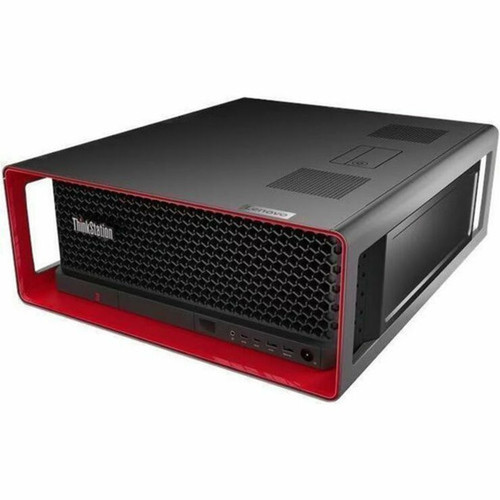

Lenovo 30HH004BCA ThinkStation P8 Workstation - Ryzen Threadripper PRO 7975WX 32-Core - 128 GB DDR5 - 4 TB NVMe SSD - Windows 11 Pro - Tower
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This workstation's technical foundation centers on the AMD Socket sTR5 platform, featuring the Ryzen Threadripper PRO 7975WX processor with 32 physical cores and 64 threads. The processor operates at 4 GHz base clock and interfaces with 128 GB of DDR5 SDRAM running at 4.80 GHz with ECC and Registered signal processing for enterprise reliability.
Storage architecture utilizes PCI Express 4.0 NVMe technology through a 4 TB SSD connected via x4 lanes, delivering sequential read/write speeds suitable for large dataset handling. The Serial ATA/600 and NVMe controller supports RAID configurations including striping, mirroring, and parity-based arrays for data protection or performance optimization.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkStation P8 combines high-core-count processing with enterprise memory and storage technologies to tackle demanding professional workloads. The Ryzen Threadripper PRO 7975WX provides substantial parallel processing capability for simulation, rendering, data analysis, and development tasks.
Memory Scalability
Eight DDR5 slots support up to 1 TB of ECC Registered memory, allowing significant expansion for memory-intensive applications like virtualization, large dataset analysis, or complex 3D modeling.
- 128 GB installed
- 8 available slots
- 1 TB maximum capacity
- ECC error correction
Storage Performance
The 4 TB NVMe SSD leverages PCI Express 4.0 x4 bandwidth for rapid data access, reducing load times for large project files, databases, or media assets while supporting RAID configurations for data protection.
- 4 TB capacity
- PCIe 4.0 x4 interface
- RAID 0,1,5,10 support
- NVMe protocol
Deployment / Use Cases
This workstation targets professional environments where computational power, memory capacity, and storage performance directly impact productivity. The 32-core processor and substantial memory configuration make it suitable for engineering simulation, scientific computation, media production, and architectural visualization.
In research and development settings, the system can handle complex modeling, data analysis, and algorithm development. For creative professionals, the dedicated graphics memory and fast storage accelerate rendering pipelines and large media file manipulation. The tower form factor provides internal expansion room for additional storage drives, specialized cards, or cooling solutions as project requirements evolve.
Engineering & Simulation
Run finite element analysis, computational fluid dynamics, or electronic design automation tools with the high core count and ECC memory ensuring accurate results.
Media Production
Handle 8K video editing, 3D animation rendering, and visual effects compositing with the NVMe storage reducing project load times and the dedicated graphics accelerating previews.
Localization and Operating System
The workstation ships with Windows 11 Pro 64-bit pre-installed, providing a familiar professional operating environment with enhanced security features, virtualization capabilities, and enterprise management tools. The French (Canada) keyboard localization accommodates Canadian French language requirements for text input and interface navigation.
Windows 11 Pro includes BitLocker device encryption, Windows Defender Antivirus, and support for domain join, Group Policy, and remote desktop functionality. The 64-bit architecture fully utilizes the system's 128 GB memory capacity and multi-core processor for modern applications.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The tower chassis measures 17.10 inches in height, 6.89 inches in width, and 20 inches in depth (434.40 x 175 x 508 mm), with an approximate weight of 50.04 pounds (22.7 kg). This form factor provides internal space for component upgrades and cooling, suitable for stationary deployment in office, lab, or studio environments.
The design accommodates standard rack mounting with appropriate brackets, though primarily intended for desktop or under-desk placement. The substantial weight reflects the robust construction and component density expected in professional workstations.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The package includes the ThinkStation P8 workstation tower and a matching ThinkStation P8 keyboard with French (Canada) localization. The system is environmentally certified with GREENGUARD and RoHS compliance, and backed by a 3-year limited warranty with 3YR Premier Next Business Day support service.
Highlights
- Ryzen Threadripper PRO 7975WX 32-core processor at 4 GHz base frequency
- 128 GB DDR5 ECC Registered memory expandable to 1 TB across eight slots
- 4 TB PCI Express NVMe 4.0 x4 solid-state drive for fast storage
- Dedicated 32 GB graphics memory for visualization and rendering tasks
- Windows 11 Pro 64-bit operating system with professional features
- Dual Ethernet (Gigabit and 10 Gigabit) plus Wireless LAN and Bluetooth
- Six USB ports including USB-C 20Gbps and DisplayPort connectivity
- Tower form factor with dimensions 17.10" H x 6.89" W x 20" D
- French (Canada) keyboard localization for Canadian French input
- 3-year limited warranty with Premier Next Business Day support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH004BCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH004BCA |
| Product Name | ThinkStation P8 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7975WX |
| Processor Core | Dotriaconta-core (32 Core) |
| Processor Threads | 64 |
| Processor Speed | 4 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 128 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 4 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Memory Capacity | 32 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| DisplayPort | Yes |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7975WX processor, which has 32 physical cores and 64 threads operating at a 4 GHz base clock frequency. It uses the Socket sTR5 platform with the AMD WRX90 chipset, providing high core count and parallel processing capability for demanding professional applications like simulation, rendering, and data analysis.
How much memory is installed and what type is it?
The system comes with 128 GB of DDR5 SDRAM installed, utilizing ECC (Error-Correcting Code) and Registered signal processing for enhanced reliability in professional environments. The memory operates at 4.80 GHz across eight available slots, with support for expansion up to 1 TB total capacity as workload requirements grow.
What storage configuration does this workstation include?
Storage is provided by a 4 TB solid-state drive using the PCI Express NVMe 4.0 x4 interface, delivering high sequential read/write speeds suitable for large project files and datasets. The storage controller supports Serial ATA/600 and NVMe protocols with RAID 0, 1, 5, and 10 configurations for performance optimization or data protection needs.
What operating system comes pre-installed?
This workstation ships with Windows 11 Pro 64-bit pre-installed, providing a full professional operating environment with features like BitLocker encryption, Windows Defender Antivirus, domain join capability, Group Policy management, and remote desktop functionality. The 64-bit architecture fully utilizes the system's 128 GB memory capacity and multi-core processor.
What connectivity options are available on this system?
Connectivity includes dual Ethernet ports supporting both Gigabit and 10 Gigabit Ethernet for high-speed networking, plus Wireless LAN and Bluetooth for wireless connections. The system has six USB ports total: two USB 2.0, three USB 3.2 Gen 2, and one USB-C port supporting 20 Gbps data transfer. A DisplayPort is also included for monitor connectivity.
What is the form factor and physical dimensions?
This workstation uses a tower form factor measuring 17.10 inches in height, 6.89 inches in width, and 20 inches in depth (434.40 x 175 x 508 mm), with an approximate weight of 50.04 pounds (22.7 kg). The tower design provides internal space for component upgrades and cooling, suitable for stationary deployment in professional office, lab, or studio environments.
