Lenovo 30HH004DUS ThinkStation P8 Workstation - AMD Threadripper PRO 7985WX 3. 20GHz - 32GB DDR5 - 1TB SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P8 is the AMD Ryzen Threadripper PRO 7985WX, a 64-core processor operating at 3.20GHz with 256MB of L3 cache. This CPU leverages the Socket sTR5 platform and supports 128 simultaneous threads, providing immense throughput for multi-threaded professional software. The system includes 32GB of DDR5 memory running at 4800MHz, configured as two 16GB modules in an eight-slot architecture that supports up to 1TB of total RAM capacity.
Storage is handled by a 1TB PCI Express 4.0 NVMe solid-state drive, which delivers fast boot times, rapid application loading, and quick access to project files. The storage subsystem supports both NVMe and Serial ATA devices with hardware RAID 0, 1, 5, and 10 functionality for data redundancy or performance striping. Networking includes dual Ethernet—Gigabit and 10 Gigabit—for high-bandwidth data transfers, plus Wi-Fi 6E and Bluetooth 5 for wireless connectivity.
Key Product Advantages
The ThinkStation P8 combines extreme core counts with professional-grade reliability features, making it suitable for 24/7 operation in research, design, and content creation environments. ECC Registered memory ensures data integrity during long computational runs, while the 1400-watt power supply provides stable power delivery for multi-GPU configurations or additional PCIe cards.
Professional-Grade Memory
32GB of DDR5 ECC Registered memory protects against data corruption in critical calculations and simulations, with eight DIMM slots allowing expansion to 1TB for massive in-memory datasets.
- Error Correcting Code (ECC)
- Registered DIMMs for stability
- Eight-slot architecture
High-Speed Storage & I/O
A 1TB PCIe 4.0 NVMe SSD offers sequential read/write speeds ideal for loading large project files, while ten USB ports including USB-C 20Gbps provide flexible peripheral connectivity.
- PCIe 4.0 interface
- NVMe performance
- USB-C 20Gbps data transfer
Deployment / Use Cases
This workstation is designed for professional environments where computational power, data integrity, and expandability are paramount. Its 64-core processor and large memory capacity make it effective for CPU-based rendering in animation and visual effects, finite element analysis in mechanical engineering, computational fluid dynamics, and financial modeling.
In media production workflows, the P8 can handle 8K video editing, color grading, and audio post-production with room for multiple GPUs and storage arrays. For research and development teams, the system supports virtualization of multiple development environments or containerized applications, while the 10GbE networking facilitates fast data movement to network-attached storage or cluster nodes.
Engineering & Simulation
Run complex CAE simulations, CAD assemblies, and computational physics models with the high core count and ECC memory ensuring accuracy and stability throughout long compute jobs.
Media & Entertainment
Accelerate 3D rendering, video encoding, and real-time compositing with the Threadripper PRO processor and PCIe 4.0 storage, supported by a chassis that accommodates professional graphics cards.
Localization and Operating System
The workstation ships with Microsoft Windows 11 Pro 64-bit pre-installed in English, providing a familiar environment for business and professional software. Windows 11 Pro includes features like BitLocker encryption, Remote Desktop, and Hyper-V virtualization, which are valuable for securing sensitive project data and creating isolated testing environments.
Keyboard localization is configured for US English layout, ensuring compatibility with standard input devices and software shortcuts. The operating system architecture is 64-bit, enabling access to beyond 4GB of memory and compatibility with modern 64-bit applications common in engineering, scientific, and creative suites.
Physical Profile

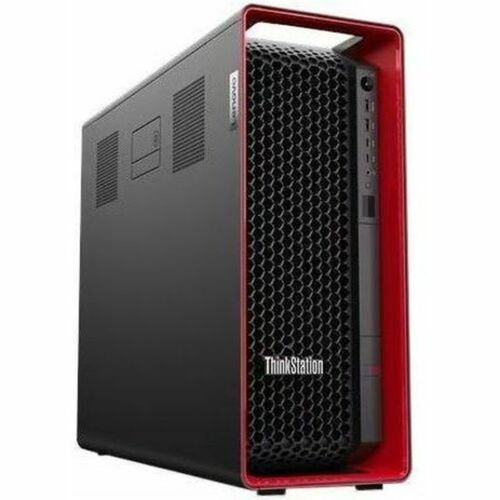

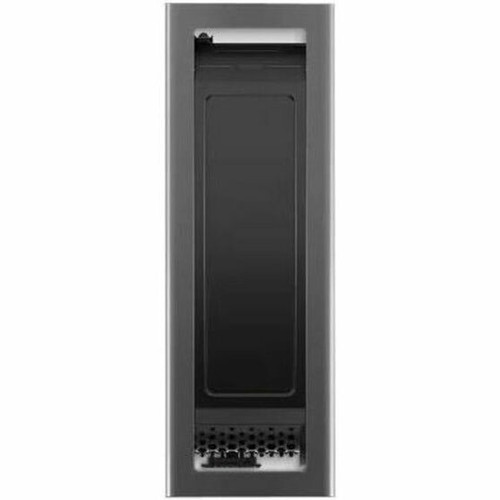

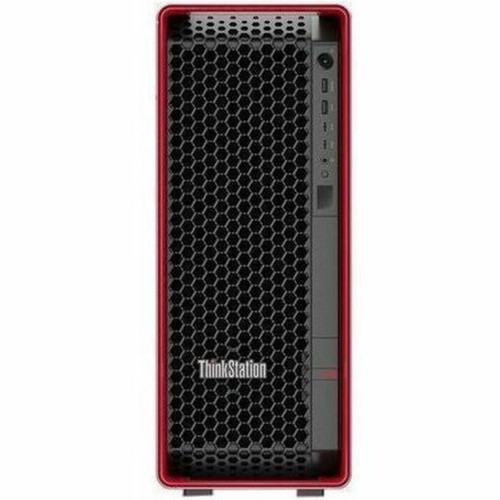

Housed in a black tower chassis measuring 17.1 inches high, 6.89 inches wide, and 20 inches deep, the ThinkStation P8 offers a substantial footprint for internal expansion while maintaining a professional appearance suitable for office or lab settings. The system weighs approximately 50 pounds, reflecting its robust construction and component density.
The chassis design provides ample cooling for high-TDP processors and multiple expansion cards, with tool-less access panels simplifying maintenance and upgrades. The black finish and understated branding align with corporate IT standards, and the form factor supports standard ATX mounting positions for optional rack-mount kits in data center deployments.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation package includes the ThinkStation P8 system unit, a keyboard, and a mouse, providing everything needed for immediate setup and operation. All components are tested and configured to work together out of the box, minimizing deployment time for IT teams or end users.
Highlights
- AMD Ryzen Threadripper PRO 7985WX processor with 64 cores and 128 threads for extreme multi-threading
- 32GB of DDR5 ECC Registered memory running at 4800MHz for data integrity in critical workloads
- 1TB PCI Express 4.0 NVMe SSD delivers fast storage performance for large project files
- Windows 11 Pro 64-bit pre-installed with English language and US keyboard localization
- Dual Ethernet with Gigabit and 10 Gigabit ports for high-speed network connectivity
- Wi-Fi 6E and Bluetooth provide wireless flexibility for peripherals and networking
- Ten USB ports including USB-C 20Gbps for high-speed data transfer and modern devices
- Hardware RAID support (0, 1, 5, 10) for storage redundancy or performance striping
- 1400-watt power supply supports multi-GPU configurations and expansion cards
- Three-year on-site warranty with next-business-day service for reliable support
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH004DUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH004DUS |
| Product Name | ThinkStation P8 30HH004DUS Workstation |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7985WX |
| Processor Core | Tetrahexaconta-core (64 Core) |
| Processor Threads | 128 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express 4.0 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ax |
| Wi-Fi Generation | Wi-Fi 6E |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English (US) |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C® 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Operating System Architecture | 64-bit |
| Power Description | |
| Input Voltage | 120 V AC,230 V AC |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH004DUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD 3 Year On-site |
User Manual
FAQ
What processor is in the Lenovo ThinkStation P8 workstation?
This workstation features the AMD Ryzen Threadripper PRO 7985WX, a 64-core processor with 128 threads operating at a base clock speed of 3.20GHz. It includes 256MB of L3 cache and uses the Socket sTR5 platform, providing exceptional parallel processing capability for rendering, simulation, and virtualization tasks.
How much memory does this workstation support?
The system comes with 32GB of DDR5 ECC Registered memory installed as two 16GB modules. It has eight memory slots total, supporting a maximum capacity of 1TB. The memory runs at 4800MHz and includes Error Correcting Code (ECC) to detect and correct data corruption, which is critical for scientific and engineering applications.
What type of storage is included?
A 1TB PCI Express 4.0 NVMe solid-state drive is installed, offering high sequential read/write speeds for fast boot times, application loading, and access to large project files. The storage controller supports both NVMe and Serial ATA devices and includes hardware RAID functionality for levels 0, 1, 5, and 10.
What networking capabilities does this workstation have?
The ThinkStation P8 includes dual Ethernet ports—one Gigabit and one 10 Gigabit—for high-bandwidth data transfers to network storage or cluster nodes. It also features Wi-Fi 6E (802.11ax) for wireless connectivity and Bluetooth for peripherals like mice, keyboards, and headsets.
What operating system is pre-installed?
Microsoft Windows 11 Pro 64-bit is pre-installed with English language settings. Windows 11 Pro includes features such as BitLocker encryption, Remote Desktop, and Hyper-V virtualization, making it suitable for secure business environments and development workflows.
What is the warranty coverage for this workstation?
Lenovo provides a three-year limited warranty with next-business-day on-site service. This warranty covers parts and labor, with a technician dispatched to your location for repairs, minimizing downtime for critical professional workloads.
