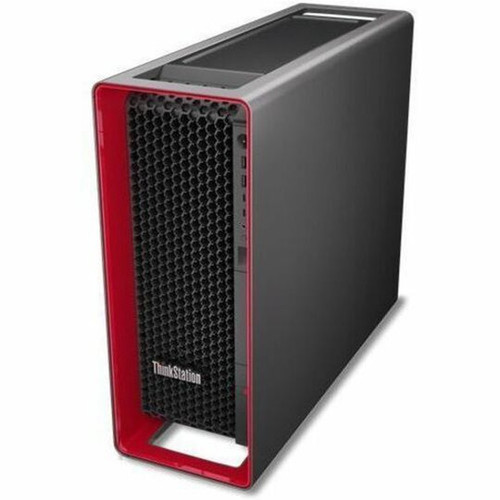

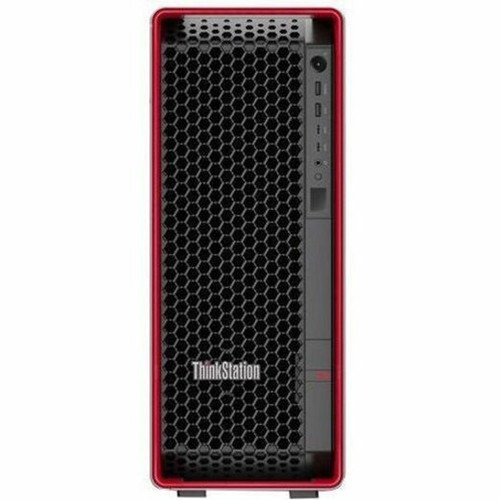

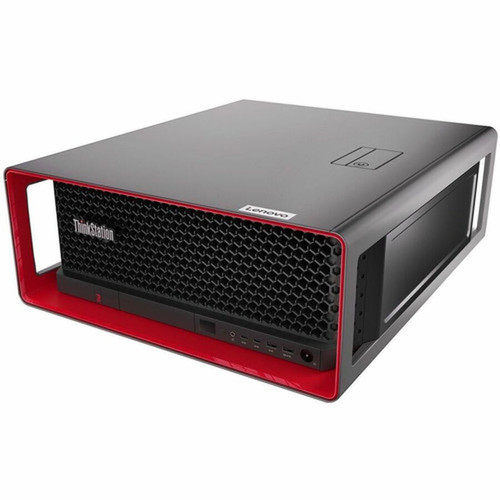

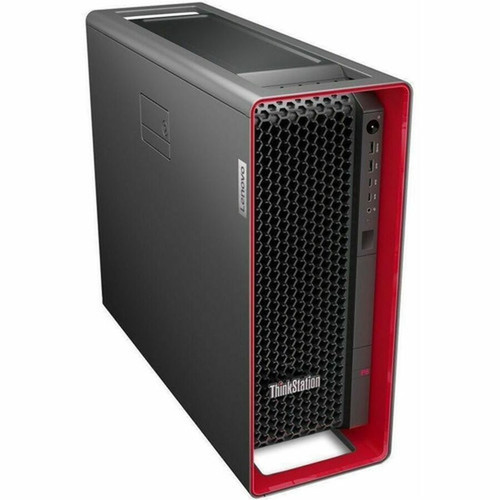

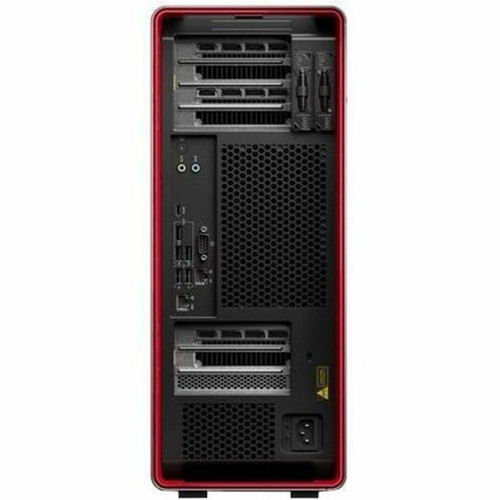

Lenovo 30HH004FUS ThinkStation P8 Workstation - Ryzen Threadripper Pro 7985WX 64-Core - 32GB DDR5 - 1TB NVMe SSD - T400 4GB - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the heart of the ThinkStation P8 is the AMD Ryzen Threadripper PRO 7985WX, a 64-core processor operating at 3.20 GHz base frequency on the Socket sTR5 platform. This CPU is paired with the AMD WRX90 chipset, which provides extensive PCIe lanes and memory support for workstation expansion. The memory subsystem utilizes DDR5 SDRAM technology running at 4.80 GHz with ECC and registered signal processing for maximum stability under heavy loads.
Storage is handled by a 1 TB NVMe PCIe 4.0 x4 solid-state drive, offering sequential read/write speeds that dramatically reduce application load times and file transfers. The storage controller supports both NVMe and Serial ATA interfaces with hardware RAID 0, 1, 5, and 10 capabilities for data redundancy or performance configurations.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
This workstation combines extreme multi-core performance with professional-grade reliability features that distinguish it from conventional desktop systems. The 64-core Threadripper PRO processor enables simultaneous execution of complex computational tasks without compromising responsiveness, while ECC memory ensures data integrity during extended calculations.
Professional Graphics Acceleration
The NVIDIA T400 GPU provides dedicated 4 GB GDDR6 memory for CAD, 3D modeling, and visualization applications, supporting multiple 4K displays with hardware-accelerated rendering.
- 4 GB dedicated GDDR6 memory
- Multi-display support
- Professional driver certification
Comprehensive Connectivity
Dual Ethernet (Gigabit and 10 Gigabit), Wi-Fi, Bluetooth, and 10 USB ports including high-speed USB-C 20Gbps provide flexible peripheral and network attachment.
- 10 Gigabit Ethernet for fast data transfer
- USB-C 20Gbps for high-speed storage
- Wireless and Bluetooth for peripheral flexibility
Enterprise Management & Security
Windows 11 Pro includes BitLocker encryption, remote desktop, and group policy management, while the hardware platform supports TPM security and comprehensive manageability features.
- Windows 11 Pro for business features
- Hardware security capabilities
- Enterprise manageability
Deployment / Use Cases
The ThinkStation P8 is optimized for professional environments where computational power, data integrity, and system stability are paramount. Its 64-core architecture excels at parallel processing tasks common in engineering simulation, financial modeling, scientific research, and media production workflows.
Visualization professionals will appreciate the dedicated NVIDIA T400 graphics for 3D CAD, architectural rendering, and video editing applications. The system's 10 Gigabit Ethernet capability makes it suitable for collaborative environments with large dataset sharing, while the extensive USB connectivity supports multiple high-resolution displays, input devices, and storage peripherals simultaneously.
Engineering & Simulation
Finite element analysis, computational fluid dynamics, and electronic design automation benefit from the 64-core processor's parallel computation capabilities and ECC memory protection.
Media Production & Visualization
3D animation, video editing, and visual effects rendering leverage both the high core count for processing and the dedicated graphics for real-time preview and acceleration.
Localization and Operating System
This workstation ships with Windows 11 Pro pre-installed in English language version, providing a familiar interface for North American business users. The operating system includes all professional features such as BitLocker device encryption, Remote Desktop, Hyper-V virtualization, and enterprise management capabilities through Group Policy.
The keyboard is localized for English (US) layout, ensuring compatibility with standard input methods and software shortcuts. Windows 11 Pro delivers enhanced productivity features like Snap Layouts, virtual desktops, and Microsoft Teams integration while maintaining compatibility with legacy business applications.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkStation P8 utilizes a substantial tower chassis measuring 17.10" (434.40 mm) in height, 6.89" (175 mm) in width, and 20" (508 mm) in depth, providing ample internal space for expansion cards, storage drives, and cooling components. At approximately 50.04 lb (22.7 kg), the system has a robust construction suitable for stationary deployment in office or lab environments.
The chassis design prioritizes serviceability with tool-less access to internal components, supporting future upgrades to memory, storage, and expansion cards. The substantial 1.40 kW power supply ensures stable operation under maximum load conditions while providing headroom for additional components.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation ships complete with all essential components for immediate deployment in a professional setting.
Highlights
- AMD Ryzen Threadripper PRO 7985WX 64-core processor with 128 threads at 3.20 GHz
- 32 GB DDR5 SDRAM ECC registered memory running at 4.80 GHz (expandable to 1 TB)
- 1 TB PCI Express NVMe 4.0 x4 solid-state drive for fast application loading and data access
- NVIDIA T400 professional graphics card with 4 GB dedicated GDDR6 memory
- Dual Ethernet: Gigabit and 10 Gigabit for high-speed network connectivity
- Windows 11 Pro operating system with English language and professional features
- 10 USB ports including USB-C 20Gbps for high-speed peripheral connectivity
- Hardware RAID support (0, 1, 5, 10) for data protection or performance configurations
- 3-year warranty with onsite service and premier support upgrade options
- ENERGY STAR 8.0 certified with EPEAT Gold, GREENGUARD, and TCO Certified 9.0 environmental ratings
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH004FUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH004FUS |
| Product Name | ThinkStation P8 30HH004FUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7985WX |
| Processor Core | Tetrahexaconta-core (64 Core) |
| Processor Threads | 128 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 2 x 16 GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Controller Model | T400 |
| Graphics Memory Capacity | 4 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C® 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH004FUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What type of workloads is this ThinkStation P8 workstation best suited for?
The ThinkStation P8 with its 64-core Ryzen Threadripper PRO processor excels at parallel processing tasks including engineering simulation (FEA, CFD), scientific computing, financial modeling, media production (3D rendering, video editing), and data analysis. The ECC memory ensures data integrity during extended calculations, while the professional graphics accelerate visualization workflows.
How much memory can this workstation support and what type is installed?
This configuration comes with 32 GB of DDR5 SDRAM installed as two 16 GB modules running at 4.80 GHz. The system has 8 memory slots total and supports up to 1 TB of memory expansion. The memory features ECC (Error Correcting Code) and registered signal processing for enhanced reliability in mission-critical applications.
What storage technology does this workstation use and is it expandable?
The primary storage is a 1 TB PCI Express NVMe 4.0 x4 solid-state drive, offering significantly faster data transfer speeds compared to SATA SSDs or hard drives. The storage controller supports both NVMe and Serial ATA interfaces with hardware RAID 0, 1, 5, and 10 capabilities. The tower chassis provides multiple drive bays for additional storage expansion.
What graphics capabilities does the NVIDIA T400 provide?
The NVIDIA T400 is a professional graphics card with 4 GB of dedicated GDDR6 memory. It supports multiple 4K displays and provides hardware acceleration for CAD applications, 3D modeling software, and visualization workloads. Unlike gaming cards, it features professional driver certification for stability in business applications.
What networking and connectivity options are available?
The workstation includes both Gigabit Ethernet and 10 Gigabit Ethernet ports for high-speed network connectivity, along with Wi-Fi and Bluetooth wireless capabilities. There are 10 USB ports total: 2 USB 2.0, 5 USB 3.2 Gen 2, 2 USB-C 3.2 Gen 2, and 1 USB-C 20Gbps port for high-speed data transfer. This extensive connectivity supports multiple displays, storage devices, and peripherals simultaneously.
What warranty and support options come with this workstation?
Lenovo provides a 3-year limited warranty with onsite service included. The warranty covers parts and labor with options to upgrade to 3-year Premier Support, which includes priority technical assistance and enhanced service levels. This professional-grade support ensures minimal downtime for business-critical workstations.
