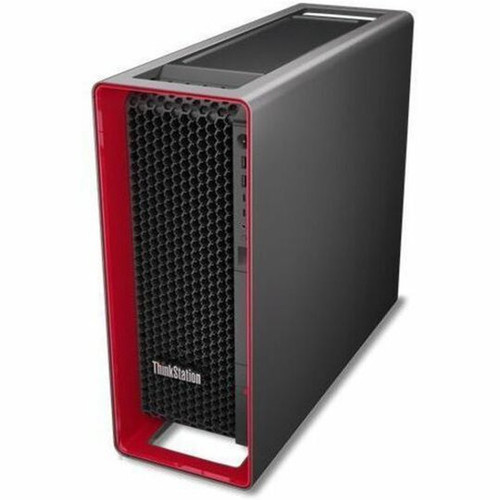

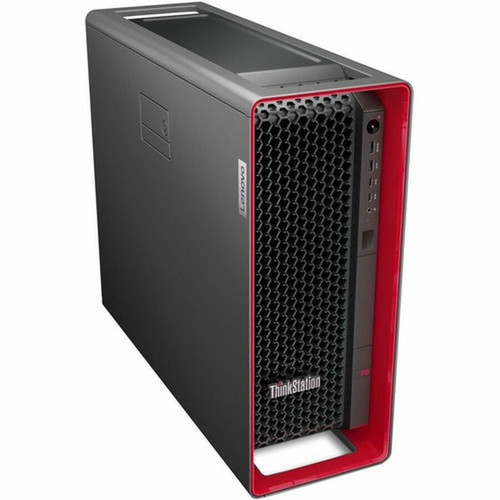

Lenovo 30HH004HCA ThinkStation P8 Workstation - Ryzen Threadripper PRO 7985WX 64-Core - 32 GB RAM - 1 TB SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
At the core of the ThinkStation P8 sits the AMD Ryzen Threadripper PRO 7985WX, a 64-core processor operating at 3.20 GHz on the Socket sTR5 platform. This CPU is paired with the AMD WRX90 chipset, which provides extensive PCIe lanes and platform stability for workstation-class reliability. The memory subsystem utilizes eight DDR5 slots supporting up to 1 TB of ECC registered RAM, with 32 GB of DDR5-4800 ECC memory installed for error-corrected data integrity in critical computations.
Storage is handled by a 1 TB PCI Express NVMe 4.0 x4 solid-state drive, delivering rapid boot times, fast application loading, and quick access to large project files. The system supports RAID 0, 1, 5, and 10 configurations via its Serial ATA/600 and NVMe controller, enabling performance or redundancy setups as needed. A dedicated 16 GB graphics card provides substantial GPU memory for visualization, GPU-accelerated compute tasks, and multi-monitor professional applications.
Key Product Advantages
The ThinkStation P8 combines extreme multi-core processing with professional-grade reliability features, making it suitable for 24/7 operation in research, engineering, media production, and financial modeling environments. Its ECC memory and registered DIMMs ensure data accuracy during lengthy computations, while the tower form factor provides straightforward access for maintenance and future upgrades.
Professional Compute Platform
The AMD WRX90 chipset and Ryzen Threadripper PRO architecture deliver workstation-certified stability, advanced security features, and remote management capabilities for IT-controlled deployments.
- AMD PRO security technologies
- Remote management support
- Platform validation for ISV applications
Expansion and Connectivity
With dual Ethernet (Gigabit and 10Gb), Wi-Fi, Bluetooth, and six USB ports including a high-speed USB-C 20Gbps port, the P8 connects to peripherals, networks, and storage arrays with professional-grade bandwidth.
- 10Gb Ethernet for fast network storage
- USB 3.2 Gen 2x2 support
- Wireless and wired networking options
Deployment / Use Cases
This workstation is configured for professional environments where high core counts, large memory capacity, and fast storage are required. Its 64-core processor excels at parallelized tasks such as 3D rendering, computational fluid dynamics, finite element analysis, and video encoding, where traditional desktop processors would become bottlenecks.
The combination of ECC memory, dedicated graphics, and RAID-capable storage makes the P8 suitable for scientific computing, engineering simulation, architectural visualization, and financial risk modeling. The tower chassis accommodates additional GPUs, storage controllers, or specialized accelerator cards for domain-specific workloads. With Windows 11 Pro pre-installed, the system integrates into business networks with advanced management, security, and virtualization features.
Engineering and Simulation
Run complex CAE, CAD, and CFD software with the multi-core performance needed for large model analysis and simulation iterations.
Media and Entertainment Production
Handle 8K video editing, color grading, 3D animation, and visual effects rendering with the CPU and GPU resources required for professional timelines.
Localization and Operating System
This ThinkStation P8 ships with Windows 11 Pro 64-bit pre-installed, providing a modern, secure operating system with built-in business features like BitLocker encryption, Hyper-V virtualization, and remote desktop hosting. The French (Canada) keyboard localization ensures proper key legends and layout compliance for Canadian French-speaking users, supporting efficient text input in both English and French professional applications.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The tower chassis measures 17.10" high, 6.89" wide, and 20" deep (434.4 x 175 x 508 mm), with a weight of approximately 50.04 lb (22.7 kg). This form factor provides ample internal space for cooling, cable management, and component upgrades. The robust construction supports stable operation under sustained heavy loads, with tool-less access panels simplifying maintenance and hardware additions.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 17.10" (434.40 mm), 6.89" (175 mm), 20" (508 mm), 50.04 lb (22700 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation includes the ThinkStation P8 tower system and a ThinkStation P8 keyboard with French (Canada) localization. Power cables and standard documentation are also provided.
Highlights
- AMD Ryzen Threadripper PRO 7985WX 64-core processor for extreme multi-threaded performance
- 32 GB of DDR5 ECC registered memory ensures data integrity in critical computations
- 1 TB PCIe NVMe 4.0 SSD delivers fast storage access for large project files
- Dedicated 16 GB graphics card accelerates visualization and GPU compute tasks
- Windows 11 Pro 64-bit with business security and management features
- Tower form factor supports easy upgrades and expansion for future needs
- Dual Ethernet with 10Gb support for high-speed network storage and data transfer
- French (Canada) keyboard localization for Canadian professional environments
- RAID 0, 1, 5, 10 support for storage performance or redundancy configurations
- Three-year Premier Next Business Day warranty with onsite service
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH004HCA |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH004HCA |
| Product Name | ThinkStation P8 |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7985WX |
| Processor Core | Tetrahexaconta-core (64 Core) |
| Processor Threads | 128 |
| Processor Speed | 3.20 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 32 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 1 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | Serial ATA/600,NVMe |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | French (Canada) |
| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 3 |
| USB Type-C | Yes |
| USB Type-C Detail | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Architecture | 64-bit |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 Keyboard |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | 3YR Premier NBD |
User Manual
FAQ
What processor does this Lenovo ThinkStation P8 workstation use?
This workstation features the AMD Ryzen Threadripper PRO 7985WX, a 64-core, 128-thread processor operating at 3.20 GHz. It uses the Socket sTR5 platform and is paired with the AMD WRX90 chipset, providing extensive PCIe lanes and workstation-grade stability for demanding professional applications.
How much memory is installed, and what is the maximum supported?
The system comes with 32 GB of DDR5 ECC registered memory installed across its eight memory slots. It supports a maximum of 1 TB of DDR5 RAM, allowing for substantial future expansion to handle larger datasets, more virtual machines, or memory-intensive simulations as workload requirements grow.
What type of storage does this workstation include?
Storage is provided by a 1 TB PCI Express NVMe 4.0 x4 solid-state drive. This NVMe SSD connects directly via the PCIe bus for significantly faster data transfer rates compared to SATA SSDs, reducing load times for applications and large files. The storage controller supports RAID 0, 1, 5, and 10 configurations for performance or data protection setups.
Does this ThinkStation P8 have a dedicated graphics card?
Yes, the workstation includes a dedicated graphics card with 16 GB of dedicated video memory. This GPU accelerates visualization tasks, supports multiple high-resolution displays, and enables GPU-accelerated computing for applications in rendering, simulation, and data science that leverage parallel processing capabilities.
What operating system and keyboard localization are provided?
The system ships with Windows 11 Pro 64-bit pre-installed, offering advanced business features like BitLocker encryption, Hyper-V virtualization, and remote management. The keyboard is localized for French (Canada), with appropriate key legends and layout for Canadian French-speaking users in professional environments.
What are the physical dimensions and warranty terms?
The tower chassis measures 17.10" high, 6.89" wide, and 20" deep (434.4 x 175 x 508 mm), weighing approximately 50.04 lb (22.7 kg). Lenovo provides a three-year Premier Next Business Day warranty, which includes onsite service to minimize downtime in business-critical workstation deployments.
