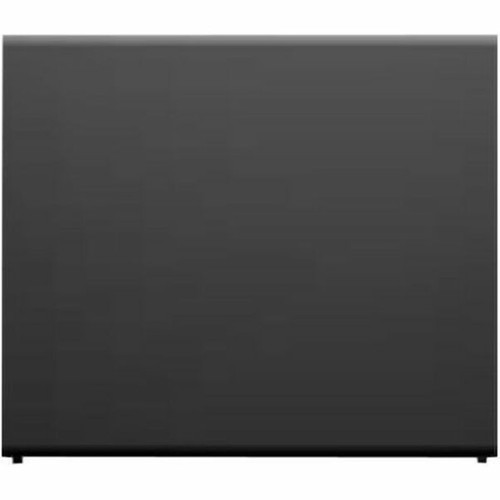

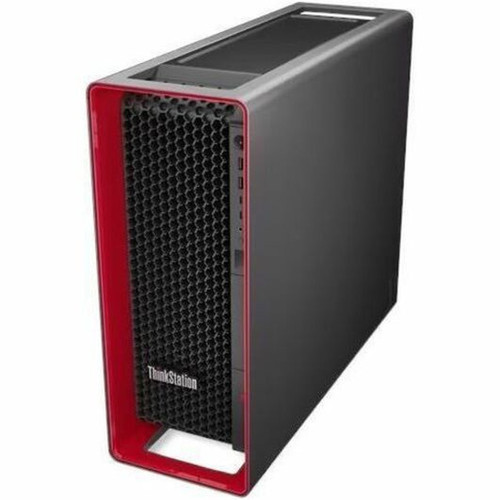

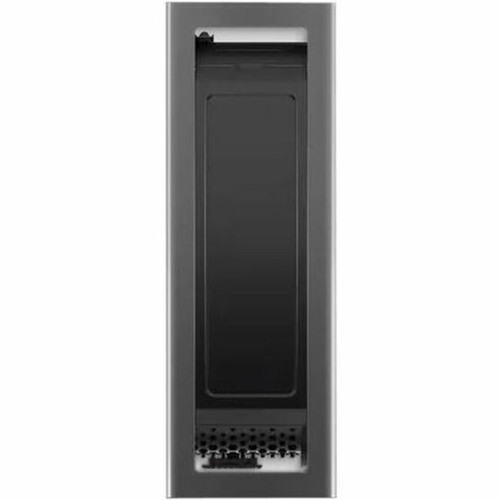

Lenovo 30HH005AUS ThinkStation P8 Workstation - Ryzen Threadripper PRO 7995WX 96-Core - 128GB DDR5 - 4TB NVMe SSD - Windows 11 Pro
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This workstation leverages the Socket sTR5 platform with a single Ryzen Threadripper PRO 7995WX processor running at 2.50 GHz base frequency. The memory subsystem utilizes eight DDR5 slots populated with four 32 GB modules, operating at 4.80 GHz with ECC and Registered signal processing for data integrity in mission-critical environments.
Storage is handled by a 4 TB PCI Express NVMe 4.0 x4 solid-state drive, offering sequential read/write speeds that significantly reduce application load times and project file transfers. The system supports multiple RAID configurations through its NVMe and Serial ATA controllers, providing flexibility for performance or redundancy setups.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
Extreme Core Count Processing
The 96-core Threadripper PRO processor enables simultaneous execution of hundreds of threads, dramatically reducing processing time for rendering, compilation, virtualization, and computational fluid dynamics workloads.
- 192 threads handle parallel tasks efficiently
- 2.50 GHz base clock with high turbo potential
- Socket sTR5 platform for future upgrade path
Enterprise-Grade Memory Architecture
128 GB of DDR5 ECC Registered memory ensures data accuracy and system stability during extended computational sessions, with eight available slots supporting expansion up to 1 TB for growing workload requirements.
- ECC correction prevents data corruption
- 4.80 GHz clock speed for low-latency access
- Registered design improves signal integrity
Comprehensive Connectivity Suite
Dual Ethernet (Gigabit and 10 Gigabit), wireless LAN, Bluetooth, and ten USB ports including high-speed USB-C connections provide versatile peripheral and network attachment options for studio, lab, or office environments.
- 10GbE supports large file transfers
- USB-C 20Gbps for fast external storage
- Wireless connectivity for flexible placement
Deployment / Use Cases
The ThinkStation P8 is purpose-built for professional environments where computational power directly impacts productivity and project timelines. Its balanced configuration of high core-count processing, substantial memory, and fast storage makes it ideal for engineering firms, research institutions, media production studios, and financial analysis teams.
In engineering applications, this workstation accelerates finite element analysis, computational fluid dynamics, and electronic design automation. For creative professionals, it handles 4K/8K video editing, 3D animation rendering, and complex visual effects compositing with reduced wait times. Scientific researchers benefit from its ability to process large datasets for genomics, climate modeling, and pharmaceutical research.
Engineering & Simulation
Run ANSYS, SOLIDWORKS, or Siemens NX simulations with reduced solve times thanks to 96-core parallel processing and high memory bandwidth.
Media & Entertainment Production
Edit high-resolution video streams in Adobe Premiere Pro or DaVinci Resolve while rendering complex 3D scenes in Blender or Maya in the background.
Localization and Operating System
This workstation ships with Microsoft Windows 11 Pro pre-installed in English language version. Windows 11 Pro provides enhanced security features including BitLocker encryption, Windows Defender Advanced Threat Protection, and Hyper-V virtualization capabilities essential for development and testing environments.
The system includes an English-localized keyboard, ensuring proper key labeling and layout for North American users. Windows 11 Pro's professional management tools integrate seamlessly with enterprise Active Directory domains, group policies, and remote management solutions for simplified IT administration.
Relevant factors for this section include Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Physical Profile
The ThinkStation P8 utilizes a tower form factor measuring 17.10 inches in height, 6.89 inches in width, and 20 inches in depth (434.40 x 175 x 508 mm), with a substantial weight of 50.04 pounds (22.7 kg) reflecting its robust internal construction and cooling solution. This chassis provides ample interior space for additional storage drives, expansion cards, and optimized airflow to maintain thermal performance during sustained heavy workloads.
The workstation's design prioritizes serviceability with tool-less access to internal components, making memory upgrades, storage additions, and maintenance straightforward for IT staff. The 1.40 kW power supply delivers stable power to all components while maintaining 80 PLUS efficiency standards.
- Width
- 6.89" (175 mm)
- Depth
- 20" (508 mm)
- Height
- 17.10" (434.40 mm)
- Weight
- 50.04 lb (22700 g)
What's in the Box
The workstation ships complete with all essential components for immediate deployment in professional environments.
Package contents include ThinkStation P8 30HH005AUS Keyboard Mouse, ThinkStation P8 30HH005AUS. These included items support setup, installation, and immediate deployment without needing to source the core bundled accessories separately.
Highlights
- AMD Ryzen Threadripper PRO 7995WX processor with 96 cores and 192 threads for extreme parallel processing
- 128 GB DDR5 ECC Registered memory operating at 4.80 GHz for data-intensive applications
- 4 TB PCI Express NVMe 4.0 x4 SSD delivers exceptional storage performance and capacity
- Dedicated 16 GB graphics controller accelerates visualization and rendering workloads
- Dual Ethernet with 10 Gigabit support for high-speed network transfers
- Windows 11 Pro operating system with professional management and security features
- AMD WRX90 chipset provides platform stability and expansion capabilities
- 1.40 kW power supply ensures stable operation under full load conditions
- 3-year onsite warranty with Premier Support upgrade for business continuity
- Environmental certifications including EPEAT Gold, ENERGY STAR 8.0, and TCO Certified 9.0
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 30HH005AUS |
| Brand Name | Lenovo |
| Product Line | ThinkStation |
| Product Series | P8 |
| Product Model | 30HH005AUS |
| Product Name | ThinkStation P8 30HH005AUS |
| Product Type | Workstation |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Type | Ryzen Threadripper PRO |
| Processor Model | 7995WX |
| Processor Core | Hexanonaconta-core (96 Core) |
| Processor Threads | 192 |
| Processor Speed | 2.50 GHz |
| Processor Socket | Socket sTR5 |
| Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | WRX90 |
| Memory | |
| Standard Memory | 128 GB |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR5 SDRAM |
| Total Number of Memory Slots | 8 |
| Memory Clock Speed | 4.80 GHz |
| Memory Configuration | 4 x 32GB |
| Error Checking | ECC |
| Signal Processing | Registered |
| Storage | |
| Drive Type | SSD |
| Total Solid State Drive Capacity | 4 TB |
| Solid State Drive Interface | PCI Express NVMe 4.0 x4 |
| Controllers | |
| Controller Type | NVMe,Serial ATA |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Display & Graphics | |
| Number of Graphic Controllers | 1 |
| Graphics Memory Capacity | 16 GB |
| Graphics Memory Accessibility | Dedicated |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet,10 Gigabit Ethernet |
| Wireless LAN | Yes |
| Bluetooth | Yes |
| Input Devices | |
| Keyboard Localization | English |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 2 Ports | 5 |
| USB Type-C | Yes |
| USB Type-C Detail | 2x USB-C 3.2 Gen 2; 1x USB-C® (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only |
| Operating System | |
| Operating System Platform | Windows |
| Operating System | Windows 11 Pro |
| Operating System Language | English |
| Power Description | |
| Maximum Power Supply Wattage | 1.40 kW |
| Physical Characteristics | |
| Height | 17.10" (434.40 mm) |
| Width | 6.89" (175 mm) |
| Depth | 20" (508 mm) |
| Weight (Approximate) | 50.04 lb (22700 g) |
| Miscellaneous | |
| Package Contents | ThinkStation P8 30HH005AUS Keyboard Mouse |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | Electronic Product Environmental Assessment Tool Gold (EPEAT Gold),GREENGUARD,TCO Certified 9.0 |
| Energy Efficiency Certification | ENERGY STAR 8.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| TCO Certified | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | Base Warranty 3-year, Onsite Included Upgrade 3Y Premier Support Upgrade from 3Y Onsite |
User Manual
FAQ
What type of workloads is this ThinkStation P8 workstation best suited for?
The ThinkStation P8 30HH005AUS is optimized for computationally intensive professional applications including 3D rendering and animation, engineering simulation and analysis, scientific research computing, financial modeling, 4K/8K video editing, and virtualization environments. Its 96-core Threadripper PRO processor, 128 GB of ECC memory, and fast NVMe storage provide the balanced performance needed for these demanding workloads.
Can the memory be expanded beyond the installed 128 GB configuration?
Yes, this workstation features eight DDR5 memory slots with four currently populated by 32 GB modules. The system supports up to 1 TB of total memory, allowing for significant expansion by adding four more modules. The memory architecture utilizes ECC (Error Correcting Code) and Registered technology for enhanced data integrity in mission-critical applications.
What storage expansion options are available in this workstation?
The system includes a 4 TB PCI Express NVMe 4.0 x4 SSD as its primary storage, with additional expansion possible through available drive bays and ports. The AMD WRX90 chipset supports multiple storage controllers with RAID 0, 1, 5, and 10 configurations for performance or redundancy. Both NVMe and Serial ATA interfaces are available for adding secondary SSDs or hard drives.
What networking capabilities does this workstation provide?
This ThinkStation P8 features dual Ethernet connectivity with both standard Gigabit Ethernet and 10 Gigabit Ethernet ports for high-speed network transfers. It also includes integrated wireless LAN (Wi-Fi) and Bluetooth for flexible connectivity options. The 10GbE capability is particularly valuable for transferring large project files, accessing network storage, or collaborating in media production environments.
What warranty and support services are included with this workstation?
Lenovo provides a 3-year onsite warranty as the base coverage, which includes technician dispatch to your location for hardware repairs. This configuration includes an upgrade to 3-year Premier Support, offering enhanced service with priority response, 24/7 phone support, and advanced replacement options for critical components to minimize business disruption.
What operating system comes pre-installed on this workstation?
The system ships with Microsoft Windows 11 Pro 64-bit edition pre-installed in English language version. Windows 11 Pro includes professional features such as BitLocker device encryption, Remote Desktop hosting, Hyper-V virtualization, Group Policy management, and enhanced security protections suitable for business and technical computing environments.
