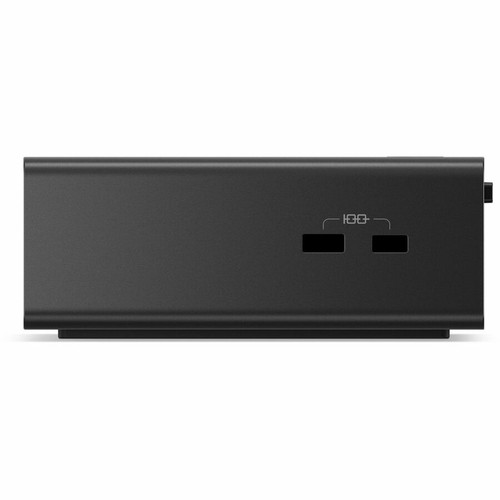

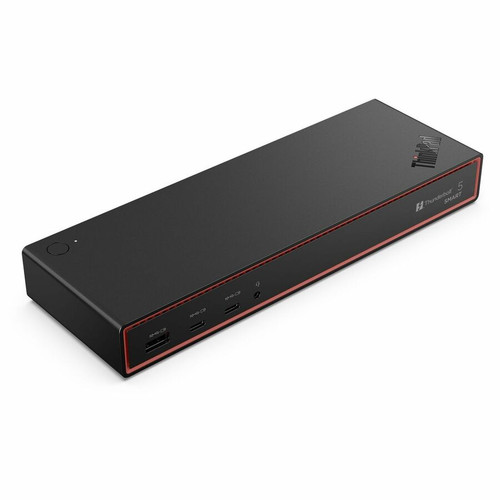

Lenovo 40BA0265US ThinkPad Thunderbolt 5 Smart Dock 7500 - 265W Power - 4 Display Support - 2.5GbE - 5 USB Ports
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This docking station leverages Thunderbolt 5 technology as its host interface, enabling high-speed data transfer and multi-display support. The dock can drive up to four monitors simultaneously, with supported resolutions including 7680 x 4320 (8K) at 60Hz and 3840 x 2160 (4K) at refresh rates up to 240Hz.
Connectivity is comprehensive: five USB ports (three USB 3.2 Gen 2 Type-A and two USB 3.2 Gen 2 Type-C), two DisplayPort 2.1 outputs, one HDMI port, a 2.5 Gigabit Ethernet jack, and a headphone/microphone combo port. The 265W power supply supports USB Power Delivery up to 180W for charging connected devices.
Relevant factors for this section include Connectivity Technology, Charging Capability, Number of Displays Supported, Ethernet Technology. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The ThinkPad Thunderbolt 5 Smart Dock 7500 stands out with its combination of high-wattage power delivery, multi-display capability, and professional-grade connectivity. It eliminates cable clutter by consolidating power, network, peripherals, and displays into a single Thunderbolt connection to your laptop.
High-Resolution Multi-Display Support
Drive up to four external monitors with support for 8K resolution at 60Hz or 4K at refresh rates up to 240Hz, ideal for content creation, financial analysis, or multi-tasking workflows.
- 8K @ 60Hz support
- 4K @ 240Hz capability
- Four simultaneous displays
Comprehensive Connectivity Suite
Access high-speed 2.5 Gigabit Ethernet, multiple USB 3.2 Gen 2 ports, DisplayPort 2.1, HDMI, and audio outputs—all through a single Thunderbolt 5 connection to your laptop.
- 2.5Gb Ethernet for fast networking
- Five USB ports for peripherals
- Dedicated audio and video outputs
Deployment / Use Cases
This docking station is optimized for professionals who require a streamlined workspace with multiple high-resolution displays and reliable connectivity. It serves as an ideal solution for transforming compatible Lenovo notebooks into desktop-equivalent setups with minimal cable management.
Common deployment scenarios include financial trading desks where multiple monitors display real-time data, creative studios requiring high-resolution color-accurate displays, engineering workstations needing both computational power and extensive peripheral connectivity, and corporate hot-desking environments where employees can quickly connect their laptops to full workstation capabilities.
Professional Workspace Consolidation
Replace multiple adapters and power bricks with a single Thunderbolt connection that provides power, networking, display outputs, and peripheral connectivity for a clean, organized desk setup.
Mobile Workstation Enhancement
Extend the capabilities of compatible Lenovo mobile workstations by adding multiple high-resolution displays, fast wired networking, and numerous peripherals while simultaneously charging the laptop.
Physical Profile
Housed in a compact Eclipse Black enclosure measuring 3.15" wide × 1.18" high and weighing approximately 1.29 lb, the dock maintains a low-profile presence on any desk. Its small footprint allows flexible placement while the Kensington security slot provides theft deterrence for shared or public workspaces. The design prioritizes functionality without sacrificing portability or desk real estate.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 1.18" (30 mm), 3.15" (80 mm), 1.29 lb (585 g). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Width
- 3.15" (80 mm)
- Height
- 1.18" (30 mm)
- Weight
- 1.29 lb (585 g)
What's in the Box
The package includes all necessary components for immediate deployment of the docking station.
Highlights
- Thunderbolt 5 host interface for high-speed connectivity
- Supports up to 4 external displays simultaneously
- 8K resolution at 60Hz and 4K at up to 240Hz
- 265W power supply with 180W USB Power Delivery
- 2.5 Gigabit Ethernet for fast wired networking
- Five USB ports (3x Type-A, 2x Type-C)
- DisplayPort 2.1 and HDMI video outputs
- Compatible with Windows, macOS, and Linux
- Kensington security slot for theft deterrence
- 3-year limited warranty for peace of mind
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 40BA0265US |
| Brand Name | Lenovo |
| Product Line | ThinkPad |
| Product Name | ThinkPad Thunderbolt 5 Smart Dock 7500 - US |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 4 |
| Supported Resolutions | 7680 x 4320,3840 x 2160 |
| Screen Mode Supported | 8K @ 60Hz,4K @ 60Hz,4K @ 240Hz,4K @ 120Hz |
| Device Supported | Monitor,Mobile Workstation,Notebook |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Interfaces/Ports | |
| Host Interface | Thunderbolt 5 |
| Total Number of USB Ports | 5 |
| Number of USB 3.2 Gen 2 Type-A Ports | 3 |
| Number of USB 3.2 Gen 2 Type-C Ports | 2 |
| Number of USB Type-C Ports | 2 |
| USB Type-C | Yes |
| USB Type-C Detail | 2 x USB-C data port (10Gbps data, AOU 15W) |
| Number of USB Type-A Ports | 3 |
| USB Type-A | Yes |
| Network (RJ-45) | Yes |
| Number of DisplayPorts | 2 |
| DisplayPort | Yes |
| DisplayPort Version | 2.1 |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Ports | 1 |
| HDMI | Yes |
| Thunderbolt | Yes |
| Thunderbolt Ports Quantity | 2 |
| USB Power Delivery | 180W |
| Software | |
| Operating System Supported | Windows,macOS,Linux |
| Power Description | |
| Maximum Power Supply Wattage | 265 W |
| Physical Characteristics | |
| Product Color | Eclipse Black |
| Height | 1.18" (30 mm) |
| Width | 3.15" (80 mm) |
| Weight (Approximate) | 1.29 lb (585 g) |
| Miscellaneous | |
| Package Contents | ThinkPad Thunderbolt 5 Smart Dock 7500 - US 1 x 265W AC Adapter 1 x Power Cord 1 x Warranty Poster 1 x Set up Poster 1 x LAFM Card |
| Kensington Security Slot | Yes |
| Compatibility | Lenovo Notebooks: ThinkPad P1 Gen 8 ThinkPad P16 Gen 3 ThinkPad P16v Gen 3 (Intel) ThinkPad T1g Gen 8 |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
How many external displays can this docking station support?
The Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500 supports up to four external displays simultaneously. It can drive these displays at resolutions up to 7680 x 4320 (8K) at 60Hz or 3840 x 2160 (4K) at refresh rates up to 240Hz, providing flexibility for multi-monitor workstation setups.
What type of host connection does this dock use?
This docking station uses Thunderbolt 5 as its host interface. This latest Thunderbolt technology provides high-speed data transfer capabilities and enables the dock's multi-display support through a single cable connection to compatible Lenovo notebooks.
Does this dock provide power to connected laptops?
Yes, the dock includes a 265W power supply that supports USB Power Delivery up to 180W. This allows the dock to charge compatible laptops while also powering connected peripherals and displays, eliminating the need for separate laptop chargers in most scenarios.
What networking capabilities does this docking station offer?
The dock features a 2.5 Gigabit Ethernet port, providing fast wired network connectivity that's ideal for large file transfers, video conferencing, and data-intensive applications. This offers a significant speed advantage over standard Gigabit Ethernet connections.
Which operating systems are compatible with this dock?
The ThinkPad Thunderbolt 5 Smart Dock 7500 is compatible with Windows, macOS, and Linux operating systems. This cross-platform support makes it suitable for mixed-IT environments where users may work with different operating systems on compatible Lenovo hardware.
What Lenovo notebooks are compatible with this docking station?
This dock is compatible with specific Lenovo ThinkPad models including the ThinkPad P1 Gen 8, ThinkPad P16 Gen 3, ThinkPad P16v Gen 3 (Intel), and ThinkPad T1g Gen 8. These models are designed to leverage the dock's full capabilities including power delivery and multi-display support.
