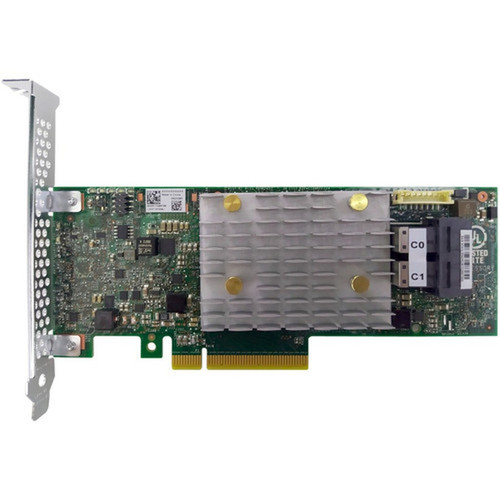

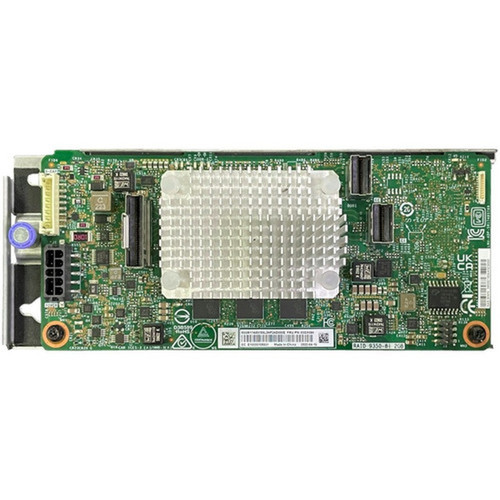

Lenovo 4Y37A72484 ThinkSystem RAID 9350-8i Adapter - 12Gb/s SAS - PCIe 3.0 x 8 - 2GB Flash Cache - Plug-in Card
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This adapter employs a 12Gb/s SAS controller that maximizes data transfer rates for both SAS and SATA drives. The PCIe 3.0 x8 host interface ensures minimal bottlenecking, allowing the card to fully utilize available bandwidth for storage operations. With 2GB of flash-backed cache, it provides non-volatile memory protection, safeguarding data in transit against unexpected power loss.
The card includes eight internal SAS ports via two SlimSAS x4 connectors (SFF-8654), enabling direct attachment to drive backplanes. It supports intermixing of 12Gb/s and 6Gb/s drives, though mixing SAS and SATA drives within the same array is not permitted. The plug-in card form factor measures 2.50" in height and 6.60" in length, conforming to standard PCIe slot dimensions for broad server compatibility.
Relevant factors for this section include Host Interface, Controller Type, RAID Supported, Cache Memory. When those points are considered together, they give buyers a clearer picture of how the product is equipped, how it fits into deployment, and what kind of day-to-day role it is meant to support.
Key Product Advantages
The RAID 9350-8i adapter delivers enterprise-grade storage management with flexibility and reliability. Its support for multiple RAID levels, including advanced options like RAID 50, 60, and JBOD, allows administrators to tailor storage configurations for performance, capacity, or redundancy needs.
Advanced RAID Protection
Supports RAID 0, 1, 5, 6, 10, 50, 60, and JBOD, enabling configurations from high-speed striping to fault-tolerant parity arrays.
- RAID 1 Triple and RAID 10 Triple for enhanced mirroring
- JBOD mode for non-RAID drive passthrough
Broad OS Compatibility
Certified for Windows Server 2016 through 2022, Red Hat Enterprise Linux 7.7 to 9.0, SUSE Linux Enterprise Server 12 SP3 to 15 SP4, and Ubuntu 20.04/22.04 LTS.
- Ensures deployment flexibility across heterogeneous environments
- Reduces integration testing overhead
Environmental Compliance
Meets Restriction of Hazardous Substances (RoHS) standards and carries a one-year limited warranty, reflecting Lenovo's commitment to sustainability and product reliability.
- RoHS compliant for reduced environmental impact
- Backed by manufacturer support
Deployment / Use Cases
This adapter is engineered for server storage expansion and data protection scenarios. It is ideal for IT departments upgrading existing servers with additional drive bays or implementing new storage arrays that require hardware RAID acceleration.
Common deployments include database servers needing RAID 10 for high I/O performance, file servers utilizing RAID 6 for capacity and dual-disk fault tolerance, and backup targets configured in JBOD mode for maximum storage utilization. The card's compatibility with both SAS and SATA drives allows cost-effective mixing of SSD and HDD technologies within the same system, though not within individual arrays.
Server Storage Expansion
Adds eight internal ports to servers with available PCIe 3.0 x8 slots, enabling connection to additional drive backplanes or direct-attach storage enclosures.
Hardware RAID Acceleration
Offloads RAID computations from the host CPU, improving system performance for demanding applications like virtualization, video editing, or scientific computing.
Physical Profile
The adapter is a plug-in card with a low-profile design that fits standard PCIe slots. Its dimensions of 2.50" (63.50 mm) in height and 6.60" (167.64 mm) in length ensure compatibility with most server chassis. The form factor is optimized for broad server integration without consuming excessive space.
The physical profile is practical for deployment planning because the dimensions and weight are clearly defined: 2.50" (63.50 mm). This helps confirm rack, shelf, desk, or cabinet fit before installation.
- Height
- 2.50" (63.50 mm)
- Length
- 6.60" (167.64 mm)
Highlights
- 12Gb/s SAS controller for high-speed data transfers
- PCI Express 3.0 x8 host interface maximizes bandwidth
- 2GB of flash-backed cache protects data during power loss
- Supports up to eight internal SAS or SATA drives
- RAID levels 0,1,5,6,10,50,60, and JBOD for flexible configurations
- Compatible with Windows Server and multiple Linux distributions
- Two SlimSAS x4 connectors (SFF-8654) for drive backplane attachment
- RoHS compliant with a one-year limited warranty
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 4Y37A72484 |
| Brand Name | Lenovo |
| Product Model | 9350-8i |
| Product Name | ThinkSystem RAID 9350-8i 2GB Flash PCIe 12Gb Internal Adapter |
| Product Type | SAS Controller |
| Technical Information | |
| Host Interface | PCI Express 3.0 x8 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0,1,5,6,10,50,60,JBOD |
| Data Backup Type | Flash Backed Cache |
| Device Supported | Server |
| Operating System Supported | Windows Server 2016,Windows Server 2019,Windows Server 2022,Red Hat Enterprise Linux 7.7,Red Hat Enterprise Linux 7.8,Red Hat Enterprise Linux 7.9,Red Hat Enterprise Linux 8.1,Red Hat Enterprise Linux 8.2,Red Hat Enterprise Linux 8.3,Red Hat Enterprise Linux 8.4,Red Hat Enterprise Linux 8.5,Red Hat Enterprise Linux 8.6,Red Hat Enterprise Linux 9.0,SUSE Linux Enterprise Server 12 SP3,SUSE Linux Enterprise Server 12 SP4,SUSE Linux Enterprise Server 12 SP5,SUSE Linux Enterprise Server 15 SP1,SUSE Linux Enterprise Server 15 SP2,SUSE Linux Enterprise Server 15 SP3,SUSE Linux Enterprise Server 15 SP4,Ubuntu 20.04 LTS,Ubuntu 22.04 LTS |
| Memory | |
| Cache Memory | 2 GB |
| Interfaces/Ports | |
| Total Number of SAS Ports | 8 |
| Number of SAS Ports (Internal) | 8 |
| SAS Connector Details | 2x SlimSAS x4 (SFF-8654) |
| Physical Characteristics | |
| Form Factor | Plug-in Card |
| Height | 2.50" (63.50 mm) |
| Length | 6.60" (167.64 mm) |
| Miscellaneous | |
| Platform Supported | PC,Linux |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
User Manual
FAQ
What is the host interface of the Lenovo RAID 9350-8i adapter?
The adapter uses a PCI Express 3.0 x8 host interface. This provides sufficient bandwidth to handle the full throughput of the 12Gb/s SAS controller, ensuring that storage operations do not become bottlenecked by the connection to the server's motherboard.
How many drives can this RAID adapter support?
The 9350-8i model supports up to eight internal SAS or SATA drives. This is facilitated by its eight internal SAS ports, which connect via two SlimSAS x4 connectors (SFF-8654) to drive backplanes or direct-attach cables.
What RAID levels are supported by this adapter?
It supports RAID 0, 1, 5, 6, 10, 50, 60, and JBOD. This includes advanced nested levels like RAID 50 and 60 for combining striping with parity across multiple drive groups, as well as JBOD for non-RAID drive passthrough.
Does this adapter support flash-backed cache?
Yes, it includes 2GB of integrated flash-backed cache. This non-volatile memory protects data in the cache during power loss, ensuring that write operations are not corrupted and improving overall data integrity in server environments.
Which operating systems are compatible with this RAID card?
Compatibility includes Windows Server 2016, 2019, and 2022; Red Hat Enterprise Linux versions 7.7 through 9.0; SUSE Linux Enterprise Server 12 SP3 through 15 SP4; and Ubuntu 20.04 LTS and 22.04 LTS. This broad support allows deployment in diverse server environments.
What is the form factor and dimensions of this adapter?
It is a plug-in card with a low-profile design, measuring 2.50 inches (63.50 mm) in height and 6.60 inches (167.64 mm) in length. This standard PCIe card form factor ensures compatibility with most server chassis and PCIe slots.
