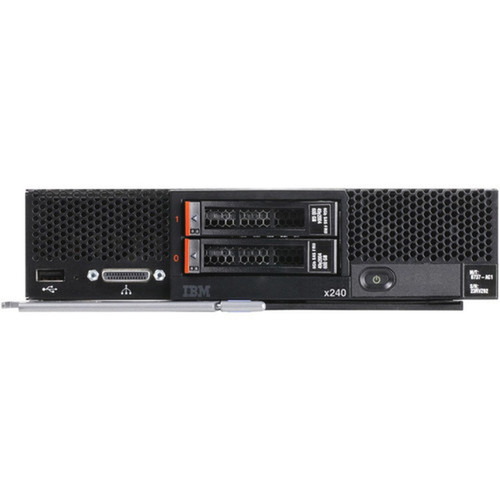

Lenovo 7162J2U Flex System x240 Blade Server - 1x Xeon E5-2670 v2 2. 50GHz 10-Core - 16GB DDR3 - 2 x 2. 5" Bays - RAID 0/1/1E - 3-Year Warranty
Business volume discounts
Technical guidance
Preparation & staging
QC · ON · AB · BC
Product Features
Technical Overview
This blade server features an Intel C600 chipset that provides robust I/O management and platform stability. Storage connectivity is handled by a 6Gb/s SAS and Serial ATA/600 controller with hardware RAID support for levels 0, 1, and 1E, enabling data protection and performance optimization for critical applications.
The server includes two internal 2.5" drive bays for high-speed storage devices, along with two total expansion bays for additional flexibility. Three USB ports facilitate peripheral connections and maintenance tasks, while integrated remote management capabilities allow for out-of-band administration and monitoring.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
A strong technical summary explains how the product's interfaces, hardware profile, and operating characteristics work together in real deployment. Buyers often need this context to confirm compatibility with existing devices, expected performance in daily use, and whether installation will be straightforward for IT staff or end users.
Key Product Advantages
This server delivers reliable performance for business-critical applications through its deca-core Xeon processor and RAID-capable storage controller. The platform's support for a second processor provides a clear upgrade path for future performance requirements without replacing the entire server.
These strengths make the product easier to deploy and manage in real environments, especially where reliability, usability, and day-to-day operational continuity matter. Notable benefits include High-Density Compute, Memory Scalability.
High-Density Compute
The blade form factor packs enterprise-grade processing into a 2U chassis footprint, allowing more servers per rack for improved data center efficiency and reduced physical infrastructure costs.
Memory Scalability
With 24 memory slots supporting DDR3 SDRAM, this server can be expanded far beyond the base 16 GB configuration to handle memory-intensive workloads like virtualization and in-memory databases.
Deployment / Use Cases
The Lenovo Flex System x240 7162J2U is designed for integration into existing Flex System chassis deployments, making it ideal for organizations expanding their blade server infrastructure. Its no-operating-system configuration provides flexibility for IT teams to install their preferred OS distribution, whether Windows Server, Linux, or virtualization hypervisors.
This server fits well in environments requiring balanced compute and storage performance, including mid-tier application hosting, departmental servers, and infrastructure consolidation projects. The blade architecture particularly benefits organizations with standardized on Lenovo's Flex System platform for simplified management and consistent deployment processes.
Virtualization Host
The 10-core processor with substantial cache and memory expansion capacity makes this server well-suited for hosting multiple virtual machines in VMware, Hyper-V, or KVM environments.
Database Server
With RAID-protected storage and high-core-count processing, this blade can efficiently handle transactional databases, data warehouses, and business intelligence applications.
Localization and Operating System
This server ships without a pre-installed operating system, providing maximum flexibility for IT administrators to deploy their preferred server OS. This approach allows organizations to standardize on specific Windows Server editions, Linux distributions, or virtualization platforms that best match their existing infrastructure and application requirements.
The platform is compatible with major server operating systems including Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, and VMware ESXi. The absence of a bundled OS eliminates licensing conflicts and enables clean-slate installations tailored to specific workload needs.
This section brings together practical product details such as Number of Processors Supported, Number of Processors Installed, Processor Type, Chipset Manufacturer, so buyers can judge configuration, deployment fit, and day-to-day suitability with less guesswork.
Physical Profile
The blade server measures 2.20 inches in height, 8.60 inches in width, and 19.40 inches in depth, with a weight of approximately 15.60 pounds. This compact form factor is designed specifically for installation into Lenovo Flex System chassis, which provide shared power, cooling, and networking infrastructure for multiple blades.
The blade design optimizes data center real estate by allowing multiple servers to occupy a single chassis, reducing cable complexity and improving airflow management. The standardized dimensions ensure compatibility with Flex System enclosures for seamless integration into existing blade infrastructure.
- Width
- 8.60" (218.44 mm)
- Depth
- 19.40" (492.76 mm)
- Height
- 2.20" (55.88 mm)
- Weight
- 15.60 lb (7076.04 g)
What's in the Box
The server package includes all essential components for deployment and operation.
Highlights
- Intel Xeon E5-2670 v2 processor with 10 cores at 2.50 GHz
- 16 GB DDR3 SDRAM memory with 24 expansion slots
- 2 internal 2.5" drive bays for high-speed storage
- 6Gb/s SAS and Serial ATA/600 controller with RAID 0/1/1E support
- Blade form factor for high-density data center deployment
- Intel C600 chipset for platform stability and I/O management
- Remote management capabilities for out-of-band administration
- 3-year limited warranty for long-term reliability assurance
- No operating system included for deployment flexibility
- Compatible with Lenovo Flex System chassis infrastructure
Specifications
| Specifications | |
|---|---|
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7162J2U |
| Brand Name | Lenovo |
| Product Line | Flex System |
| Product Series | x240 |
| Product Model | 7162J2U |
| Product Name | Flex System x240 7162J2U Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | E5-2670 v2 |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 2.50 GHz |
| Cache | 25 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C600 |
| Memory | |
| Standard Memory | 16 GB |
| Memory Technology | DDR3 SDRAM |
| Total Number of Memory Slots | 24 |
| Controllers | |
| Controller Type | 6Gb/s SAS,Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 1E |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of Internal 2.5" Bays | 2 |
| Total Number of Expansion Slots | 2 |
| Display & Graphics | |
| Graphics Memory Capacity | 16 MB |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Remote Management | Yes |
| Operating System | |
| Operating System | No |
| Miscellaneous | |
| Package Contents | Flex System x240 7162J2U Server Statement of Limited Warranty Important Notices Documentation CD |
| Physical Characteristics | |
| Form Factor | Blade |
| Height | 2.20" (55.88 mm) |
| Width | 8.60" (218.44 mm) |
| Depth | 19.40" (492.76 mm) |
| Weight (Approximate) | 15.60 lb (7076.04 g) |
| Warranty | |
| Limited Warranty | 3 Year |
User Manual
FAQ
What processor does this Lenovo blade server use?
This server is equipped with a single Intel Xeon E5-2670 v2 processor featuring 10 cores (deca-core) running at 2.50 GHz. The processor includes 25 MB of cache memory to accelerate data access for demanding workloads. The platform supports installation of a second processor for future expansion, providing a clear upgrade path as performance requirements grow.
How much memory is installed and what expansion is possible?
The server comes with 16 GB of DDR3 SDRAM memory installed. It features 24 total memory slots, providing substantial expansion capacity beyond the base configuration. This allows organizations to increase memory to 192 GB or more (depending on module capacity) to support memory-intensive applications like virtualization, databases, and in-memory computing workloads.
What storage configuration does this server support?
This blade server includes two internal 2.5" drive bays that support both SAS and SATA drives. The integrated 6Gb/s SAS and Serial ATA/600 controller provides hardware RAID support for levels 0, 1, and 1E. This enables data striping for performance, mirroring for redundancy, or a combination approach to balance speed and protection for critical data.
What is the form factor and how does it install?
This server uses a blade form factor designed specifically for installation into Lenovo Flex System chassis. Measuring 2.20" H × 8.60" W × 19.40" D and weighing 15.60 lb, it slides into a dedicated bay within a compatible Flex System enclosure. The chassis provides shared power supplies, cooling fans, and network connectivity, simplifying cabling and infrastructure management compared to traditional rack servers.
Does this server include an operating system?
No, this server ships without a pre-installed operating system. This provides maximum flexibility for IT teams to install their preferred server OS, whether that's Microsoft Windows Server, various Linux distributions like Red Hat Enterprise Linux or Ubuntu Server, or virtualization platforms such as VMware ESXi. The absence of a bundled OS eliminates licensing conflicts and allows for clean installations tailored to specific application requirements.
What warranty coverage is provided with this server?
Lenovo provides a 3-year limited warranty for this Flex System x240 blade server. The warranty covers defects in materials and workmanship under normal use. The package includes the Statement of Limited Warranty document with complete terms and conditions, along with important notices and a documentation CD containing additional technical information and support resources.
What processor or CPU is listed for this server or storage platform?
This product uses the 1 processor for everyday performance and multitasking.
What processor speed is listed?
This product uses the 2.50 GHz processor for everyday performance and multitasking.
